Page 65 of 337
60
III
C O M F O R T
REAR HEAD RESTRAINTS
The rear head restraints can be
removed and have two positions;
- high, position for use,
- low, storage position.
To raise a head restraint, pull it
upwards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to remain
in the centreline of the seat back.
SECOND ROW SEATS
Longitudinal adjustment
Lift the control A , located at the front
of the seat, then adjust the seat into
the position desired. "Comfort" position
The 3 second-row seats are inde-
pendent of each other and all the
same width. They all can have a
"comfort" position.
Placing a seat in the "comfort"
position
Pull on the control B and guide
the seat rearwards.
The backrest reclines and the seat
base pivots slightly.
Returning the seat to the initial
position
Pull on the control B and allow
the seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
Page 68 of 337
63
III
C O M F O R T
"Cinema seat" position
This position allows you to free up
s p a c e b e t w e e n t h e fi r s t r o w a n d t h e
second row.
Pull the control E under the seat.
This position is only possible with
the lateral seats. Access to the third row seats
The third-row seats can be accessed
via the lateral second-row seats.
Pull the control E . The seat un-
locks and the seat base comes
up against the backrest.
Hold the control E in the raised
position, pushing forwards. The
whole seat slides towards the
front seat.
Space becomes free behind the
seat, the third-row passengers can
get to their seats. Exit from the third row seats
Hold the control E in the raised
position. The seat unlocks and
the seat base comes up against
the backrest.
Push the seat backrest, still hold-
ing the control E in the raised po-
sition.
I f t h e t a b l e o n t h e b a c k o f t h e fi r s t -
row seat is down, close it to enable
this operation.
Repositioning the seat,
from the exterior,
with the door open
If there are passengers seated in
the third row:
manually return the assembly as
far as possible rearwards; the
seat does not return as far as
the maximum rearwards position
so as to retain leg space for the
third-row passengers,
fold the seat base.
Page 69 of 337
64
III
C O M F O R T
THIRD ROW SEATS (GRAND C4 PICASSO)
Concertina boards
Two rigid concertina boards, which
cannot be separated from the ve-
hicle, cover the 2 third-row seats,
when these are in the folded
position.
Folding the concertina boards
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the third-row seats are up-
right, these concertina boards can
be left either:
- fl a t b e h i n d t h e s e a t s ,
- in the vertical position,
thereby leaving a storage area
available. Unfolding the seat
Return the second-row rigid
panels to their initial position and
lock them.
Having folded your concertina
board, pull on the control F lo-
cated behind the seat backrest.
The backrest pivots rearwards,
pulling the seat base with it. The
seat locks in the open position.
Repositioning the seat
Return the second-row rigid
panels to their initial position and
lock them.
Lower the head restraints.
Correctly position the concertina
board vertically behind the seat. Before moving the third-row seats,
return the rigid plates of the sec-
ond-row seats to the upright posi-
tion and lock them.
Do not try to fold a third-row seat
t h a t h a s n o t fi r s t h a d t h e b a c k r e s t
fully locked in place.
Do not leave objects either on or
underneath the seat bases of the
third-row seats when you are fold-
ing them.
Do not leave your hand on the con-
trol
G as you fold the seats, as you
r i s k t r a p p i n g y o u r fi n g e r s .
Pull on the control G , located at
the bottom of the seat backrest.
The seat unlocks.
Next push the backrest gently
forwards. The backrest pivots,
folding onto the seat base. The
seat base then folds into the
stowage area provided for that
purpose.
Reposition the concertina boards
over the folded seats.
Page 71 of 337
66
III
C O M F O R T

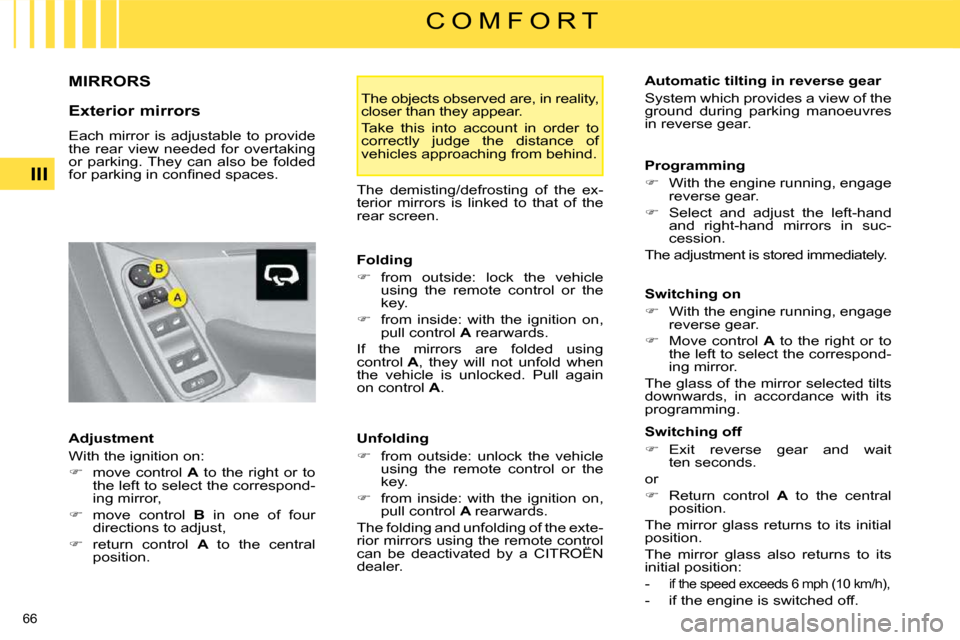

MIRRORS
Exterior mirrors
Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
f o r p a r k i n g i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in one of four
directions to adjust,
return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.
Folding
from outside: lock the vehicle
using the remote control or the
key.
from inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using
control A , they will not unfold when
the vehicle is unlocked. Pull again
on control A .
Unfolding
from outside: unlock the vehicle
using the remote control or the
key.
from inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immediately.
Switching off
Exit reverse gear and wait
ten seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the ex-
terior mirrors is linked to that of the
rear screen.
Page 72 of 337
67
III
C O M F O R T

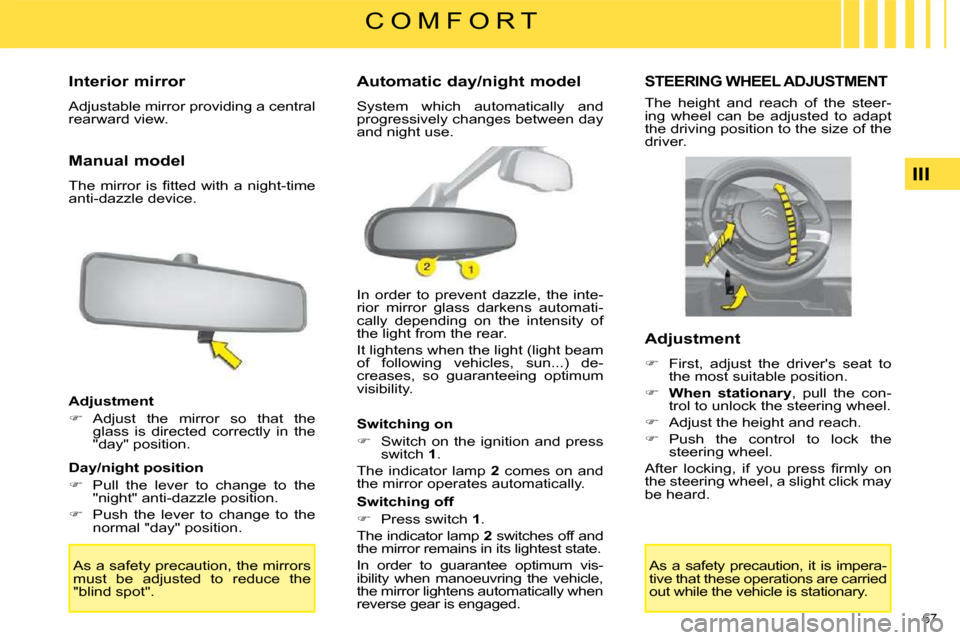

Interior mirror
Adjustable mirror providing a central
rearward view.
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e
anti-dazzle device.
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position.
In order to prevent dazzle, the inte-
rior mirror glass darkens automati-
cally depending on the intensity of
the light from the rear.
It lightens when the light (light beam
of following vehicles, sun...) de-
creases, so guaranteeing optimum
visibility.
Switching on
Switch on the ignition and press
switch 1 .
The indicator lamp 2 comes on and
the mirror operates automatically.
Switching off
Press switch 1 .
The indicator lamp 2 switches off and
the mirror remains in its lightest state.
In order to guarantee optimum vis-
ibility when manoeuvring the vehicle,
the mirror lightens automatically when
reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the con-
trol to unlock the steering wheel.
Adjust the height and reach.
Push the control to lock the
steering wheel.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
System which automatically and
progressively changes between day
and night use.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
Page 73 of 337
68
A C C E S S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the lock or remotely. It is also
used to locate the vehicle, activate
the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle. Complete unlocking using the key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the exterior
mirrors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lamps and exterior side spotlamps
for approximately thirty seconds.
Selective unlocking using the
remote control
Press the open pad-
lock once to unlock the
driver's door only.
Press the open pad-
lock again to unlock
the other doors and
the boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switch-
ing on of the welcome lighting, the
courtesy lights and the exterior side
spotlamps for approximately thir-
ty seconds.
The complete or se-
lective unlocking pa-
rameter is set via the
multifunction display
c o n fi g u r a t i o n m e n u .
Complete unlocking is activated by
default.
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p -
i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds. Selective unlocking is not available
using the key.
Page 74 of 337
69
IV
A C C E S S
Normal locking using the key
Turn the key to the right in the driver's door lock to lock the ve-hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g of the direction indicators for approxi-mately two seconds.
According to version, the exterior mirrors fold at the same time.
It also triggers the timed switching on of the exterior side spotlamps and the guide-me-home lighting, if this is activated.
If one of the doors, the rear screen or the boot is still open, the central locking does not take place.
To permit the transportation of bulky objects, the vehicle can be locked from the inside, using the centralised control on the dash-board, even if the tailgate or rear screen is open.
When the vehicle is locked, if it is unlocked inadvertently, it will relock automatically after thirty seconds unless a door is opened.
When closing the windows and/or glass panoramic roof shutter using the remote control, you must ensu-re that no one prevents them from closing correctly.
The folding and unfolding of the exterior mirrors using the remote control can be deactivated by a CITROËN control can control can dealer. Deadlocking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the glass panoramic
roof blind automatically
in addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the
remote control
Press the closed pa-dlock to lock the vehi-cle completely.
Press the closed padlock for
more than two seconds to close
the windows and the glass pano-
ramic roof shutter automatically
in addition to locking.
Page 75 of 337
70
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
This also triggers the timed switch-
ing on of the exterior side spotlamps
and guide-me-home lighting, if this
is activated.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by lighting of the
courtesy lamps and exterior side
s p o t l a m p s a n d fl a s h i n g o f t h e d i r e c -
tion indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting
of the sidelamps, dipped beams,
number plate lamps and exterior
side spotlamps (located underneath
the exterior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 77 of 337
72
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote
control.
If the problem persists, contact
a CITROËN dealer as soon as
possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition
on
) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
If the remote control bat-
t e r y i s fl a t , y o u a r e i n -
formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o -
cation.
Slide the new battery into its
location observing the original
direction.
Clip the casing together.
Reinitialise the remote control.
Changing the battery
Page 78 of 337
73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the
vehicle's V5 registration document
a n d y o u r p e r s o n a l i d e n t i fi c a t i o n
documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a
replacement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is
a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a
second-hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
