SECOND ROW SEATS (C4 PICASSO)
Folding a seat
Each seat can be folded onto the
fl oor to enable you to modify your
vehicle’s interior space.

 Pull fi rmly upwards on strap C ,
as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.
Push the seat backrest gently forwards so that the backrest
folds onto the seat cushion. The
assembly lowers onto the fl oor. Repositioning a seat

 Raise the backrest and push it
rearwards until it locks in posi-
tion

Always supervise any movements
of seats by children. Panels behind the second row
seats
Panels below the second row seats
provide the bottom of the boot space
with rigidity. They automatically follow
the seat movements (e.g. forwards-
backwards adjustment, folding).
A storage area is available under-
neath the panels.

III
71
C O M F O R T
SECOND ROW REAR SEATS (GRAND C4 PICASSO)
Each seat can be folded onto the
fl oor to form a fl at surface, thus en-
abling you to adapt your vehicle’s
interior space.
Folding a seat
From the outside

 Pull fi rmly upwards on strap C ,
as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.
Push the seat backrest gently forwards so that the backrest
folds onto the seat cushion. The
assembly lowers onto the fl oor. From the boot (when loading, for
example)
You can fold the second-row seat(s)
from the boot, having fi rst folded the
third-row seats.

 Pull on the strap D to unlock the
chosen seat, push the backrest
gently forwards.
To prevent any damage to the mechanism, the strap D unclips
under excessive force. Simply
clip it back in place to render the
system operational.
Repositioning a seat

 Return the second-row seat rigid
panels to their initial position and
lock them in position.

 Raise the backrest and push it
rearwards until it locks in posi-
tion.
Before moving the third-row seats,
return the second-row rigid panels
to their initial position and lock them
in place.
Never allow children to operate the
seats without supervision. Rigid panel
Each second-row seat backrest has
a rigid panel attached.
This panel enables you:
- to have a continuous load sur-
face in the boot, whatever the
positions of the seats,
- to avoid having objects sliding under the second-row seats.
Unlocking/Locking the rigid
panel

 Slide the latch 1 on the panel
downwards, to unlock.


Return the panel to the upright
position, then slide the latch 1
upwards, to lock.
Before positioning the rigid panels,
check that the second-row seats are
in the fully back position.
5-seater confi gurations do not have
these rigid panels.

III
72
C O M F O R T
"Cinema seat" position
This position allows you to free up
space between the fi rst row and the
second row.
Pull the lever E under the seat.
This position is only possible with
the outer seats. Access to the third row seats
Access to the third-row seats is via
the outer second-row seats.

 Pull the lever E . The seat unlocks
and the seat cushion comes up
against the backrest.

 Hold the lever E in the raised
position, pushing forwards. The
whole seat slides towards the
front seat.
Space becomes free behind the
seat, the third-row passengers can
get to their seats. Exit from the third row seats

 Hold the lever E in the raised
position. The seat unlocks and
the seat cushion comes up
against the backrest.

 Push the seat backrest, still
holding the lever E in the raised
position.
If the table on the back of the fi rst-
row seat is down, close it to enable
this operation.
Repositioning a seat, from
the outside, with the door
open
If there are passengers seated in
the third row:

 manually return the assembly as
far as possible rearwards; the
seat does not return as far as the
maximum rearwards position so
as to retain legroom for the third-
row passengers,

 fold the seat cushion until it
locks.
Ensure that there is no object on
or under the seat that you want to
move.
Emergency exit: should the fi rst
system fail (strap C ), use of the le-
ver E allows third-row passengers
to leave.
Do not allow children to operate
the seats without supervision.

III
73
C O M F O R T
THIRD ROW SEATS (GRAND C4 PICASSO)
Concertina boards
Two rigid concertina boards, which
cannot be separated from the vehi-
cle, cover the 2 third-row seats, when
these are in the folded position.
Folding the concertina boards
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the third-row seats are up-
right, these concertina boards can
be left either:
- fl at behind the seats,
- in the vertical position,
thereby leaving a storage area avail-
able. Unfolding the seat

 Return the second-row rigid
panels to their initial position and
lock them.

 Having folded your concertina
board, pull on the control F lo-
cated behind the seat backrest.
The backrest pivots rearwards,
pulling the seat base with it. The
seat locks in the open position.
Repositioning the seat

 Return the second-row rigid
panels to their initial position and
lock them.

 Lower the head restraints.

 Correctly position the concertina
board vertically behind the seat.
 Pull on the control G , located at
the bottom of the seat backrest.
The seat unlocks.

 Next push the backrest gently
forwards. The backrest pivots,
folding onto the seat base. The
seat base then folds into the
stowage area provided for that
purpose.

 Reposition the concertina boards
over the folded seats.
Before moving the third-row seats,
return the rigid plates of the second-
row seats to the upright position and
lock them.
Do not try to fold a third-row seat
that has not fi rst had the backrest
fully locked in place.
Do not leave objects either on or
underneath the seat bases of the
third-row seats when you are fold-
ing them.
Do not leave your hand on the
control G as you fold the seats, as
you risk trapping your fi ngers.
Do not allow children to operate
the seats without supervision.

III
74
C O M F O R T
SEAT MODULARITY AND THE VARIOUS CONFIGURATIONS

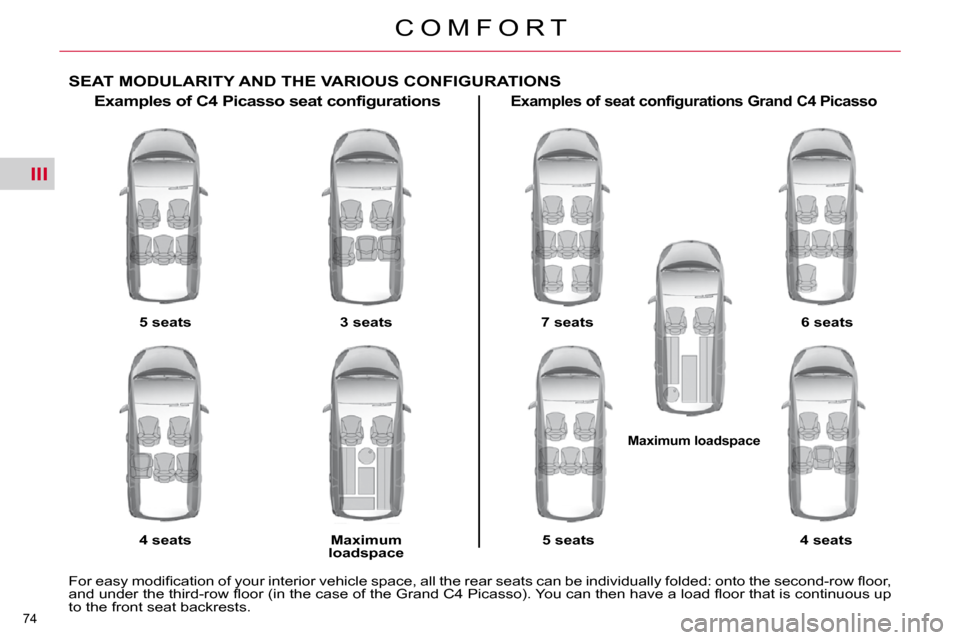

Examples of C4 Picasso seat configurations
5 seats

4 seats
3 seats

Maximum
loadspace Examples of seat configurations Grand C4 Picasso

7 seats 6 seats

5 seats 4 seats

Maximum loadspace
For easy modifi cation of your interior vehicle space, all the re ar seats can be individually folded: onto the second-row fl oor,
and under the third-row fl oor (in the case of the Grand C4 Pi casso). You can then have a load fl oor that is continuous up
to the front seat backrests.

III
75
C O M F O R T
MIRRORS
Door mirrors

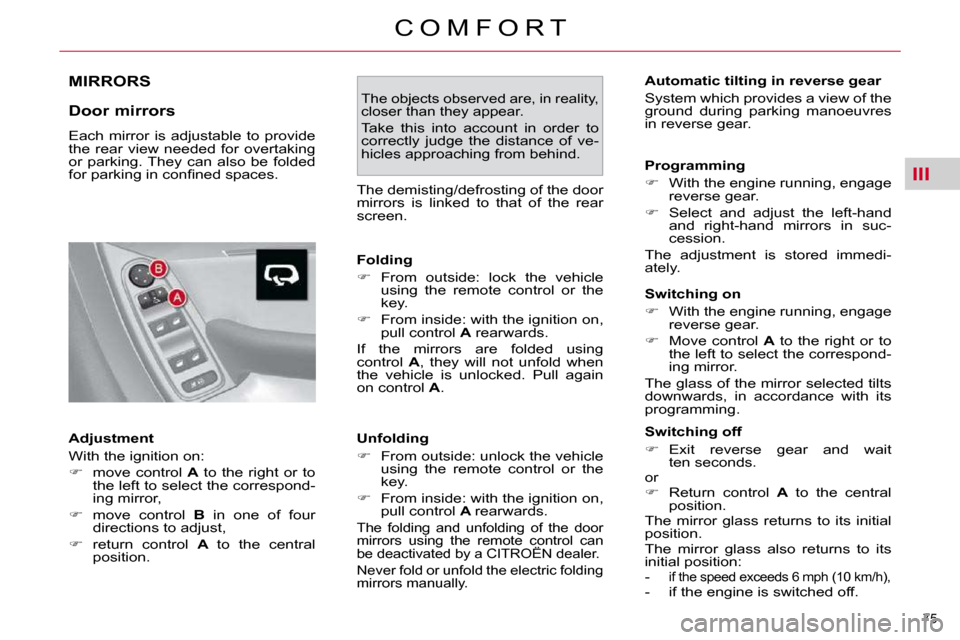

Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
for parking in confi ned spaces.
Adjustment
With the ignition on:

 move control A to the right or to
the left to select the correspond-
ing mirror,

 move control B in one of four
directions to adjust,

 return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding

 From outside: lock the vehicle
using the remote control or the
key.

 From inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using
control A , they will not unfold when
the vehicle is unlocked. Pull again
on control A .
Unfolding

 From outside: unlock the vehicle
using the remote control or the
key.

 From inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the door
mirrors using the remote control can
be deactivated by a CITROËN dealer.
Never fold or unfold the electric folding
mirrors manually.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming

 With the engine running, engage
reverse gear.

 Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off

 Exit reverse gear and wait
ten seconds.
or

 Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h), - if the engine is switched off.
Switching on

 With the engine running, engage
reverse gear.

 Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the door
mirrors is linked to that of the rear
screen.

III
76
C O M F O R T
Rear view mirror

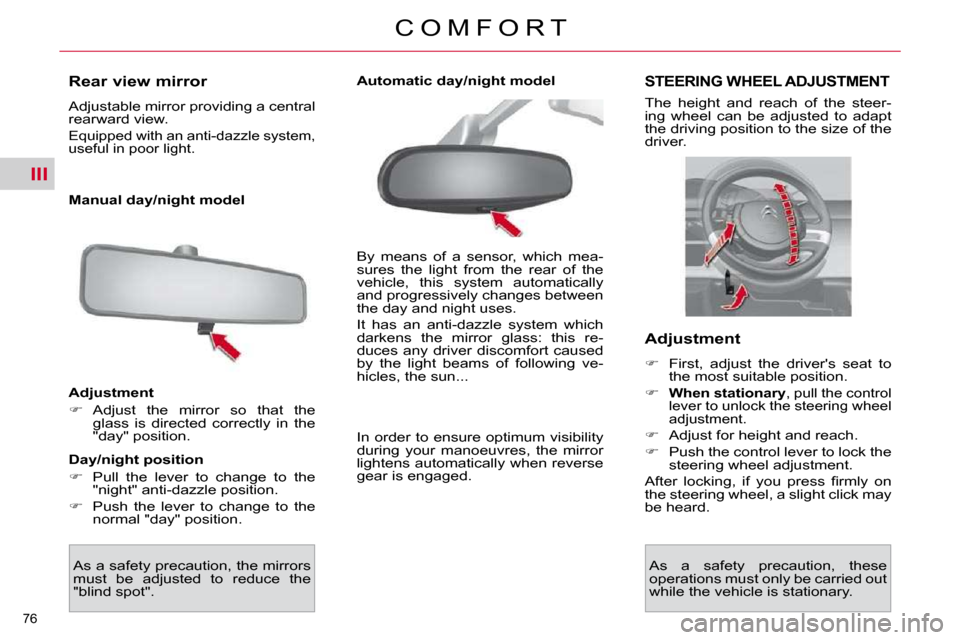

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Manual day/night model
Adjustment

 Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position

 Pull the lever to change to the
"night" anti-dazzle position.

 Push the lever to change to the
normal "day" position. By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this re-
duces any driver discomfort caused
by the light beams of following ve-
hicles, the sun...
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.
Adjustment

 First, adjust the driver's seat to
the most suitable position.



When stationary , pull the control
lever to unlock the steering wheel
adjustment.

 Adjust for height and reach.

 Push the control lever to lock the
steering wheel adjustment.
After locking, if you press fi rmly on
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
As a safety precaution, these
operations must only be carried out
while the vehicle is stationary.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

IV
77
A C C E S S
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
door lock or remotely. It is also used
to locate the vehicle, activate the
guide-me-home lighting and start the
engine, as well as providing protec-
tion against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key

 First press this button to unfold
the key.

 Press the open padlock
to unlock the vehicle. Complete unlocking using the
key

 Turn the key to the left in the
driver's door lock to unlock the
vehicle.
Unlocking is confi rmed by rapid
fl ashing of the direction indicators
for approximately two seconds.
According to version, the door mir-
rors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lamps and exterior side spot lamps
for approximately thirty seconds.
Selective unlocking using the
remote control

 Press the open pad-
lock once to unlock the
driver's door only.

 Press the open padlock again to
unlock the other doors and the
boot. According to version, the door mir-
rors unfold at the same time as the
fi rst unlocking action.
It also triggers the timed switching on
of the welcome lighting, the courtesy
lamps and the exterior side spotlamps
for approximately thirty seconds.
The complete or selec-
tive unlocking parameter
is set via the multifunc-
tion screen confi guration
menu.
Complete unlocking is activated by
default.
Unlocking is confi rmed by rapid
fl ashing of the direction indicators
for approximately two seconds. Selective unlocking is not available
using the key.

IV
78
A C C E S S
Normal locking using the key

 Turn the key to the right in the
driver's door lock to lock the
vehicle. To allow long objects to be carried,
the vehicle can be locked from the
inside, using the central locking
control on the dashboard, even if
the tailgate or rear screen is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
itself again automatically after thirty
seconds unless a door is opened.
When closing the windows and/or
panoramic sunroof blind using the
remote control, you must ensure
that no one prevents them from
closing correctly.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer. Deadlocking using the remote
control

 Press the closed pad-
lock to lock the vehicle
completely or press
the closed padlock for
more than two seconds
to close the windows
and the panoramic sun-
roof blind automatically
in addition to locking.

 Press the closed padlock again
within fi ve seconds to deadlock
the vehicle.
Locking the vehicle
Normal locking using the remote
control

 Briefl y press the closed
padlock to lock the ve-
hicle.

 Make a long press on the closed
padlock to lock the vehicle and
also close the windows and the
panoramic sunroof blind.
Locking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mir-
rors fold at the same time.
Locking also triggers the timed
switching on of the exterior side
spotlamps and the guide-me-home
lighting, if this is activated. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.

IV
79
A C C E S S
Deadlocking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically
in addition to locking.

 Turn the key to the right again
within fi ve seconds to deadlock
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.

 First press this button to fold the
key.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, especial-
ly when the light is poor. Your vehicle
must be locked.

 Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
as fl ashing the direction indicators
for a few seconds. Guide-me-home lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on this button oper-
ates the guide-me-home light-
ing (lighting of the sidelamps,
dipped beam headlamps,
number plate lamps and exte-
rior side spotlamps (located underneath
the door mirrors)).
A second press before the end of the
timing cancels the guide-me-home
lighting.
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
