A C C E S S
Reinitialisation
If a window does not rise automati-
cally, its operation must be reini-
tialised:

 pull the control until the window
stops,

 release the control and pull it
again until the window closes
fully,

 continue to hold the control for
approximately one second after
the window has closed,

 press the control to lower the
window automatically to the low
position,

 when the window has reached
the low position, press the con-
trol again for approximately one
second.

The safety anti-pinch function
is not operational during these
operations. Deactivation of the rear
electric window and door
controls

 For the safety of your children,
press control 5 to deactivate the
rear electric window controls re-
gardless of their position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
This warning lamp comes
on temporarily on the instru-
ment panel on deactivation
and each time the ignition is
switched on.
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
Electric child lock").

IV
87
A C C E S S
DOORS
Opening

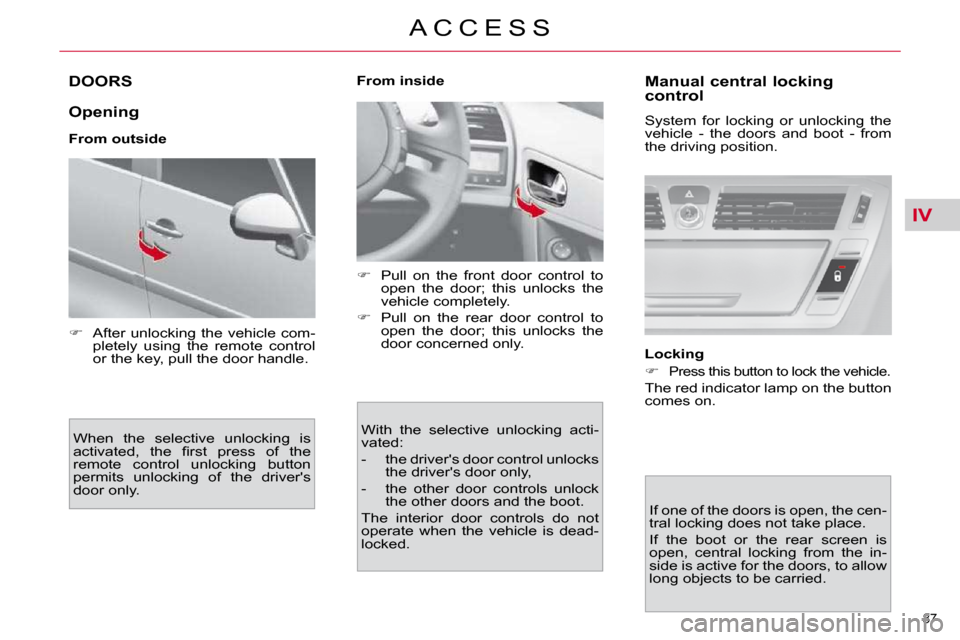

From outside When the selective unlocking is
activated, the fi rst press of the
remote control unlocking button
permits unlocking of the driver's
door only.
 Pull on the front door control to
open the door; this unlocks the
vehicle completely.

 Pull on the rear door control to
open the door; this unlocks the
door concerned only.
With the selective unlocking acti-
vated:
- the driver's door control unlocks the driver's door only,
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Manual central locking
control
System for locking or unlocking the
vehicle - the doors and boot - from
the driving position.
Locking


Press this button to lock the vehicle.

The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking does not take place.
If the boot or the rear screen is
open, central locking from the in-
side is active for the doors, to allow
long objects to be carried.

 After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside

IV
88
A C C E S S
Unlocking

 Press this button again to unlock
the vehicle.
The red indicator lamp on the button
goes off.

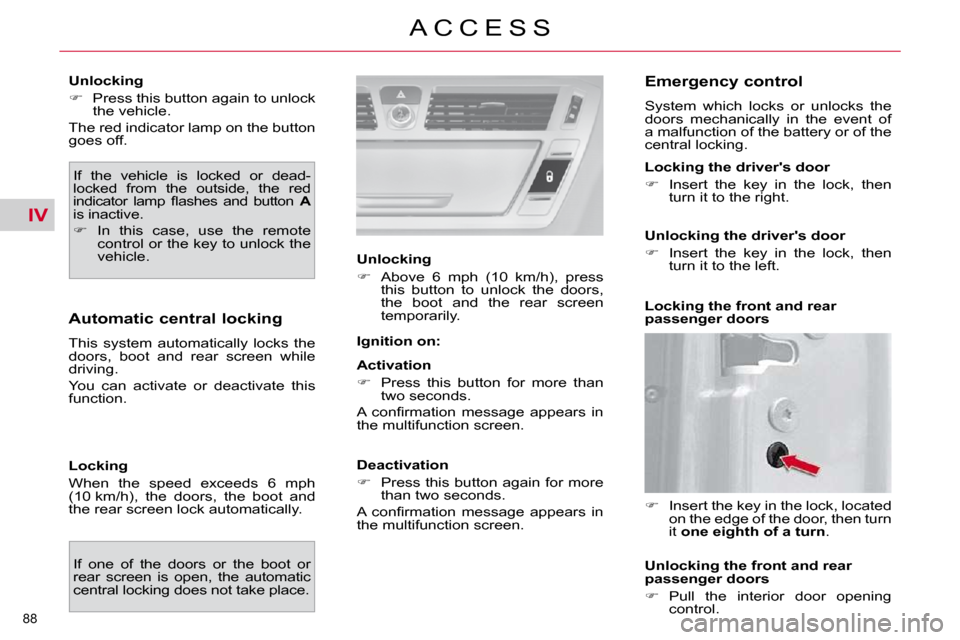

If the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
Automatic central locking
This system automatically locks the
doors, boot and rear screen while
driving.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and
the rear screen lock automatically. Unlocking

 Above 6 mph (10 km/h), press
this button to unlock the doors,
the boot and the rear screen
temporarily.
Ignition on:
Deactivation

 Press this button again for more
than two seconds.
A confi rmation message appears in
the multifunction screen. Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking.
Locking the driver's door

 Insert the key in the lock, then
turn it to the right.
Unlocking the driver's door

 Insert the key in the lock, then
turn it to the left.
Locking the front and rear
passenger doors

 Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
Unlocking the front and rear
passenger doors

 Pull the interior door opening
control.
If one of the doors or the boot or
rear screen is open, the automatic
central locking does not take place. Activation

 Press this button for more than
two seconds.
A confi rmation message appears in
the multifunction screen.

IV
89
A C C E S S

 After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the lever 1 and
raise the tailgate.

 Lower the tailgate using one of
the two handholds 3 , located on
the interior trim. -
when the engine is
running , this warning
lamp comes on, accom-
panied by a message in
the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message in the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:

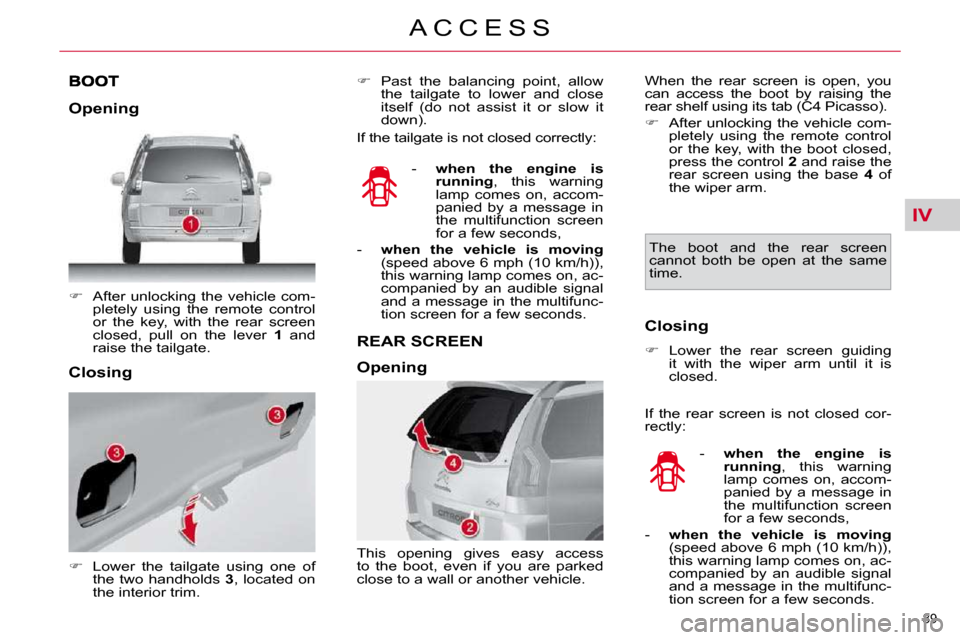

REAR SCREEN
This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle. Closing

 Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed cor-
rectly: - when the engine is
running , this warning
lamp comes on, accom-
panied by a message in
the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message in the multifunc-
tion screen for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open, you
can access the boot by raising the
rear shelf using its tab (C4 Picasso).

 After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.

 Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing

IV
90
A C C E S S
Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.

 Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC SUNROOF
It is fi tted with an electrically con-
trolled blind.
Opening the roof blind

 Rotate the control knob B to slide
the roof blind to the desired posi-
tion (positions 1 to 9 ). Closing the roof blind

 Rotate the control knob B to po-
sition 0 to close the roof blind.

Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle in a sunlit
car park).
- On returning to your vehicle, a press on control knob B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you must re-initialise the anti-pinch
function:

 place the blind in the closed
position,

 press control knob B for approxi-
mately two seconds.

IV
90
A C C E S S
Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.

 Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC SUNROOF
It is fi tted with an electrically con-
trolled blind.
Opening the roof blind

 Rotate the control knob B to slide
the roof blind to the desired posi-
tion (positions 1 to 9 ). Closing the roof blind

 Rotate the control knob B to po-
sition 0 to close the roof blind.

Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle in a sunlit
car park).
- On returning to your vehicle, a press on control knob B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you must re-initialise the anti-pinch
function:

 place the blind in the closed
position,

 press control knob B for approxi-
mately two seconds.

IV
91
A C C E S S
FUEL TANK

Capacity of the tank: approximately
60 litres.
Low fuel level When the low fuel level is
reached, this warning lamp
comes on in the instrument
panel, accompanied by an
audible warning and a message in
the multifunction screen.
When it fi rst comes on, around 7 litres
of fuel remain in the tank.
Until suffi cient fuel has been added,
this warning lamp comes on every
time the ignition is switched on, ac-
companied by an audible signal and
a message. Depending on the ver-
sion, this audible signal and mes-
sage are repeated with increasing
frequency, as the fuel level drops
towards " 0 ".
You must refuel as soon as possible

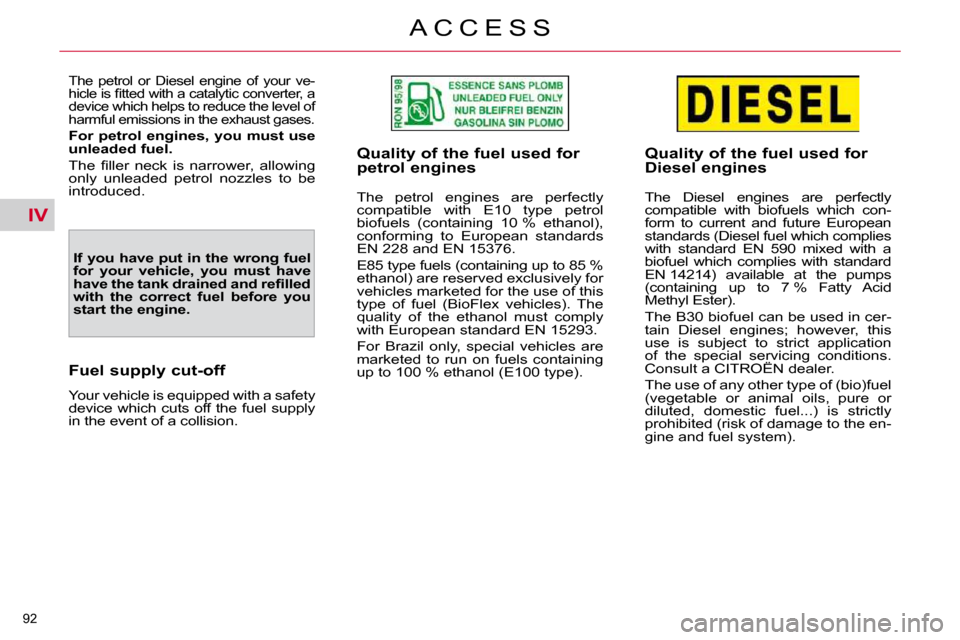

to avoid running out. A label on the inner face of the fuel
fi ller fl ap reminds you of the type of
fuel to be used, according to your
engine type.
Additions of fuel must be of at least
5 litres to be registered by the fuel
gauge.

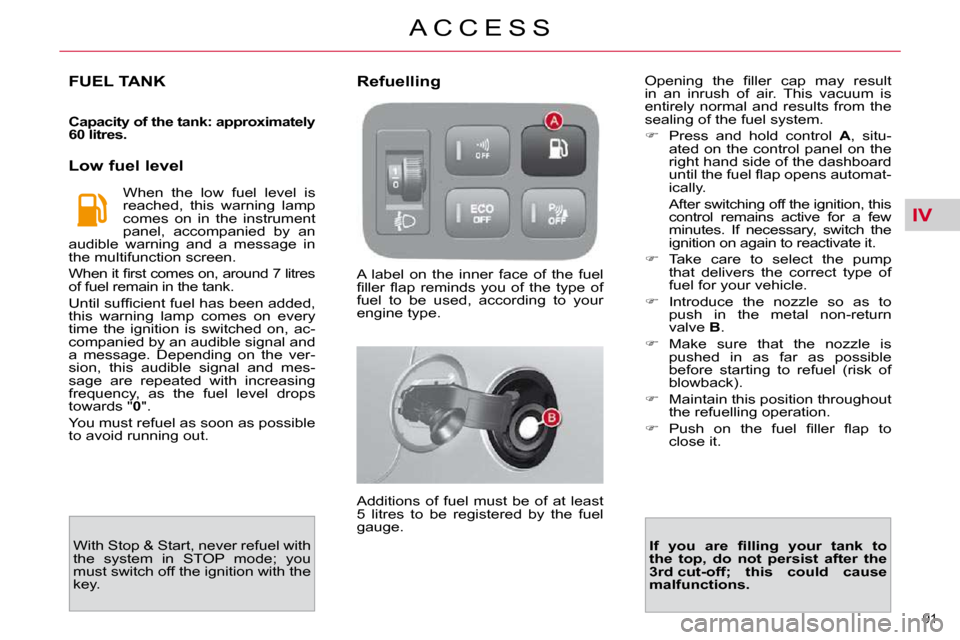

Refuelling

If you are fi lling your tank to
the top, do not persist after the
3rd cut-off; this could cause
malfunctions.

With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key. Opening the fi ller cap may result
in an inrush of air. This vacuum is
entirely normal and results from the
sealing of the fuel system.

 Press and hold control A , situ-
ated on the control panel on the
right hand side of the dashboard
until the fuel fl ap opens automat-
ically.
After switching off the ignition, this control remains active for a few
minutes. If necessary, switch the
ignition on again to reactivate it.

 Take care to select the pump
that delivers the correct type of
fuel for your vehicle.

 Introduce the nozzle so as to
push in the metal non-return
valve B .

 Make sure that the nozzle is
pushed in as far as possible
before starting to refuel (risk of
blowback).

 Maintain this position throughout
the refuelling operation.

 Push on the fuel fi ller fl ap to
close it.

IV
92
A C C E S S
The petrol or Diesel engine of your ve-
hicle is fi tted with a catalytic converter, a
device which helps to reduce the level of
harmful emissions in the exhaust gases.

For petrol engines,
you must use

unleaded fuel
.
The fi ller neck is narrower, allowing
only unleaded petrol nozzles to be
introduced.

If you have put in the wrong fuel
for your vehicle, you must have
have the tank drained and refi lled
with the correct fuel before you
start the engine. Quality of the fuel used for
petrol engines
Quality of the fuel used for
Diesel engines
Fuel supply cut-off
Your vehicle is equipped with a safety
device which cuts off the fuel supply
in the event of a collision. The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10 % ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply
with European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100 % ethanol (E100 type).
The Diesel engines are perfectly
compatible with biofuels which con-
form to current and future European
standards (Diesel fuel which complies
with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps
(containing up to 7 % Fatty Acid
Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this
use is subject to strict application
of the special servicing conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or
diluted, domestic fuel...) is strictly
prohibited (risk of damage to the en-
gine and fuel system).

V
93
V I S I B I L I T Y
EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and
control of the various front and rear
lamps providing the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
Other lamps are fi tted to fulfi l the re-
quirements of particular driving con-
ditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for im- proved visibility when cornering,
- daytime running lamps to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic illumination of head-
lamps,
- directional lighting.
Manual controls Lamps off.

Automatic illumination of
headlamps.
Sidelamps only.
Dipped headlamps or
main beam headlamps.

B. Stalk for switching headlamps:
pull to switch the lighting be-
tween dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
("headlamp fl ash") by maintaining a
pull on the stalk.
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
confi rms the switching on of the
lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring
A and the stalk B .
A. Main lighting mode selection
ring: turn it to position the symbol
required facing the mark.

V
94
V I S I B I L I T Y

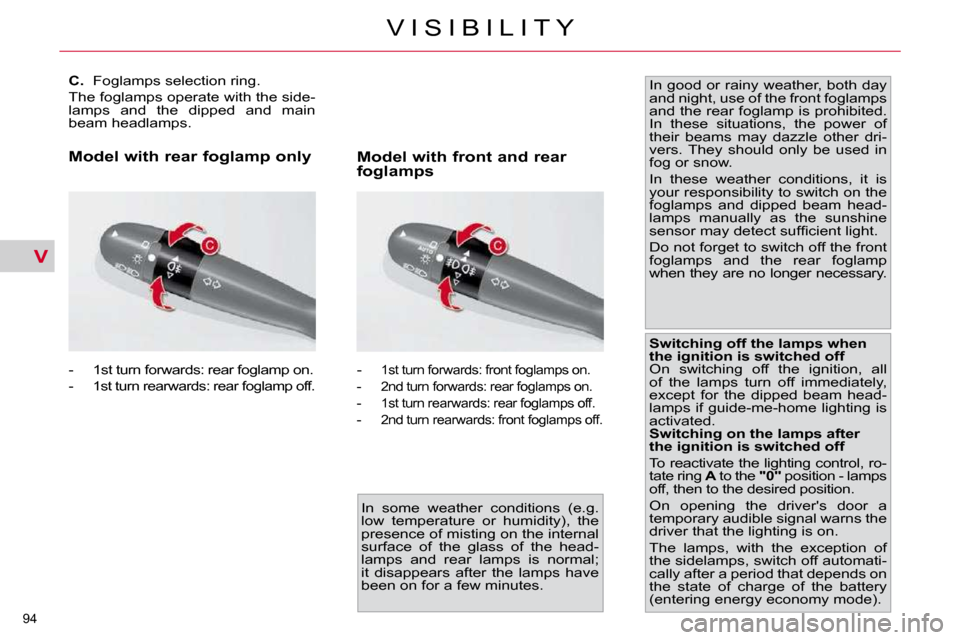

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
- 1 st turn forwards: rear foglamp on.
-
1 st turn rearwards: rear foglamp off.
- 1 st turn forwards: front foglamps on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps off.
Model with rear foglamp only Model with front and rear
foglamps
In good or rainy weather, both day
and night, use of the front foglamps
and the rear foglamp is prohibited.
In these situations, the power of
their beams may dazzle other dri-
vers. They should only be used in
fog or snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the sunshine
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer necessary.
Switching off the lamps when
the ignition is switched off
On switching off the ignition, all
of the lamps turn off immediately,
except for the dipped beam head-
lamps if guide-me-home lighting is
activated.
In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes. Switching on the lamps after
the ignition is switched off
To reactivate the lighting control, ro-
tate ring
A to the "0" position - lamps
off, then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a period that depends on
the state of charge of the battery
(entering energy economy mode).
