5. Air recirculation

 Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).

 Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:

Locking of the rear
passenger controls

Authorisation of the rear
passenger controls

Reduction of the
air fl ow for the rear
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.

 Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recirculation of
air within the passenger compartment
and also has an automatic function.

III
62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- optimum air fl ow,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or "
AUTO"
to stop the function. Demisting/de-
frosting of the door mirrors and rear
screen remains activated.
10. Air conditioning

 Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
ment of the air fl ow is
aligned on the front
ventilation.

 Rotate the button
to decrease or in-
crease the air fl ow.
You can adjust the air fl ow only if this is enabled by the driver (see but-
ton 6 of the driver’s control panel).

With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.

III
63
C O M F O R T
ADDITIONAL AIR CONDITIONING
Additional air conditioning allows you
to optimise comfort levels in warm
weather conditions. It produces ad-
ditional fresh air which is supplied
using the rear air vents. The supply
of warm air via the rear air vents is
not possible using this system.
C. REAR PASSENGER CONTROL PANELS (RIGHT/LEFT)

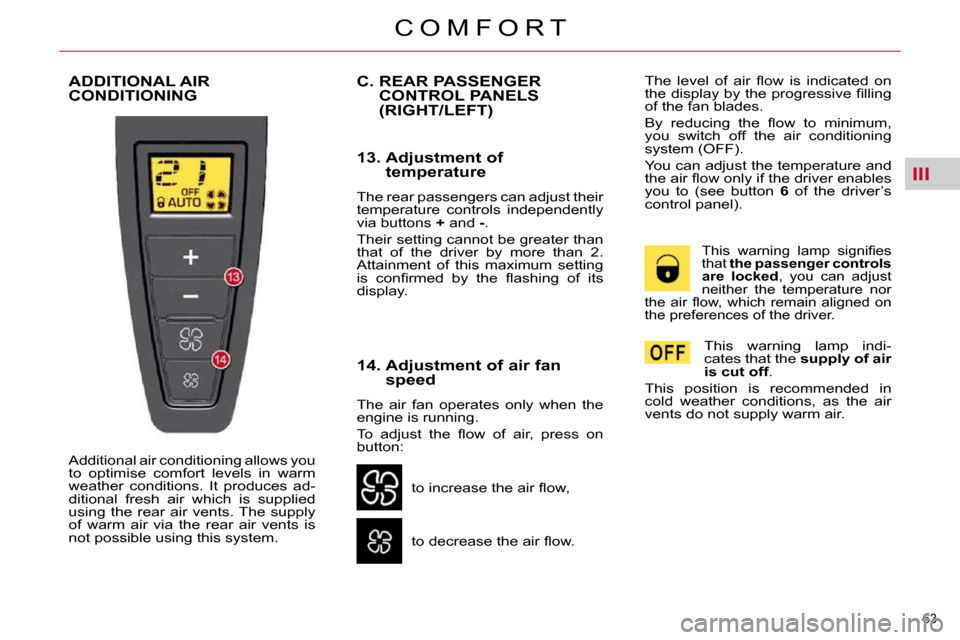

13. Adjustment of temperature
The rear passengers can adjust their
temperature controls independently
via buttons + and - .
Their setting cannot be greater than
that of the driver by more than 2.
Attainment of this maximum setting
is confi rmed by the fl ashing of its
display.
14. Adjustment of air fan speed
The air fan operates only when the
engine is running.
To adjust the fl ow of air, press on
button:
to increase the air fl ow,
to decrease the air fl ow. The level of air fl ow is indicated on
the display by the progressive fi lling
of the fan blades.
By reducing the fl ow to minimum,
you switch off the air conditioning
system (OFF).
You can adjust the temperature and
the air fl ow only if the driver enables
you to (see button
6 of the driver’s
control panel).
This warning lamp signifi es
that the passenger controls
are locked , you can adjust
neither the temperature nor
the air fl ow, which remain aligned on
the preferences of the driver.
This warning lamp indi-
cates that the supply of air
is cut off .
This position is recommended in
cold weather conditions, as the air
vents do not supply warm air.

III
64
C O M F O R T
SCENTED AIR FRESHENER
The scented air freshener releases
a fragrance into the passenger com-
partment via the central air vents.

 Rotate the button A to adjust (to
the left to reduce, to the right to
increase) or stop (maximum to
the left) the fl ow of scented air.
The central air vents have to be
open.
 Press the button A , rotating it a
quarter turn to the left as far as it
will go.

 Remove the air freshener from
the dashboard.

 Replace the cartridge (see
"Replacing a cartridge"). After fi tting or changing a cartridge:

 Place the air freshener back in
its housing.

 Rotate it a quarter turn to the
right.

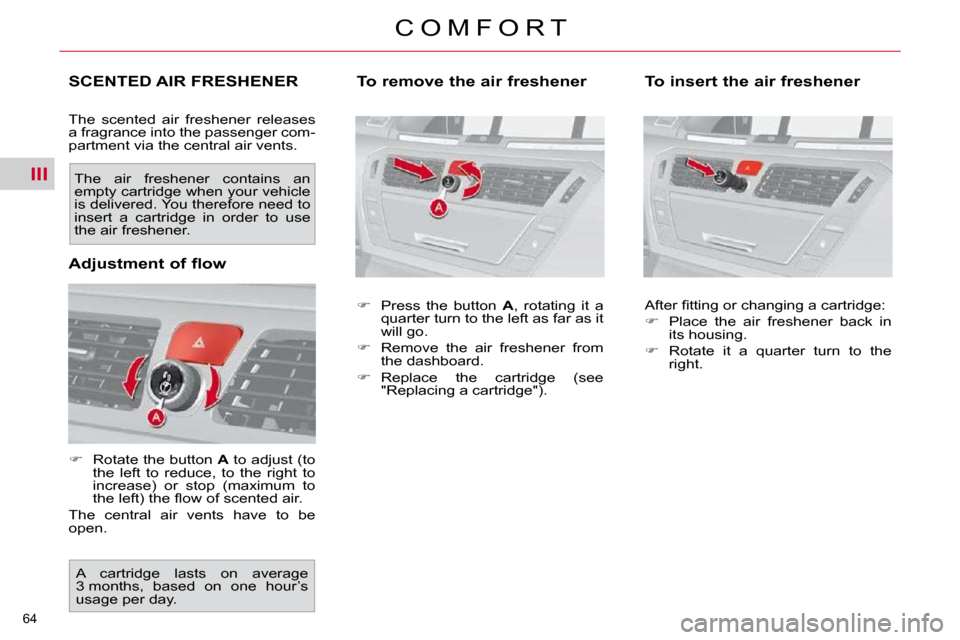

Adjustment of flow To remove the air freshener To insert the air freshe
ner
The air freshener contains an
empty cartridge when your vehicle
is delivered. You therefore need to
insert a cartridge in order to use
the air freshener.
A cartridge lasts on average
3 months, based on one hour’s
usage per day.

III
65
C O M F O R T
The recharge for the air freshener
consists of a cartridge B and its
sealed container C .

 Remove the protective fi lm D .

 Place the head of the cartridge B
on the button A of the air freshener.

 Rotate it a quarter turn to lock
it on the button and remove the
container.

 Insert the air freshener into its
housing.
You can change cartridges at any
time, keeping the used cartridges in
their original containers. The air freshener button
A is inde-
pendent of the cartridge. Cartridges
are supplied without the air freshen-
er button A .
The button of the air freshener A
can only be fi tted to the centre of
the dashboard with a cartridge at-
tached.
Therefore always keep the air fresh-
ener button A and one cartridge.
Recharges are available, depending
on country, either on the Internet site
or from a CITROËN dealer.
Locations are provided in the glove
box for storing cartridges and con-
tainers.
Replacing a cartridge Air freshener button

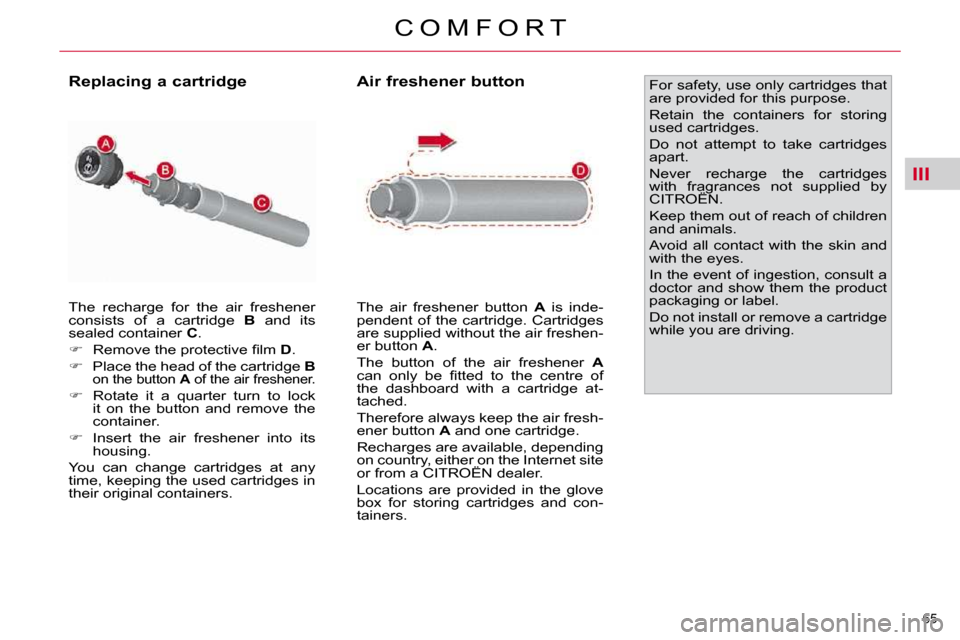

For safety, use only cartridges that
are provided for this purpose.
Retain the containers for storing
used cartridges.
Do not attempt to take cartridges
apart.
Never recharge the cartridges
with fragrances not supplied by
CITROËN.
Keep them out of reach of children
and animals.
Avoid all contact with the skin and
with the eyes.
In the event of ingestion, consult a
doctor and show them the product
packaging or label.
Do not install or remove a cartridge
while you are driving.

III
66
C O M F O R T
FRONT SEATS
MANUAL ADJUSTMENTS
1. Forwards-backwards adjustment
Raise the control bar, then slide the
seat to the position desired. 2. Lumbar support
Rotate the control until you attain
the position desired. 3. Seat height adjustment
Raise or lower the the control the
number of times necessary to obtain
the position desired.
4. Backrest angle
Operate the control and adjust the
angle of the backrest.
It is possible to incline the back-
rest 45° rearwards by tilting it until it
locks; to unlock it, lift the control.
5. Armrest
To adjust the position of the armrest,
pull it up and then fully down, and
then raise it to the desired position.
6. Head restraint
To raise it, pull it upwards. To lower
it, press on the control as well as on
the head restraint.
The adjustment is correct when the
top of the head restraint is level with
the top of the head.
It can also be adjusted for tilt (de-
pending on version).
To remove it, press on the unlocking
button and pull it upwards.
To adjust the head restraint for-
wards/backwards, move the base of
the head restraint to obtain the posi-
tion desired.

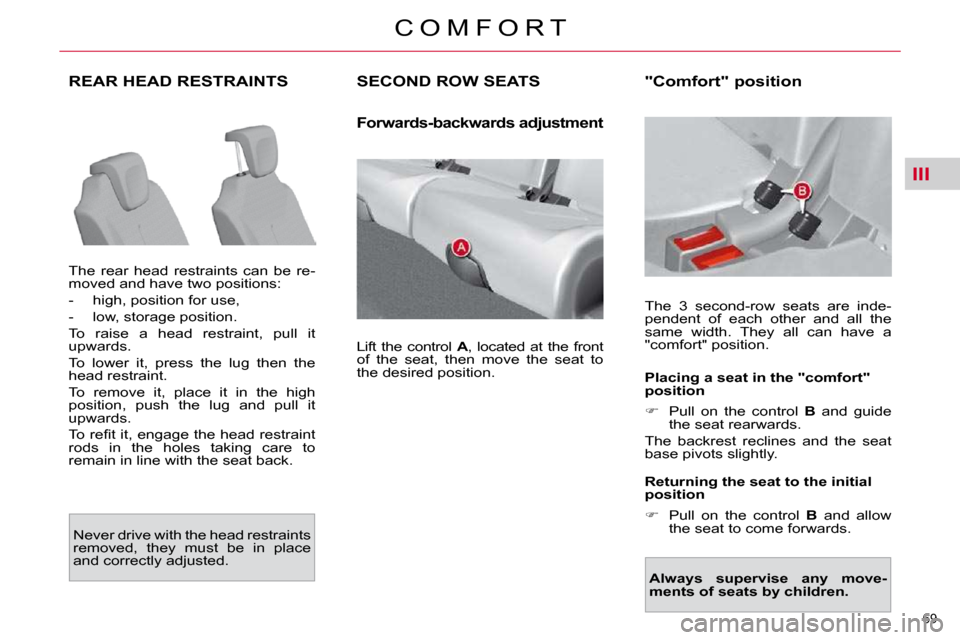

Never drive without the head
restraints fi tted. They must be in
place and adjusted correctly.

III
67
C O M F O R T
1. Adjustment of the seat height and angle,
forwards-backwards 2. Adjustment of backrest
angle and lumbar support
The seats can also be adjusted elec-
trically for a short period:
- on opening one of the front doors,
- after switching off the ignition. Heated seats control
ELECTRIC ADJUSTMENTS
Raise or lower the front of
control to raise or lower the
front of the seat base (on
driver’s seat).
Raise or lower the rear of
control to raise or lower the
seat.
Action control forwards or
backwards to slide the seat
forwards/backwards. Push the top of control
forwards or backwards to
adjust the backrest angle.
Raise or lower control to
increase or decrease the
lumbar support.
With the engine running, the front
seats can be heated individually.

 Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:
0 : Off.
1 : Low.
2 : Medium.
3 : High.

III
68
C O M F O R T
Storing driving positions
System which memorises the elec-
trical settings of the driver’s seat and
door mirrors. It enables you to store
up to two positions using the buttons
on the side of the driver’s seat. Storing a position
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and the door
mirrors.

 Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indi- cating that the position has been
stored.
Storing a new position cancels the
previous position. Recalling a stored position
Ignition on or engine running

 Briefl y press button 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery.
Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indi-
cating the end of the adjustment.
Do not try to store a driving position
while driving.

III
69
C O M F O R T
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it
upwards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
To refi t it, engage the head restraint
rods in the holes taking care to
remain in line with the seat back.
SECOND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front
of the seat, then move the seat to
the desired position. "Comfort" position
The 3 second-row seats are inde-
pendent of each other and all the
same width. They all can have a
"comfort" position.
Placing a seat in the "comfort"
position

 Pull on the control B and guide
the seat rearwards.
The backrest reclines and the seat
base pivots slightly.
Returning the seat to the initial
position

 Pull on the control B and allow
the seat to come forwards.

Always supervise any move-
ments of seats by children.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.

III
69
C O M F O R T
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it
upwards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
To refi t it, engage the head restraint
rods in the holes taking care to
remain in line with the seat back.
SECOND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front
of the seat, then move the seat to
the desired position. "Comfort" position
The 3 second-row seats are inde-
pendent of each other and all the
same width. They all can have a
"comfort" position.
Placing a seat in the "comfort"
position

 Pull on the control B and guide
the seat rearwards.
The backrest reclines and the seat
base pivots slightly.
Returning the seat to the initial
position

 Pull on the control B and allow
the seat to come forwards.

Always supervise any move-
ments of seats by children.
Never drive with the head restraints
removed, they must be in place
and correctly adjusted.
