CITROEN C4 PICASSO 2010 Manual Online
Manufacturer: CITROEN, Model Year: 2010, Model line: C4 PICASSO, Model: CITROEN C4 PICASSO 2010Pages: 352, PDF Size: 10.66 MB
Page 81 of 352
Downloaded from www.Manualslib.com manuals search engine IV
79
ACCESS
Normal locking using the key
)
Turn the key to the right in the
driver's door lock to lock the ve-
hicle. To allow long objects to be carried,
the vehicle can be locked from the
inside, using the central locking
control on the dashboard, even if
the tailgate or rear screen is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
itself again automatically after thirty
seconds unless a door is opened.
When closing the windows and/or
panoramic sunroof blind using the
remote control, you must ensure
that no one prevents them from
closing correctly.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Deadlocking using the remote
control
)
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the panoramic sunroof
blind automatically in
addition to locking.
)
Press the closed padlock again
within fi ve seconds to deadlock
the vehicle.
Locking the vehicle
Normal locking using the remote
control
)
Briefl y press the closed
padlock to lock the ve-
hicle.
)
Make a long press on the closed
padlock to lock the vehicle and
also close the windows and the
panoramic sunroof blind.
Locking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mir-
rors fold at the same time.
Locking also triggers the timed
switching on of the exterior side
spotlamps and the guide-me-home
lighting, if this is activated.
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
Page 82 of 352
Downloaded from www.Manualslib.com manuals search engine IV
80
ACCESS
Deadlocking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically
in addition to locking.
)
Turn the key to the right again
within fi ve seconds to deadlock
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked. Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.
)
First press this button to fold the
key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, espe-
cially when the light is poor. Your ve-
hicle must be locked.
)
Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
as fl ashing the direction indicators
for a few seconds.
Remote operation of lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a fault,
you are informed by il-
lumination of this warn-
ing lamp, an audible
signal and a message in the screen.
In this case, your vehicle will not
start; contact a CITROËN dealer as
soon as possible.
Keep safely the label attached to the
keys given to you on acquisition of
the vehicle.
Folding the key
A press on this button
brings on the temporary
illumination of sidelamps,
dipped beam headlamps,
number plate lamps and
the exterior side spotlamps located
underneath the door mirrors.
A second press before the end of the
timed period cancels the command.
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
Page 83 of 352
Downloaded from www.Manualslib.com manuals search engine IV
81
ACCESS
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
If the fi rst attempt fails, switch off the
ignition. Wait ten seconds then oper-
ate the starter again.
Steering lock
1. "
S":
After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S
.
2. "M":
Ignition switched on, the
steering is unlocked (by turning
the key to position M
, move
the steering wheel gently if
necessary).
3. "D":
Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S
then back to
position M
.
Do not run the engine in an en-
closed space or where there is
insuffi cient ventilation
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction. Never turn the key to this position
when the engine is running.
Page 84 of 352
Downloaded from www.Manualslib.com manuals search engine IV
82
ACCESS
Remote control problems
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
)
First of all, use the key in the lock
to unlock or lock your vehicle.
)
Then, reinitialise the remote control.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock imme-
diately for a few seconds.
)
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR1620/3 volts.
If the remote control bat-
tery is fl at, you are in-
formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.
)
Unclip the casing using a coin at
the notch.
)
Slide the fl at battery out of its lo-
cation.
)
Slide the new battery into its lo-
cation observing the original di-
rection.
)
Clip the casing together.
)
Reinitialise the remote control.
Changing the battery
If the problem persists, contact a
CITROËN dealer as soon as pos-
sible.
Page 85 of 352
Downloaded from www.Manualslib.com manuals search engine IV
83
ACCESS
Lost keys
Visit a CITROËN dealer with the ve-
hicle's registration document, your
personal identifi cation documents
and if possible the key code label.
The CITROËN dealer will be able to
fi nd the key code and the transpon-
der code required to order a new
key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition switch,
even when the ignition is switched
off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition switch when you leave the
vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the pairing of all of the keys
in your possession checked by a
CITROËN dealer, to ensure that
only your keys can be used to open
and start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 86 of 352
Downloaded from www.Manualslib.com manuals search engine IV
84
ACCESS
ALARM
System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring.
- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone
breaks a window, enters the pas-
senger compartment or moves in-
side the vehicle.
Self-protection function
The system checks for the putting
out of service of its components.
The alarm is triggered if the battery,
the central control or the wires of the
siren are put out of service or dam-
aged.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition and get out
of the vehicle.
)
Press the locking button on the
remote control.
Deactivation
)
Press the unlocking button on
the remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric monitoring.
The monitoring system is active: the
indicator lamp in the button fl ashes
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric monitoring after a
delay of 45 seconds.
For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.
Page 87 of 352
Downloaded from www.Manualslib.com manuals search engine IV
85
ACCESS
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
monitoring to avoid unwanted trig-
gering of the alarm in certain cases
such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Deactivation of the interior
volumetric monitoring
)
Switch off the ignition.
)
Within ten seconds, press the
button until the indicator lamp is
on continuously.
)
Get out of the vehicle.
)
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring
alone is activated: the indicator lamp in
the button fl ashes once per second.
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring func-
tions:
Locking the vehicle without
activating the alarm
Malfunction
Automatic activation *
)
Lock or deadlock the vehicle us-
ing the key in the driver's door
lock.
When the ignition is switched on, fi xed il-
lumination of the indicator lamp in the but-
ton indicates a malfunction of the system.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
2 minutes after the last door or the
boot is closed, the system is activat-
ed automatically.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press
the unlocking button on the re-
mote control.
)
Unlock the vehicle using the key
in the driver's door lock.
)
Open the door; the alarm is trig-
gered.
)
Switch on the ignition; the alarm
stops. The indicator lamp in the
button goes off.
This is indicated by sounding of the
siren and fl ashing of the direction in-
dicators for thirty seconds.
Reactivation of the interior
volumetric monitoring
)
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.
)
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp in the button
again fl ashes once per second.
*
According to country.
Page 88 of 352
Downloaded from www.Manualslib.com manuals search engine IV
86
ACCESS
ELECTRIC WINDOWS
System intended to open or close a
window manually or automatically.
Fitted with a safety anti-pinch system
and a system for deactivation in the
event of misuse of the rear controls.
1.
Driver's electric window
control.
2.
Passenger's electric window
control.
3.
Rear right electric window
control.
4.
Rear left electric window
control.
5.
Deactivation of the rear
electric window and door
controls.
One-touch electric windows
There are two options:
- automatic mode
)
Press or pull the control
fi rmly. The window opens or
closes fully when the control is
released.
)
Pressing the control again
stops the movement of the
window.
The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control panel, carry out
the operation from the control
panel of the passenger door con-
cerned, and vice versa.
Safety anti-pinch
When the window rises and meets
an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
)
press and hold the control until
the window opens fully,
)
then pull the control immediate-
ly and hold it until the window
closes,
)
continue to hold the control for
approximately one second after
the window has closed.
The safety anti-pinch function
is not operational during these
operations.
- manual mode
)
Press or pull the control gently.
The window stops when the
control is released.
Page 89 of 352
Downloaded from www.Manualslib.com manuals search engine IV
87
ACCESS
Reinitialisation
If a window does not rise automati-
cally, its operation must be reini-
tialised:
)
pull the control until the window
stops,
)
release the control and pull it
again until the window closes
fully,
)
continue to hold the control for
approximately one second after
the window has closed,
)
press the control to lower the
window automatically to the low
position,
)
when the window has reached
the low position, press the con-
trol again for approximately
one second.
The safety anti-pinch function
is not operational during these
operations.
Deactivation of the rear
electric window and door
controls
)
For the safety of your children,
press control 5
to deactivate the
rear electric window controls re-
gardless of their position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
This warning lamp comes
on temporarily on the instru-
ment panel on deactivation
and each time the ignition is
switched on.
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
Electric child lock").
Page 90 of 352
Downloaded from www.Manualslib.com manuals search engine IV
88
ACCESS

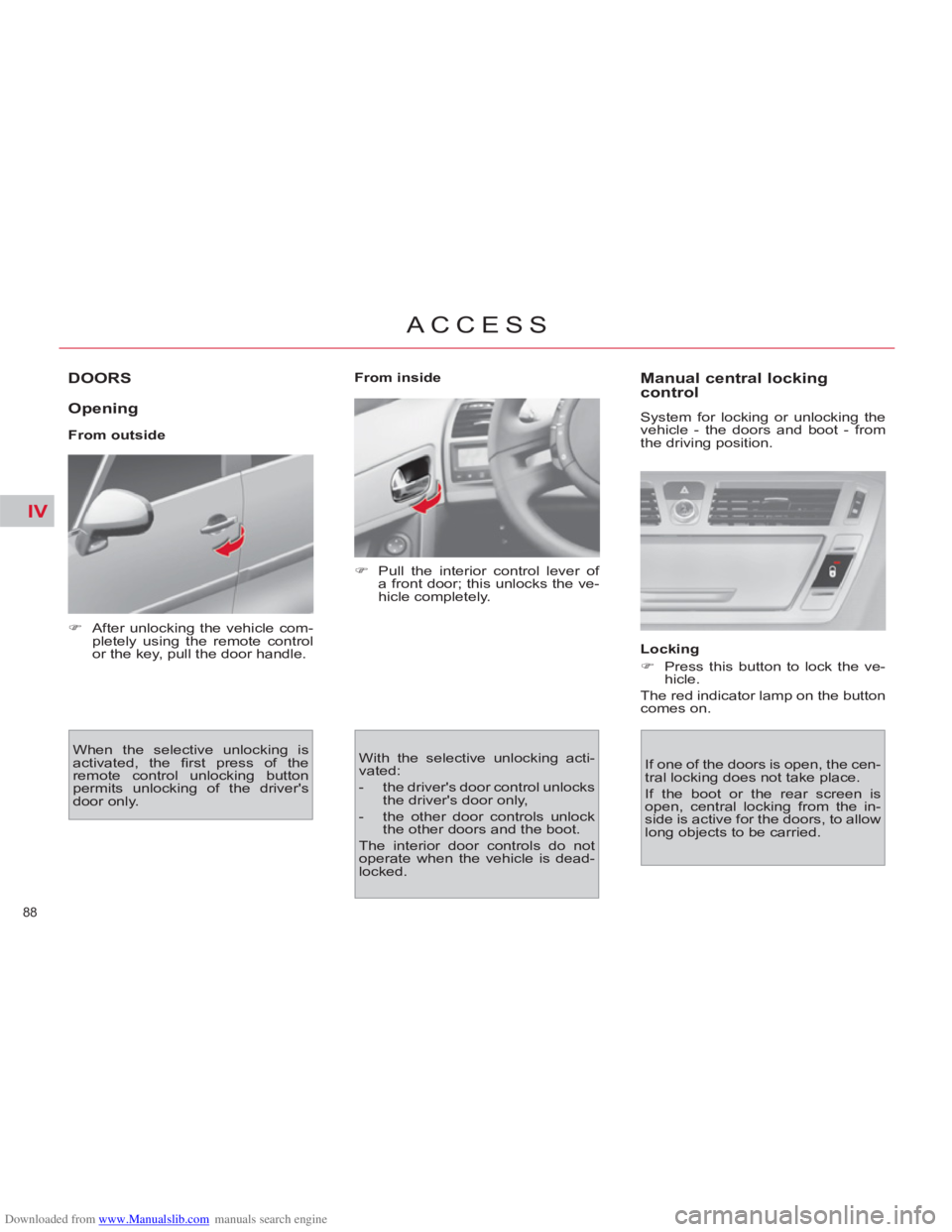

DOORS
Opening
From outside
When the selective unlocking is
activated, the fi rst press of the
remote control unlocking button
permits unlocking of the driver's
door only.
)
Pull the interior control lever of
a front door; this unlocks the ve-
hicle completely.
With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the other door controls unlock
the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked.
Manual central locking
control
System for locking or unlocking the
vehicle - the doors and boot - from
the driving position.
Locking
)
Press this button to lock the ve-
hicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking does not take place.
If the boot or the rear screen is
open, central locking from the in-
side is active for the doors, to allow
long objects to be carried.
)
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle.
From inside
