Diesel weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg).
* *   T he   weight   of   the   braked   trailer   can   be   increased,   within   the   GTW   limit,   if   the   GV W   of   the   towing   vehicle   is   reduced   by   an   equal   amount;   warning,
t

owing   using   a   lightly   loaded   towing   vehicle   may   have   an   adverse   effect   on   its   road   holding.
The
  GTW   and   towed   load   values   indicated   are   valid   up   to   a   maximum   altitude   of   1   000   metres;   the   towed   load   mentioned   must   be   reduced   by   10   %   for
e

ach   additional   1   000   metres   of   altitude.
When
  towing,   the   speed   must   never   exceed   60   mph   (100   km/h)   (comply   with   the   legislation   in   force   in   your   country).
High
  ambient   temperatures   may   result   in   a   reduction   in   the   per formance   of   the   vehicle   to   protect   the   engine;   if   the   ambient   temperature   is   above   37   °C,
l

imit   the   towed   load.
Diesel engine
BlueHDi 115/120 S&SBlueHDi 135/150 S&S
Gearbox Manual (6-speed)EAT6 automatic
(6-speed) Manual (6-speed) EAT6 automatic
(6-speed)
Model code 3D...
 3
E...
 3
A... 3D...
 3
E...
 3
A... 3D...
 3
E...
 3
A... 3D...
 3
E...
 3
A...
BHZ   -   BHX...
M/S   -   M/1S
BHZ   -   BHX...
T/1S   -   T/2S
AHX-AHR-AHV-
AHS...
M/S   -   M/1S
AHX...
T/S   -   T/1S
Unladen   weight
1   320   -   1   345   -   1347 1   320   -   1   357   -   1   359 1   415   -   1   428   -   1   430 1   435   -   1   474   -   1   476
Kerb   weight*
1   395   -   1   420   -   1   422 1   395   -   1   432   -   1   434 1   490   -   1   503   -   1   505
1 510 - 1 549 - 1 551
Gross   vehicle   weight   (GV W)
1 950 - 2 100 - 2 175 1 975 - 2 025 - 2 205 2   030   -   2   200   -   2   250 2   030   -   2   200   -   2   280
Gross   train   weight   (MTR A)
o

n   a   12%   gradient
3   350   -   3   350   -   3   375 3   375   -   3   225   -   3   405 3   530   -   3   560   -   3   650 3   530   -   3   580   -   3   580
Braked   trailer   (within   GTW   limit)
on   a   10%   or   12%   gradient
1 400 - 1 250 - 1 200 1 400 - 1 200 - 1 200 1 500 - 1 450 - 1 400
1   500   -   1   380   -   1   300
Braked   trailer**
(with load transfer within the GTW limit) 1 600 - 1 550 - 1 500 1 600 - 1 500 - 1 500 1 700 - 1 750 - 1 700 1 700 - 1 680 - 1 600
Unbraked
 t
railer
660 - 672 - 674 660 - 675 - 675 745 - 750 - 750 750
Recommended   nose   weight
70707070
9
Technical data

330
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed01-2016
Dimensions (in mm)These dimensions have been measured on an unladen vehicle.
*   Mirrors   folded.
Technical data

331
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed01-2016

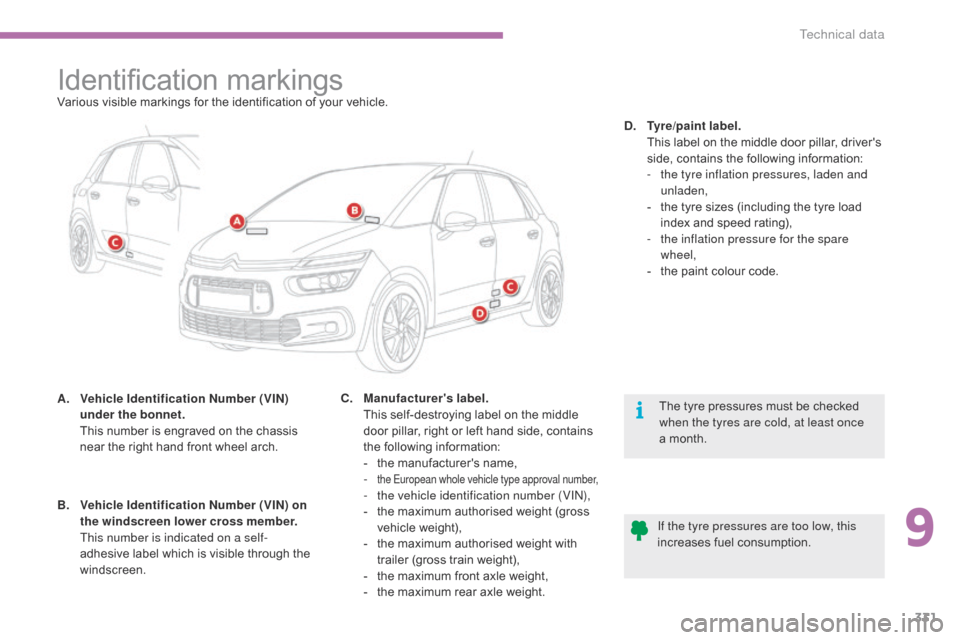

Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.
 T

his   number   is   engraved   on   the   chassis
n

ear   the   right   hand   front   wheel   arch. The
  tyre   pressures   must   be   checked
w

hen the tyres are cold, at least once
a
  month.
If the tyre pressures are too low, this
increases
  fuel   consumption.
C.
M

anufacturer's label.
 T

his   self-destroying   label   on   the   middle
d

oor   pillar,   right   or   left   hand   side,   contains
th

e
 f
ollowing
 i
nformation:
-

t
he   manufacturer's   name,
-

the European whole vehicle type approval number,- the vehicle identification number (VIN),
- t he   maximum   authorised   weight   (gross
ve

hicle
 w
eight),
-

t
he   maximum   authorised   weight   with
t

railer   (gross   train   weight),
-

t
he   maximum   front   axle   weight,
-

t
he   maximum   rear   axle   weight.D.
T

yre/paint label.

 T
his   label   on   the   middle   door   pillar,   driver's
s

ide,   contains   the   following   information:
-
t
he tyre inflation pressures, laden and
unladen,
-
t
he   tyre   sizes   (including   the   tyre   load
i

ndex   and   speed   rating),
-
t
he inflation pressure for the spare
wheel,
-
t
he   paint   colour   code.
B. V
ehicle Identification Number (VIN) on
the windscreen lower cross member.
T

his number is indicated on a self-
adhesive

label

which

is

visible

through

the

w

indscreen.
9
Technical data

332
C4-Picasso-II_en_Chap10a_BTA_ed01-2016

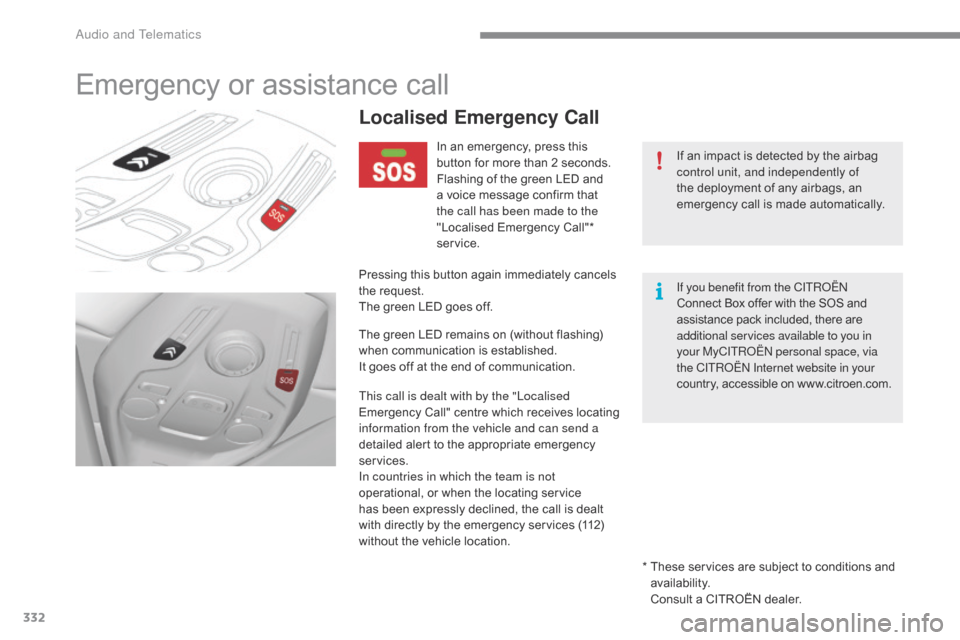

Emergency or assistance call
If an impact is detected by the airbag control unit, and independently of
the
  deployment   of   any   airbags,   an
e

mergency   call   is   made   automatically.
Localised Emergency Call
In an emergency, press this button   for   more   than   2   seconds.
Flashing
  of   the   green   LED   and
a

  voice   message   confirm   that
t

he call has been made to the
"Localised
  Emergency   Call"*
ser

vice.
Pressing

this

button   again   immediately   cancels
t

he

request.
The

green

LED   goes   off.
The

green

LED   remains   on   (without   flashing)
w

hen

communication   is   established.
It

goes

off

at

the   end   of   communication.
This call is dealt with by the "Localised
Emergency
 C

all"
 c
entre
 w
hich
 r
eceives
 l
ocating
 i

nformation from the vehicle and can send a
detailed

alert

to   the   appropriate   emergency
ser

vices.
In countries in which the team is not
operational,

or   when   the   locating   service
h

as

been

expressly   declined,   the   call   is   dealt
w

ith

directly

by   the   emergency   services   (112)
w

ithout

the

vehicle   location. *

T
hese   services   are   subject   to   conditions   and
a

vailability.
Consult
  a   CITROËN   dealer.
If you benefit from the C
ITROËN

C

onnect   Box   offer   with   the   SOS   and
 a

ssistance   pack   included,   there   are
 a

dditional services available to you in
your MyCITROËN personal space, via
the CITROËN Internet website in your
country,
  accessible   on   www.citroen.com.
Audio and Telematics

333
C4-Picasso-II_en_Chap10a_BTA_ed01-2016

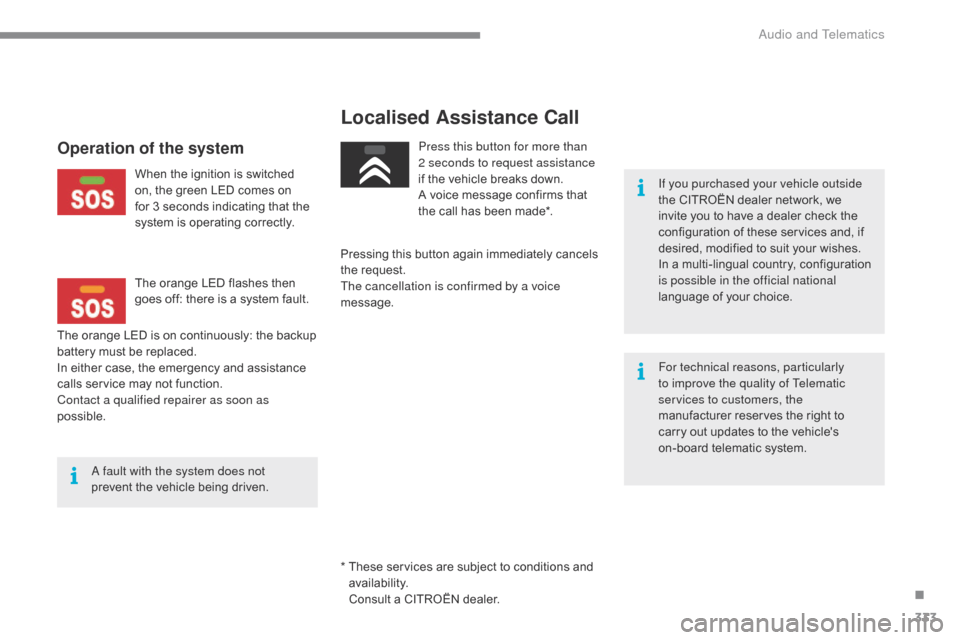

Localised Assistance Call
If you purchased your vehicle outside
the  CITROËN   dealer   network,   we
i

nvite   you   to   have   a   dealer   check   the
c

onfiguration   of   these   services   and,   if
d

esired,   modified   to   suit   your   wishes.
In
  a   multi-lingual   country,   configuration
i

s possible in the official national
language
  of   your   choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer
  reserves   the   right   to
c

arry   out   updates   to   the   vehicle's
on-board
  telematic   system.
A fault with the system does not
prevent

the

vehicle

being

driven. Press this button for more than
2

seconds to request assistance
if

the

vehicle

breaks

down.
A

voice

message

confirms

that

t

he

call

has

been

made*.
Pressing

this

button

again

immediately

cancels

t

he

request.
The cancellation is confirmed by a voice
message.
The

orange

LED

is

on

continuously:

the

backup

b

attery

must

be

replaced.
In

either

case,

the

emergency

and

assistance

c

alls

service

may

not

function.
Contact a qualified repairer as soon as
possible.
Operation of the system
When the ignition is switched o n,   the   green   LED   comes   on
f

or 3   seconds   indicating   that   the
s

ystem   is   operating   correctly.
The
  orange   LED   flashes   then
g

oes   off:   there   is   a   system   fault.
*

T
hese   services   are   subject   to   conditions   and
a

vailability.
Consult
  a   CITROËN   dealer.
.
Audio and Telematics

334
