lamp Citroen C4 PICASSO 2016 2.G Manual PDF

180
C4-Picasso-II_en_Chap04_conduite_ed01-2016

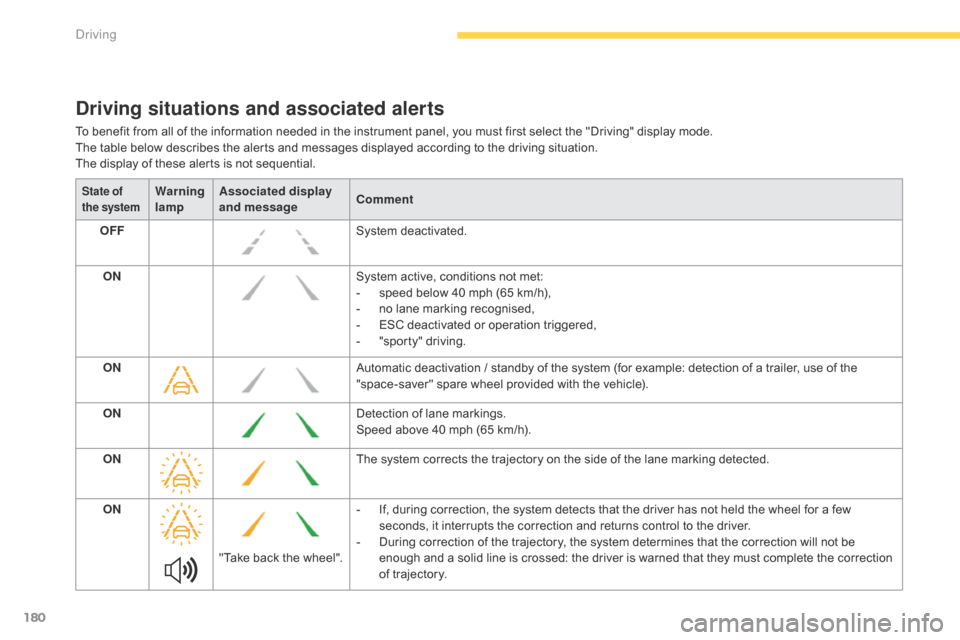

Driving situations and associated alerts
To benefit from all of the information needed in the instrument panel, you must first select the "Driving" display mode.
T he   table   below   describes   the   alerts   and   messages   displayed   according   to   the   driving   situation.
The
  display   of   these   alerts   is   not   sequential.
State of
the systemWarning
lamp Associated display
and message
Comment
OFF System
 d

eactivated.
ON System
  active,   conditions   not   met:
-

s
peed   below   40   mph   (65   km/h),
-

n
o   lane   marking   recognised,
-

ES
C   deactivated   or   operation   triggered,
-

"
sporty"   driving.
ON Automatic
  deactivation   /   standby   of   the   system   (for   example:   detection   of   a   trailer,   use   of   the
"

space-saver"   spare   wheel   provided   with   the   vehicle).
ON Detection
  of   lane   markings.
Speed
  above   40   mph   (65   km/h).
ON The
  system   corrects   the   trajectory   on   the   side   of   the   lane   marking   detected.
ON "Take
  back   the   wheel".-

I
f,   during   correction,   the   system   detects   that   the   driver   has   not   held   the   wheel   for   a   few
s

econds,   it   interrupts   the   correction   and   returns   control   to   the   driver.
-

D
uring   correction   of   the   trajectory,   the   system   determines   that   the   correction   will   not   be
e

nough   and   a   solid   line   is   crossed:   the   driver   is   warned   that   they   must   complete   the   correction
o

f   trajectory.
Driving

181
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Limits of operation
The system goes into standby automatically   in   the   following   cases:
-

ES
C deactivated or operation
triggered,
-

s
peed   below   40   mph   (65   km/h)   or
a

bove   112   mph   (180   km/h),
-
c

onnected electrically to a trailer,
-

u
se of the "space-saver" spare
wheel detected (as detection is
not immediate, deactivation of the
system is recommended),
-

d
ynamic   driving   style   detected,
p

ressure   on   the   brake   or
a

ccelerator pedal,
-

d
riving   where   there   are   no   lane
ma

rkings,
-
ope

ration of the direction indicators,
-

d
riving   in   a   tight   corner,
-

i
nactivity by the driver detected
during
 c

orrection. The system may not operate correctly
or
  at   all   in   the   following   situations:
-

c
onditions of poor visibility
(inadequate
  street   lighting,
s

nowfall,   rain,   fog),
-

d
azzle   (headlamps   of   on   oncoming
v

ehicle, low sun, reflections on a
wet
  road   sur face,   leaving   a   tunnel,
a

lternating   light   and   shade),
-

a
rea of the windscreen in front of
the camera dirty, misted, frosted,
snow-covered,
  damaged   or
c

overed   by   a   sticker,
-

r
oad   markings   absent,   worn,
h

idden (snow, mud) or multiple
(roadworks),
-

r
unning   close   to   the   vehicle   in   front
(

the   lane   markings   may   not   be
d

etected),
-

n
arrow,   twisty   roads.Risk of undesirable operation
Deactivation of the system is recommended in
the  following   situations:
-

d
riving   on   a   road   sur face   in   poor   condition,
-
u

nfavorable weather conditions,
-

d
riving   on   slippery   sur faces   (black   ice).
The
  system   is   not   designed   for   the   following
d

riving
 s
ituations:
-

d
riving   on   a   speed   circuit,
-

d
riving   with   a   trailer,
-

d
riving   on   a   rolling   road,
-

d
riving   on   unstable   sur faces.
In the event of a fault with the system, you are
alerted
  by   the   illumination   of   these   warning
lam

ps in the instrument panel, accompanied by
the
  display   of   a   message   and   an   audible   signal.
Have
  the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Operating fault
4
Driving

182
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Blind spot monitoring system
Activation / Deactivation
A warning lamp appears in the door mirror on the   side   in   question:
-

i
mmediately,   when   being   overtaken,
-

a
fter a delay of about one second, when
overtaking
  a   vehicle   slowly.
This

driving

assistance

system

warns

the

driver
 o
f the presence of another vehicle in the blind
spot

angle

of

their

vehicle

(areas

masked

from

t

he

driver's

field

of

vision),

as

soon

as

this

p

resents

a

potential

danger. Sensors fitted in the front and rear bumpers
monitor
  the   blind   spots.
This

system

is

designed

to

improve

safety

when   driving   and   is   in   no   circumstances   a
s

ubstitute

for

the

use

of

the

interior

rear

view

mirror   and   door   mirrors.   It   is   the   driver's
r

esponsibility

to

constantly

check

the

traffic,

to   assess   the   distances   and   relative   speeds   of
o

ther

vehicles

and

to

predict

their

movements   before   deciding   whether   to   change   lane.
The

blind

spot

monitoring

system

can

never

replace   the   need   for   vigilance   on   the   part   of   the
d

river. Activation of the function is done in the touch
screen
 t

ablet.
F
I
n the Driving
menu, select the " Driving
assistance " tab, then "Blind spot
monitoring ".
This indicator lamp comes on in the
instrument
 pan
el.
The state of the system remains in memory on
switching   off   the   ignition.
F

T
o deactivate the system, select "Blind
spot monitoring "
  again   in   the   "Driving
assistance " tab of the Driving


menu.
The
  indicator   lamp   goes   off.
The system is automatically deactivated
when
  towing   with   a   towbar   approved   by
CIT

ROËN.
Driving

183
C4-Picasso-II_en_Chap04_conduite_ed01-2016

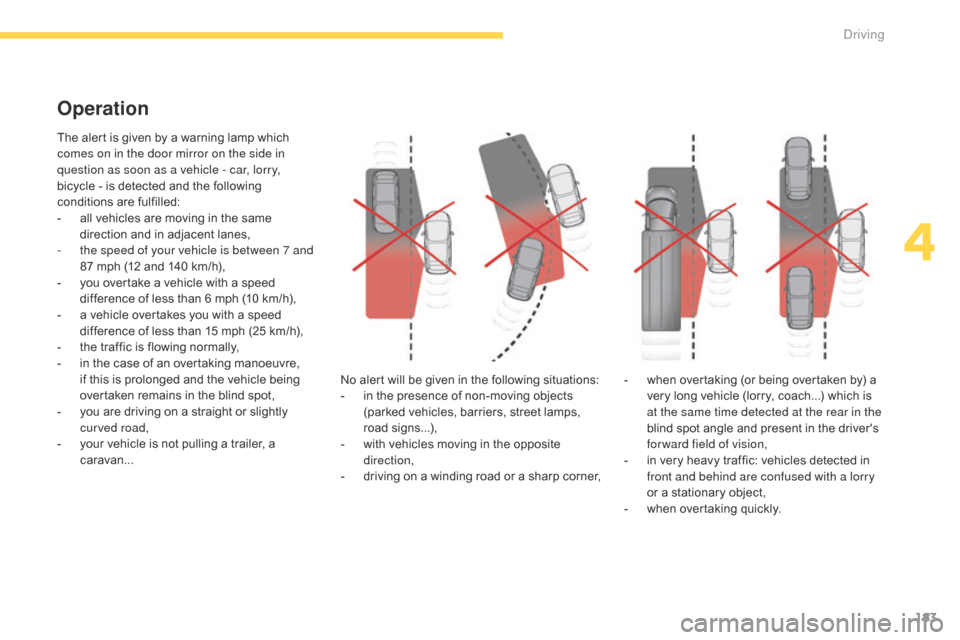

The alert is given by a warning lamp which comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
bicycle
  -   is   detected   and   the   following
c

onditions   are   fulfilled:
-

a
ll   vehicles   are   moving   in   the   same
d

irection   and   in   adjacent   lanes,
-

t
he speed of your vehicle is between 7 and
87
  mph   (12   and   140   km/h),
-

y
ou   overtake   a   vehicle   with   a   speed
d

ifference   of   less   than   6   mph   (10   km/h),
-

a
  vehicle   overtakes   you   with   a   speed
d

ifference   of   less   than   15   mph   (25   km/h),
-

t
he   traffic   is   flowing   normally,
-

i
n   the   case   of   an   overtaking   manoeuvre,
i

f   this   is   prolonged   and   the   vehicle   being
ov

ertaken   remains   in   the   blind   spot,
-

y
ou   are   driving   on   a   straight   or   slightly
c

urved road,
-

y
our   vehicle   is   not   pulling   a   trailer,   a
c

aravan... No
  alert   will   be   given   in   the   following   situations:
-

i
n   the   presence   of   non-moving   objects
(

parked   vehicles,   barriers,   street   lamps,
r

oad
 s
igns...),
-

w
ith   vehicles   moving   in   the   opposite
d

irection,
-

d
riving   on   a   winding   road   or   a   sharp   corner,
Operation
- when  overtaking   (or   being   overtaken   by)   a  v
ery   long   vehicle   (lorry,   coach...)   which   is
a

t the same time detected at the rear in the
blind
  spot   angle   and   present   in   the   driver's
f

orward field of vision,
-

i
n   very   heavy   traffic:   vehicles   detected   in
f

ront and behind are confused with a lorry
or
  a   stationary   object,
-

w
hen   overtaking   quickly.
4
Driving

184
C4-Picasso-II_en_Chap04_conduite_ed01-2016
In the event of a fault, this warning lamp flashes for a few moments in
the instrument panel, accompanied
by
  a   message.
Operating fault
Have it checked by a CITROËN dealer or a qualified w orkshop. The system may suffer temporary
interference in certain weather
conditions
  (rain,   hail...).
In   particular,   driving   on   a   wet   sur face  o
r   moving   from   a   dry   area   to   a   wet   area  c
an   cause   false   alerts   (for   example,   the
p

resence   of   a   fog   of   water   droplets   in
t

he   blind   spot   angle   is   interpreted   as   a
v

ehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud, ice
or
  snow.
Take
  care   not   to   cover   the   warning   zone
i

n the door mirrors or the detection
zones on the front and rear bumpers
with
  adhesive   labels   or   other   objects;
t

hey may hamper the correct operation
of
  the   system.
High pressure jet wash
When
  washing   your   vehicle,   direct   the
l

ance   at   least   30   cm   away   from   the
sen

sors.In
  addition   to   the   fixed   warning   lamp   in   the   door
m

irror on the side in question, a correction of
trajectory   will   be   felt   if   you   cross   a   lane   marking  w
ith the direction indicators on, to help you
avoid   a   collision.
Conditions for operation
The following systems must be activated:
-  b lind   spot   monitoring,
-

a
ctive   lane   departure   warning.
Active blind spot
monitoring system
For more information on the Blind spot
monitoring system and the Active lane
departure warning system , refer to the
corresponding
 s

ections.
Driving

186
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Fatigue detection system
Depending on version, the "Driving time warning   system"   may   be   combined   with   the
"

Fatigue   detection   system".
Using
  a   camera   placed   at   the   top   of   the
w

indscreen,   the   system   assesses   the   driver's
l

evel   of   vigilance   by   identifying   variations   in
t

rajectory   compared   to   the   lane   markings.
This system is particularly suited to fast roads
(speed
  higher   than   40   mph   (65   km/h)).Once the system considers that the behaviour
of
  the   vehicle   suggests   a   certain   level   of   fatigue
o

r   inattention   by   the   driver,   it   triggers   the   first
l

evel   of   alert.
The
  driver   is   then   alerted   by   the   message
"Ta

k e c a r e !", accompanied by an audible
signal.
After
  three   first   level   alerts,   the   system   triggers
a

  new   alert   with   the   message   "Take a break! ",
accompanied by a more pronounced audible
signal. In
  certain   driving   conditions   (poor   road
s

ur face   or   strong   winds),   the   system
m

ay   give   alerts   independent   of   the
d

river's   level   of   vigilance.
The   following   situations   may   inter fere
w

ith operation of the system or prevent
it   working:
-
p
oor   visibility   (inadequate   lighting
o

f   the   roadway,   falling   snow,   heavy
r

ain,   dense   fog,   ...),
-  d azzle   (headlamps   of   an   oncoming  v
ehicle, low sun, reflections on
a
  damp   road,   leaving   a   tunnel,
a

lternating   shade   and   light,   ...),
-

w
indscreen area located in front
of
  the   camera:   dirty,   misted,   frost-
covered,
  snow-covered,   damaged
o

r   covered   by   a   sticker,
-

l
ane   markings   absent,   worn,
m

asked   (snow,   mud)   or   multiple
(

roadworks,
 ...
),
-

c
lose to the vehicle ahead (lane
markings
  not   detected),
-

r
oads   that   are   narrow,   winding,   ...
Driving

188
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Front parking sensors
The sound emitted by the speaker (front or rear) indicates whether the obstacle
is
  in   front   or   behind. The system will be deactivated
automatically
  if   a   trailer   is   being
t

owed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed
  in   line   with   the   manufacturer's
r

ecommendations).In bad weather or in winter, ensure
that the sensors are not covered with
mud,
  ice   or   snow.   When   reverse   gear   is
e

ngaged,   an   audible   signal   (long   beep)
i

ndicates   that   the   sensors   may   be   dirty.
Certain sound sources (motorcycle,
lorry,
  pneumatic   drill,   etc.)   may   trigger
t

he   audible   signals   of   the   parking
s

ensor   system.
As

an

addition   to   the   rear   parking   sensors,   the
f

ront

parking   sensors   are   triggered   when   an
o

bstacle is detected in front and the speed of
the

vehicle   remains   below   6   mph   (10   km/h).
The

front   parking   sensors   are   interrupted   if
t

he vehicle stops for more than three seconds
in

for ward   gear,   if   no   further   obstacles   are
d

etected or when the speed of the vehicle
exceeds   6   mph   (10   km/h). The   parking   sensors   can   be   deactivated   in   the
t

ouch   screen   tablet.
F
I
n the Driving
menu, select the " Driving
assistance " tab, then "Parking sensors ".
Operating fault
In the event of a malfunction of
the
  system,   when   reverse   gear   is
e

ngaged,   this   warning   lamp   flashes
f

or a few moments then stays on
continuously.
This indicator comes on in the
instrument pan el.
A
  new   selection   reactivates   the   function.
High pressure jet wash
When  washing   your   vehicle,   do   not
d

irect   the   lance   within   30   cm   of   the
sen

sors.
The

parking

sensors

are

deactivated

w

hile

the

Park

Assist

system

is

m

easuring

a

space.
For more information on Park Assist ,
refer

to

the

corresponding

section.
Deactivation / Activation of
the front and rear parking
sensors
A message appears, accompanied by an a
udible s ignal.
Contact a CITROËN dealer or a qualified
workshop.
Driving

194
C4-Picasso-II_en_Chap04_conduite_ed01-2016

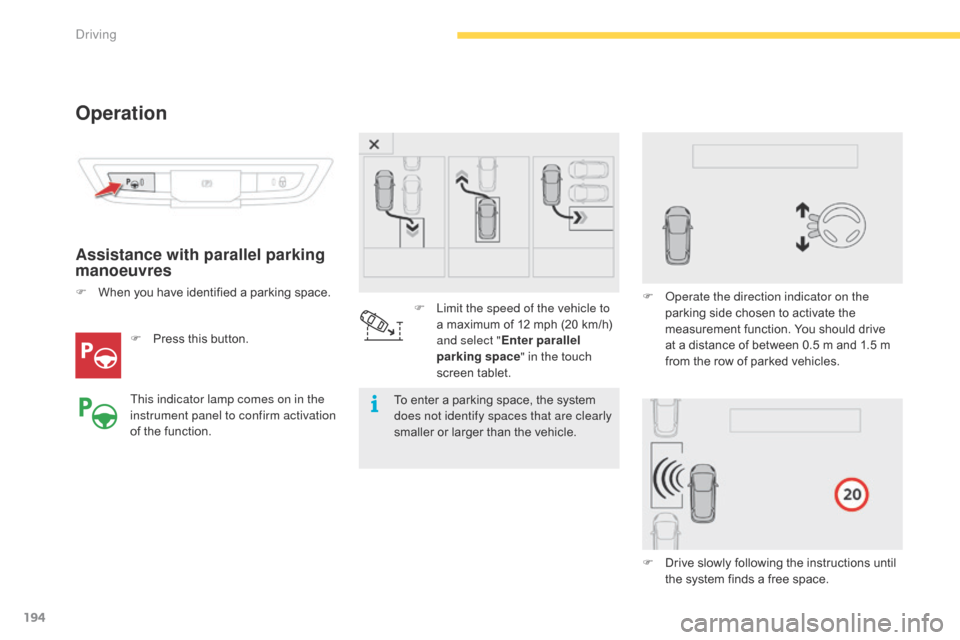

Operation
Assistance with parallel parking
manoeuvres
F Press  this   button.
To   enter   a   parking   space,   the   system
d

oes not identify spaces that are clearly
smaller
  or   larger   than   the   vehicle.
This indicator lamp comes on in the
instrument panel to confirm activation
of
  the   function. F

L
imit the speed of the vehicle to
a   maximum   of   12   mph   (20 km/h)  a
nd select "Enter parallel
parking space " in the touch
screen
 t

ablet.F

O
perate the direction indicator on the
parking   side   chosen   to   activate   the  m
easurement   function.   You   should   drive  a
t   a   distance   of   between   0.5   m   and   1.5   m
f

rom   the   row   of   parked   vehicles.
F

D
rive   slowly   following   the   instructions   until
t

he   system   finds   a   free   space.
F

W

hen   you   have   identified   a   parking   space.
Driving

195
C4-Picasso-II_en_Chap04_conduite_ed01-2016
F Move  for wards   slowly   until   a   message   is  d
isplayed, accompanied by an audible
signal,
  asking   you   to   engage   reverse   gear.
F

S
elect   reverse,   release   the   steering   wheel
a

nd   start   moving   without   exceeding   4   mph
(

7   km/h). F
 T he   assisted   parking   manoeuvre   is   in  p
rogress.
 W

ithout   exceeding   4   mph   (7   km/h),   move
f

or wards   and   backwards,   aided   by   the
w

arnings   from   the   "Parking   sensors"
s

ystem, until the indication of the end of the
manoeuvre. F
 A t   the   end   of   the   manoeuvre,   the   operating  i
ndicator   lamp   goes   out   in   the   instrument
p

anel,   accompanied   by   a   message   and   an
a

udible
 s
ignal.
 T

he   assistance   is   deactivated:   you   can
t

ake   over   control.
4
Driving

196
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Assistance in exiting from a
parallel parking space
F With the vehicle stationary, press this   button.
F

P
ress on " Exit parallel parking
space " in the touch screen
tablet. F

O
perate   the   direction   indicator   for   the   exit
s

ide   chosen.
F
E
ngage   reverse   or   for ward   gear   and  r
elease   the   steering   wheel.
F
T
he   assisted   parking   manoeuvre   is   in
p

rogress.   Without   exceeding   3   mph
(

5 km/h),   move   for wards   and   backwards,
a

ided   by   the   warnings   from   the   "Parking
s

ensors" system, until the indication of the
end
  of   the   manoeuvre.
F

W

hen   you   want   to   leave   a   parallel   parking
s

pace,   start   the   engine.
This indicator lamp comes on in
the instrument panel to confirm
activation   of   the   function. The
  manoeuvre   is   complete   when   the   vehicle's
f

ront   wheels   are   clear   of   the   parking   space.
At the end of the manoeuvre, the indicator lamp
in   the   instrument   panel   goes   off,   accompanied  b
y   a   message   and   an   audible   signal.
The
  assistance   is   deactivated:   you   can   take
ov

er   control.
Driving
