CITROEN C4 PICASSO 2017 Owners Manual

159
10.Indication that vehicle is held stationary
(versions fitted with an automatic
gearbox).
11. Speed suggested by the Speed Limit
recognition and recommendation.
Switching on
To switch on the cruise control
F
W ith the engine running, turn the wheel
1
to the " CRUISE " position. The system is
paused (grey display). With a
manual gearbox
With the speed of the vehicle between 19 and
99 mph (30 and 160 km/h):
F
W
hen the vehicle is moving, press one of
the buttons 2 or 3
: the current speed of your
vehicle becomes the cruise speed setting.
The cruise control starts operating (displayed
in green).
With an automatic gearbox
Mode D or M must be selected.
With the speed of the vehicle between 19 and
112 mph (30 and 180 km/h):
Remembering the settings
Switching off the ignition cancels any speed
setting value chosen by the driver.
By default, the inter-vehicle distance is set
at " Normal " (2 dashes). Other wise, the last
setting made will be used when switching on
the system.Pause
• When changing from mode D to N with an automatic gearbox.
-

o
r automatically:
•

I
f the ESC system is activated, for safety
reasons.
•

W
hen the speed of the vehicle falls below
19
mph (30 km/h) with a manual gearbox.
When the cruise control is paused, it
can only be reactivated when all of the
safety conditions are met. The message
"Activation not possible, conditions
unsuitable" is displayed while reactivation
is not possible.
As soon as a

vehicle is detected, the symbol
7

is filled with the colour associated with the
cruise control mode. By default, the symbol 7

is
e m pt y.
When the cruise control is in operation, the
symbols 7

and 8

are displayed in green. By
default, they are displayed in grey.
Reactivating the function
Versions fitted with a manual gearbox
To reactivate the function, the driver must
accelerate to reach at least 19
mph (30 km/h),
then press one of the buttons 2 , 3
or 4.
Versions fitted with an automatic gearbox
Following braking of the vehicle bringing it to
a
complete stop, the system holds the vehicle
stationary; the cruise control is paused.
12 .
Inter-vehicle distance setting.
13. Position of vehicle detected by the radar.
This information is visible in the instrument
panel in "DRIVING" display mode. F

W

hen the vehicle is moving, press one of
the buttons 2

or 3
: the current speed of your
vehicle becomes the cruise speed setting.
The cruise control can be paused manually by:
-

a

ction by the driver:
•

O

n the button 4 (Pause).
•

O

n the brake pedal.
•

O

n the electric parking brake control.
•

O

n the clutch pedal, by pressing and
holding for more than 5

seconds.
6
Driving

160
As a safety measure, wait until the current
s peed approaches the speed setting to
reactivate the function by pressing button 4 .
Modification of the speed
setting
With the engine running and cruise control on
(green), you can modify the speed setting.
Modification from the current
speed
F By successive short presses on button 2 or
3 , to lower or raise the setting in steps of +
or – 1
mph (km/h),
F

B
y a maintained press on button 2 or 3, to
lower or raise the setting in steps of + or –
5
mph (km/h). Take care: pressing and holding button
2
or 3 results in a rapid change in the
speed of your vehicle.
Modification from the
Speed Limit recognition and
recommendation system
F The suggested speed is displayed in the instrument panel.
F

M
ake an initial press on button 5 ; a
message is displayed to confirm the
memorisation request.
F

P
ress button 5 again to save the suggested
speed.
The speed displays immediately in the
instrument panel as the new speed setting.
For more information on the Speed Limit
recognition and recommendation , refer to
the corresponding section.
The driver should press the accelerator pedal
to move off, then reactivate the system above
19

mph (30

km/h) by pressing button 2
, 3

or 4
.
If the driver takes no action following this
immobilisation, the electric parking brake is
applied automatically after a

while (approx. five
minutes).
As a precaution, it is recommended
that you select a
cruise speed close to
the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
Modification of the programmed
inter-vehicle distance
Engine running and with the wheel at the
" CRUISE " position:
F

P
ress button 6 to display the selection
screen for inter-vehicle distance.
F

B
y pressing button 6 repeatedly, cycle
through the predefined settings.
The selection screen closes after a
few
seconds.
The modification is then accepted.
This setting remains in memory, whatever the
state of the system and when the ignition is
switched off.
The selection also applies to the stopping
distance (versions with EAT6
and
EAT8
automatic gearbox).
Three threshold settings are suggested for the
inter-vehicle distance:
-
"
Distant " (3 dashes),
- "
Normal " (2 dashes),
- "
Close " (1 dash).
Driving

161

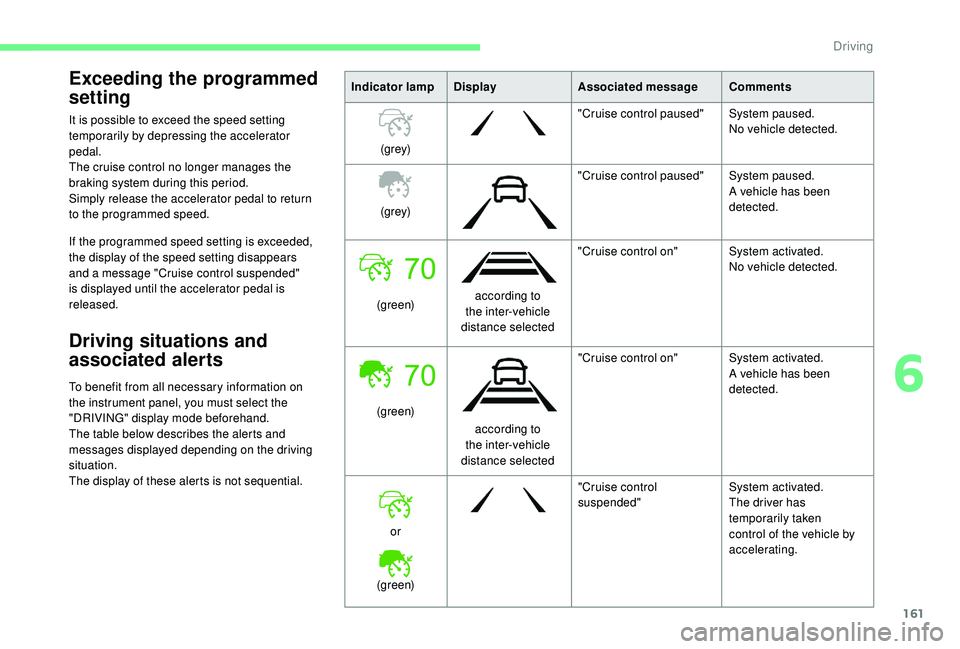

Exceeding the programmed
setting
It is possible to exceed the speed setting
temporarily by depressing the accelerator
pedal.
The cruise control no longer manages the
braking system during this period.
Simply release the accelerator pedal to return
to the programmed speed.
If the programmed speed setting is exceeded,
the display of the speed setting disappears
and a message "Cruise control suspended"
is displayed until the accelerator pedal is
released.
Driving situations and
associated alerts
To benefit from all necessary information on
the instrument panel, you must select the
"DRIVING" display mode beforehand.
The table below describes the alerts and
messages displayed depending on the driving
situation.
The display of these alerts is not sequential. Indicator lamp
Display Associated message Comments
(grey) "Cruise control paused"
System paused.
No vehicle detected.
(grey) "Cruise control paused"
System paused.
A vehicle has been
detected.
(green) according to
the inter-vehicle
distance selected "Cruise control on"
System activated.
No vehicle detected.
(green) according to
the inter-vehicle
distance selected "Cruise control on"
System activated.
A vehicle has been
detected.
or
(green) "Cruise control
suspended"
System activated.
The driver has
temporarily taken
control of the vehicle by
accelerating.
6
Driving

162
70
70
Indicator lampDisplay Associated message Comments
(green) +
(orange) "Take back control of the
vehicle"
The driver must take
back control of the
vehicle by accelerating
or braking, depending on
the circumstances.
(green) +
(red) "Take back control of the
vehicle"
The system cannot
manage the critical
situation alone
(emergency braking of
the target vehicle, rapid
insertion of another
vehicle between the two
vehicles).
The driver must
immediately take back
control of the vehicle.
or
(grey) (orange)
"Activation not possible,
conditions unsuitable"
The system refuses
to activate the cruise
control (speed outside
the operating range,
winding road).
Driving

163
Indicator lampDisplay Associated message Comments
or
(grey)/(green) according to
the inter-vehicle
distance selected and the actual
distance from the target vehicle "Cruise control paused"
(for a
few seconds)The system has brought
the vehicle to a
complete
stop and is holding it
immobilised.
The driver must
accelerate to move off
again.
The cruise control
remains paused until the
driver reactivates it.
Following braking of the vehicle bringing it to
a
complete stop, the system holds the vehicle
stationary; the cruise control is paused.
The driver should press the accelerator
pedal to move off, then reactivate the
system by pressing one of buttons 2 , 3
or
4 . If the driver takes no action following this
immobilisation, the electric parking brake is
applied automatically after a
while (approx. five
minutes).
Operating limits
The system cannot exceed the limits of the
laws of physics.
The system cannot deal with certain situations
and the driver has to take back control of the
vehicle. Cases of non- detection by the radar:
-

Pe
destrians, some cyclists, animals.
-
S
tationary vehicles (traffic jam, breakdown,
e t c .) . When the driver must suspend the cruise
control system:
Cases where the driver is urged to take
back control immediately:
-

E
xcessively sharp deceleration of the
vehicle in front of you.
Versions fitted with an automatic gearbox
-
V
ehicles in a tight bend.
-
W
hen approaching a

roundabout.
-
W
hen following a narrow vehicle.
Reactivate cruise control when conditions
permit.
-
V
ehicles crossing your lane.
-
O
ncoming vehicles.
-
W
hen a vehicle cuts in sharply between
your vehicle and the one in front.
6
Driving

164
The system must not be activated in the
following situations:
-
W
hen the "space-saver" spare wheel is
being used (depending on version).
-
W

hen towing.
-

F
ollowing an impact on the front bumper.
Be particularly careful:
-

W
hen motorcycles are present and
when there are vehicles staggered
onto the traffic lane.
-

W
hen you enter a tunnel or cross
a
bridge. The cruise control operates by day and
night, in fog or moderate rainfall.
However, it is strongly recommended
that you always adapt your speed and
your safety distance from vehicles ahead
according to the driving conditions, the
weather and the road surface.
Use the cruise control only where
the driving conditions allow running
at a
constant speed and keeping an
adequate safety distance.
Do not activate the cruise control in urban
areas where pedestrians are likely to
cross the road, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, when there is snowfall, if the front
bumper is damaged or when the brake
lamps have failed.
In certain circumstances, it may not
be possible for the speed setting to be
maintained or even reached: loaded
vehicle, ascending a
steep hill, etc.The system is not intended for the
following situations:
-

t
he front end of the vehicle has been
modified (addition of long-range
headlamps, painting of the front
bumper),
-

d
riving on a racing track,
-

d
riving on a rolling road,
-

u
se of snow chains, non-slip covers or
studded tyres.
The use of mats not approved by
CITROËN may inter fere with the operation
of the cruise control.
To avoid any risk of jamming of the pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

n
ever fit one mat on top of another.
Driving

165
Clean the front bumper regularly.
If the front bumper is to be repainted or
retouched, contact a CITROËN dealer
or a
qualified workshop. Certain types of
paint could inter fere with the operation of
the radar.
Malfunction
If the cruise control
malfunctions, dashes are
displayed instead of the
cruise control speed setting.
If this warning lamp comes
on, accompanied by an
alert message and an
audible signal, this confirms
a


malfunction.
The adaptive cruise control deactivates
automatically if the use of a "space-saver"
type spare wheel is detected or if there is
a

malfunction on the lateral brake lamps or
trailer brake lamps (for approved trailers).
The following situations may interfere with
the operation of the system or prevent it
from working:
-
p
oor visibility (inadequate street
lighting, falling snow, heavy rain, dense
f o g , e t c .),
-

d

azzle (headlamps of an oncoming
vehicle, low sun, reflections on a

damp
road, leaving a

tunnel, alternating
shade and light, etc.),
-

c

amera or radar masked (mud, frost,
snow, condensation, etc.).
In these situations, detection performance
may be reduced.
The message "SYSTEM INACTIVE:
Reduced visibility". is displayed to indicate
that the function is in standby. Have the system checked by a
CITROËN
dealer or a

qualified workshop.
Active Safety Brake with
Collision Risk Alert and
Intelligent emergency
braking assistance
The system allows:
- t he driver to be warned that their vehicle is
at risk of collision with the vehicle in front,
-

a c
ollision to be prevented, or its severity to
be limited, by reducing the vehicle's speed.
This system is a
driving aid that includes three
functions:
-

C
ollision Risk Alert (alert if there is a risk of
collision),
-
I

ntelligent emergency braking assistance,
-

A
ctive Safety Brake (automatic emergency
b r ak ing).
6
Driving

166
The vehicle has a camera located at the top of
t he windscreen, and, depending on the version,
a radar located in the front bumper.
This system is designed to assist the
driver and improve road safety.
It is the driver's responsibility to
continuously monitor the state of the
traffic, observing the driving regulations.
This system does not replace the need for
vigilance on the part of the driver.
As soon as the system detects a
potential
obstacle, it prepares the braking circuit in
case automatic braking is needed. This
may cause a
slight noise and a slight
sensation of deceleration.
Deactivation/Activation
By default, the system is automatically
activated at every engine start.
The system can be deactivated or activated via
the vehicle settings menu.
Deactivation of the system is
signalled by the illumination of this
indicator lamp, accompanied by the
display of a
message.
Operating conditions and
limits
The ESC system must not be faulty.
The ASR must not be deactivated.
All passenger seat belts must be fastened.
Driving at a steady speed on roads with few
bends is required. The following situations may interfere with
the operation of the system or prevent it
from working:
-

p
oor visibility (inadequate street
lighting, falling snow, heavy rain, dense
f o g , e t c .),
-
d
azzle (headlamps of an oncoming
vehicle, low sun, reflections on a damp
road, leaving a tunnel, alternating
shade and light, etc.),
-
c
amera or radar obstructed (mud, frost,
snow, condensation, etc.).
On versions with camera alone, this
message indicates to you that the camera
is obstructed: " Driving aids camera:
visibility limited, see user guide ".
In these situations, detection performance
may be reduced.
Driving

167
In the following cases, deactivating the system
via the vehicle's configuration menu is advised:
-
t
owing a trailer,
-

c
arrying long objects on roof bars or roof
rack,
-
w

ith snow chains fitted,
-

b
efore using an automatic car wash, with
the engine running,
-

b
efore placing the vehicle on a rolling road
in a
workshop,
-

t
owed vehicle, engine running,
-

d
amaged front bumper (version with radar),
-

f
ollowing impact to the windscreen close to
the detection camera. The system is automatically deactivated
after the use of the "space-saver" type
spare wheel is detected, or if a
fault with
the lateral brake lamps is detected.
It is possible that warnings are not given,
are given too late or seem unjustified.
Consequently, always stay in control of
your vehicle and be prepared to react at
any time to avoid an accident.
After an impact, the function automatically
stops operating. Contact a
CITROËN
dealer or a
qualified workshop to have the
system checked.
If the front bumper is to be repainted or
retouched, contact a
CITROËN dealer
or a
qualified workshop. Certain types of
paint could inter fere with the operation of
the radar.
Collision Risk Alert
It warns the driver if their vehicle is at risk of
collision with the vehicle in front or a pedestrian
present in their traffic lane.
Modifying the alert trigger
threshold
This threshold determines how you wish
to be alerted of the presence of a moving
or stationary vehicle in front of you, or
a
pedestrian present in your traffic lane.
The current threshold can only be
modified via the touch screen's
Driving menu.
You can select one of three predefined
thresholds:
-
"Distant ",
-
"Normal ",
-
"Close ".
The last threshold selected is kept in memory
when the ignition is switched off.
Operation
Depending on the degree of risk of collision
detected by the system and the alert threshold
chosen by the driver, different levels of
alert can be triggered and displayed in the
instrument panel.
Clean the windscreen regularly,
particularly the area in front of the camera.
The internal sur face of the windscreen can
also become misted around the camera.
In humid and cold weather, demist the
windscreen regularly.
Do not allow snow to accumulate on the
bonnet or roof of the vehicle as this could
conceal the detection camera.
Clean the front bumper, especially around
the radar, removing mud, snow, etc.
6
Driving

168
These levels of alert are based on the inter-
vehicle time between your vehicle and the
vehicle in front.
They take account of the vehicle dynamics,
the speed of your vehicle and the one in front,
the environmental conditions, the operation of
the vehicle (cornering, pedals pressed, etc.) to
trigger the alert at the best moment.Level 1 (orange) : visual alert only,
signalling to you that the vehicle in
front is very close.
The message " Vehicle close" is
displayed.
Level 2 (red) : visual and audible
alert, warning you that a
collision is
imminent.
The message " Brake!" is displayed.
Where the speed of your vehicle is too fast
approaching another vehicle, the first level
of alert may not be displayed: the level
2
alert may be displayed directly.
Important: alert level 1
is never displayed
when the " Close" trigger threshold has
been selected.Intelligent emergency
braking assistance
If the driver brakes, but not sufficiently to avoid
a collision, this system will supplement the
braking, within the limits of the laws of physics.
This assistance will only be provided if you
press the brake pedal.
Active Safety Brake
This function, also called automatic emergency
braking, inter venes following the alert if the
driver does not react quickly enough and does
not operate the vehicle's brakes. It aims to reduce the speed of impact or avoid
a
frontal collision by your vehicle where the
driver fails to react.
Operation
The system operates under the following
conditions:
-

T
he vehicle's speed does not exceed
37
mph (60 km/h) when a pedestrian is
detected.
-

T
he vehicle's speed does not exceed
50
mph (80 km/h) when a stationary vehicle
is detected.
-

T
he vehicle's speed is between 6 mph and
53
mph (10 km/h and 85 km/h) (versions
with camera alone) or 87
mph (140 km/h)
(versions with camera and radar) when
a
moving vehicle is detected.If the camera and/or radar have
confirmed the presence of a
vehicle
or a
pedestrian, this warning lamp
flashes once the function is acting
on the vehicle's brakes.
With an automatic gearbox, in the event of
automatic emergency braking until the vehicle
comes to a
complete stop, keep the brake
pedal pressed down to prevent the vehicle from
starting off again.
With a
manual gearbox, in the event of
automatic emergency braking until the vehicle
comes to a
complete stop, the engine may stall.
Driving
