V I S I B I L I T Y
V
AMBIANCE LIGHTING PACK
Ambiance lighting
You can adjust the lighting by pressing
on the control A .
This activates the light sources
which are located as follows:
- on the sides of the front and rear doors,
- on the front and rear interior door handles,
- on the dashboard,
- at the roof. Operation
The control
A :
-
activates/deactivates the ambiance
lighting,
- selects the lighting intensity.
The adjustment is memorised.
To increase the lighting intensity:

 Press a few times on the right
of the control A to obtain your
brightness preference.
To decrease the lighting intensity:

 Press a few times on the left
of the control A to obtain your
brightness preference.
Courtesy lighting
The automatic courtesy lighting
consists of the footwell lamps, the
interior lamps and the ambiance
light sources. Front door pockets with
automatic lighting
The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.
Reading lamps on front seat
backrests
There are spotlamps incorporated
in the backrests of the front seats,
behind the rear tables. They are
only accessible when the table is
lowered.

 Press the "On/Off" button to
switch the reading lamp on or off.
System providing warm and convivial
lighting which casts a gentle orange-
tinted light.
This lighting is available at night or
in conditions of poor daylight.

94
VI
L A Y O U T

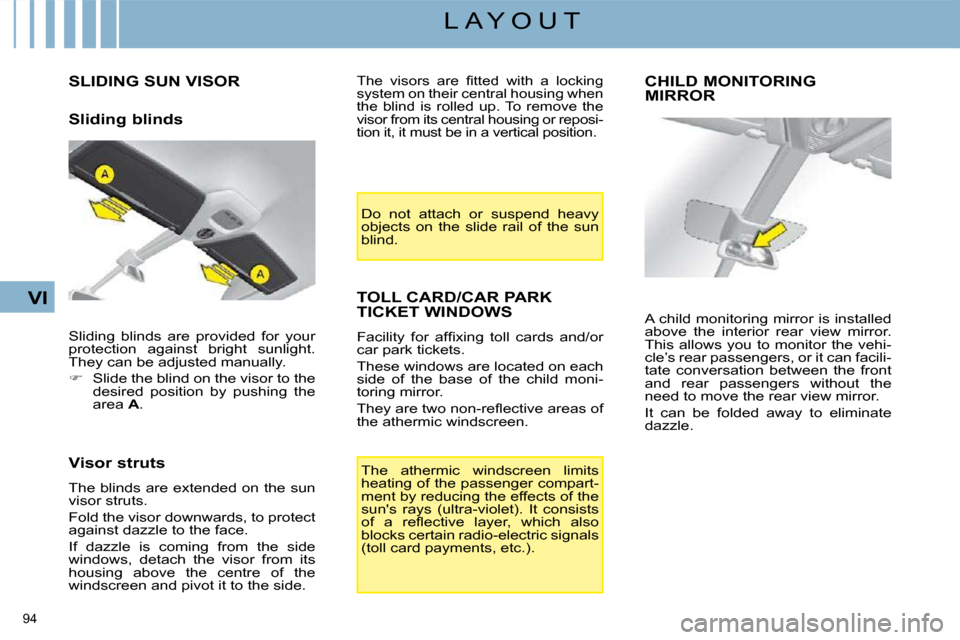

SLIDING SUN VISOR
Sliding blinds
Visor struts
The blinds are extended on the sun
visor struts.
Fold the visor downwards, to protect
against dazzle to the face.
If dazzle is coming from the side
windows, detach the visor from its
housing above the centre of the
windscreen and pivot it to the side. Do not attach or suspend heavy
objects on the slide rail of the sun
blind.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or
car park tickets.
These windows are located on each
side of the base of the child moni-
toring mirror.
They are two non-refl ective areas of
the athermic windscreen.
CHILD MONITORING
MIRROR
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, etc.). A child monitoring mirror is installed
above the interior rear view mirror.
This allows you to monitor the vehi-
cle’s rear passengers, or it can facili-
tate conversation between the front
and rear passengers without the
need to move the rear view mirror.
It can be folded away to eliminate
dazzle.
Sliding blinds are provided for your
protection against bright sunlight.
They can be adjusted manually.

 Slide the blind on the visor to the
desired position by pushing the
area A .
The visors are fi tted with a locking
system on their central housing when
the blind is rolled up. To remove the
visor from its central housing or reposi-
tion it, it must be in a vertical position.

95
VI
L A Y O U T

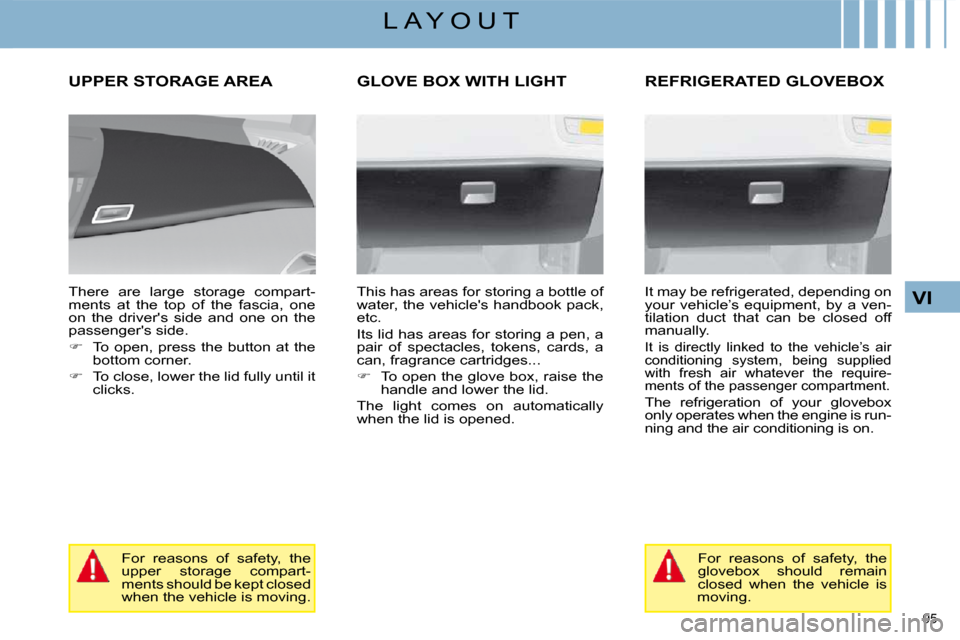

UPPER STORAGE AREA
There are large storage compart-
ments at the top of the fascia, one
on the driver's side and one on the
passenger's side.

 To open, press the button at the
bottom corner.

 To close, lower the lid fully until it
clicks.
GLOVE BOX WITH LIGHT
This has areas for storing a bottle of
water, the vehicle's handbook pack,
etc.
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...

 To open the glove box, raise the
handle and lower the lid.
The light comes on automatically
when the lid is opened.
REFRIGERATED GLOVEBOX
It may be refrigerated, depending on
your vehicle’s equipment, by a ven-
tilation duct that can be closed off
manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with fresh air whatever the require-
ments of the passenger compartment.
The refrigeration of your glovebox
only operates when the engine is run-
ning and the air conditioning is on.
For reasons of safety, the
glovebox should remain
closed when the vehicle is
moving.
For reasons of safety, the
upper storage compart-
ments should be kept closed
when the vehicle is moving.

96
VI
L A Y O U T
REFRIGERATED STORAGE CENTRAL CONSOLE
The central console contains:
- two cup-holders,
- two storage compartments,
- one or two 12 V accessories sockets (Maximum power:
120 W); these are operational
when the ignition is on.
There may be an additional 12 V accessories socket in the boot.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and a
removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.

 To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.

 To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.

97
VI
L A Y O U T
MAT
Removable component which pro-
tects the carpet against exterior dirt.
Fitting
When fi tting the mat for the fi rst time,
use only the fi xings provided in the
wallet attached.
Removal
To remove the mat on the driver's side:

 move the seat as far back as possible,

 unclip the fi xings,

 remove the mat.
Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
to the fi xings already present in
the vehicle; it is imperative that
these are used,
- never fi t one mat on top of another.
DOOR POCKETS
Front door
The front door pockets can hold objects
equivalent in volume to a 1.5 litre bottle.
They may have their own lighting,
coming on automatically when your
hand approaches.
This lighting goes out automatically
after a few moments when your
hand is taken away.
Rear door
The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.
USB BOX
This connection box, consisting of
a JACK socket and a USB port, is
located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod ®
or USB stick type.
It reads the audio fi le formats which
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
You can manage these fi les using
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the
use of this equipment, refer to the
"Audio and Telematics" section.

98
VI
L A Y O U T
AIRCRAFT-STYLE REAR TABLES

Rear table stowed

Rear table opened
The backrests of the front seats are
fi tted with aircraft-style tables. These
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
 Pull the table downwards to
open.

 To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorpo-
rated in the front seat backrests,
behind the tables. These light the
surface of the tables without distur-
bing the other passengers.
They are accessible only while the
table is down.

 Press on the "on/off" button to
turn the lamp on or off.
SECOND ROW FOOTWELL
Depending on the confi guration, the
vehicle has one or two storage com-
partments under the footwell, locat-
ed between the seats of the fi rst and
second rows. They can be accessed
via clipped fl aps with a handle A .
The compartment on the left-hand
side may contain the puncture repair
kit and the tool kit may be stored in
the compartment on the right-hand
side. In this case the fl ap is secured
by means of a screw B . To gain
access to the compartment, turn the
screw a quarter turn anticlockwise
using a coin.
On vehicles fi tted with pneumatic
suspension, the left-hand fl ap is
locked.
Individual reading lamps

99
VI
L A Y O U T
SIDE BLINDS (C4 PICASSO)
Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.

 Pull on the tab A and anchor the
blind on the hook B .
REAR BLIND (C4 PICASSO)

 Pull on the tab of the blind
located on the luggage cover and
position the blind on the hooks.
SIDE BLINDS (GRAND C4 PICASSO)
Fitted on the 2nd and 3rd row rear
windows, these protect young chil-
dren from the sun's rays.
Second row

 Pull on the tab A and anchor the
blind on the hooks B .
Third-row
The blinds are incorporated in the
third-row trim panels.

 Pull on the tab and anchor the
blind on the hooks.
 Pull on the tab and anchor the
blind on the hooks.
Do not attach or suspend heavy
objects in the environs of the sun
visors (blind housings and hooks...)
THIRD ROW STORAGE
Third-row passengers may have
storage pockets in the side panel
and each of them will have a cup-
holder (7 seater model).

94
VI
L A Y O U T
SLIDING SUN VISOR
Sliding blinds
Visor struts
The blinds are extended on the sun
visor struts.
Fold the visor downwards, to protect
against dazzle to the face.
If dazzle is coming from the side
windows, detach the visor from its
housing above the centre of the
windscreen and pivot it to the side. Do not attach or suspend heavy
objects on the slide rail of the sun
blind.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or
car park tickets.
These windows are located on each
side of the base of the child moni-
toring mirror.
They are two non-refl ective areas of
the athermic windscreen.
CHILD MONITORING
MIRROR
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, etc.). A child monitoring mirror is installed
above the interior rear view mirror.
This allows you to monitor the vehi-
cle’s rear passengers, or it can facili-
tate conversation between the front
and rear passengers without the
need to move the rear view mirror.
It can be folded away to eliminate
dazzle.
Sliding blinds are provided for your
protection against bright sunlight.
They can be adjusted manually.

 Slide the blind on the visor to the
desired position by pushing the
area A .
The visors are fi tted with a locking
system on their central housing when
the blind is rolled up. To remove the
visor from its central housing or reposi-
tion it, it must be in a vertical position.

95
VI
L A Y O U T
UPPER STORAGE AREA
There are large storage compart-
ments at the top of the fascia, one
on the driver's side and one on the
passenger's side.

 To open, press the button at the
bottom corner.

 To close, lower the lid fully until it
clicks.
GLOVE BOX WITH LIGHT
This has areas for storing a bottle of
water, the vehicle's handbook pack,
etc.
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...

 To open the glove box, raise the
handle and lower the lid.
The light comes on automatically
when the lid is opened.
REFRIGERATED GLOVEBOX
It may be refrigerated, depending on
your vehicle’s equipment, by a ven-
tilation duct that can be closed off
manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with fresh air whatever the require-
ments of the passenger compartment.
The refrigeration of your glovebox
only operates when the engine is run-
ning and the air conditioning is on.
For reasons of safety, the
glovebox should remain
closed when the vehicle is
moving.
For reasons of safety, the
upper storage compart-
ments should be kept closed
when the vehicle is moving.

96
VI
L A Y O U T
REFRIGERATED STORAGE CENTRAL CONSOLE
The central console contains:
- two cup-holders,
- two storage compartments,
- one or two 12 V accessories sockets (Maximum power:
120 W); these are operational
when the ignition is on.
There may be an additional 12 V accessories socket in the boot.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and a
removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.

 To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.

 To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
