119
VIII
S A F E T Y
Rear central seat belt
Installation of the seat belt
(C4 Picasso)
Open the cover A .
Remove the belt tongues from
their housing.
Bring the belt tongues up to the
relay ring B .
Insert the attachment, then pass
the tongues through the ring.
Reclose the cover A . Make sure
that the belt is correctly posi-
tioned in the recess in the cover
provided for this purpose. Stowage of the belt tongues
(C4 Picasso)
Operate in reverse order to stow
the belt tongues.
You may opt to leave the seat belt in
the relay ring even if not using it. Routing of the seat belt
(C4 Picasso and C4 Grand
Picasso)
Insert the tongue C into the buckle
on the right, then insert the sec-
ond tongue D into the buckle on
the left.
Unfastening the seat belt
(C4 Picasso and Grand C4
Picasso)
Release the tongue C , then the
tongue D and guide the seat belt
to its stowing position.
Before use
For safety reasons, it is essential
that the seat belt passes through
the relay ring.
To prevent any damage to seat
belts and in order not to get them
jammed, take care to stow them on
the sides of the backrests.
Page 152 of 330
120
VIII
S A F E T Y
Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third-row
passenger seat belts
Take care to attach the third-row
passenger seat belts securely on
the rings provided for this purpose.
Do not attach the belts on the an-
choring points marked with a red
cross, as shown on the illustration. Stowing the tongue of the third-
row seat belt
Secure the tongue in the place
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use:
To avoid damaging or jamming the
seat belts, take care to stow them
on the sides of the backrests.
Page 153 of 330
121
VIII
S A F E T Y

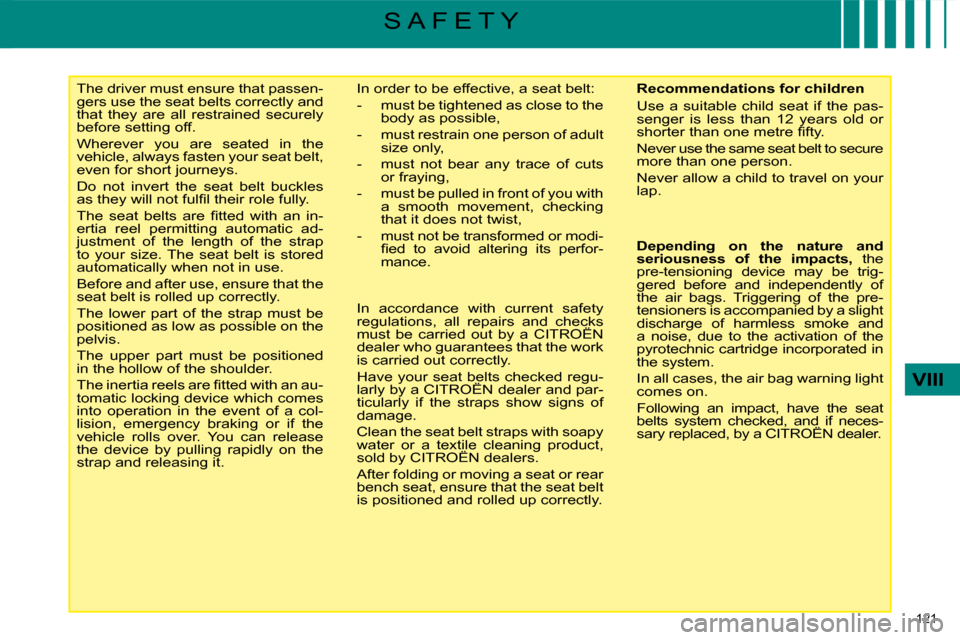

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a col-
lision, emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r -
mance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly.
Depending on the nature and
seriousness of the impacts
, the
pre-tensioning device may be trig-
gered before and independently of
the air bags. Triggering of the pre-
tensioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 154 of 330
122
VIII
S A F E T Y

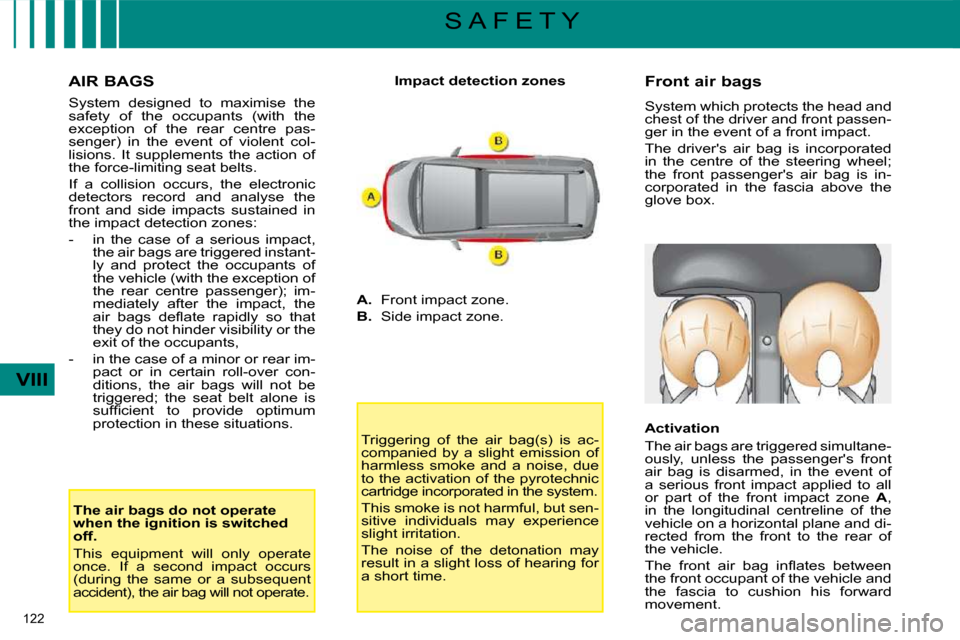

AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear im- pact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front air bags
System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver's air bag is incorporated
in the centre of the steering wheel;
the front passenger's air bag is in-
corporated in the fascia above the
g l o v e b o x .
Activation
The air bags are triggered simultane-
ously, unless the passenger's front
air bag is disarmed, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
movement.
Page 155 of 330
123
VIII
S A F E T Y
Deactivation
This warning light comes
on on the instrument panel
when the ignition is on and
until the air bag is re-armed.
To guarantee the safety of your child,
it is imperative that the passenger
air bag is disarmed when you install
a "rearwards-facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
re-arm the air bag and so guarantee
the safety of your front passenger in
the event of an impact.
Operating fault
Only the front passenger's air bag
can be disarmed:
with the ignition off , insert the
key in the passenger air bag dis-
arming switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
If this warning light comes on on
the instrument panel, accom-
panied by an audible warning
and a message on the multi-
function display, contact a CITROËN
dealer to have the system checked. The
air bags may no longer be triggered in
the event of a serious impact.
I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a CITROËN dealer.
If both air bag warning lights come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Page 156 of 330
125
VIII
S A F E T Y
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a f e w
m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot
gas via openings provided for this
purpose. Front air bags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible as de-
ployment of the air bags can cause
burns or the risk of injury from a cig-
arette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side air bags
Put approved covers only on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side air bags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head if
the curtain air bag is triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain air bags.
Page 157 of 330
124
VIII
S A F E T Y
* According to country.
Side air bags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side air bag is incorporated
in the front seat back frame, on the
door side.
Activation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain air bags*
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of
the passenger compartment. Activation
It is triggered at the same time as
the corresponding side air bag in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the
vehicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Operating fault
If this warning light comes on on the instrument panel, accompanied by an audible signal and a message on the multifunction display, contact a CITROËN dealer to have the sys-the multifunction display, contact a the multifunction
tem checked. The air bags may no longer be triggered in the event of a serious impact.
Page 158 of 330
125
VIII
S A F E T Y
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a f e w
m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot
gas via openings provided for this
purpose. Front air bags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible as de-
ployment of the air bags can cause
burns or the risk of injury from a cig-
arette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side air bags
Put approved covers only on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side air bags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head if
the curtain air bag is triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain air bags.
Page 159 of 330
126
IX
D R I V I N G
ELECTRONIC PARKING BRAKE
The electronic parking brake com-
bines 2 operational modes:
- AUTOMATIC
Automatic application when the engine stops and automatic re-
lease on use of the accelerator
(automatic operation by default),
- MANUAL
Permanent manual application/ release of the parking brake is
possible by pulling control A
while pressing the brake pedal. Automatic operation
Application with the engine off
With the vehicle stationary, the park-
ing brake
is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : Application with the engine running
With the engine running and the ve-
hicle stationary, in order to immobi-
lise the vehicle you need to manually
apply the parking brake by
pulling
on control A .
The application of the parking brake
i s c o n fi r m e d b y :
- the lighting of warning
lamp P on control A and
on the instrument panel,
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
A n o p e r a t i o n s o u n d w i l l c o n fi r m t o
you the application/release of your
electronic parking brake. - the lighting of warning
lamp P on control A and
on the instrument panel,
- the display of a message "parking brake applied" on the multifunc-
tion screen.
When the driver’s door is opened,
a beep is heard and a message
displayed if the parking brake has
not been applied.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Page 160 of 330
127
IX
D R I V I N G
Release
The electronic parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged),
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox ,
accelerate with the selector in
position D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "parking brake released" on the multifunc-
tion screen. Activation/Deactivation of the
automatic functions
The automatic application when the engine
is switched off and the automatic release
when you press the accelerator can be
deactivated. Activation/deactivation is
p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n m e n u o f
the multifunction screen. To do so, select
" P e r s o n a l i s a t i o n / C o n fi g u r a t i o n / D e fi n e t h e
Vehicle parameters/Driving assistance/
Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the au-
tomatic functions is recom-
mended in particularly cold
conditions (ice) and during
towing (breakdown, cara-
van...) Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warn-ing lamp on control A
and of warning lamp P
on the instrument panel,
- the display of a message "parking brake applied" on the multifunc-
tion screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
