D R I V I N G
Release
The electronic parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged),
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox ,
accelerate with the selector in
position D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "parking brake released" on the multifunc-
tion screen. Activation/Deactivation of the
automatic functions
The automatic application when the engine
is switched off and the automatic release
when you press the accelerator can be
deactivated. Activation/deactivation is
p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n m e n u o f
the multifunction screen. To do so, select
" P e r s o n a l i s a t i o n / C o n fi g u r a t i o n / D e fi n e t h e
Vehicle parameters/Driving assistance/
Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the au-
tomatic functions is recom-
mended in particularly cold
conditions (ice) and during
towing (breakdown, cara-
van...) Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warn-ing lamp on control A
and of warning lamp P
on the instrument panel,
- the display of a message "parking brake applied" on the multifunc-
tion screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
Page 162 of 330
128
IX
D R I V I N G
Release
With the ignition on or the engine run-
ning, to release the parking brake,
press on the brake pedal, pull then
release control A .
The full application of the parking
b r a k e i s c o n fi r m e d b y : - the extinction of the warning lamp on control
A and of warning lamp P
on the instrument panel,
- the display of a message "parking brake released" on the multifunc-
tion screen.
If you pull control A without pressing
the brake pedal, the parking brake
will not be released and the "Foot on
brake" warning lamp will light up on
the instrument panel.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake. Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer. Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake
by pulling then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e e x t i n c t i o n o f
warning lamp P (red) on the instru-
ment panel and the display of a
message "parking brake released"
on the multifunction screen.
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible.
Page 163 of 330
129
IX
D R I V I N G
Dynamic emergency braking
In the event of a failure of the ve-
hicle’s main braking system or in
an exceptional situation (e.g. driver
taken ill, under instruction, etc) a
continuous pull on control A will stop
the vehicle.
The electronic stability programme
(ESP) provides stability during dy-
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed on the
multifunction screen:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP sys-
tem is signalled by the light-
ing of this warning lamp,
then braking stability is not
guaranteed. In this event, stability
must be assured by the driver by
repeating alternate "pull release"
actions on control A .
The dynamic emergency
braking must only be used in
exceptional circumstances.
Page 164 of 330
130
IX
D R I V I N G
Emergency unlocking In the event of the electronic parking
brake malfunctioning or the battery
r u n n i n g fl a t , a n e m e r g e n c y m a n -
ual device can unlock the parking
brake.
Immobilise the vehicle, with the
e n g i n e r u n n i n g , b y e n g a g i n g fi r s t
gear (manual gearbox), position
P (automatic gearbox) or M or
R (6-speed electronic gearbox),
then switch off the engine.
If it is impossible to immobilise the vehicle, do not action the
control and urgently contact a
CITROËN dealer.
Fetch the vehicle blocks and the
unlocking device (braided cable)
from the toolbox.
Immobilise the vehicle by placing
blocks at the front and at the rear
of one of the rear wheels.
Slide the front left-hand seat
back as far as possible.
L i f t u p t h e fl o o r p l u g B in the
carpet under the seat.
Pierce the tab C on the tube D
with the unlocking device.
Place the unlocking device in the
tube D .
Turn the unlocking device clock-
wise . For safety reasons, it is
essential to continue turning the
device as far as it will go or until
you hear a knocking noise. The
parking brake is released.
Remove the unlocking device
and store it with the blocks in the
toolbox.
- The operation of the parking brake reinitialises when the
ignition is switched off then on
again. If the reinitialisation of the
parking brake proves impossible,
contact a CITROËN dealer.
- The subsequent time required for application may be longer
than during normal operation.
For safety reasons, after this manoeuvre it is essential to cont act a CITROËN dealer urgently to have the plug
replaced.
Following an emergency unlocking, immobilisation o f the vehicle is no longer guaranteed once the manual emergency
unlocking has been deployed and the manual control does not allow the re-application of your parking brake.
Take no action, either on control A , or stopping starting the engine while the unlocking de vice is engaged.
Take care not to allow moisture or dust in the proximity of th e plug.
Page 165 of 330
131
IX
D R I V I N G

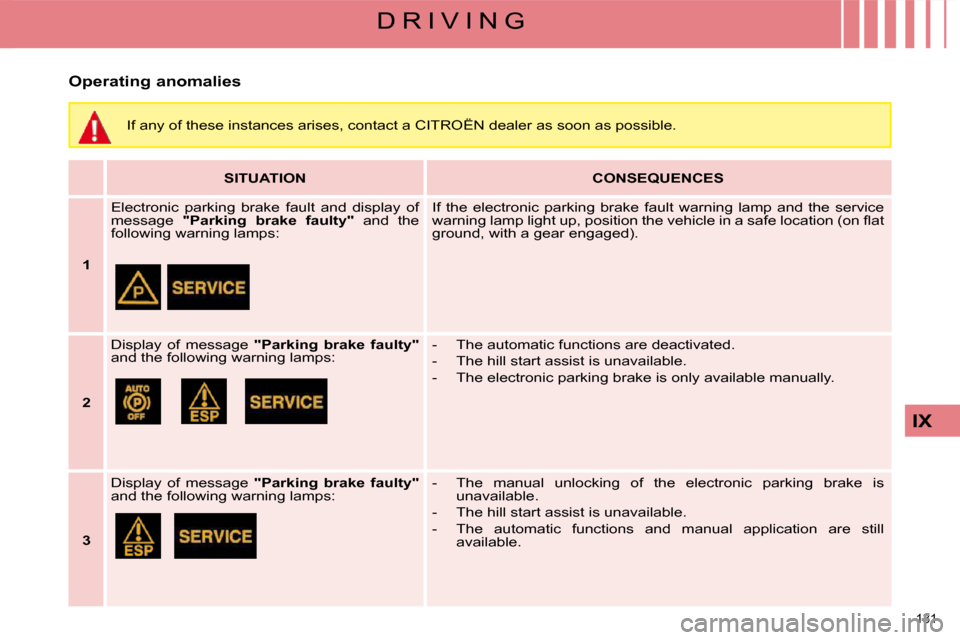

Operating anomalies

SITUATION
CONSEQUENCES
1 Electronic parking brake fault and display of
message
"Parking brake faulty" and the
following warning lamps: If the electronic parking brake fault warning lamp and the
service
w a r n i n g l a m p l i g h t u p , p o s i t i o n t h e v e h i c l e i n a s a f e l o c a t i o n ( o n fl a t
ground, with a gear engaged).
2 Display of message
"Parking brake faulty"
and the following warning lamps: - The automatic functions are deactivated.
- The hill start assist is unavailable.
- The electronic parking brake is only available manually.
3 Display of message
"Parking brake faulty"
and the following warning lamps: - The manual unlocking of the electronic parking brake is
unavailable.
- The hill start assist is unavailable.
- The automatic functions and manual application are stil l
available.
If any of these instances arises, contact a CITROËN dealer as
soon as possible.
Page 166 of 330
132
IX
D R I V I N G
SITUATION
CONSEQUENCES
4 Display of message
"Parking brake faulty"
and the following warning lamps:
and/or fl a s h i n g - The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake:
Immobilise the vehicle and switch off the ignition
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electronic parkin g
brake warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electronic parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
5 Display of message
"Parking brake control
faulty – automatic mode activated" and the
following warning lamps:
and/or fl a s h i n g - Only the functions for automatic application on switchi
ng off the
engine and automatic release on acceleration are available.
- Manual application/release of the electronic parking brake and
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electronic parking brake before switching off the
engine.
Page 167 of 330
133
IX
D R I V I N G
HILL START ASSIST
System which keeps your vehicle
immobilised temporarily (approxi-
mately 2 seconds) when starting on
a gradient, the time it takes to move
your foot from the brake pedal to the
accelerator pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot
be deactivated. Operation
Operating fault
If a malfunction of the system
occurs, these warning lamps come
on. Contact a CITROËN dealer to
have the system checked.
On an ascending slope, with the
vehicle stationary, the vehicle is
held for a brief moment when you
release the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r neutral on a manual gearbox,
- provided you are in A or M on an
electronic gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the
vehicle stationary and reverse
gear engaged, the vehicle is held
for a brief moment when you re-
lease the brake pedal.
do not exit the vehicle while
it is being held in the hill
start assist phase.
If you need to exit the ve-
hicle with the engine running,
manually apply the parking brake
and ensure that the warning lamp
P (red) on the instrument panel is
permanently on.
Page 168 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 169 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 170 of 330
135
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector
allows you to view the position
selected.
When the ignition is on,
lighting of the service
warning lamp, accompa-
nied by a sound signal and the
message "Gearbox faulty" indi-
cates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is differ-
ent, reposition the selector on N
in order to be able to start. Moving off
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Action the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure. Reverse gear
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to change to reverse
gear when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Neutral Changing to neutral
To change to neutral, move the
selector to N . If the vehicle is
moving, do not select this position
even momentarily.
