Adjusting the steering wheel
The steering wheel can be adjusted for
height and reach.
Release the steering wheel by pulling
lever A towards you.
Adjust the position of the steering
wheel then lock it pushing the lever fully
back.

 76 It automatically and progressively chan-
ges between day use and night use.
This operates with the ignition switched
on.
From the driver’s seat, select the door
mirror by moving control 1 to the left or
right, then adjust the door mirror as re-
quired in four directions using control 2 .
Demisting-defrosting of the door mirrors
is linked to that of the rear screen.

 103
 75
For safety reasons, these adjust-
ments must not be carried out whilst
driving.
This additional mirror 1 allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle. Door mirror foldback
When the vehicle is parked, the door
mirrors can be folded back either man-
ually or automatically.
S I T T I N G C O M F O R T A B L Y
Automatic photochromatic rear
view mirror
Door mirror adjustment

 76
Child surveillance mirror

15
F A M I L I A R I S A T I O N

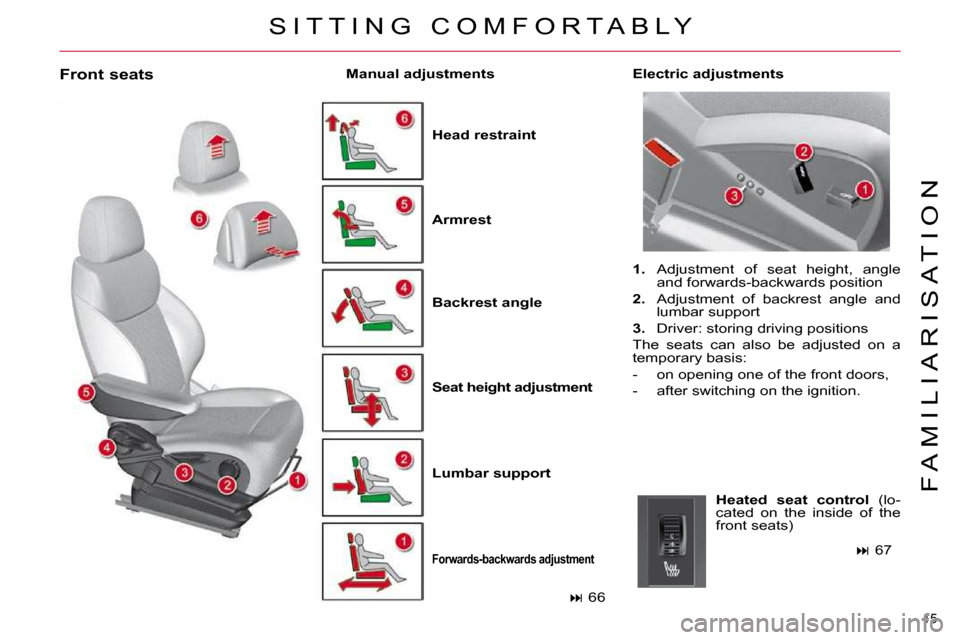

Front seats
Head restraint

Backrest angle

Seat height adjustment

Lumbar support

Forwards-backwards
adjustment

Armrest Electric adjustments
Manual adjustments

 67

Heated seat control (lo-
cated on the inside of the
front seats)

 66
1. Adjustment of seat height, angle
and forwards-backwards position

2. Adjustment of backrest angle and
lumbar support

3. Driver: storing driving positions
The seats can also be adjusted on a
temporary basis:
- on opening one of the front doors,
- after switching on the ignition.
S I T T I N G C O M F O R T A B L Y

16
F A M I L I A R I S A T I O N
Adjusting the seat belt height
To adjust the seat belt, squeeze the
control and slide it in the direction re-
quired.
 128 From the driver’s seat position, the con-
trols located on the door are used to
operate the electric windows.

 85
 Slide the blind on the visor to the
desired position by pushing at A .
The blinds are extended on the sun visor rails.

 Fold the visor downwards, to pre-
vent being dazzled.
Panoramic sunroof blind
Opening (positions 1 to 9 )
Closing (position 0 )
The blind has an anti-pinch system.

 90
S I T T I N G C O M F O R T A B L Y
Electric windows controls Sliding sun visors

 103

17
F A M I L I A R I S A T I O N
Recommended settings
- Heating/manual air conditioning:
- Digital air conditioning: the fully automatic mode is recommended - press "AUTO" .

Operate

For...


Cooling
or
Fully cold to
start, then personal settings
Maximum to
start, then personal settings
ON
ON when
starting,
then OFF

Heating

or
Fully hot to
start, then personal settings
Maximum to
start, then personal setting

ON when
starting,
then OFF

Demisting

Defrosting

Fully hot
OFF
V E N T I L A T I O N

18
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you if
the driver’s or front passenger’s
seat belt is not fastened (de-
pending on model), and if the
front passenger’s (depending
on model) or the second-row
passengers’ seat belts are unfastened.
The illuminated positions represent
those whose seat belts are not fas-
tened/unfastened.
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This function can be deactivated
by pressing button A for more than
two seconds.
Tyre under-inflation detection
This function warns you if a tyre is de-
fl ated or punctured.
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Under-infl ation warning
The STOP warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
 40

 124
 88
M O N I T O R I N G
Automatic central locking
Instrument panel
with multifunction screen A or C
with the MyWay or NaviDrive
multifunction screen

1. Instrument panel.

2. Multifunction screen.

3. Control buttons.

4. Warning lamps display zone.
 30

 31 Manual central locking
You can use electrical central locking or
unlocking by pressing on button
A .
If one of the doors is open or is not
closed properly, central locking will not
work.

19
F A M I L I A R I S A T I O N
Deactivation of front passenger
airbag Child lock
The 3 second-row seats of your vehicle
are fi tted with regulation ISOFIX mount-
ing points, with 3 rings for each seat po-
sition A B C .
This fi xing system is designed for chil-
dren weighing up to 18 kg.
Electric control

 132

 122
 119
Front airbags
Manual control
P A S S E N G E R S A F E T Y

1. Insert the key in lock A .

2. Select the "
OFF
" position.

3. Remove the key. The rear doors are locked by operating
the lever using the key (aperture at an
angle).
Pressing the button prohibits operation
of the electric windows from the rear
of the vehicle and opening of the rear
doors from inside. ISOFIX mounting system

20
F A M I L I A R I S A T I O N
Take care to attach the third-row pas-
senger seat belts to the rings provided
for this purpose.

Do not attach the belts to the load
anchorage points marked with a red
cross (see illustration above).
Stowing the tongue of the third-row
seat belt

 130
Using the third-row passenger seat
belts (CITROËN Grand C4 Picasso)
P A S S E N G E R S A F E T Y

 Insert tongue C into the buckle on
the right, then insert the second
tongue D into the buckle on the left.

 129
Seat belts
Second row centre seat belt

21
F A M I L I A R I S A T I O N
SECOND ROW SEATS
The 3 second-row seats are indepen-
dent of each other and are all the same
width. They can all be adjusted to the
"comfort" position.
Placing a seat in the "comfort"
position
Returning the seat to its original position

 69 Longitudinal adjustment
Lift up control
A , located at the front of
the seat, and adjust the seat into the
desired position.
I N T E R I O R
"Comfort" position

 Pull on strap B .
The backrest reclines and the seat base
pivots slightly.

 Pull on strap B and guide the seat
forwards.

22
F A M I L I A R I S A T I O N
I N T E R I O R
Folding the seats
From the boot - whilst loading,
for example (CITROËN Grand
C4 Picasso)
SECOND ROW SEATS
From outside

 Pull fi rmly upwards on strap C , as
indicated by the red arrow, to unlock
the seat; keep pulling until the seat
is fully folded.

 Slide latch A of the panel down-
wards, to unlock it.

 Return the panel to the upright posi-
tion, then slide latch A upwards to
lock it.
Before deploying the rigid panels, check
that the second row seats are in their
fully rear position.

 71
Having fi rstly folded the third-row
seats.

 Pull on strap D to unlock the re-
quired seat. Repositioning the seats
Return the rigid panels of the second-
row seats to their initial (upright) position
and lock them in position (CITROËN
Grand C4 Picasso).
Raise the backrest and push it back-
wards until it locks in position.
Rigid panel (CITROËN Grand
C4 Picasso)
A rigid panel is attached to each second-
row seat backrest.
Unlocking/Locking the rigid panel

23
F A M I L I A R I S A T I O N
Fold the concertina boards ( 1 2 3 ) ar-
ranged above each of the third-row
seats.
Pull on the black strap F , located on the
seat backrest.

 73
Before moving the third-row seats,
do not forget to lock in the rigid pan-
els fi rst (located at the base of the
second-row seat backrests).
Installing the seats
Put the three sections of the concertina
boards ( 1 2 3 ) to their vertical position,
then pull on the red strap G .
Before moving the third-row seats, re-
turn the rigid panels to the upright posi-
tion and lock them. Pull on control
E , located at the top of
the second-row seats backrest.

 72
I N T E R I O R
Stowing the seats Access to third-row seats
Do not leave objects either on or un-
derneath the second-row seats when
you are folding them.
THIRD ROW SEATS (CITROËN
GRAND C4 PICASSO)
