FAMILIARISATION
PASSENGER SAFETY - STARTING

Passenger’s front airbag

Seat belts and passenger’s
front airbagIgnition switch


1.
Open the glove box.

2.
Insert the key.

3.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

4.
Remove the key keeping the switch
in the new position.



134


A.
Front left seat belt not fastened/un-
fastened warning lamp.

B.
Front right seat belt not fastened/
unfastened warning lamp.

C.
Rear right seat belt unfastened
warning lamp.

D.
Rear centre seat belt unfastened
warning lamp.

E.
Rear left seat belt unfastened war-
ning lamp.

F.
Passenger’s front airbag deactiva-
ted warning lamp.

G.
Passenger’s front airbag activated
warning lamp.



131, 135


1.
Stop
position.

2.
Ignition on
position.

3.
Starting
position.



80
When switching the ignition on or off,
the speedometer needle and the rev
counter and fuel gauge bars go full tra-
vel and then return to 0.

20
DRIVING SAFELY

Electric parking brake


Manual application/release
Automatic application/release

Before leaving the ve-
hicle, check that the
brake warning lamp in
the instrument panel
and the P
warning lamp in the control
lever A
are on fi xed (not fl ashing)
.
Manual application
of the parking
brake is possible by pulling
the control
lever A
.
With the ignition on, manual release
of
the parking brake is possible by press-
ing the brake pedal
and pulling then
releasing
the control lever A
. Press the accelerator pedal and let the
clutch pedal up (manual gearbox), the
parking brake is released automatically
and progressively as you move off.
With the vehicle at rest, on switching off
the engine the parking brake is applied
automatically.



138

With the engine running, on
opening the driver’s door there
is an audible warning; apply the
parking brake manually.
Do not leave a child alone inside
the vehicle with the ignition on;
they might release the parking
brake. If you are towing a trailer or
caravan or if the slope might
vary (transport on a ferry, lorry,
towing...) make a maximum
manual application with a long
pull on the control lever A
to im-
mobilise the vehicle. If this warning lamp is on in the
instrument panel, the automa-
tic application/release
is de-
activated
; apply and release
the parking brake manually.

21
FAMILIARISATION
DRIVING SAFELY

6-speed electronic gearbox
system
Displays in the instrument panel
Moving off
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Steering mounted "-"
control paddle.

3.
Steering mounted "+"
control paddle.

The gear engaged or the driving mode
selected appears on the instrument
panel screen.

N

.
Neutral.

R

.
Reverse.

1 to 6

.
Gears engaged.

AUTO

.
Automated mode.



)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear by pulling the gear
lever 1
towards position A
or M
,
or
Engage reverse by pushing the gear
lever 1 towards position R
.

)
Release the parking brake.

)
Take your foot off the brake pedal
then accelerate.



147

22
DRIVING SAFELY

Automatic gearbox


This six-speed gearbox offers the
choice between the comfort of automa-
tic operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
"S"

(sport)
button.

3.
" 7
"

(snow)
button.

Displays in the instrument panel

Moving off


)
With your foot on the brake, select
position P
or N
.

)
Start the engine.

)
Then select position R
, D
or M
.

)
Take your foot off the brake pedal,
then accelerate away.



150


Hill start assist

The driving mode selected and/or the
gear engaged appear in the left hand
instrument panel screen.

P.
Park.

R.
Reverse.

N.
Neutral.

D.
Drive (automatic operation).

S.
S

port
programme.


7
.
Snow
programme.

1 to 6.
Gear engaged.

-.
Invalid value in manual operation. Your vehicle is fi tted with a system
which holds your vehicle stationary mo-
mentarily, the time to move your foot
from the brake to the accelerator, to
help with moving off on a gradient.
This function is only active when:


- the vehicle is completely stationary with
your foot on the brake pedal,

- certain conditions of gradient are
met,

- the driver’s door is closed.



153
Do not get out of the vehicle du-
ring the hill start assist tempo-
rary holding phase.

23
FAMILIARISATION
DRIVING SAFELY

Stop & Start


Engine going into STOP mode
Engine going into START mode
Deactivation/Reactivation
In certain circumstances the STOP
mode may not be available; the "ECO"

warning lamp fl ashes for a few seconds
then goes off.

- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,

- with the 6-speed electronic gear-
box system;
at speeds below
5 mph (8 km/h), when you press the
brake pedal or you put the gear le-
ver in position N
.



154


- with a manual gearbox;
when you
depress the clutch pedal,

- with the 6-speed electronic gear-
box system;



●
with the gear lever in position A

or M
, when you release the brake
pedal,

●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,

●
or engage reverse.

In certain circumstances, START mode
may engage automatically; the "ECO"

warning lamp fl ashes then goes off.



155
You can deactivate the system at any
time by pressing the "ECO OFF"
button;
the button’s warning lamp comes on.



155

The "ECO"
warning lamp goes
off and the engine restarts: The "ECO"
warning lamp comes
on in the instrument panel and the
engine is put into standby:
The system is reactivated auto-
matically every time you start the
engine with the key.

Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.

24
DRIVING SAFELY

Blind spot sensors
Parking space sensors

One of these messages appears to
indicate the level of diffi culty of the
manoeuvre:


)
Activate the function by pressing
control switch A
; the button’s warn-
ing lamp comes on.
The warning lamp located in the door
mirror comes to warn you of the arrival
of a vehicle in the blind spot detection
zone.



157


)
Select the function by pressing
control switch B
; the correspon-
ding warning lamp comes on in the
instrument panel.

)
Operate the direction indicators on
the side with the space to be mea-
sured; a message appears to con-
fi rm measurement is in progress.

)

Drive at a speed below 12 mph (20 km/h)
during measurement.

- Parking possible.


- Parking diffi cult.


- Parking not advised.





165

25
FAMILIARISATION
DRIVING SAFELY

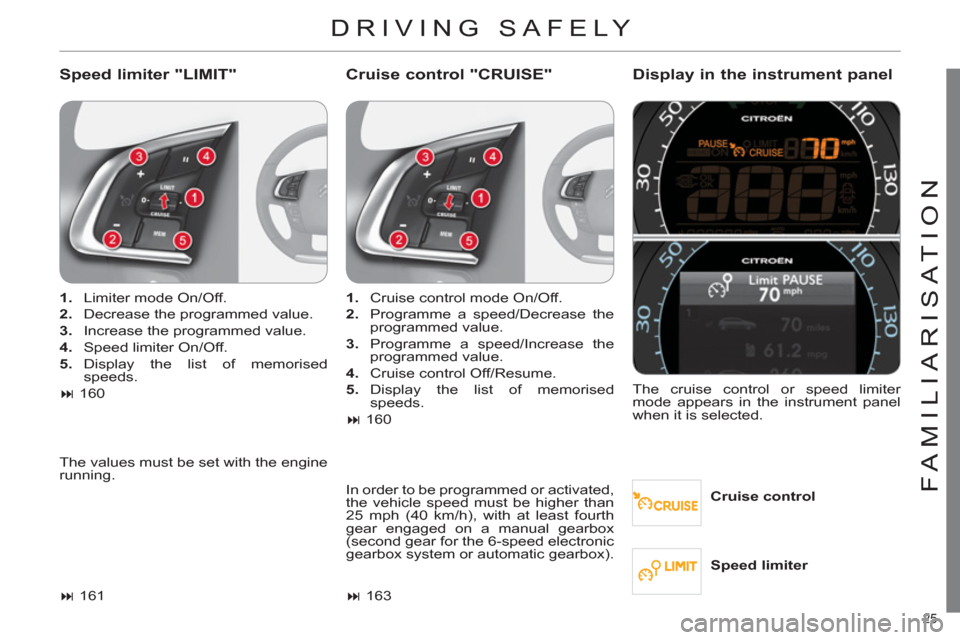

Speed limiter "LIMIT"
Cruise control "CRUISE" Display in the instrument panel


Cruise control

1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.

5.
Display the list of memorised
speeds.

160




161


1.
Cruise control mode On/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.

5.
Display the list of memorised
speeds.

160




163
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
The values must be set with the engine
running.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Speed limiter

26

1
MONITORING
27
TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with manu-
al gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.

Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information.
Reset service indicator or trip mileage
recorder.

A
and B.
Setting the time and selecting
units.

1
28












TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).

Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator for manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.
