Labels are fitted in various areas of your vehicle. They carry safety warnings as well as vehicle identification information. Do not remove them: they form an integral
part of your vehicle.
Automobiles
 CITROËN declares, by application of the provisions of the European regulation (Directive 2000/53) relating to End of Life V

ehicles,
 that it achieves the objectives set by this regulation and that recycled materials are used in the manufacture of the products that it sells.
Reproduction
 or translation of all or part of this document is prohibited without written authorisation from Automobiles CITROËN. We draw your attention to the following points:
-
 The fitting of electrical equipment or accessories not listed by CITROËN may cause faults and failures with the electrical system of your vehicle. Contact a CITROËN dealer for information on the range of recommended accessories.
-
 As a safety measure, access to the diagnostic socket, used for the vehicle's electronic systems, is reserved strictly for CITROËN dealers or qualified workshops, equipped with the special diagnostic tool required (risk of malfunctions of the vehicle's electronic systems that could cause breakdowns or serious accidents). The manufacturer cannot be held responsible if this advice is not followed.
-
 Any modification or adaptation not intended or authorised by Automobiles CITROËN or carried out without meeting the technical requirements defined by the manufacturer would lead to the suspension of the legal and contractual warranties. Printed in the EU
Anglais
For
 any work on your vehicle, use a qualified workshop that has the technical information, competence and equipment required, which a CITROËN dealer is able to provide.

2015 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Interak
15.C4.0031Anglais

CITROËN
C4
C4-2-additif_en_Chap00_couv-debut_ed02-2015
SUPPLEMENT

C4-2-additif_en_Chap00b_bienvenue_ed02-2015
Safety warning. Additional information. Contribution towards protecting nature.
Welcome
This document contains the latest updates to the handbook for your vehic\
le.
This information completes or cancels and replaces the information in th\
e handbook.
First refer to the handbook for your vehicle.
Key

3
Ease of use and comfort3
C4-2-additif_en_Chap03_ergonomie-et-confort_ed02-2015
Stop & Start
The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily deactivate the Stop & Start system. For more information on Stop & Star t , refer to the corresponding section.
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the maintenance and warranty guide.  If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.
Contains fluorinated greenhouse gas R134A. Depending on version and country of sale, the air conditioning system contains fluorinated greenhouse gas R134A. Gas capacity 0.425 kg (+/- 0.025 kg), GWP index 1 430 t (equivalent CO2: 0.608 t).
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
Recommendations for ventilation and air conditioning

Practical information
4
C4-2-additif_en_Chap07_infos-pratiques_ed02-2015

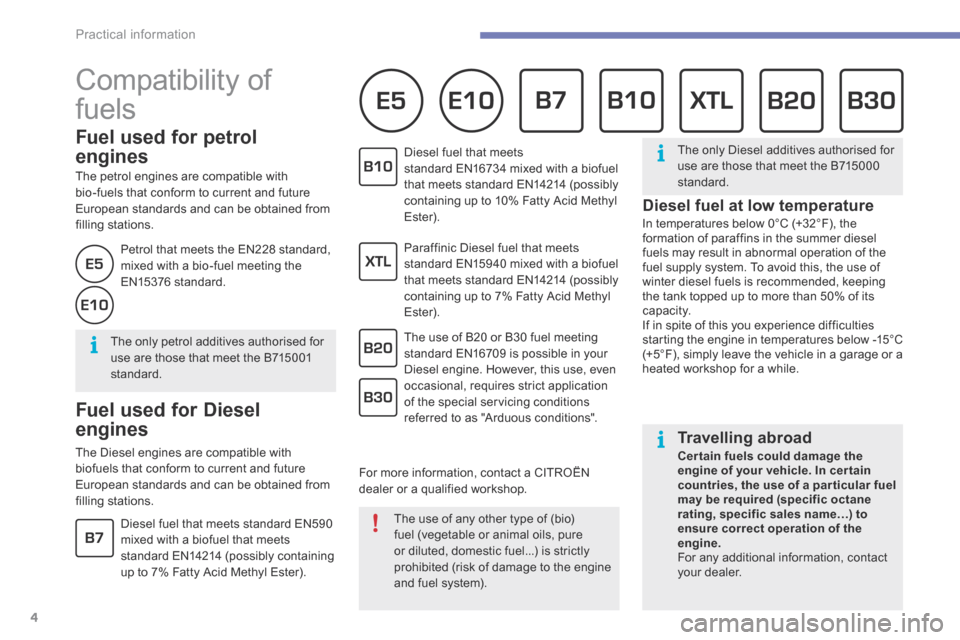

Compatibility of
fuels
Fuel used for petrol
engines
The petrol engines are compatible with bio-fuels that conform to current and future European standards and can be obtained from filling stations.
The use of any other type of (bio)
fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel system).
The only Diesel additives authorised for use are those that meet the B715000 standard.
Travelling abroad
Cer tain fuels could damage the engine of your vehicle. In cer tain countries, the use of a par ticular fuel may be required (specific octane rating, specific sales name…) to ensure correct operation of the engine. For any additional information, contact your dealer.
The only petrol additives authorised for use are those that meet the B715001 standard.
Fuel used for Diesel
engines
The Diesel engines are compatible with biofuels that conform to current and future European standards and can be obtained from filling stations.
Diesel fuel that meets standard EN590 mixed with a biofuel that meets standard EN14214 (possibly containing up to 7% Fatty Acid Methyl Ester).
Paraffinic Diesel fuel that meets standard EN15940 mixed with a biofuel that meets standard EN14214 (possibly containing up to 7% Fatty Acid Methyl Ester).
Diesel fuel that meets standard EN16734 mixed with a biofuel that meets standard EN14214 (possibly containing up to 10% Fatty Acid Methyl Ester).
The use of B20 or B30 fuel meeting standard EN16709 is possible in your Diesel engine. However, this use, even occasional, requires strict application of the special servicing conditions referred to as "Arduous conditions".
Petrol that meets the EN228 standard, mixed with a bio-fuel meeting the EN15376 standard.
For more information, contact a CITROËN dealer or a qualified workshop.
Diesel fuel at low temperature
In temperatures below 0°C (+32°F), the formation of paraffins in the summer diesel fuels may result in abnormal operation of the fuel supply system. To avoid this, the use of winter diesel fuels is recommended, keeping the tank topped up to more than 50% of its capacity. If in spite of this you experience difficulties starting the engine in temperatures below -15°C (+5°F), simply leave the vehicle in a garage or a heated workshop for a while.
