Citroen C4 RHD 2016 2.G Owner's Manual

8
In the event of a breakdown5
C4-2-additif_en_Chap08_en-cas-de-panne_ed02-2015
Temporary puncture repair kit
This kit consists of a compressor and a sealant cartridge. It allows the temporary repair of a tyre. temporary repair of a tyre. temporary repair You are then able to go to the nearest garage.
The vehicle's electric system allows the connection of the compressor for long enough to inflate a tyre after a puncture repair.
Tyre under-infl ation detection
If the vehicle is fitted with tyre under-inflation detection, the under-inflation warning lamp will remain on after the wheel has been repaired until the
system is reinitialised by a CITROËN dealer or a qualified workshop. It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder. Its compressor can be used to check and adjust the pressure of the tyre.
Access to the kit
Only the 12 V socket at the front of the vehicle allows the connection of the compressor for long enough to repair or inflate a tyre. The other 12 V sockets in the vehicle are not suited to the use of the compressor.
This kit is installed in the storage box, under the boot floor.

In the event of a breakdown
6
C4-2-additif_en_Chap08_en-cas-de-panne_ed02-2015
Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.
Avoid removing any foreign bodies which have penetrated into the tyre.

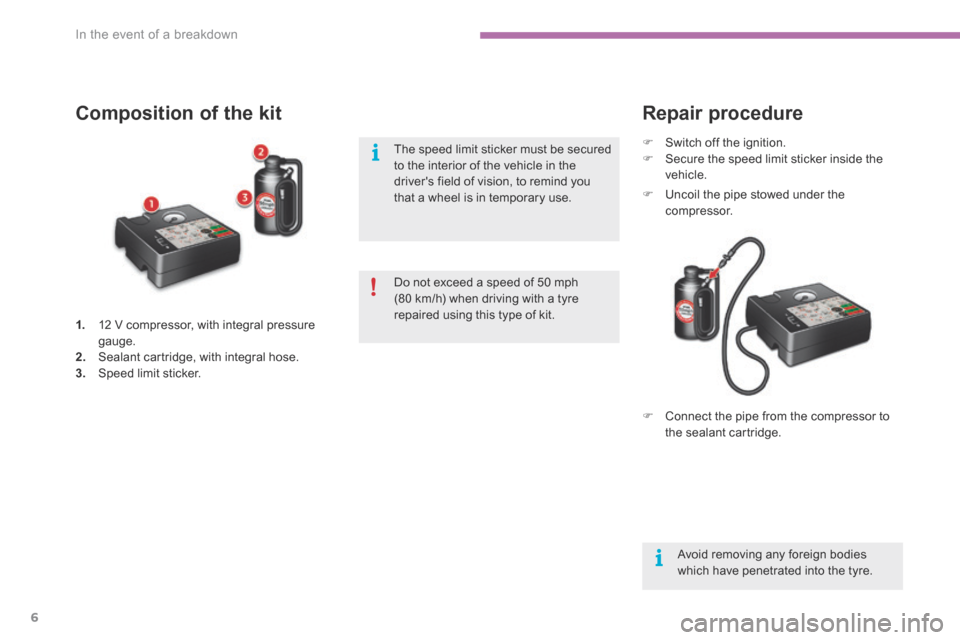

Composition of the kit
 Switch off the ignition.  Secure the speed limit sticker inside the vehicle.
Repair procedure
1. 12 V compressor, with integral pressure gauge. 2. Sealant cartridge, with integral hose. 3. Speed limit sticker.
The speed limit sticker must be secured to the interior of the vehicle in the driver's field of vision, to remind you that a wheel is in temporary use.  Uncoil the pipe stowed under the compressor.
 Connect the pipe from the compressor to the sealant cartridge.

8
In the event of a breakdown7
C4-2-additif_en_Chap08_en-cas-de-panne_ed02-2015

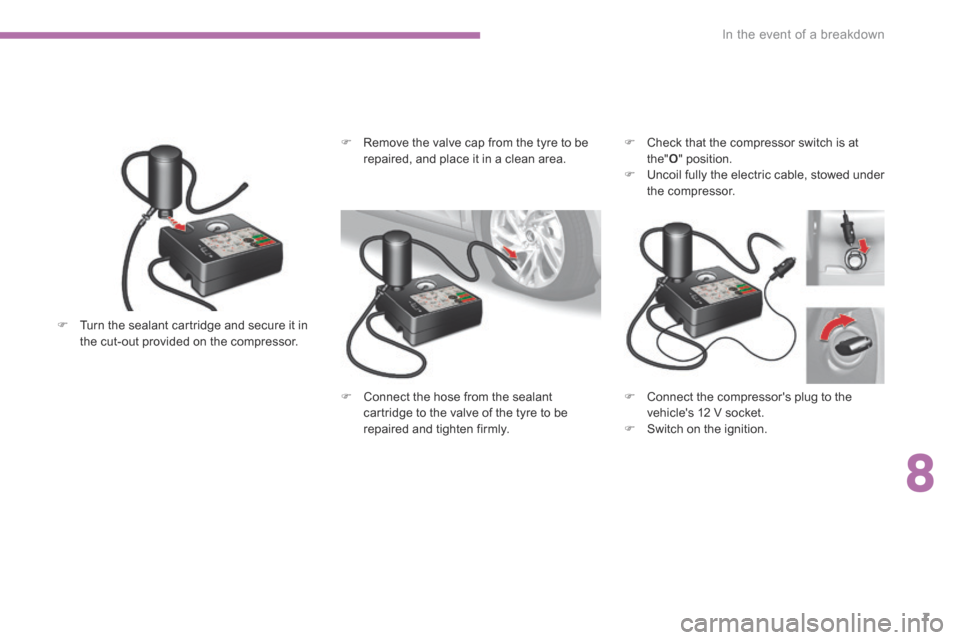

 Turn the sealant cartridge and secure it in the cut-out provided on the compressor.
 Remove the valve cap from the tyre to be repaired, and place it in a clean area.
 Connect the hose from the sealant cartridge to the valve of the tyre to be repaired and tighten firmly.
 Check that the compressor switch is at the" O " position.  Uncoil fully the electric cable, stowed under the compressor.
 Connect the compressor's plug to the vehicle's 12 V socket.  Switch on the ignition.

In the event of a breakdown
8
C4-2-additif_en_Chap08_en-cas-de-panne_ed02-2015

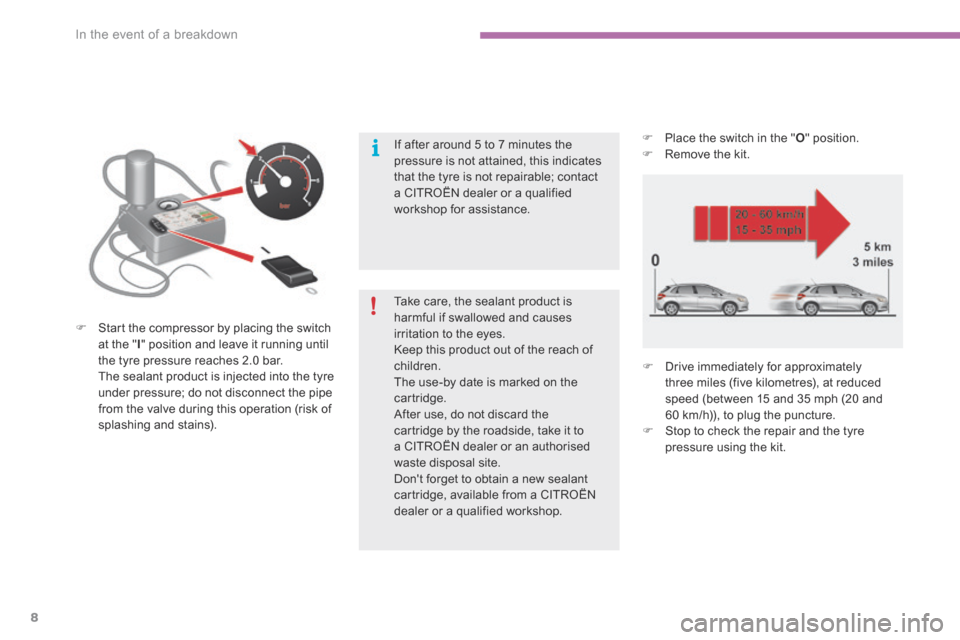

Take care, the sealant product is harmful if swallowed and causes irritation to the eyes. Keep this product out of the reach of children. The use-by date is marked on the cartridge. After use, do not discard the
cartridge by the roadside, take it to a CITROËN dealer or an authorised waste disposal site. Don't forget to obtain a new sealant cartridge, available from a CITROËN dealer or a qualified workshop.
 Start the compressor by placing the switch at the " I " position and leave it running until the tyre pressure reaches 2.0 bar. The sealant product is injected into the tyre under pressure; do not disconnect the pipe from the valve during this operation (risk of splashing and stains).
 Place the switch in the " O " position.  Remove the kit. If after around 5 to 7 minutes the pressure is not attained, this indicates that the tyre is not repairable; contact a CITROËN dealer or a qualified workshop for assistance.
 Drive immediately for approximately three miles (five kilometres), at reduced speed (between 15 and 35 mph (20 and 60 km/h)), to plug the puncture.  Stop to check the repair and the tyre pressure using the kit.

8
In the event of a breakdown9
C4-2-additif_en_Chap08_en-cas-de-panne_ed02-2015
 Connect the compressor's plug to the vehicle's 12 V socket.  Switch on the ignition.
 Check that the compressor switch is at the " O " position.  Uncoil fully the electric cable, stowed under the compressor.

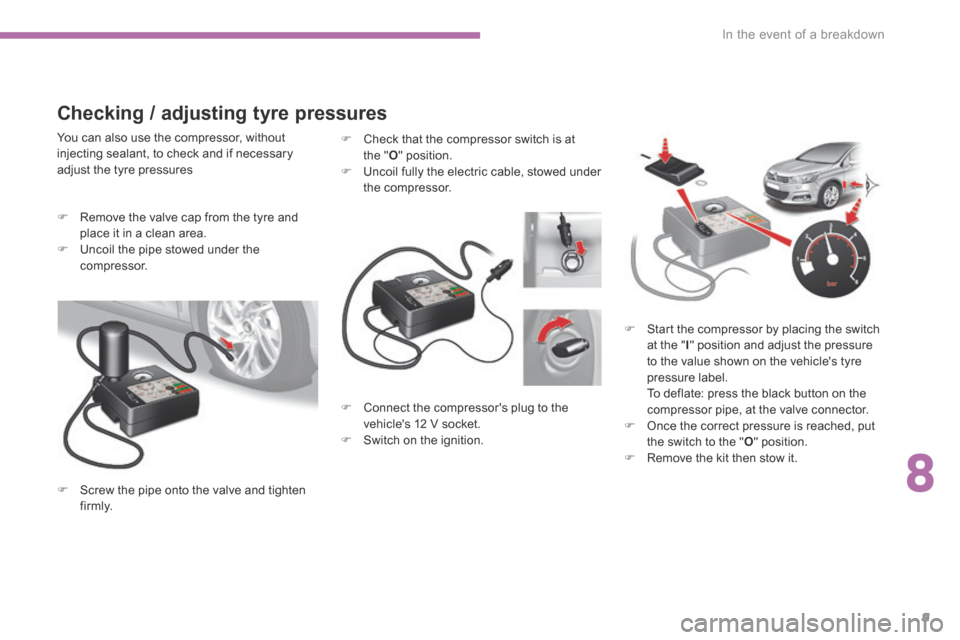

You can also use the compressor, without injecting sealant, to check and if necessary adjust the tyre pressures
 Start the compressor by placing the switch at the " I " position and adjust the pressure to the value shown on the vehicle's tyre pressure label. To deflate: press the black button on the compressor pipe, at the valve connector.  Once the correct pressure is reached, put the switch to the " O " position.  Remove the kit then stow it.
Checking / adjusting tyre pressures
 Remove the valve cap from the tyre and place it in a clean area.  Uncoil the pipe stowed under the compressor.
 Screw the pipe onto the valve and tighten f i r m l y.

Audio and Telematics
10
C4-2-additif_en_Chap10a_BTA-2_ed02-2015
Emergency or assistance call
Localised Emergency Call
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confirm that the call has
been made to the "Localised Emergency Call" * centre.
Pressing this button again immediately cancels the call. The green indicator lamp goes off.
The green indicator lamp remains on (without flashing) when communication is established. It goes off at the end of the call.
Localised Emergency Call immediately locates your vehicle, makes contact with you in your language ** and - if necessary - organises sending of the appropriate emergency services ** . In countries where the service is not operational, or if the locating service has been expressly declined, the call is directed straight to the emergency services (112) without location.
** Depending on the geographic cover for "Localised Emergency Call", "Localised Assistance Call" and the official national language selected by the owner of the vehicle. The list of countries covered by Telematic services is available at dealers or on the
website in your country.
* Depending on the terms and conditions for the service, available from dealers, and technological and technical limits.
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
If you benefit from the CITROËN Connect Box offer with the SOS and assistance pack included, there are additional services available to you in your personal space, via the Internet website for your country.

.
Audio and Telematics 11
C4-2-additif_en_Chap10a_BTA-2_ed02-2015
Localised Assistance Call
The fault with the system does not prevent the vehicle being driven.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down. A voice message confirms that the call has been made ** .
Pressing this button again immediately cancels the request. The cancellation is confirmed by a voice message.
Geo-location
You can deactivate geo-location by simultaneously pressing the "Localised Emergency Call" and "Localised Assistance Call" buttons, followed by a press on "Localised Assistance Call" to confirm.
To reactivate geo-location, simultaneously press the "Localised Emergency Call" and "Localised Assistance Call" buttons again, followed by a press on "Localised Assistance Call" to confirm.
If the orange indicator lamp is on fixed: the back-up battery should be replaced. In both cases, the emergency and assistance calls service may not work. Contact a qualified repairer as soon as possible.
Operation of the system
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
If the orange indicator lamp flashes then goes off: the system has a fault.
If you purchased your vehicle outside the Brand's dealer network, we suggest that you have a dealer check and, if desired, modify the configuration of these services. In a multi-lingual country, configuration is possible in the official national language of your choice.
For technical reasons, particularly to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.
** Depending on the geographic cover for "Localised Emergency Call", "Localised Assistance Call" and the official national language selected by the owner of the vehicle. The list of countries covered by Telematic services is available at dealers or on the
website in your country.

2015 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Interak
Anglais
AN. 15.C4.A041*15.C4.A041*

1
ADD_C42_EVO_EN
7-inch touch screen tablet
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps
2
S
teering mounted controls

4
M

enus

5
N

avigation

6
Navigation - Guidance
1

4
Tr a f fi c 18
Radio Media

2
0
Radio
26
DAB

(Digital

Audio

Broadcasting)

radio 28
Media
30
Settings


34
Connected services
4

2
MirrorLink
TM 42
C
arPlay® 46
T
elephone 48
Frequently asked questions

5
6
The system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.
.
Audio and Telematics

2
ADD_C42_EVO_EN

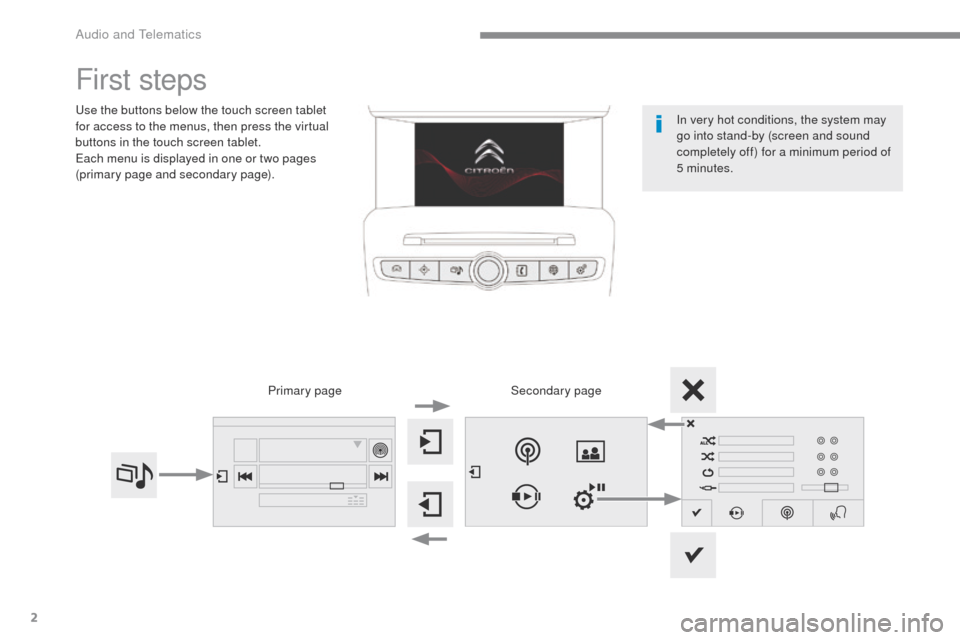

First steps
Use the buttons below the touch screen tablet
for access to the menus, then press the virtual
buttons in the touch screen tablet.
Each menu is displayed in one or two pages
(primary page and secondary page).Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.
