key Citroen C5 2007.5 (DC/DE) / 1.G User Guide

94
III
A
Locking/unlocking from the inside
With the doors and the boot closed, pressing button A allows you to control the electric central locking and unlocking.
It is still possible to open the doors from the inside.
If one of the doors is open or not properly closed, central locking will not work.
The warning lamp associated with the control A signals 3 statuses:lt fl ashes when the ignition key is in the stop position or when the key is not detected and the doors are locked.
It lights up when the vehicle is locked with the ignition switched on.It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.

95
III
BCD

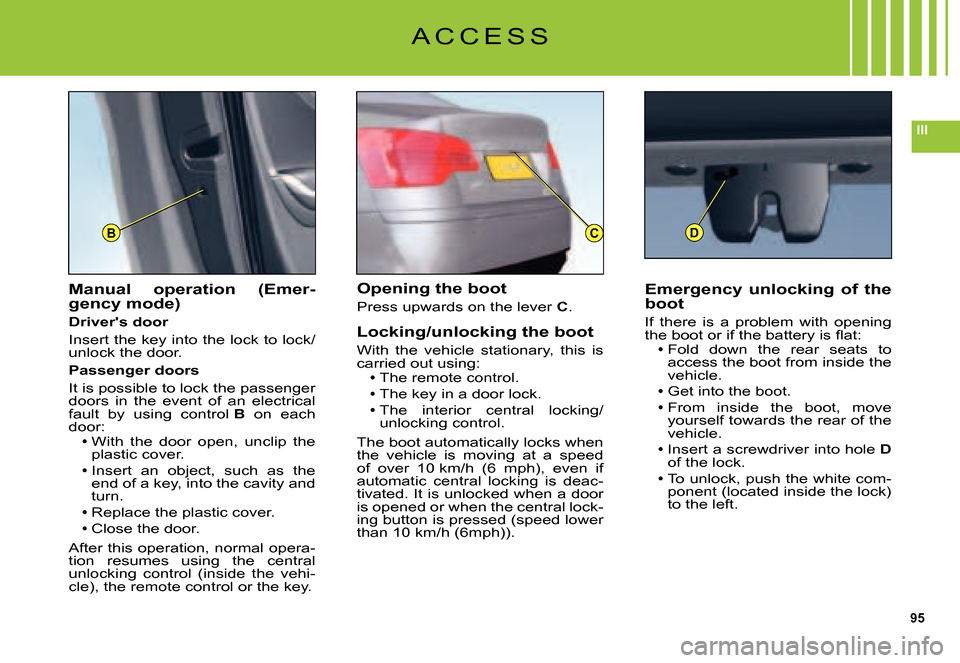

A C C E S S
Manual operation (Emer-gency mode)
Driver's door
Insert the key into the lock to lock/unlock the door.
Passenger doors
It is possible to lock the passenger doors in the event of an electrical fault by using control B on each door:With the door open, unclip the plastic cover.
Insert an object, such as the end of a key, into the cavity and turn.
Replace the plastic cover.
Close the door.
After this operation, normal opera-tion resumes using the central unlocking control (inside the vehi-cle), the remote control or the key.

107
III
A
A I R B A G S
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front pas-senger's seat position, it is impera-tive to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “OFF” posi-tion, the passenger's airbag is deactivated.With the ignition on, the front passenger's airbag deactiva-tion warning lamp lights up on the roof console display.

112
III
2
2
1

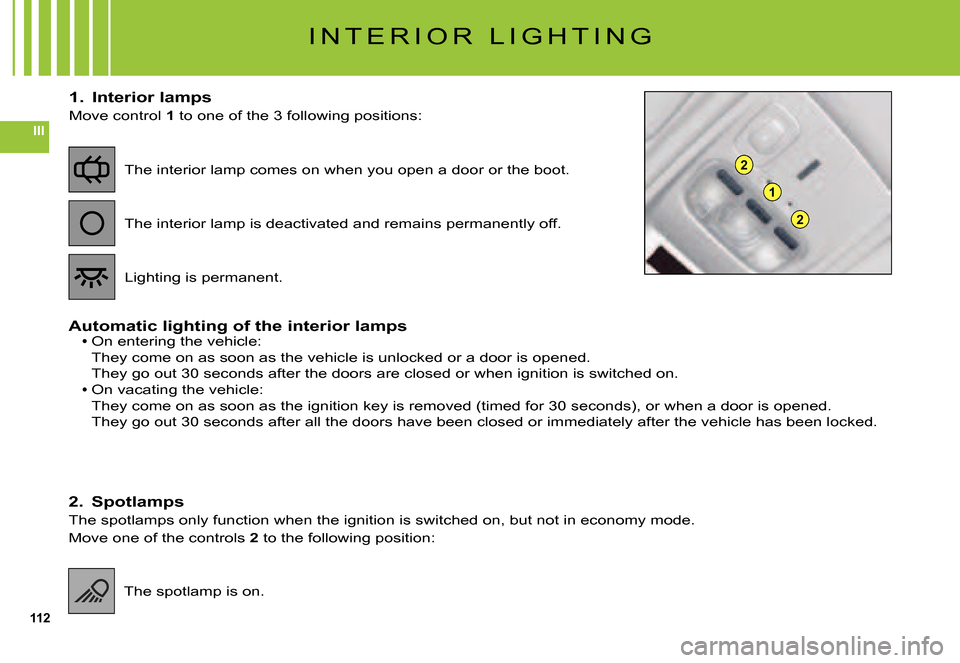

I N T E R I O R L I G H T I N G
1. Interior lamps
Move control 1 to one of the 3 following positions:
Automatic lighting of the interior lampsOn entering the vehicle:They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.
On vacating the vehicle:They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.

124
IV

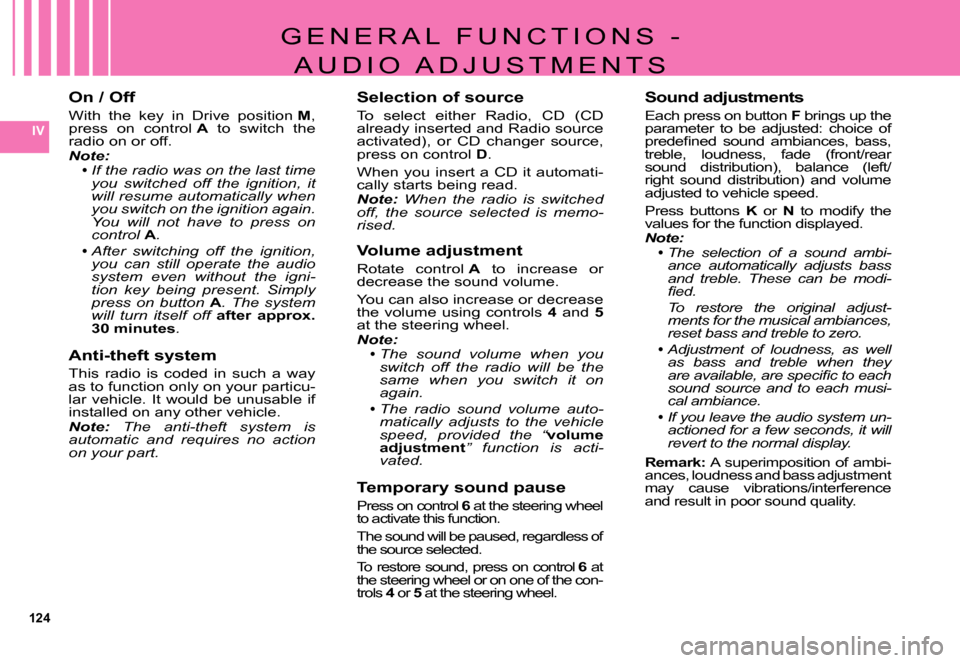

On / Off
With the key in Drive position M, press on control A to switch the radio on or off.Note:If the radio was on the last time you switched off the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.
After switching off the ignition, you can still operate the audio system even without the igni-tion key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
Anti-theft system
This radio is coded in such a way as to function only on your particu-lar vehicle. It would be unusable if installed on any other vehicle.Note: The anti-theft system is automatic and requires no action on your part.

126
IV

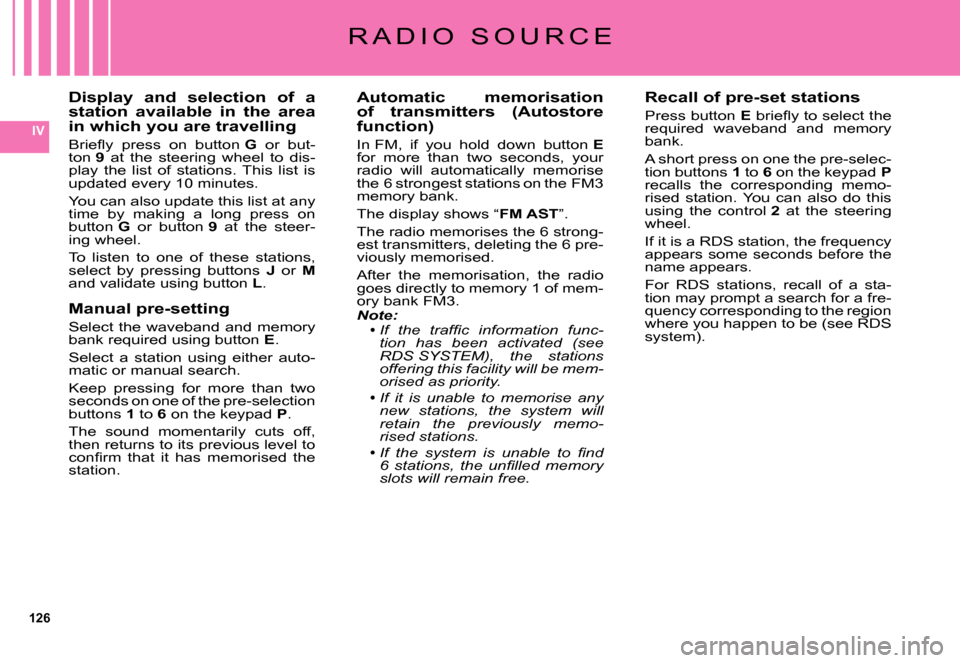

Display and selection of a station available in the area in which you are travelling
Briefl y press on button G or but-ton 9 at the steering wheel to dis-play the list of stations. This list is updated every 10 minutes.
You can also update this list at any time by making a long press on button G or button 9 at the steer-ing wheel.
To listen to one of these stations, select by pressing buttons J or Mand validate using button L.
Manual pre-setting
Select the waveband and memory bank required using button E.
Select a station using either auto-matic or manual search.
Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6 on the keypad P.
The sound momentarily cuts off, then returns to its previous level to confi rm that it has memorised the station.
R A D I O S O U R C E
Automatic memorisation of transmitters (Autostore function)
In FM, if you hold down button Efor more than two seconds, your radio will automatically memorise the 6 strongest stations on the FM3 memory bank.
The display shows “FM AST”.
The radio memorises the 6 strong-est transmitters, deleting the 6 pre-viously memorised.
After the memorisation, the radio goes directly to memory 1 of mem-ory bank FM3.Note:If the traffi c information func-tion has been activated (see RDS SYSTEM), the stations offering this facility will be mem-orised as priority.
If it is unable to memorise any new stations, the system will retain the previously memo-rised stations.If the system is unable to fi nd 6 stations, the unfi lled memory slots will remain free.

149
V

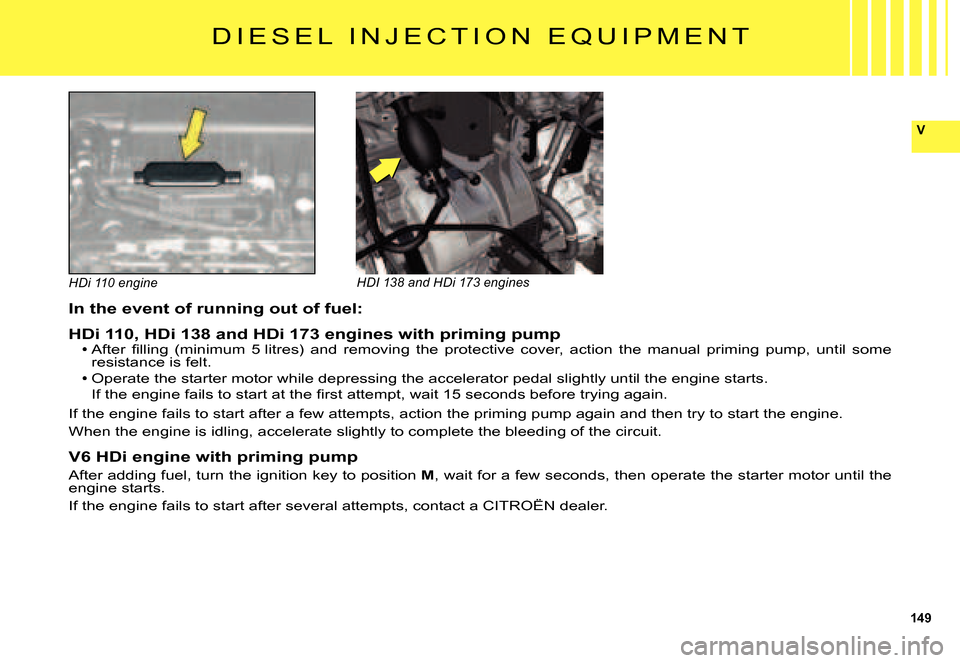

D I E S E L I N J E C T I O N E Q U I P M E N T
In the event of running out of fuel:
HDi 110, HDi 138 and HDi 173 engines with priming pumpAfter fi lling (minimum 5 litres) and removing the protective cover, action the manual priming pump, until some resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.If the engine fails to start at the fi rst attempt, wait 15 seconds before trying again.
If the engine fails to start after a few attempts, action the priming pump again and then try to start the engine.
When the engine is idling, accelerate slightly to complete the bleeding of the circuit.
V6 HDi engine with priming pump
After adding fuel, turn the ignition key to position M, wait for a few seconds, then operate the starter motor unti l the engine starts.
If the engine fails to start after several attempts, contact a CITROËN dealer.

151
V
A
B
+ 1
- 4 - 3
+ 2
Starting the engine after disconnecting and reconnecting the battery1. Turn the ignition key.2. Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise.
After the battery has been disconnected for a lengthy period o f time, it may be necessary to re-initialise the following functions:The anti-pinch on the windows.
The parameters of the multifunction display (date, time, language etc).
The Radio stations.The NaviDrive. See NaviDrive instructions.
Starting the engine with an assisting battery (except V6 HDi engine)
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.
Check that the assisting battery has suffi cient voltage (12 V).
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Connect the cables according to the order indicated in the diagram. Check orderthat the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly.

159
VI
A
F U E L
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
While you are refuelling, the engine must be stopped and the ignition switched off.
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
The fi ller neck is narrower to ensure that only unleaded petrol can be put in.
When you are seeking to fi ll your tank, do not persist after the third cut-off ; that could cause your vehicle to malfunction.
Fuel fl ap
To open, press at the top left-hand corner, then pull open from the left.
Locking fi ller cap*
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap on hook A.
Fuel quality
A label inside the fi ller fl ap tells you which type of fuel to use.
The petrol engines are designed to run on RON 95.
However, for better perform-ance (petrol engine), we recom-mend RON 98.
Tank capacity
The tank has a capacity of approxi-mately 71 litres.

174
VI
T O W I N G – L I F T I N G
TOWING WITH WHEELS ON THE GROUND
Towing eye fi xings are located at the front and at the rear of the vehicle.
Detach the cover:For the front cover, lever with a screwdriver at the top of the cover.
For the rear cover, press on the right hand side.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
The towing eye is removable, to be stowed in the jack protect ion box inside the spare wheel.
