S A F E T Y
SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h
a pretensioning system and force
limiter.
This system improves safety in the
front seats in the event of a front
impact.
Depending on the seriousness of the
impact, the pretensioning system
instantly tightens the seat belt
against the body of the occupant. Fastening
Pull the belt down in front of you
in a steady movement, making
sure that it does not become
twisted.
Press the fastening into its
buckle.
Check that it is properly secured
and that the automatic locking
mechanism operates correctly
by pulling sharply on the belt
strap.
The abdominal part of the strap
should be positioned as low
down as possible in the lap and
as tight as possible.
The chest part should be posi-
tioned if possible in the channel
of the shoulder.
Each belt has a reel that adjusts its
length automatically to the girth of
the seat occupant.
The pretensioning seat belts are
active when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt against the
chest of the occupant, so increasing
his protection.
Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" button
again to reactivate them manu-
ally.
Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x c e -
ptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Page 112 of 306
115
8
S A F E T Y
SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h
a pretensioning system and force
limiter.
This system improves safety in the
front seats in the event of a front
impact.
Depending on the seriousness of the
impact, the pretensioning system
instantly tightens the seat belt
against the body of the occupant. Fastening
Pull the belt down in front of you
in a steady movement, making
sure that it does not become
twisted.
Press the fastening into its
buckle.
Check that it is properly secured
and that the automatic locking
mechanism operates correctly
by pulling sharply on the belt
strap.
The abdominal part of the strap
should be positioned as low
down as possible in the lap and
as tight as possible.
The chest part should be posi-
tioned if possible in the channel
of the shoulder.
Each belt has a reel that adjusts its
length automatically to the girth of
the seat occupant.
The pretensioning seat belts are
active when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt against the
chest of the occupant, so increasing
his protection.
Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" button
again to reactivate them manu-
ally.
Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x c e -
ptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Page 113 of 306
116
8
S A F E T Y
Height adjustment
The correct positioning of the seat
belt reel is around mid-shoulder
level.
To adjust the belt, pinch the control
and slide it in the direction required.
Unfastening
To unfasten the belt, press on
the red button in the buckle.
The belt retracts automatically when
not in use. Rear seat belts
E a c h r e a r s e a t i s fi t t e d w i t h a t h r e e -
point inertia reel seat belt with force
limiter.
Fastening
Pull the strap, then insert the
tongue in the buckle.
Check that the seat belt is fas-
tened correctly by pulling the
strap.
Unfastening
Press the red button on the
buckle.
Page 114 of 306
117
8
S A F E T Y
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u t o -
matic locking device which comes
into operation in the event of a col-
lision, emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations
for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and
seriousness of the impacts , the
pre-tensioning device may be trig-
gered before and independently of
the airbags. Triggering of the pre-
tensioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 115 of 306
118
8
S A F E T Y
AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e
the safety of the occupants (with
t h e e x c e p t i o n o f t h e r e a r c e n t r e
passenger) in the event of violent
collisions. It supplements the action
of the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instantly
and protect the occupants of the
v e h i c l e ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger); immedi-
ately after the impact, the air bags
d e fl a t e r a p i d l y s o t h a t t h e y d o n o t
h i n d e r v i s i b i l i t y o r t h e e x i t o f t h e
occupants,
- in the case of a minor or rear im- pact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate once.
If a second impact occurs (during the
same or a subsequent accident), the
air bag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver’s airbag is incorporated
in the centre of the steering wheel;
the front passenger’s airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger’s front
airbag is deactivated, in the event of
a serious front impact to all or part of
the front impact zone
A , in the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Page 116 of 306
119
8
S A F E T Y

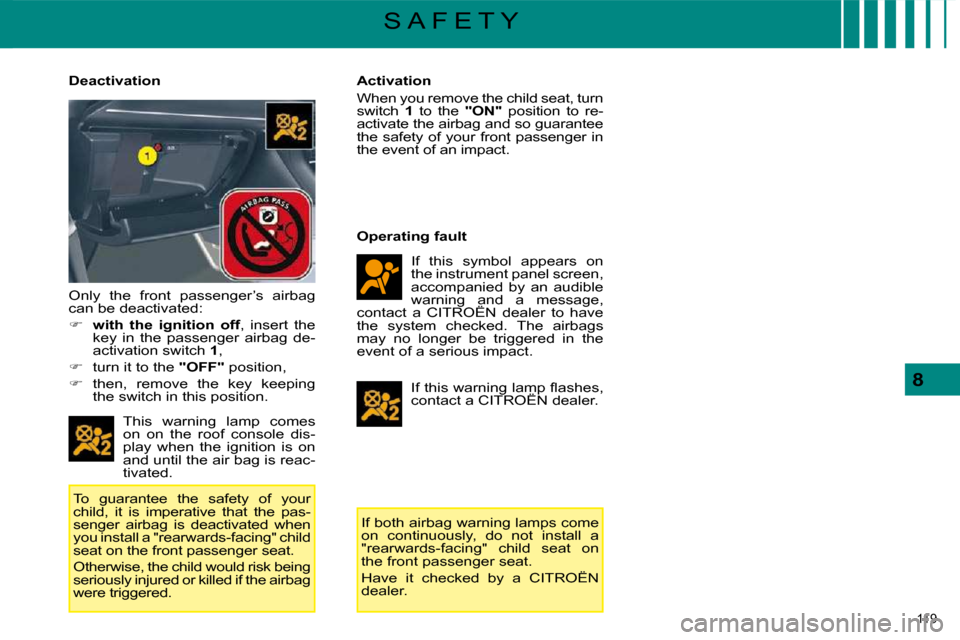

Deactivation
This warning lamp comes
on on the roof console dis-
play when the ignition is on
and until the air bag is reac-
tivated.
To guarantee the safety of your
child, it is imperative that the pas-
senger airbag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were triggered. Activation
When you remove the child seat, turn
switch
1 to the "ON" position to re-
activate the airbag and so guarantee
the safety of your front passenger in
the event of an impact.
Operating fault
If this symbol appears on
the instrument panel screen,
accompanied by an audible
warning and a message,
contact a CITROËN dealer to have
the system checked. The airbags
may no longer be triggered in the
event of a serious impact.
Only the front passenger’s airbag
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Page 117 of 306
121
8
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via
openings provided for this purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 118 of 306
120
8
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Activation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver and p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e rear centre passenger) in the event of a serious side impact in order to limit the risk of head injuries.
Each curtain airbag is incorporated in the pillars and the upper part of the passenger compartment.
Operation
It is triggered at the same time as the corresponding side airbag in the event of a serious side impact to all or part of the side impact zone B , perpendi-cular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n the front or rear occupant of the vehicle and the windows.
Operating fault
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered.
The airbag is not triggered in the event of a rear or front collision.
If this symbol appears on
the instrument panel screen,
accompanied by an audible
signal and a message, con-
tact a CITROËN dealer to have the
system checked. The airbags may
no longer be triggered in the event
of a serious impact.
* According to country.
Page 119 of 306
121
8
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via
openings provided for this purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 120 of 306
122
9
D R I V I N G
MANUAL PARKING BRAKE
Mechanical device for immobilising
the vehicle when stationary. This warning lamp comes
on if the parking brake is en-
gaged or not fully released.
If the parking brake is released,
the lighting of this warning lamp
along with the STOP warning lamp
i n d i c a t e s a n i n s u f fi c i e n t l e v e l o f
b r a k e fl u i d o r a m a l f u n c t i o n o f t h e
braking distribution.
It is essential to stop the vehicle.
Consult a CITROËN dealer.
Application
Pull the parking brake to immobi-
lise your vehicle.
To facilitate the action on the lever,
you are recommended to press the
brake pedal at the same time.
In all circumstances, as a
precautionary measure,
e n g a g e fi r s t g e a r .
On steep gradients, turn the steer-
ing wheel towards the pavement. Release
Press on the end of the lever
whilst pulling it then lower it fully.
