Citroen C5 2009.5 (RD/TD) / 2.G Owner's Manual

IX
!
143
D R I V I N G
Cruise control must only be
used where the traffi c condi-
tions permit driving at a con-
stant speed.
Do not use it on congested roads
or when the weather or the road
conditions are poor.
The driver must remain attentive
and in complete control of the ve-
hicle.
You are recommended to keep your feet within range of the pedals.
Overriding the programmed
speed
While cruise control is in operation,
it is always possible to go above the
programmed speed simply by pres-
sing the accelerator pedal (for ex-
ample to overtake another vehicle).
The speed displayed in zone A
fl ashes.
You only have to release the ac-
celerator pedal to return to the pro-
grammed speed.
Suspension/Resumption

 Either by pressing the brake
pedal or the clutch pedal.

 Or by pressing button 3 .

 Or by the ESP or ASR systems
being active.
For vehicles with a manual gearbox,
cruise control is deactivated if the
gear lever is in neutral. Reactivation
-
By recalling the memorised
speed
After deactivation, press button 3 .
Your vehicle automatically returns
to the memorised cruising speed.
The memorised speed and "ON"
are displayed in zone A .
If the memorised cruising speed is higher than the current speed,
the vehicle will accelerate strong-ly to reach the current speed.
- By selecting the current speed
Press button 1 or 2 once the de-
sired speed has been reached.
The new speed and "ON" will
appear in zone A .
Return to normal driving

 Either press on button 5 .

 Or select the cruise control func-
tion.

 Or stop the engine.
The speed that was chosen is no
longer memorised.

"PAUSE" will be displayed in zone A
of the instrument panel.
These actions do not cancel the
cruising speed which remains dis-
played on the instrument panel. Operating fault

If there is a malfunction, a mes-
sage is displayed accompanied by
an audible signal and lighting of the

SERVICE warning lamp.
Have it checked by a CITROËN
dealer.

IX
144
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
System which detects the involun-
tary crossing of longitudinal traffi c
lane markings on the ground (solid
or broken line).
Sensors, fi tted below the front bum-
per, trigger a warning if the vehicle
drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads.
Activation

 Press button A , the indicator
lamp comes on.
Deactivation

 Press button A again, the indica-
tor lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off. Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the
marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the
direction indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-stan-
dard marking (e.g. graffi ti) is crossed. Operating fault
In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message on the multifunction
screen.
Consult a CITROËN dealer.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.

IX
145
D R I V I N G
PARKING SPACE SENSOR
System which measures the park-
ing space available between two
vehicles or obstacles. It measures
the size of the space and gives you
information on:
- the possibility of fi tting into a free space, depending on the
dimensions of your vehicle and
the distances necessary for your
manoeuvring,
- the level of diffi culty of the ma- noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor function
warning lamp can have three differ-
ent states:
-
off: the function is not selected,
- on fi xed: the function is selected
but the conditions for measuring
are not yet met (direction indicator
not operating, speed too high) or
the measurement is terminated.
- fl ashing: measurement is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing but-
ton
A. The fi xed lighting of the warn-
ing lamp indicates that the function
is selected.
During the measurement, the mes-
sage "Measurement in progress -
Vmax 20 km/h (12 mph)" is displayed
on the instrument panel screen.

IX
146
D R I V I N G
Operation
You have identifi ed a parking space:

 Press button A to select the func-
tion.

 Activate the direction indicator
on the side where the space is to
be measured.

 During measurement, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
prox. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size
of the space.

 The system informs you of the
level of diffi culty of the manoeu-
vre via a message on the instru-
ment panel screen accompanied
by a gong.

 Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre. The function displays the following
types of message:

Parking YES

Parking diffi cult

Parking NO The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measurement is not requested,
- within fi ve minutes of selection of
the function,
- if the vehicle speed exceeds the
threshold of 45 mph (approx.
70 km/h) for one minute.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
The function remains available after
each measurement and thus can
measure more than one space du-
ring your search.
In bad weather conditions or in
winter, make sure that the sensors
are not covered by dirt, or by ice or
snow.
The parking space sensor function
deactivates the front parking ses-
nors during space measurement
when you are in forward gear.
If there is a malfunction, have the
system checked by a CITROËN
dealer.

IX
147
D R I V I N G The parking sensors system can-
not, in any circumstances, replace
the need for vigilance and respon-
sibility on the part of the driver.
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING SENSORS
System consisting of proximity sen-
sors, installed in the front and/or rear
bumper.
It detects any obstacle (person, vehi-
cle, tree, barrier...) located in front of
or behind the vehicle, however, it will
not be able to detect obstacles locat-
ed immediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking sensors are
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
The proximity information is indica-
ted by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction display, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears,
depending on the multifunction screen
version.
The parking sensors are switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward
gear,
- when the vehicle has been sta- tionary for more than three sec-
onds in forward gear. Deactivation

 Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi tted (vehicle fi tted with a towbar
or bicycle carrier recommended by
CITROËN).

IX
148
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.

 Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
styles and to the profi le of the road,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
and fi rm suspension settings, maxi-
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
damping for maximum com-
fort.
If the speed authorised for a
particular position is exceed-
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.

SPORT mode is retained when you
switch off the engine.

IX
148
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.

 Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
styles and to the profi le of the road,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
and fi rm suspension settings, maxi-
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
damping for maximum com-
fort.
If the speed authorised for a
particular position is exceed-
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.

SPORT mode is retained when you
switch off the engine.

IX
149
D R I V I N G

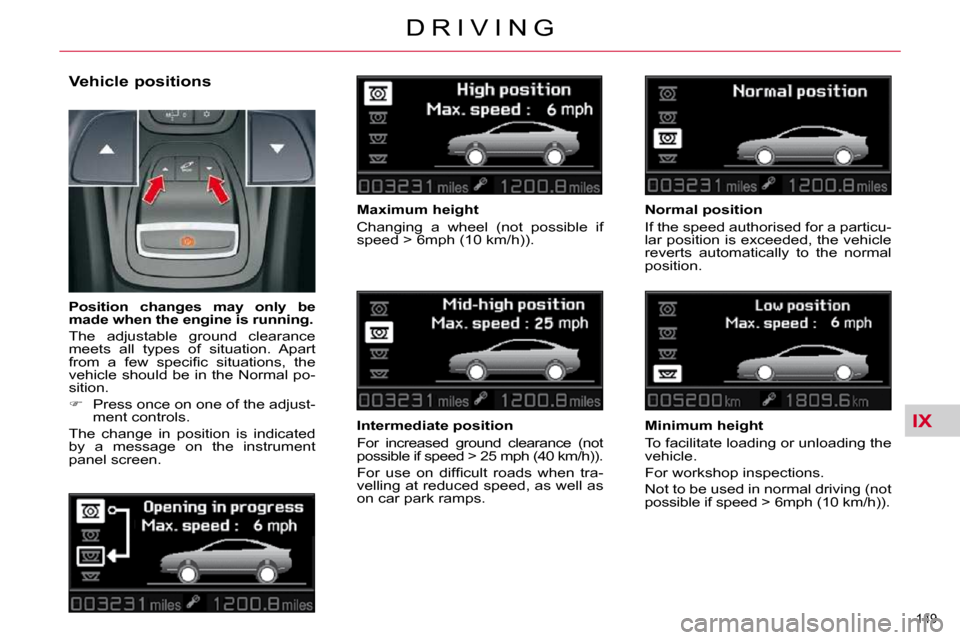

Vehicle positions
Maximum height
Changing a wheel (not possible if
speed > 6mph (10 km/h)).
Intermediate position
For increased ground clearance (not
possible if speed > 25 mph (40 km/h)).
For use on diffi cult roads when tra-
velling at reduced speed, as well as
on car park ramps.

Position changes may only be
made when the engine is running.
The adjustable ground clearance
meets all types of situation. Apart
from a few specifi c situations, the
vehicle should be in the Normal po-
sition.

 Press once on one of the adjust-
ment controls.
The change in position is indicated
by a message on the instrument
panel screen.
Normal position
If the speed authorised for a particu-
lar position is exceeded, the vehicle
reverts automatically to the normal
position.
Minimum height
To facilitate loading or unloading the
vehicle.
For workshop inspections.
Not to be used in normal driving (not
possible if speed > 6mph (10 km/h)).

IX
150
D R I V I N G
Position not authorised
The instrument panel screen tempo-
rarily displays a message indicating
that this position is not authorised.
The vehicle remains in the autho-
rised position and the instrument
panel screen indicates this position
to you.
Automatic variation of ground clea-
rance
- If your speed exceeds 70 mph (approx. 110 km/h), on a good
road surface, ground clearance
is lowered. The vehicle returns
to its normal position if the road
surface deteriorates or if your
speed is lower than 55 mph (ap-
prox. 90 km/h).
- At low or medium speed, if the road surface is poor, ground
clearance is increased. The ve-
hicle returns to its normal posi-
tion as soon as conditions allow.
- On switching off the ignition, the ground clearance is reduced to
the parking position

For your safety if you are operat-ing underneath the vehicle, you
must support the vehicle with
axle stands.

X
152
C H E C K S
BONNET
Opening
 Lift the safety catch B and raise
the bonnet.

 Unclip the stay C from its hous-
ing and pivot it to insert it in the
notch D indicated by a yellow
arrow.

 Fix the stay in the notch to hold
the bonnet open. Closing

 Take the stay out of the support
notch.

 Clip the stay in its housing.

 Lower the bonnet then slam it
fi rmly at the end of its travel.

 Pull on the bonnet to check that
it is fully closed.
To avoid any risk of burns, only
handle the bonnet stay by its yel-
low end.
The location of the interior release
lever prevents opening of the bon-
net while the front passenger's
door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.

 Open the front passenger door.

 Pull the interior bonnet release
lever A , located at the bottom of
the door frame.
