WEIGHTS AND TOWED LOADS (SALOON) in kg
Petrol engines
1.8 l. 16V
127 bhp
2 l. 16V 143 bhp
B i o fl e x 2 l .
16V 143 bhp
3 l. V6 24V
215 bhp
G e a r b o x e s Manual Manual Auto. Manual Auto.
Model codes:
RD....
6FYC RFJC RFJF RFJC/FF XFVJ
- Unladen weight 1 510 1 521 1 583 1 521 1 725
- Kerb weight 1 585 1 596 1 658 1 596 1 800
- Payload 505 542 507 542 505
- G r o s s v e h i c l e w e i g h t ( G V W ) 2 015 2 063 2 090 2 063 2 230
- Gross train weight (GTW) 3 315 3 563 3 590 3 563 3 630
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 300 1 500 1 500 1 400
- Braked trailer * (with load t r a n s f e r w i t h i n G T W l i m i t ) 1 530 1 720 1 720 1 650
- Unbraked trailer 750 750 750 750
- Recommended nose weight 62 69 69 66
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
Page 202 of 306
196
12
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (TOURER) in kg
Petrol engines
1.8 l. 16V
127 bhp
2 l. 16V 143 bhp
B i o fl e x 2 l .
16V 143 bhp
3 l. V6 24V
215 bhp
G e a r b o x e s Manual Manual Auto. Manual Auto.
Model codes:
RW...
6FYC RFJC RFJF RFJC/FF XFVJ
- Unladen weight 1 549 1 578 1 619 1 578 1 761
- Kerb weight 1 624 1 653 1 694 1 653 1 836
- Payload 605 605 605 605 605
- G r o s s v e h i c l e w e i g h t ( G V W ) 2 154 2 183 2 224 2 183 2 366
- Gross train weight (GTW) 3 454 3 683 3 724 3 683 3 666
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 300 1 500 1 500 1300
- Braked trailer * (with load t r a n s f e r w i t h i n G T W l i m i t ) 1 600 1 790 1 800 1 790 1 600
- Unbraked trailer 750 750 750 750
- Recommended nose weight 64 72 72 68
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d
, w i t h i n t h e G T W l i m i t , o n c o n d i t i o n t h a t t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d
b y t h e s a m e a m o u n t ; w a r n i n g , t o w i n g w i t h a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .
Page 203 of 306
200
12
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines
1.6 l. HDi
110 bhp
2 l. HDi
140 bhp
2 l. HDi
138 bhp
2 l. HDi
173 bhp
V6 HDi
208 bhp
G e a r b o x e s Manual Manual Auto. Manual Auto.
Model codes:
RD...
9HZC
9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 503 1 608 1 658 1 729 1 766
- Kerb weight 1 578 1 683 1 733 1 804 1 841
- Payload 537 547 532 487 544
- G r o s s v e h i c l e w e i g h t ( G V W ) 2 040 2 155 2 190 2 216 2 310
- Gross train weight (GTW) 3 140 3 755 3 490 3 816 3 710
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 100 1 600 1 300 1 600 1 400
- Braked trailer * (with load t r a n s f e r w i t h i n G T W l i m i t ) 1 370 1 820 1 560 1 820 1 690
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 55 73 63 73 68
* T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w i t h i n t h e G T W l i m i t , o n c o n d i t i o n t h a t t h e G V W o f t h e t o w i n g v e h i c l e
i s r e d u c e d b y t h e s a m e a m o u n t ; w a r n i n g , t o w i n g w i t h a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s
road holding.
Page 204 of 306
201
12
T E C H N I C A L D A T A
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
1.6 l. HDi
110 bhp
2 l. HDi
140 bhp
2 l. HDi
138 bhp
2 l. HDi
173 bhp
V6 HDi
208 bhp
G e a r b o x e s Manual Manual Auto. Manual Auto.
Model codes:
RW...
9HZC
9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 537 1 655 1 695 1 765 1 802
- Kerb weight 1 612 1 730 1 770 1 840 1 877
- Payload 641 621 631 587 571
- G r o s s v e h i c l e w e i g h t ( G V W ) 2 178 2 276 2 326 2 352 2 373
- Gross train weight (GTW) 3 178 3 776 3 526 3 952 3 676
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 000 1 500 1 200 1 600 1 300
- Braked trailer * (with load t r a n s f e r w i t h i n G T W l i m i t ) 1 300 1 800 1 500 1 900 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 52 72 60 77 64
Page 205 of 306
202
12
T E C H N I C A L D A T A
* W i t h o u t r o o f b a r s .
DIMENSIONS (IN MM)

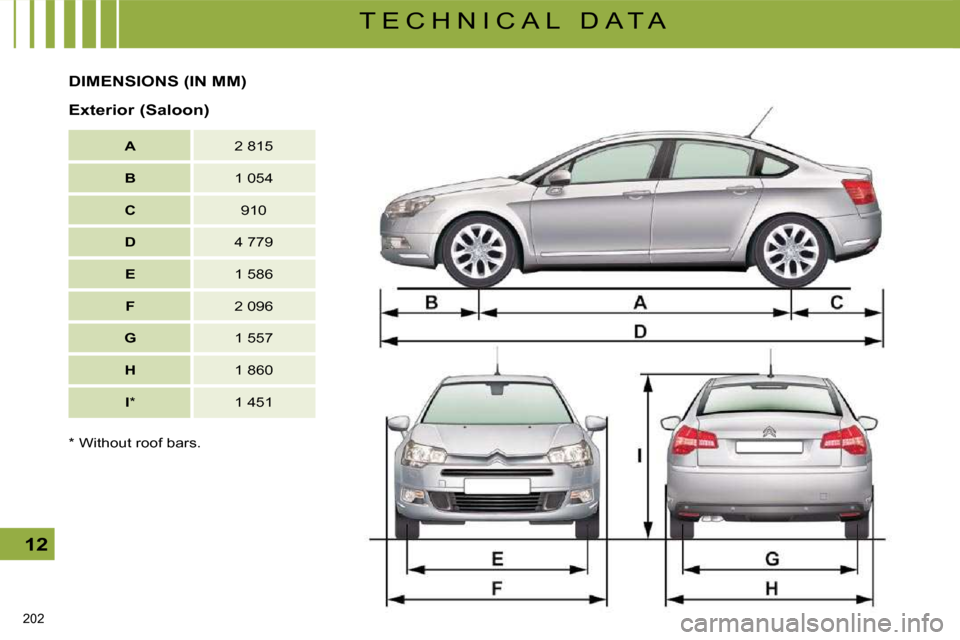

E x t e r i o r ( S a l o o n )
A 2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
Page 206 of 306
203
12
T E C H N I C A L D A T A

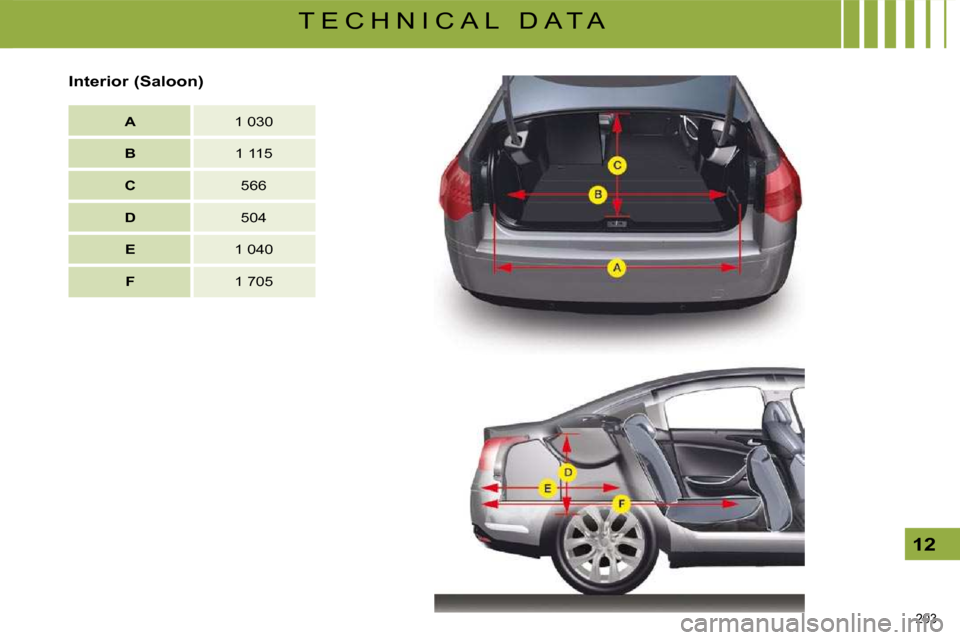

Interior (Saloon)
A 1 030
B 1 115
C 566
D 504
E 1 040
F 1 705
Page 207 of 306
204
12
T E C H N I C A L D A T A

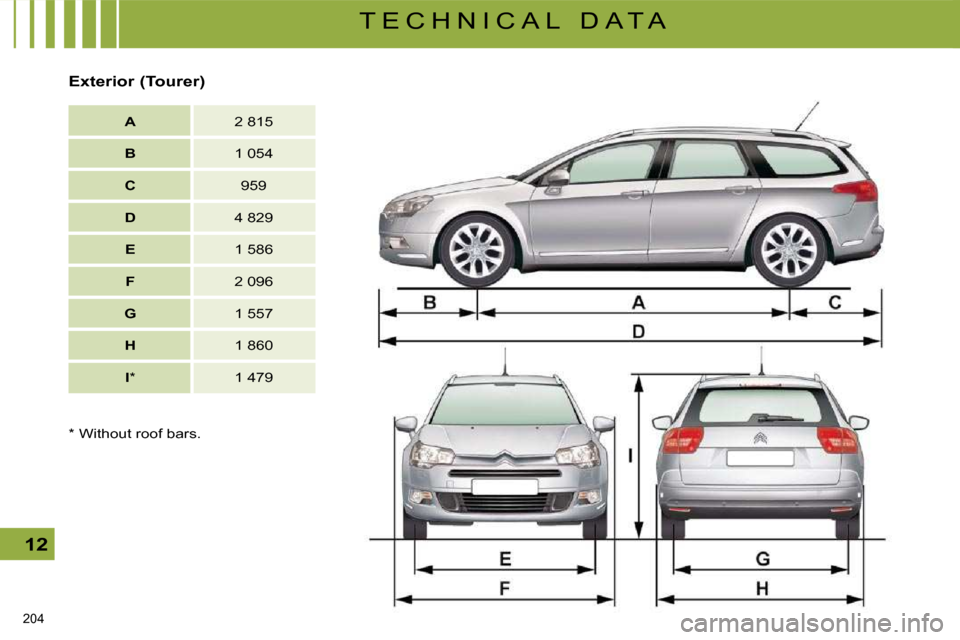

E x t e r i o r ( T o u r e r )
A 2 815
B 1 054
C 959
D 4 829
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 479
* W i t h o u t r o o f b a r s .
Page 208 of 306
205
12
T E C H N I C A L D A T A

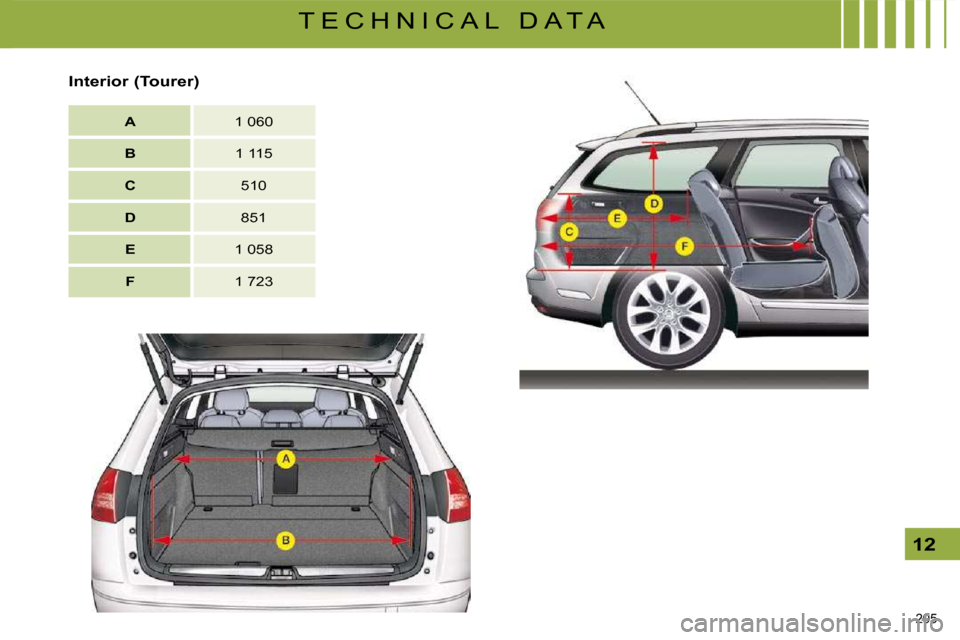

Interior (Tourer)
A 1 060
B 1 115
C 510
D 851
E 1 058
F 1 723
Page 209 of 306
206
T E C H N I C A L D A T A
IDENTIFICATION FEATURES
V a r i o u s v i s i b l e m a r k i n g d e v i c e s f o r
i d e n t i fi c a t i o n a n d t r a c k i n g o f t h e
vehicle.
T h e v e h i c l e t y p e a n d t h e i d e n t i fi c a t i o n
number are also indicated on the reg-
istration document.
All CITROËN original replacement
parts are available exclusively within
the dealer network.
F o r y o u r s a f e t y a n d i n o r d e r t o
r e m a i n w i t h i n t h e t e r m s o f t h e
g u a r a n t e e , y o u a r e a d v i s e d t o u s e
only CITROËN replacement parts.
A. Chassis number plate
O n t h e l e f t h a n d d o o r c e n t r e p i l l a r .
1. EU type approval number.
2. V e h i c l e i d e n t i fi c a t i o n n o . ( V I N ) .
3. Gross vehicle weight.
4. Gross train weight.
5. M a x i m u m w e i g h t o n f r o n t a x l e .
6. Maximum weight on rear axle.
B. Body serial number
C. Serial number on dashboard
D. Paint colour code and tyre
reference
Tyre pressure
O n t h e l e f t h a n d d o o r c e n t r e p i l l a r .
Observe the tyre pressures indi-
cated by CITROËN.
C h e c k t h e t y r e p r e s s u r e s r e g u l a r l y ,
when cold.
N e v e r d e fl a t e a w a r m t y r e .
W h e n c h a n g i n g t y r e s , i t i s i m p e r a -
tive that the sizes recommended
f o r y o u r v e h i c l e a r e u s e d .
Page 210 of 306
207

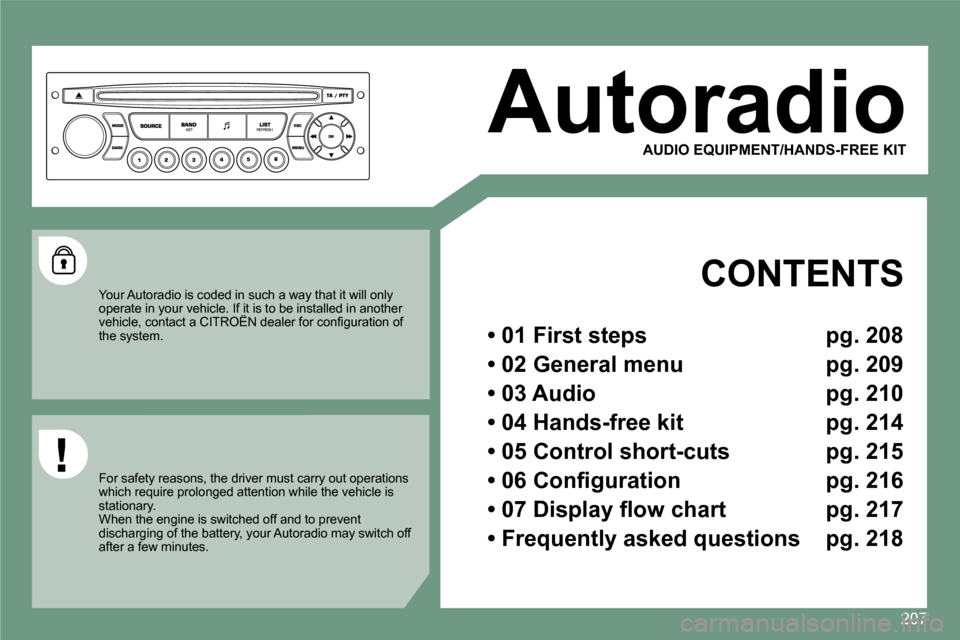

Autoradio
