Citroen C5 DAG 2008.5 (RD/TD) / 2.G Owner's Manual

19
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUPADDR BOOK1
3
4
06
22
3
MEDIA
1
MEDIA
Connect the portable equipment (MP3 player, camcor decorder, camera…) to the RCA socket (white and red for audio, red and yelld yellow for video) in the glove box using a JACK/RCA audio cable.
Press the MEDIA button then press it again or select the MEDIA MENU function and press OK to confi rm.
Select the AUX music source and press OK to confi rm. Play begins automatically.
Select CHOOSE SOURCE then EXTERNAL DEVICE (video) and press OK to activate it.
EXTERNAL DEVICE
The displaying and management of the controls are opere operated via the portable equipment.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/VIDEO/RCA CABLE NOT SUPPLIED
MUSIC MEDIA PLAYERS
If the external device is not activated, select EXTERNALRNAL DEVICE MANAGEMENT to activate it.
VIEWING A VIDEO DVD
Select the video source required (Video DVD, Auxil iary xiliary video input). Press OK to confi rm. Play begins.
Press the MEDIA button to gain access to the DVD Menu at any time, or to the functions of the MEDIA Menu which adjust the video (brightness/contrast, image format...).
If the DVD does not appear on the screen, press the MODE button to gain access to the MEDIA screen which displays the DVD screen.
Insert the DVD in the player. Play begins automatically.
The 4-direction navigator and the chromed ring allow you to move the DVD selection cursor. Change chapter by pressing the  or  or button.

20
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUPADDR BOOK
1
2
3
4
5
6
7
8
9
MEDIA
Select JUKEBOX MANAGEMENT then COPY and press OK at each step to confi rm.
Press the MEDIA button. Press the MEDIA button again or select MEDIA MENU and press OK to confi rm.
Insert an audio/MP3 CD, a USB stick or an SD card.
JUKEBOX
COPYING A CD, A USB STICK OR AN SD CARD
ONTO THE HARD DISC
COPY
Check that the active MEDIA source is that of the mediu medium used (CD, USB or SD card).
Select COPY FROM and press OK to validate.
Select the tracks required then COPY SELECTION or select all of the tracks using COPY ALL.
Select NEW FOLDER to create a new folder or select an existing folder (created previously).
COPY FROM
NEW FOLDER
ENTER FILE NAMES: select YES to change them or NO.
NOYES
To copy an MP3 CD, then select COPY WHILE LISTENING, FAST COPY/HIGH QUALITY (192 kBit/s) or NORMAL QUALITY (128 kBit/s) then select START COPY.
Confi rm the warning message by pressing OK to start the copy.
OK

21
33
22
MEDIA
22
33
44
11
MEDIA11 Press the MEDIA button. Press the MEDIA button again or select MEDIA MENU and press OK to confi rm.
Select JUKEBOX MANAGEMENT and press OK to confi rm.
Select PLAY MODE and press OK to confi rm. Select FOLDERS AND FILES or PLAYLIST then press OK to confi rm.
Press the ESC button to return to the fi rst fi le level. Playlists can be created in the Jukebox. MEDIA menu>Jukebox Management>Create playlist. Add the tracks required one by one then save the change. The Playlist play mode must then be selected.

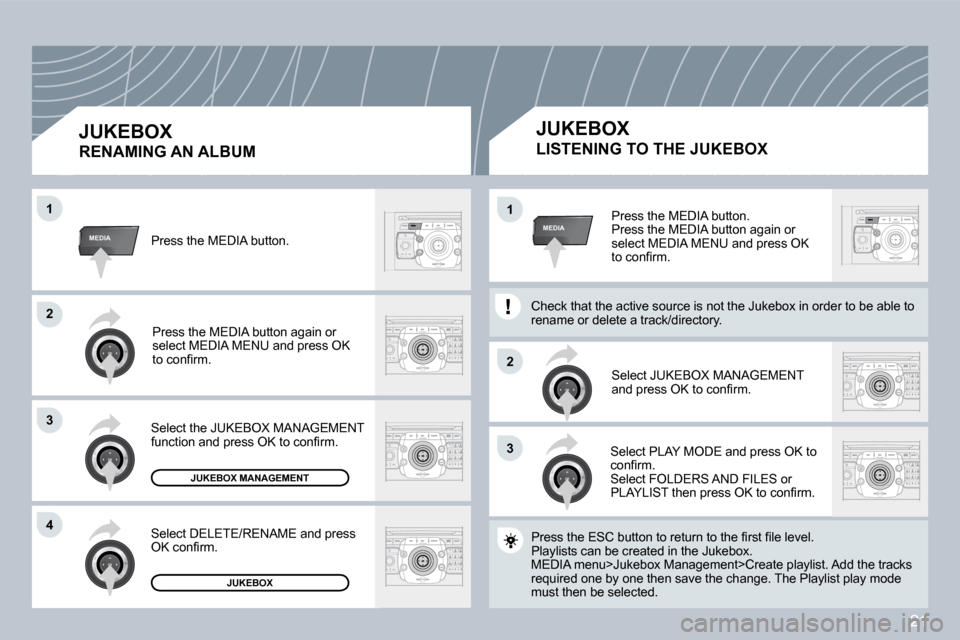

JUKEBOX
LISTENING TO THE JUKEBOX
JUKEBOX MANAGEMENT
JUKEBOX
Press the MEDIA button.
Press the MEDIA button again or select MEDIA MENU and press OK to confi rm.
Select the JUKEBOX MANAGEMENT function and press OK to confi rm.
Select DELETE/RENAME and press OK confi rm.
JUKEBOX
RENAMING AN ALBUM
Check that the active source is not the Jukebox in order order to be able to rename or delete a track/directory.

22
07
1
2
CHOOSING BETWEEN THE BLUETOOTH
TELEPHONE/INTERNAL TELEPHONE
To activate the Bluetooth telephone or the internal telephone, press PICK UP TEL.
MAKING A TELEPHONE CALL
Select TELEPHONE MENU, then SELECT TELEPHONE then choose between NONE, BLUETOOTH TELEPHONE or INTERNAL TELEPHONE. Press OK at each step to confi rm.
The system can only be connected to one Bluetooth teleth telephone and one SIM card (Internal telephone) at the same time. In this case, the phone book is synchronised with the Blthe Bluetooth telephone.

23
07
1
3
5
4
2
1
The services available via the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
MAKING A TELEPHONE CALL
CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolon gedonged attention on the part of the driver, the operations for pairing the Blue Bluetooth mobile telephone to the hands-free system of the NaviDrive 3Dive 3D must be carried out with the vehicle stationary and the ignition onition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
If no telephone is connected, the system prompts you to CONNECT PHONE. Select YES and press OK to confi rm.
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the TEL button, then select TELEPHONE MENU, then SELECT PHONE then CONNECT BLUETOOTH TELEPHONE then select the telephone required or SEARCH PHONE. Press OK at each step to confi rm.
Once the telephone has been connected, the NaviDri veiDrive 3D can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
The list of telephones connected previously (4 max imumximum) appears on the multifunction display. Select the telephone required uired then select CONNECT PHONE for a new connection. Select DELE DELETE PHONE to cancel the connection to the telephone.
Press the TEL button.
For a fi rst connection, select SEARCH PHONE and press OK to confi rm. Then select the name of the telephone.
SEARCH PHONE

24
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
07
1
22
33
11
22
Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolon
ged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad then select OK and confi rm.
The system asks USE INTERNAL TELEPHONE FOR VOICE CALLS, select YES if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
USING THE INTERNAL TELEPHONE
WITH SIM CARD
MAKING A TELEPHONE CALL
Once the SIM card has been installed, the system c an synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluet ooth telephone to receive your calls on the vehicle's au dio system.

25
3
11
2
3
2
Press the end of the steering wheel control to accept the call or end the call in progress.
Select the YES tab to accept or NO to refuse and confi rm by pressing OK.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimpperimposed display on the screen.
YES
To hang up, press the HANG UP TEL button or press OK and select END CALL then confi rm by pressing OK.
HANG UP TEL
Press the PICK UP TEL button.
Press the end of the steering wheel control for more thare than two seconds to gain access to the address book.
It is also possible to select a number from the address bress book. You can select DIAL FROM ADDRESS BOOK. The NaviDrive 3Drive 3D permits the recording of up to 4 096 entries.
Select DIAL NUMBER, then dial the telephone number using the virtual keypad.
Select the TELEPHONE MENU function and press OK to confi rm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under TELEPHONE MENU. You can select a number aber and press OK to make the call. NO
The PICK UP TEL button accepts, the HANG UP TEL bu tton refuses the incoming call.

26
SOS
* On condition that the CITROËN Emergency contract has been signed. This is free and of unlimited duration. Consult a CITROËN dealer. * On condition that the CITROËN Emergency cont ract has been signct has b
EMERGENCY CALL
EXCEPT NaviDrive 3D CONTROL PANEL
CITROËN ASSISTANCE
CUSTOMER CONTACT CENTRE
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
Press this button to gain access to the CITROËN services * .
Select CUSTOMER CONTACT CENTRE to request any information about the CITROËN marque. CENTRE to request any informequest
Select CITROËN ASSISTANCE to make a breakdown assistance call.
In an emergency, press the SOS button until an aud ible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (112). In certain countries * , this emergency call is made directly by the CITROËN Emergency team which locates the In certain countries * , this emergency call is made direccountri
vehicle and alerts the appropriate emergency servic es as quickly as possible.
Warning, the emergency call and the services are only active if the internal telephone is used with a valid SIM card. With a Bluetooth telephone a nd without a SIM card, these services are not operational.
If necessary, the internal telephone is activated automatomatically to make an emergency call.

27
5
6
SETUP
1
2
3
4

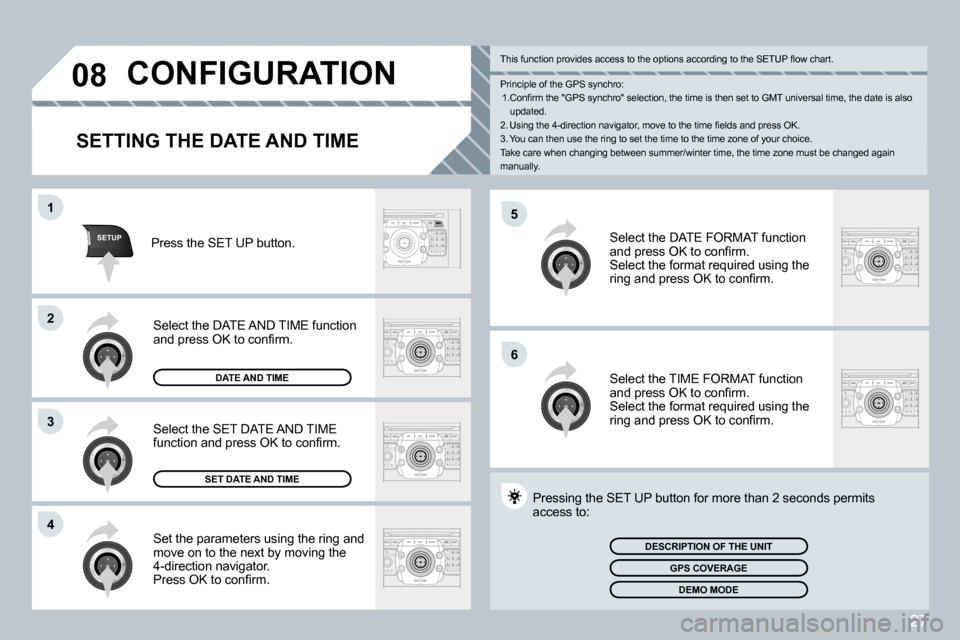

08 CONFIGURATION
SETTING THE DATE AND TIME
Set the parameters using the ring and move on to the next by moving the 4-direction navigator. Press OK to confi rm.
Select the DATE FORMAT function and press OK to confi rm. Select the format required using the ring and press OK to confi rm.
Select the SET DATE AND TIME function and press OK to confi rm.
Pressing the SET UP button for more than 2 seconds pends permits access to:
Press the SET UP button.
Select the TIME FORMAT function and press OK to confi rm. Select the format required using the ring and press OK to confi rm.
SET DATE AND TIME
Select the DATE AND TIME function and press OK to confi rm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
DEMO MODE
DATE AND TIME
Principle of the GPS synchro: 1. Confi rm the "GPS synchro" selection, the time is then set to GMT universal time, the date is al so updated. 2. Using the 4-direction navigator, move to the time fi elds and press OK. 3. You can then use the ring to set the time to the time zone of your choice. Take care when changing between summer/winter time, the time zone must be changed again manually.
This function provides access to the options according to the SETUP fl ow chart.

28
LISTMENU
1
2
09
4
3
5
6
7
8
9
10
11
VOICE COMMANDS AND STEERING WHEEL CONTROLS
1. Successive presses: "Black Panel" mode - black screen (night driving).
2. Short press to make a telephone call. Pick up/Hang up. Access the telephone menu. Display the call list. Long press to reject an incoming call.
3. Rotation: provides access to the short-cut menus a
ccording to the display on the screen. Short press: confi rm the choice displayed on scree n. Long press: return to the main menu.
4. Short press: abandon the current operation. Reject an incoming telephone call. Long press: return to the initial display.
5. Menu: provides access to the main menu.
6. VOL +: volume increase.
7. VOL -: volume decrease.
8. Successive presses: mute/restore sound.
9. Short press: Radio: higher frequency. Music players: next track. Long press for fast play.
10. Short press: Radio: lower frequency. Music players: previous track. Long press for fast play.
11. Short press: display the list of radio frequencies available or the list of tracks, albums, directories.
Long press: update the list of stations received. Short press: activate the voice recognition. Long press: repeat the current navigation instruction.
Successive presses: provides access to the Radio and Media screen according to the current display.
C5 STEERING WHEEL CONTROLS
