Citroen C5 DAG 2008.5 (RD/TD) / 2.G Owner's Manual

218
The table below groups together the answers to the most frequently asked questions concerning your Au toradio.
QUESTION SOLUTION RESPONSE
There is a difference in sound quality between the different audio sources (radio, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

219
QUESTION SOLUTION RESPONSE
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

The NaviDrive 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for will only operate in your vehicle. If it is to be installe If it is t
confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
NaviDrive 3D
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS

2
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*
1. CD eject.
2. RADIO: Access to the RADIO menu. Displaying of the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: Access to the MEDIA menu (Audio CD, Jukebox , External Device). Displaying of the list of tracks. Change of source.
NAV: access to the NAVIGATION menu and displaying of the last destinations.
ESC: Abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the TRAFFIC menu (function desc ribed in detail in sections 02 and 10).
ADDR BOOK: access to the ADDRESS BOOK menu (functi on described in detail in section 10).
SETUP: access to the SETUP menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience...).
4. Volume adjustment. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6. Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
FIRST STEPS
NaviDrive 3D CONTROL PANEL
7. Normal display or black screen.
8. Selection of the successive displaying on the scre en of MAP/NAV (if navigation is in progress)/TEL (if a conversation is in progress)/RADIO or MEDIA currently being played.
9. PICK UP: access to the TELEPHONE menu. With Blueto oth connection, accept an incoming call.
10. HANG UP: access to the TELEPHONE menu. Hang up the current call or refuse an incoming call, with Bluetooth connection. access to the TELEPHONE menu
11. Telephone numeric keypad, pre-selection of 10 radi o frequencies.
12. SD card reader.
Short press: clears the last character.
Long press: activates the voice recognition.

3
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
13
14
13. OK: confi rmation of the over-bright item on the sc
reen.
- 4-direction navigator: press to the left/right:
When the RADIO screen is displayed: selection of t he previous/next frequency.
When MEDIA is displayed: selection of the previous /next track.
When MAP or NAV is displayed: horizontal movement of the map.
- 4-direction navigator: press up/down.
When RADIO is displayed: selection of the previous/next radio station on the list.
When the MEDIA screen is displayed: selection of the previous/next MP3 directory or CD.
When MAP or NAV is displayed: vertical movement of the map.
Switch to the next or previous page of a menu.

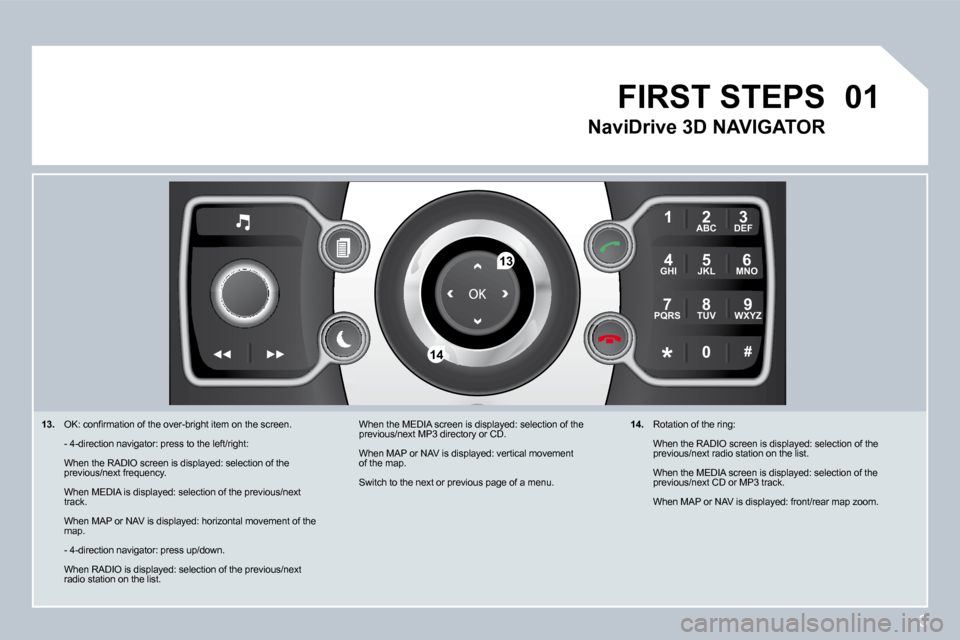

FIRST STEPS
NaviDrive 3D NAVIGATOR
14. Rotation of the ring:
When the RADIO screen is displayed: selection of t he previous/next radio station on the list.
When the MEDIA screen is displayed: selection of the previous/next CD or MP3 track.
When MAP or NAV is displayed: front/rear map zoom.

4
02
SETUP
MEDIA
TRAFFIC
GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Display fl ow charts" section of this handbook.
Press the MODE button several times in succession to gain access to the following displays:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIA/VIDEO
TELEPHONE (If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: Access to the SETUP menu: system language and voice functions, voice initialisation (section 09), date and time, display, unit and system parameters. Long press: access to the GPS coverage and to the demonstration mode.
TRAFFIC: access to the traffi c menu: displaying of the curre nt traffi c alerts.
DISPLAY ACCORDING TO THE CONTEXT
MEDIA: Audio DVD menu Video DVD menu

5
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
2
GENERAL OPERATION
Pressing OK permits access to short-cut menus according to the display on the screen.
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
NAV:
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
CANCEL
LENGTHEN DIV.
SHORTEN DIV.
RECALCULATE
ZOOM/SCROLL
TRAVEL ROUTE
ROUTE INFO
SHOW DEST.
TRIP INFO
route type
RADIO:
IN FM MODE
TA
RDS
RADIOTEXT
REGIONAL PROG. (REG)
AM
IN AM MODE
TA
REFRESH AM LIST
FM
TEL:
END CALL
HOLD CALL
DIAL
DTMF TONES
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT
avoidance criteria
satellites
stages info
TRAVEL ROUTE
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
NORMAL
RANDOM TRACK
TRACK INFO
SELECT MUSIC

6

02
1
1
1
1
1
2
1
2
2
2
2
2
1
3
3
3
31
2
2
3
3
3
3
2
3
2
3
1
2
2
3
3
3

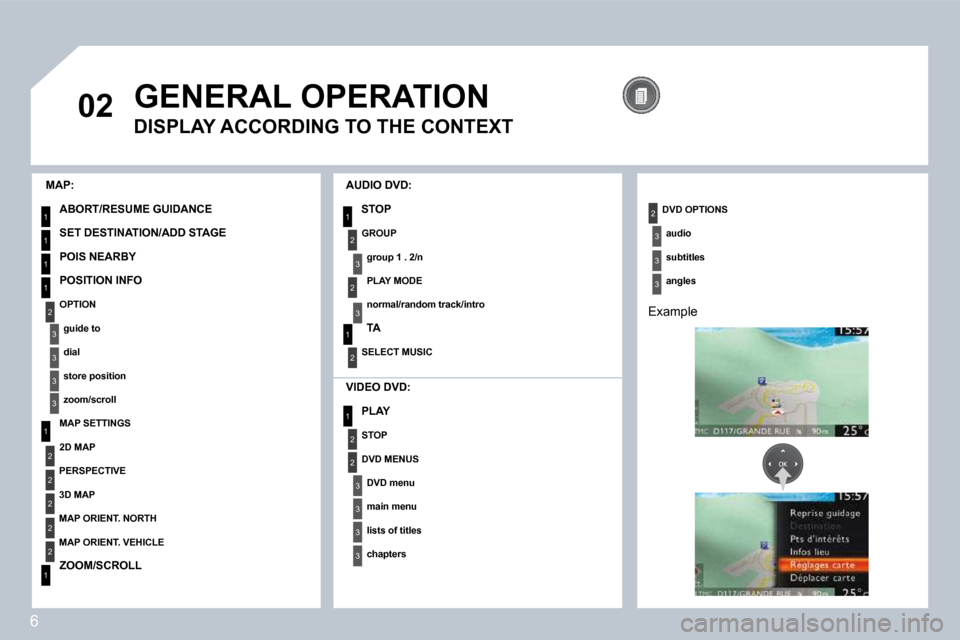

GENERAL OPERATION
DISPLAY ACCORDING TO THE CONTEXT
MAP:
ABORT/RESUME GUIDANCE
SET DESTINATION/ADD STAGE
POIS NEARBY
POSITION INFO
OPTION
guide to
dial
store position
zoom/scroll
MAP SETTINGS
2D MAP
PERSPECTIVE
3D MAP
MAP ORIENT. NORTH
MAP ORIENT. VEHICLE
ZOOM/SCROLL
AUDIO DVD:
STOP
GROUP
group 1 . 2/n
PLAY MODE
normal/random track/intro
TA
SELECT MUSIC
DVD OPTIONS
audio
subtitles
angles
Example
VIDEO DVD:
PLAY
STOP
DVD MENUS
DVD menu
main menu
lists of titles
chapters

7
NAV
03
1
2
3
6
5
4
SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press OK to confi rm.
Select the DESTINATION INPUT function and press OK to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing OK.
Once the country has been selected, turn the ring and select the town function. Press OK to confi rm.
DESTINATION INPUTNAVIGATION MENU
NEW DESTINATION INPUT
A pre-set list (by entering the fi rst few letters)
of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press OK to confi rm.
The list of the last 20 destinations appears under the NAthe NAVIGATION MENU function.
The NAVIGATION voice commands are listed in section 09.
During guidance, a long press on the end of the lights stalk repeats the last guidance instruction.

8
7
8
10
9
11
Repeat steps 5 to 7 for the STREET and N° functions.
Turn the ring and select OK. Press OK to confi rm.
Select the SAVE TO ADDRESS BOOK function to recoo record the address entered in a directory fi le. Press OK to confi rm the selection. address entered in a directory fi le. Press OK to confi rm the selection. The NaviDrive 3D permits the recording of more tha n 4than 4 000 contact fi les.
To speed up the process, the post code can be ente redtered directly after selecting the POST CODE function. Use the virtual keypad to enter the letters and digits.
Select the route type: FAST ROUTE, SHORT ROUTE or OPTIMISED ROUTE and press OK to confi rm.
Then select START ROUTE GUIDANCE and the press OK to confi rm.
It is also possible to select a destination FROM A DDREDRESS BOOK or FROM LAST DESTINATIONS, by selecting a junctionnction, a town centre, geographic coordinates, or directly on the MAP. MAP.
FROM LAST DESTINATIONS
FROM ADDRESS BOOK
START ROUTE GUIDANCE
It is possible to scroll the map using the 4-direc tion navigator. It is possible to select its orientation via the short-cut menu of the FULL SCRE EN MAP. Press OK then select MAP SETTINGS and confi rm.
Select the road with the colour corresponding to the route chosen and press OK to confi rm and start guidance.
