key Citroen C5 DAG 2008.5 (RD/TD) / 2.G Owner's Guide

92
V I S I B I L I T Y
5
In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-mately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
-
with the engine running, unlimited.
Map reading lights

 With the ignition on, press the
corresponding switch. Panoramic glass roof rear
reading lights (Tourer)
With the key in position or with the
ignition on:

 Press the corresponding switch.
The reading light concerned comes
on for ten minutes.
The rear reading lights come on:
- when the key is removed from the ignition,
- when the vehicle is unlocked.
They switch off gradually:
- when the vehicle is locked,
- when the ignition is switched on.

131
9
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle

 Check that the gear lever is in
neutral.

 Do not touch the accelerator.

 For Diesel engines: turn the key
to position M and wait until the
pre-heating warning light switch-
es off if it has come on.

 Operate the starter, turning the
key until the engine starts (no
more than ten seconds).

 In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
Engaging reverse gear

 Push the gear lever to the right
then rearwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
6-SPEED MANUAL GEARBOX
Engaging reverse gear

 Raise the ring under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT programme for a
more dynamic driving style,
- the SNOW programme to im-
prove driving when the grip is
poor,
- manual operation for sequen-
tial changing of the gears by the
driver.

131
9
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle

 Check that the gear lever is in
neutral.

 Do not touch the accelerator.

 For Diesel engines: turn the key
to position M and wait until the
pre-heating warning light switch-
es off if it has come on.

 Operate the starter, turning the
key until the engine starts (no
more than ten seconds).

 In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
Engaging reverse gear

 Push the gear lever to the right
then rearwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
6-SPEED MANUAL GEARBOX
Engaging reverse gear

 Raise the ring under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT programme for a
more dynamic driving style,
- the SNOW programme to im-
prove driving when the grip is
poor,
- manual operation for sequen-
tial changing of the gears by the
driver.

152
10
C H E C K S
RUNNING OUT OF FUEL (DIESEL)
HDi 110 engine

 Unclip the protective cover
to gain access to the priming
pump. HDi 138 and HDi 173 engines

 Unclip the protective cover
to gain access to the priming
pump.
Priming the fuel circuit
In the event of running out of fuel:

 after fi lling (minimum 5 litres) and
removing the protective cover,
action the manual priming pump,
until some resistance is felt,

 operate the starter motor while
depressing the accelerator pedal
slightly until the engine starts. HDi engines are the result
of advanced technology.
Any intervention requires special
qualifi cations which only a CITROËN
dealer can guarantee.
V6 HDi 208 engine with electric
pump
In the event of running out of fuel:

 after adding fuel, turn the ignition
key to position M , wait for a few
seconds,

 operate the starter motor until
the engine starts.
If the engine fails to start after several
attempts, contact a CITROËN dealer.
If the engine fails to start at the fi rst
attempt, wait fi fteen seconds before
trying again.
If the engine fails to start after a few
attempts, action the priming pump
again and then try to start the en-
gine.
When the engine is idling, acceler-
ate slightly to complete the bleeding
of the circuit.

2
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*
1. CD eject.
2. RADIO: Access to the RADIO menu. Displaying of the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: Access to the MEDIA menu (Audio CD, Jukebox , External Device). Displaying of the list of tracks. Change of source.
NAV: access to the NAVIGATION menu and displaying of the last destinations.
ESC: Abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the TRAFFIC menu (function desc ribed in detail in sections 02 and 10).
ADDR BOOK: access to the ADDRESS BOOK menu (functi on described in detail in section 10).
SETUP: access to the SETUP menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience...).
4. Volume adjustment. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6. Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
FIRST STEPS
NaviDrive 3D CONTROL PANEL
7. Normal display or black screen.
8. Selection of the successive displaying on the scre en of MAP/NAV (if navigation is in progress)/TEL (if a conversation is in progress)/RADIO or MEDIA currently being played.
9. PICK UP: access to the TELEPHONE menu. With Blueto oth connection, accept an incoming call.
10. HANG UP: access to the TELEPHONE menu. Hang up the current call or refuse an incoming call, with Bluetooth connection. access to the TELEPHONE menu
11. Telephone numeric keypad, pre-selection of 10 radi o frequencies.
12. SD card reader.
Short press: clears the last character.
Long press: activates the voice recognition.

7
NAV
03
1
2
3
6
5
4
SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press OK to confi rm.
Select the DESTINATION INPUT function and press OK to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing OK.
Once the country has been selected, turn the ring and select the town function. Press OK to confi rm.
DESTINATION INPUTNAVIGATION MENU
NEW DESTINATION INPUT
A pre-set list (by entering the fi rst few letters)
of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press OK to confi rm.
The list of the last 20 destinations appears under the NAthe NAVIGATION MENU function.
The NAVIGATION voice commands are listed in section 09.
During guidance, a long press on the end of the lights stalk repeats the last guidance instruction.

8
7
8
10
9
11
Repeat steps 5 to 7 for the STREET and N° functions.
Turn the ring and select OK. Press OK to confi rm.
Select the SAVE TO ADDRESS BOOK function to recoo record the address entered in a directory fi le. Press OK to confi rm the selection. address entered in a directory fi le. Press OK to confi rm the selection. The NaviDrive 3D permits the recording of more tha n 4than 4 000 contact fi les.
To speed up the process, the post code can be ente redtered directly after selecting the POST CODE function. Use the virtual keypad to enter the letters and digits.
Select the route type: FAST ROUTE, SHORT ROUTE or OPTIMISED ROUTE and press OK to confi rm.
Then select START ROUTE GUIDANCE and the press OK to confi rm.
It is also possible to select a destination FROM A DDREDRESS BOOK or FROM LAST DESTINATIONS, by selecting a junctionnction, a town centre, geographic coordinates, or directly on the MAP. MAP.
FROM LAST DESTINATIONS
FROM ADDRESS BOOK
START ROUTE GUIDANCE
It is possible to scroll the map using the 4-direc tion navigator. It is possible to select its orientation via the short-cut menu of the FULL SCRE EN MAP. Press OK then select MAP SETTINGS and confi rm.
Select the road with the colour corresponding to the route chosen and press OK to confi rm and start guidance.

11
NAV
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press OK to confi rm.
Select the POI NEARBY function to search for POIs around the vehicle.
Select the SEARCH POINTS OF INTEREST function and press OK to confi rm.
NAVIGATION MENU
SEARCH POINTS OF INTEREST
POI NEARBY
Select the POI IN CITY function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the POI NEAR ROUTE function to search for POIs near the route.
Select the POI IN COUNTRY function to search for POIs in the country required.
Select the POI NEAR DESTINATION function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

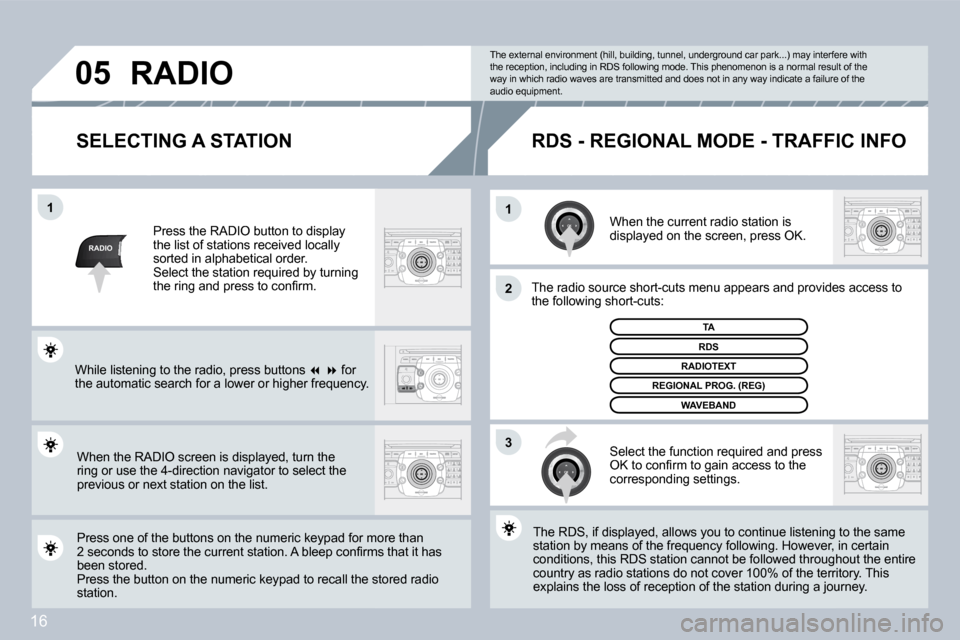

16
RADIO
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press OK to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening tning to the same station by means of the frequency following. Howeve r, inever, in certain conditions, this RDS station cannot be followed throughroughout the entire country as radio stations do not cover 100% of the territ territory. This explains the loss of reception of the station during a jour a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad for moor more than 2 seconds to store the current station. A bleep confi rms that it has 2 seconds to store the current station. A bleep confi rms that it has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG. (REG)
WAVEBAND
RADIO
When the RADIO screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons   for the automatic search for a lower or higher frequenc y.

24
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
07
1
22
33
11
22
Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolon
ged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad then select OK and confi rm.
The system asks USE INTERNAL TELEPHONE FOR VOICE CALLS, select YES if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
USING THE INTERNAL TELEPHONE
WITH SIM CARD
MAKING A TELEPHONE CALL
Once the SIM card has been installed, the system c an synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluet ooth telephone to receive your calls on the vehicle's au dio system.
