Page 71 of 306
V
84
V I S I B I L I T Y
EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving con-
ditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for im- proved visibility when cornering,
- daytime running lamps to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lamps off,
automatic illumination of
headlamps,
sidelamps only,
dipped headlamps or
main beam headlamps.
B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
( " h e a d l a m p fl a s h " ) b y m a i n t a i n i n g a
pull on the stalk.
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
c o n fi r m s t h e s e l e c t i v e s w i t c h i n g o n
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring A and the stalk B .
A. Main lighting mode selection ring,
with:
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the inter-
nal surface of the glass of the
headlamps and rear lamps is nor-
mal; it disappears after the lamps
have been on for a few minutes.
Page 72 of 306
V
85
V I S I B I L I T Y
C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
-
1 st turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 1 st turn forwards: front foglamps on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps off.
Model with rear foglamps
only
Model with front and rear
foglamps In good or rainy weather, both day
and night, the front foglamps and
the rear foglamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer necessary.
Lamps on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lamps, with
the ignition off and in manual lamps
mode.
In this case, switching off the lamps
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 73 of 306
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
Page 74 of 306
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".

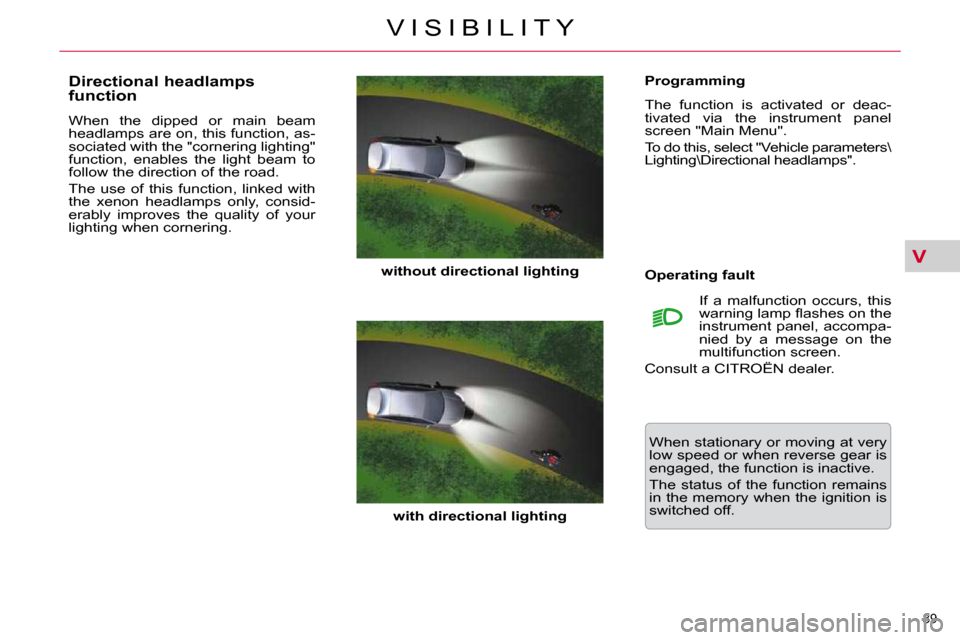

AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer. If a malfunction oc-
curs, this warning
lamp is displayed on
the instrument panel,
accompanied by an
audible signal and a message on
the instrument panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 75 of 306
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
Page 76 of 306
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer. If a malfunction oc-
curs, this warning
lamp is displayed on
the instrument panel,
accompanied by an
audible signal and a message on
the instrument panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 77 of 306
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer. If a malfunction oc-
curs, this warning
lamp is displayed on
the instrument panel,
accompanied by an
audible signal and a message on
the instrument panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 78 of 306
V
88
V I S I B I L I T Y
DIRECTIONAL LIGHTING
without cornering lighting
with cornering lighting
"Cornering lighting" function
With dipped or main beams, this
function provides additional lighting
for the inside of a bend, when the ve-
hicle speed is below 25 mph (approx
4 0 k m / h ) .
This lighting is most useful when
travelling at low and medium speed
(urban driving, winding road, inter-
s e c t i o n s , p a r k i n g m a n o e u v r e s . . . ) .
Activation
This function is activated:
- when the direction indicator is
activated,
- from a certain angle of rotation of the steering wheel. Deactivation
This function is deactivated:
- below a certain angle of rotation
of the steering wheel,
- when stationary or at very low speed,
- when reverse gear is engaged,
- when the directional headlamps are switched off.
Page 79 of 306
![Citroen C5 DAG 2009.5 (RD/TD) / 2.G Manual PDF V
89
V I S I B I L I T Y
Programming
The function is activated or deac-
tivated via the instrument panel
screen "Main Menu".
To do this, select "Vehicle parameters\
Lighting\Direc](/img/9/4211/w960_4211-78.png "Citroen C5 DAG 2009.5 (RD/TD) / 2.G Manual PDF V
89
V I S I B I L I T Y
Programming
The function is activated or deac-
tivated via the instrument panel
screen \"Main Menu\".
To do this, select \"Vehicle parameters\
Lighting\Direc")
V
89
V I S I B I L I T Y
Programming
The function is activated or deac-
tivated via the instrument panel
screen "Main Menu".
To do this, select "Vehicle parameters\
Lighting\Directional headlamps".
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Directional headlamps
function
When the dipped or main beam
headlamps are on, this function, as-
sociated with the "cornering lighting"
function, enables the light beam to
follow the direction of the road.
The use of this function, linked with
the xenon headlamps only, consid-
erably improves the quality of your
lighting when cornering.
with
directional lighting
without
directional lighting
Page 80 of 306
V
90
V I S I B I L I T Y
WIPER CONTROLS
System for selection and control of
the various front and rear wiping
modes for the elimination of rain and
cleaning.
The vehicle's front and rear wipers
are designed to improve the driver's
visibility progressively according to
the climatic conditions.
Programming
Various automatic wiper control
modes are also available according
to the following options:
- automatic rain sensitive wind-screen wipers,
- rear wiping on engaging reverse gear. Manual controls
The wiper commands are issued di-
rectly by the driver by means of the
stalk
A and the ring B . Rear wiper (Tourer)
B. rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then single
wipe (see following
p a g e ) .
park,
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
Windscreen wipers
A. wiping speed selection stalk:
or I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when
using a tailgate bicycle carrier, de-
activate the automatic rear wiper
via the instrument panel screen
c o n fi g u r a t i o n m e n u .
