C O M F O R T
Control via the manual controls
It is possible to adjust one or more
functions manually, while leaving the
other functions in automatic mode.

 Press one of the controls, with
the exception of that which regu-
lates the temperature 2 . Indicator
lamp A switches off.
Switching to manual mode may
result in discomfort (temperature,
humidity, odour, condensation) and
may not provide optimum comfort.
To return to automatic mode, press
the "AUTO" control.
3. Air distribution adjustment
 Press the controls 3
to change the distri-
bution of the air fl ow. 4. Air conditioning
The air conditioning will only oper-
ate when the engine is running. The
air blower control (air fl ow adjust-
ment) must be active to obtain air
conditioning.
Switching off the ventilation

 Turn control 5 to the
left until the fl ow of
air stops.


Press control 4 . Indicator
light B comes on.
5. Air fl ow adjustment

 Turn control 5 to the
right to increase the
air fl ow or to the left
to reduce it.
6. Front demisting - defrosting
In certain cases, the

"AUTO" mode may not
be suffi cient to demist or
defrost the windows (hu-
midity, several passen-
gers, ice).

 Press control 6 to clear the win-
dows quickly. The indicator lamp
comes on.
The
"OFF" symbol is displayed on
the multifunction screen.
This action switches off the display
and the indicator lamps.
It deactivates all of the system's
functions, with the exception of the
rear screen demisting.
The temperature-related comfort is
no longer controlled (temperature,
humidity, odour, condensation).
Avoid driving for too long with the air
conditioning off.
In order to be effective, the air condi-
tioning must be used with the windows
closed.
Deactivating the air conditioning may
result in discomfort (temperature,
humidity, odour, condensation).
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible. The air fl ow level is indicated by the
progressive lighting of the blocks of
the bar graph on the control panel
display
9 .
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
that an adequate fl ow of air is main-
tained.
To reactivate the air conditioning:

 Press control 1 .

III
49
C O M F O R T
It controls the temperature, air fl ow
and intake and distributes the ven-
tilation to the windscreen and front
side windows.
Resuming manual control exits from
"Demisting" mode. It must be can-
celled to permit renewal of the air
in the passenger compartment and
demisting.
Once the screen is clear, press-
ing control 1 returns the system to

"AUTO" mode.

 Press control 7 , with
the engine running,
to demist the rear
screen and the door
mirrors. The indica-
tor lamp comes on.
Demisting is switched off automati-
cally to prevent an excessive con-
sumption of current and in relation
to the ambient temperature.
It may be stopped by pressing con-
trol 7 again or when the engine is
switched off.
7. Rear demisting - defrosting
The heated rear screen operates in-
dependently of the air conditioning
system.
8. Intake of exterior air/
Recirculation of interior air
This function enables you to isolate
the passenger compartment from
exterior fumes and odours. - When starting with the engine
cold, the fl ow will reach its op-
timum level gradually to pre-
vent an excessive distribution
of cold air.
- When entering the vehicle af- ter it has been parked for a
fairly long period, if the inte-
rior temperature is very differ-
ent from your comfort setting
there is no need to change
the temperature displayed
in order to quickly reach the
level of comfort required. The
system automatically uses its
maximum performance to cor-
rect the difference in tempera-
ture as quickly as possible.
- The water resulting from the air conditioning condensation
is discharged via an open-
ing provided for this purpose;
therefore, a puddle of water
may form underneath the ve-
hicle when stationary.
- In all seasons, if the weather is cool, the air conditioning
is useful as it removes the
humidity from the air and the
condensation. Avoid driving
for prolonged periods with the
air conditioning switched off.
However, demisting resumes when
the engine is switched on again.
Switch off the rear screen and door mir-
rors demisting when you consider this
necessary as low current consumption
reduces fuel consumption.

 Press control 8 sev-
eral times to set the
air intake mode, the
indicator lamp comes
on.

It must be cancelled as soon as
possible to permit renewal of the
air in the passenger compartment
and demisting.

III
50
C O M F O R T
DIGITAL AIR CONDITIONING (DUAL-ZONE)

Dual-zone: this is the differentiated regulation of the temperature and air distri-
bution on the driver's side and the front passenger's side.
The driver and front passenger can each adjust the temperature and the distri-
bution of the air to suit their requirements.
The symbols and messages associated with the digital air condit ioning controls
appear on the multifunction screen. This is the normal sys-
tem operating mode.
In accordance with the
level of comfort chosen,
pressing this control,
confi rmed by the display
of indicator lamp A , permits auto-
matic and simultaneous control of
all of the following functions:
- Air fl ow.
- Temperature in the passenger compartment.
- Air distribution.
- Air conditioning.
- Automatic air recirculation.
It is advisable to leave all of the
vents open. Simply pressing one
of the controls, with the exception
of temperature regulation 1a and

1b , switches the system to manual
mode. Indicator lamp A switches
off.
1a-1b. Automatic operation

1a. Automatic operation on the
driver's side

1b. Automatic operation on the
passenger's side

2a. Temperature adjustment on the
driver's side

2b. Temperature adjustment on the
passenger's side

3a. Air distribution adjustment on
the driver's side

3b. Air distribution adjustment on
the passenger's side
4a. Driver's zone screen

4b. Passenger's zone screen

5. Air fl ow adjustment

6. Activation/deactivation of the air
conditioning

7. Air recirculation – intake of
exterior air

8. Rear demisting - defrosting

9. Front demisting - defrosting

III
51
C O M F O R T
2a-2b. Temperature adjustment Control via the manual controls

 Press one of the controls, with
the exception of temperature
regulation 2a and 2b . The indi-
cator lamps A on the "AUTO"
controls switch off.
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
Switching to manual mode may re-
sult in discomfort (temperature, hu-
midity, odour, condensation) and
may not provide optimum comfort.
To return to "AUTO" mode, press
controls 1a and 1b . The indicator
lamps A come on. 3a-3b. Air distribution adjustment

 Press control

3a to change
the distribu-
tion of the air
fl ow on the
driver's side.

 Press control 3b to change the
distribution of the air fl ow on the
passenger's side.
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible.

 Turn control 2a to change the
temperature on the driver's side
and control 2b to change the
temperature on the passenger's
side: to the right to increase the
temperature or to the left to re-
duce it.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
the screen confi guration.
A setting around the value 21 usually
makes it possible to obtain optimum
comfort. However, depending on
your requirements, a setting between
18 and 24 is usual.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than is comfortable.
There is no need to change the tem-
perature displayed in order to quickly
obtain the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.

III
52
C O M F O R T
5. Air fl ow adjustment
 Press the control:
- to increase the air fl ow,
-
to reduce the air fl ow.
The air fl ow level is indi-
cated by the progressive
lighting of the fan blade in-
dicator lamps.

Reducing the fl ow to minimum
switches the air conditioning OFF.
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
that an adequate fl ow of air is main-
tained.
6. Air conditioning
The air conditioning will only
operate when the engine
is running. The air blower
control (air fl ow adjustment)
must be active in order to
obtain air conditioning.

 Press control 6 . The indicator
lamp comes on.
In order to be effective, the air condi-
tioning must be used with the windows
closed. 7. Air recirculation - intake of
exterior air

Automatic air intake
mode
It is activated by default
in automatic comfort
regulation.
Automatic mode is acti-
vated with reverse gear or
operation of the screen-
wash.
This function permits recirculation of
the air and isolation the passenger
compartment from exterior fumes
and odours. It is inactive when the
ambient temperature is below +5°C
to avoid the risk of misting inside the
vehicle.
Closing the air intake

 Press control 7 to
close the exterior air
intake.
It must be cancelled as soon as pos-
sible to permit renewal of the air in
the passenger compartment and
demisting.

Intake of exterior air

 Press control 7 once
to open the exterior air
intake.
While retaining the other settings,
this position allows the driver to iso-
late the passenger compartment at
any time from unpleasant exterior
odours and fumes.

III
53
C O M F O R T
When starting with the engine
cold, air fl ow will reach its opti-
mum level gradually to prevent an
excessive distribution of cold air.
When entering the vehicle after it
has been parked for a fairly long
period, if the interior temperature
is very different from your comfort
setting there is no need to change
the temperature displayed in or-
der to quickly reach the level of
comfort required. The system
automatically uses its maximum
performance to correct the differ-
ence in temperature as quickly as
possible.
The water resulting from the air
conditioning condensation is dis-
charged via an opening provided
for this purpose; therefore, a pud-
dle of water may form underneath
the vehicle when stationary.
In all seasons, if the weather is
cool, the air conditioning is use-
ful as it removes the humidity
from the air and the condensa-
tion. Avoid driving for prolonged
periods with the air conditioning
switched off.
9. Front demisting - defrosting
In certain cases, the

"AUTO" mode may not
be suffi cient to demist or
defrost the windows (hu-
midity, several passen-
gers, ice).

 Press control 9 to clear the win-
dows quickly. The indicator lamp
comes on.
This system controls the temperature,
air fl ow and intake and distributes the
ventilation to the windscreen and front
side windows.
Resuming manual control exits from
the "Demisting" mode. It must be
cancelled as soon as possible to
permit renewal of the air in the pas-
senger compartment and demisting.
Pressing one of the controls 1a and

1b returns the system to the "AUTO"
mode.
8. Rear demisting - defrosting
Switch off the rear screen and exterior
mirrors demisting when you consider
this necessary as low current consump-
tion reduces fuel consumption.
The heated rear screen
operates independently
of the air conditioning
system.

 Press control 8 , with the en-
gine running, to demist the rear
screen and the mirrors. The indi-
cator lamp comes on.
Demisting is switched off automati-
cally to avoid excessive consump-
tion of current and depending on the
exterior temperature.
It may be stopped by pressing con-
trol 8 again or when the engine is
switched off.
In this latter case, the demisting re-
sumes if the engine is switched on
again within one minute.

III
54
C O M F O R T
PROGRAMMABLE HEATING
The programmable heating operates
independently of the engine.
When the engine is off, it pre-heats
the coolant circuit in order to benefi t
from an optimum engine operating
temperature from the time the en-
gine is switched on.
The programmable heating system
is switched on using the long range
remote control. Activation can be im-
mediate or deferred by means of a
programming function. Programming remote control
The heating system programming
remote control consists of the fol-
lowing buttons and displays:

1. Scrolling functions menu buttons.

2. Function indicator lights: clock,
temperature, operating time, pro-
grammed time, heater operation,
heating management symbols.

3. Digital displays: time, tempera-
ture, duration of operation, pro-
grammed time or level of heating.

4. Off button.

5. On button.
Displays on the remote
control screen Press the buttons
1 in succession to
display the functions.
The fi rst press of the left-hand or
right-hand button displays the time.
Next, the left-hand button permits ac-
cess to the programming time then to
the level of heating (C1 to C5).
The right-hand button permits ac-
cess to the passenger compartment
temperature then to the duration of
operation of the heater if it is to be
switched on immediately.

If a malfunction of the program-
mable heating system occurs,
contact a CITROËN dealer. Displaying the functions
The passenger compartment
temperature information is only
available when the engine is off.

III
55
C O M F O R T

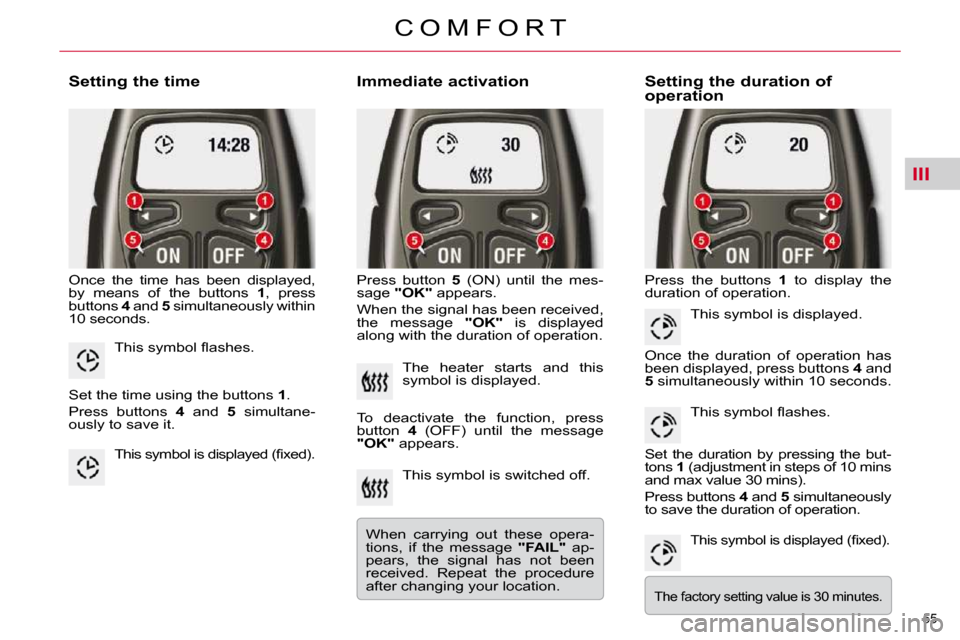

Setting the time
Once the time has been displayed,
by means of the buttons 1 , press
buttons 4 and 5 simultaneously within
10 seconds. Immediate activation
Press button
5 (ON) until the mes-
sage "OK" appears.
When the signal has been received,
the message "OK" is displayed
along with the duration of operation. Press the buttons
1 to display the
duration of operation.
This symbol fl ashes.
Set the time using the buttons 1 .
Press buttons 4 and 5 simultane-
ously to save it.
This symbol is displayed (fi xed).
The heater starts and this
symbol is displayed.
To deactivate the function, press
button 4 (OFF) until the message

"OK" appears.
This symbol is switched off.
When carrying out these opera-
tions, if the message "FAIL" ap-
pears, the signal has not been
received. Repeat the procedure
after changing your location. Setting the duration of
operation
This symbol is displayed.
Once the duration of operation has
been displayed, press buttons 4 and

5 simultaneously within 10 seconds.
This symbol fl ashes.
Set the duration by pressing the but-
tons 1 (adjustment in steps of 10 mins
and max value 30 mins).
Press buttons 4 and 5 simultaneously
to save the duration of operation.
This symbol is displayed (fi xed).
The factory setting value is 30 minutes.

III
56
C O M F O R T

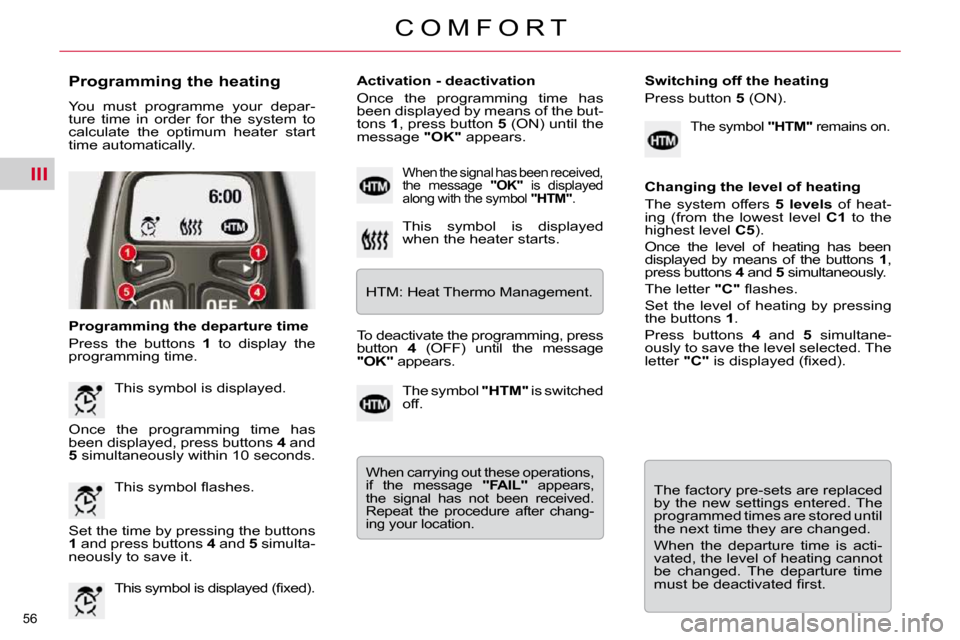

Programming the heating
You must programme your depar-
ture time in order for the system to
calculate the optimum heater start
time automatically.
Programming the departure time
Press the buttons 1 to display the
programming time. Activation - deactivation
Once the programming time has
been displayed by means of the but-
tons
1 , press button 5 (ON) until the
message "OK" appears.
This symbol is displayed.
Once the programming time has
been displayed, press buttons 4 and

5 simultaneously within 10 seconds.
This symbol fl ashes.
Set the time by pressing the buttons

1 and press buttons 4 and 5 simulta-
neously to save it.
This symbol is displayed (fi xed).
This symbol is displayed
when the heater starts.
HTM: Heat Thermo Management.
When the signal has been received,
the message "OK" is displayed
along with the symbol "HTM" .
To deactivate the programming, press
button 4 (OFF) until the message

"OK" appears.
The symbol "HTM" is switched
off.
When carrying out these operations,
if the message "FAIL" appears,
the signal has not been received.
Repeat the procedure after chang-
ing your location.
Switching off the heating
Press button 5 (ON).
The symbol "HTM" remains on.
Changing the level of heating
The system offers 5 levels of heat-
ing (from the lowest level C1 to the
highest level C5 ).
Once the level of heating has been
displayed by means of the buttons 1 ,
press buttons 4 and 5 simultaneously.
The letter "C" fl ashes.
Set the level of heating by pressing
the buttons 1 .
Press buttons 4 and 5 simultane-
ously to save the level selected. The
letter "C" is displayed (fi xed).
The factory pre-sets are replaced
by the new settings entered. The
programmed times are stored until
the next time they are changed.
When the departure time is acti-
vated, the level of heating cannot
be changed. The departure time
must be deactivated fi rst.

III
!
57
C O M F O R T
Changing the battery
The remote control is supplied by a
6V-28L battery, which is supplied.
Information on the display indicates
when it is time to replace this battery.
Unclip the casing then replace the
battery.
The remote control must then be re-
initialised, see below. Always switch off the program-
mable heating while fi lling with
fuel to avoid any risk of fi re or ex-
plosion.
To avoid any risk of poisoning and
asphyxiation, the programmable
heating must not be used, even
for short periods, in an enclosed
space such as a garage or work-
shop which is not equipped with an
exhaust gas extraction system.
Do not park the vehicle on an
infl ammable surface (dry grass,
dead leaves, paper…), there is a
risk of fi re.
The programmable heating sys-
tem is supplied by the vehicle's fuel
tank. Before use, ensure that the
quantity of fuel remaining is suf-
fi cient. If the fuel tank is at the re-
serve, we strongly advise that you
do not programme the heating.
Do not discard the used bat-
teries, take them to an ap-
proved collection point.
Reinitialising the remote control
If the vehicle's battery is disconnect-
ed or the remote control's battery is
replaced, the remote control must
be reinitialised.
After switching on the power, press
button 4 (OFF) for 1 second within
the next 5 seconds. If the operation
has taken place correctly the mes-
sage "OK" is displayed on the re-
mote control screen.
If a problem occurs, the message

"FAIL" appears. Repeat the operation.
In addition, your programmable
heating can be to pre-heat your
vehicle's passenger compart-
ment. The interior volumetric protection
alarm movement sensor may be
disturbed by the fl ow of air from
the programmable heating when
it is in operation.
To avoid any unexpected trigger-
ing of the alarm during use of the
programmable heating, it is ad-
visable to deactivate the interior
volumetric protection.
