Citroen C5 RHD 2015 (RD/TD) / 2.G Owner's Manual

139
Lighting left on
When a front door is opened with the
ignition off and in manual lighting mode,
an audible signal warns the driver if the
vehicle's lighting is still on.
In this case, switching off the lighting
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will switch
off automatically after thirty minutes to
prevent discharging of the battery.* Depending on the country of sale.
Daytime-running lampsManual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
System which switches on special lamps at the
front, to make the vehicle more visible by day.
They come on automatically and stay on when
the engine is running, if:
-
The function is activated* in the vehicle
parameters menu.
- The lighting control stalk is at position 0
or AUTO .
- The headlamps are off.
You can deactivate the function* via the vehicle
parameters menu. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
5
Visibility

140
Linked with the automatic Guide-
me-home lighting
The link with the automatic illumination of
headlamps provides the guide-me-home
lighting with the following additional options:
- selection of the duration of lighting for 15,
30 or 60 seconds in the vehicle parameters
menu,
- automatic activation of the guide-me-home
lighting when automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the sunshine sensor,
the lighting comes on and a message appears
in the instrument panel screen, accompanied
by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.
Deactivation
F Turn ring A to a position other than
"AUTO" . Deactivation is accompanied by a
message in the instrument panel screen.
The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of
external light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
do not cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer operate.
Visibility

141
Manual headlamp
adjustment
To avoid dazzling other road users, the height
of the halogen bulb headlamps must be
adjusted according to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Automatic adjustment of directional
headlamps
The system then places your headlamps in the
lowest position. If a fault occurs, this warning lamp
comes on in the instrument panel,
accompanied by an audible signal
and a message in the instrument
panel screen.
Initial setting is position "0" .To avoid causing a nuisance to other road
users, this system corrects the height of the
xenon headlamp beams automatically and
when stationary, depending on the load in
the vehicle.
Do not touch the xenon bulbs. Contact
a CITROËN dealer or a qualified
workshop.
Travelling abroad
If planning to use your vehicle in a
country that drives on the other side
of the road, we recommend that
you contact a CITROËN dealer or a
qualified workshop to check whether
the headlamps need to be adjusted to
avoid dazzling on-coming drivers.
5
Visibility

142
Directional lighting
without cornering lightingwith cornering lighting
"Cornering lighting" function
Activation
This function is activated:
- when the direction indicator is activated,
- from a certain angle of rotation of the
steering wheel.
Deactivation
This function is deactivated:
- below a certain angle of rotation of the
steering wheel,
- when stationary or at very low speed,
- when reverse gear is engaged,
- when the directional headlamps are
switched off.
With dipped or main beams, this function
provides additional lighting for the inside of a
bend, when the vehicle speed is below 25 mph
(approx 40 km/h).
This lighting is most useful when travelling at
low and medium speed (urban driving, winding
road, junctions, parking manoeuvres...).
Visibility

143
Operating fault
If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
display screen.
"Directional headlamps"
function
When the dipped or main beam headlamps
are on, this function, associated with the
"Cornering lighting" function, enables the light
beam to follow the direction of the road.
The use of this function, linked with the xenon
headlamps only, considerably improves the
quality of your lighting when cornering.with directional lighting
without directional lighting
The state of the function remains in the
memory when the ignition is switched off.
When stationary or moving at very low
speed or when reverse gear is engaged,
the function is inactive. Contact a CITROËN dealer or a qualified
workshop.
Programming
The function is activated or deactivated via the
vehicle parameters menu.
This function is activated by default.
5
Visibility

144
Wiper controls
Programming
Various automatic wiper control modes are also
available according to the following options:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear.
Manual controls
Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to the
speed of the vehicle).
Automatic, then single wipe
(see the corresponding
section).
Of f.
Single wipe (press down and
release).
Windscreen wipers
A.
Wiping speed selection stalk.
or
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the weather
conditions.
The wiper commands are issued directly by the
driver by means of the stalk A and the ring B.
Visibility

145
Rear wiper (Tourer)
B. rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear
wiper operates if the windscreen wipers are
operating.
Programming
The function is activated or deactivated via the
vehicle parameters menu.
This function is activated by default.
Windscreen and headlamp
wash
F Pull the windscreen wiper stalk towards
you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when
the dipped beam headlamps are on .
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle parameters
menu.
5
Visibility

146
Automatic rain sensitive
windscreen wipers
Activation
This is controlled manually by the driver by
moving stalk A to the "AUTO" position.
It is accompanied by a message in the
instrument panel screen.
Switching off
This is controlled manually by the driver by
moving stalk A upwards and returning it to
position "0" .
It is accompanied by a message in the
instrument panel screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a CITROËN dealer or a
qualified workshop.
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the
rear view mirror.
Switch off the automatic wiping when
using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wiping.
The automatic wiping must be
reactivated if the ignition has been off
for more than one minute, by pushing
stalk A downwards.
Visibility

147

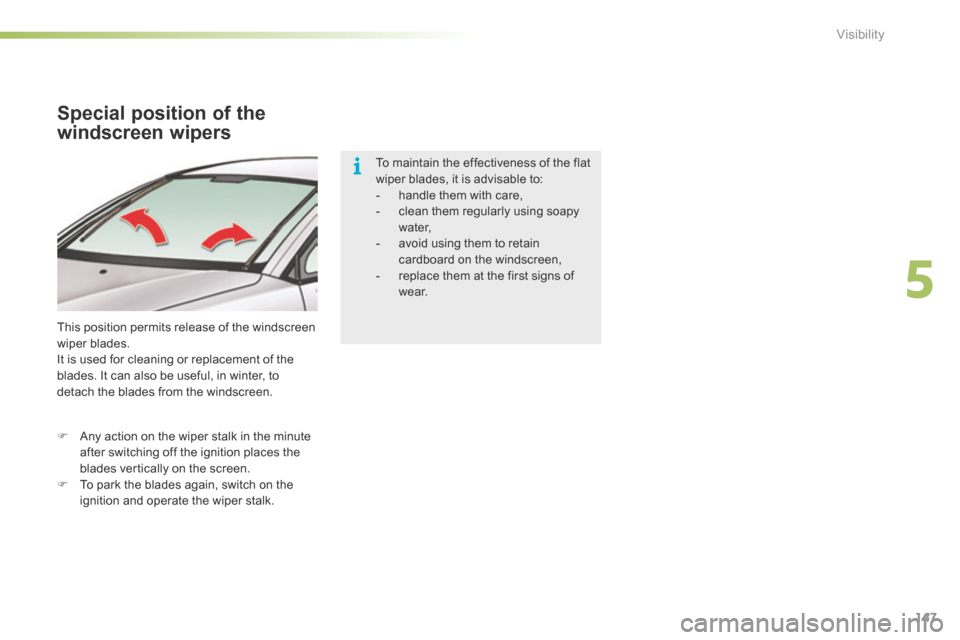

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
F Any action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F To park the blades again, switch on the
ignition and operate the wiper stalk. To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-
handle them with care,
- clean them regularly using soapy
water,
- avoid using them to retain
cardboard on the windscreen,
- replace them at the first signs of
w e a r.
5
Visibility

148
direction
indicators
F Left: lower the lighting stalk beyond the
point of resistance.
F Right: raise the lighting stalk beyond the
point of resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.
Hazard warning lamps
Visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F You can also switch them off by pressing
the button.
Selection of the left or right direction indicators
to signal a change of direction of the vehicle.
F Press this button, the direction indicators
flash.
They can operate with the ignition off.
