battery capacity Citroen C5 RHD 2015 (RD/TD) / 2.G Owner's Manual

211
Following reconnection of
the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
slight malfunctions remain following this
operation, contact a CITROËN dealer
or a qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise:
- the remote control key,
- the glass panoramic roof blind,
- the radio station presets, the date
and time in the audio system.

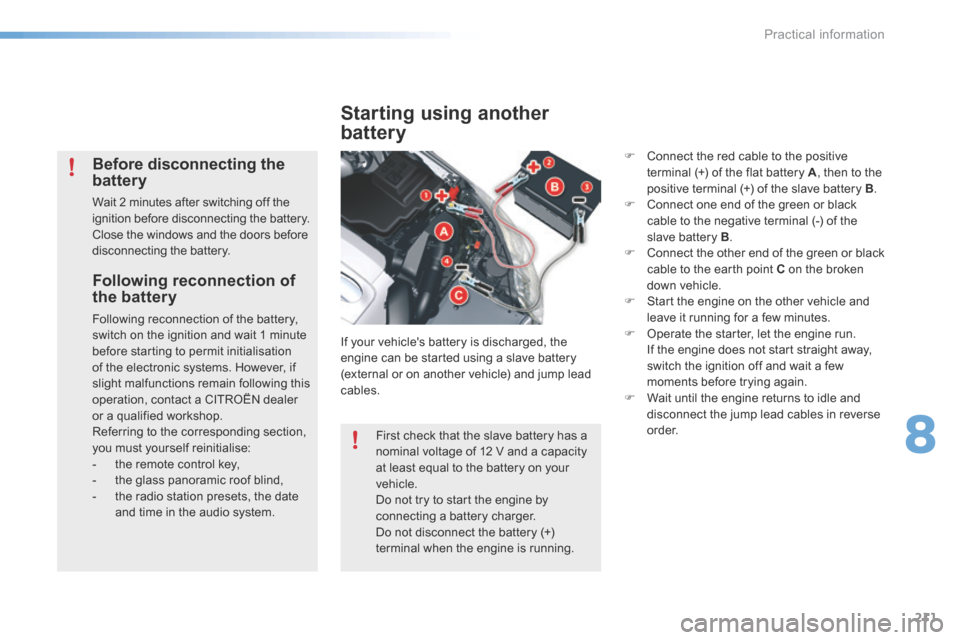

Starting using another
battery
If your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables.
Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery. F
Connect the red cable to the positive
terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B .
F Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B .
F Connect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
F Start the engine on the other vehicle and
leave it running for a few minutes.
F Operate the starter, let the engine run.
If the engine does not start straight away,
switch the ignition off and wait a few
moments before trying again.
F Wait until the engine returns to idle and
disconnect the jump lead cables in reverse
o r d e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to the battery on your
vehicle.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the battery (+)
terminal when the engine is running.
8
Practical information

333
ABS and EBFD systems ...............................150
a ccessories .................................................. 221
AdBlue
® ......................................................... 234
Additive, AdBlue .............................. 32, 234, 238
Adjusting headlamps .................................... 141
Adjusting head restraints ........................................... 64, 66, 71
Adjusting seat ........................................... 64, 65
Adjusting the air distribution .............................................. 76, 80
Adjusting the air flow .................................77, 81
Adjusting the date ..................................... 39, 44
Adjusting the height and reach of the steering wheel .................................... 68
Adjusting the seat belt height .......................................................... 15 4
Adjusting the temperature ........................75, 80
Adjusting the time ..................................... 39, 44
Advice on driving ............................................ 96
Airbags .................................................... 35, 157
Airbags, curtain ...................................... 160 -161
Airbags, front ......................................... 158, 161
Airbags, lateral ...................................... 160, 161
Air conditioning ......................................... 12, 74
Air conditioning, digital ............................................................ 79
Air conditioning, mono-zone .................................................... 75
Air intake ................................................... 78, 81
a ir vents .................................................... 73, 74
Alarm ............................................................... 50
Anti-lock braking system (ABS) .............................................. 150
Anti-pinch ............................................ 53, 61, 63 Cable, audio
............................ 88, 282, 320, 321
Capacity, fuel tank ........................................ 17 7
Cap, fuel filler ................................................ 17 7
Cd ................................................................. 321
CD, MP3 ........................................................ 322
Central locking .......................................... 46, 55
Changing a bulb ..................................... 193 -203
Changing a fuse .................................... 204-209
Changing a wheel .................................. 18 5 -191
Changing a wiper blade ................................147
Changing the remote control battery ............................................... 48
CHEC k ............................................................ 20
Checking the engine oil level .................................................. 24, 227
Checking the levels .......................227, 229, 230
Checks ................................................... 2 2 5 - 2 41
Checks, routine ...................................... 231-233
Child lock ....................................................... 176
Children .......................................... 156, 162-176
Child seats ............................................ 16 2-175
Child seats, conventional ......................168, 169
Child seats, ISOFIX .......................172, 174, 175
CITR oËn Connect Box ............................... 2 51
A
B
C
battery ............................................ 210 -212, 231
Battery, charging ........................................... 212
Battery, remote control .............................48, 49
Blanking screen (snow shield) ............................................... 220
Blind, panoramic
sunroof .......................................................... 62
Blinds, side ...................................................... 90
b lue H di ................................................ 114, 234
Bluetooth (hands-free) ..........................300, 324
Bluetooth (telephone) ............................ 300, 324
b olts, wheel security ..................................... 188
b onnet ........................................................... 224
boot ........................................................... 58, 59
Boot (fittings) ............................................. 91, 92
Brake discs .................................................... 233
Brake lamps .......................................... 197, 19 9
Brakes ........................................................... 233
Anti-theft
......................................................... 97
Armrest, front .................................................. 88
Armrest, rear ................................................... 89
a ssistance call ...................................... 149, 251
Audible warning .................................... 121, 149
Audio streaming (Bluetooth) .......................................... 284, 323
Audio system ................................................. 315
Auxiliary .................................. 88, 282, 320, 321 Braking assistance
system ......................................................... 150
Bulbs (changing) .................................... 193 -203
.
alphabetical index
