parking sensors Citroen C6 2011 1.G Owner's Manual

78
II
As the vehicle approaches the
obstacle, the sound signal becomesmore and more urgent and theshaded areas are displayed closer and closer to the vehicle. Proximit
y sensors are located in the front and rear bumpersof your vehicle.
When manœuvringin either forward or reverse gear, at a low speed less
than approx. 10 km/h (6 mph), they inform you of the presence of any
obstacle that is within their zone of detection by:A sound signal emitted by the front or rear loudspeakers.
Display of the outline of your vehicle with shading corresponding to thearea where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-
tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.
Note:The sound volume of your audio equipment reduces automatically when a signal is being emitted.
•
•
PARKING ASSISTA NCE
FrontRear
When the obstacle is less
than around 25 centime-
tres
from the vehicle, the sound signal becomes con-
tinuous with display of a"WARN-ING"panel on the screen.

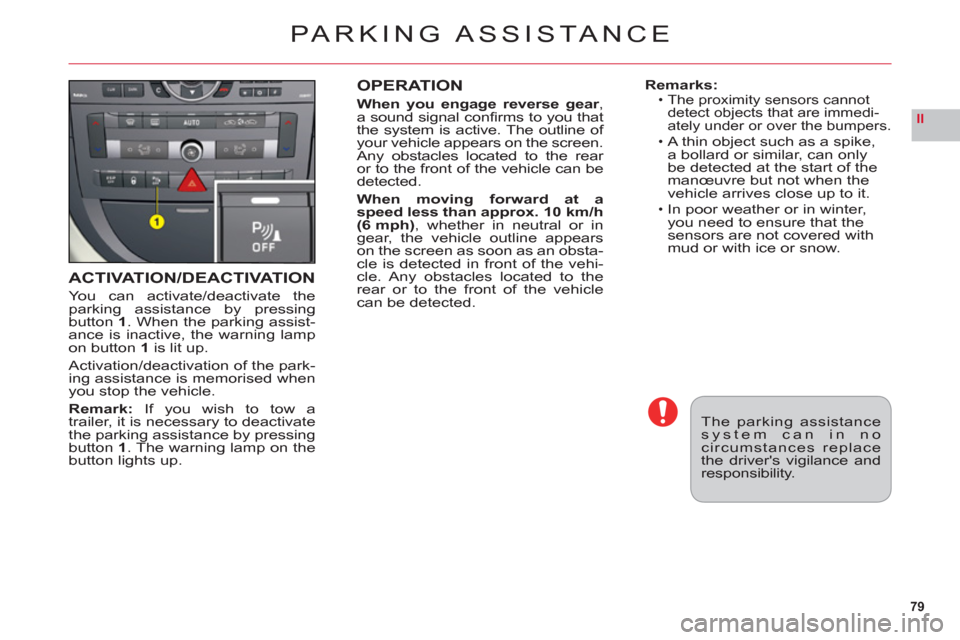

79
II
ACTIVATION/DEACTIVATION
You can activate/deactivate theparking assistance by pressingbutton 1. When the parking assist-
ance is inactive, the warning lampon button1is lit up.
Activation/deactivation of the park-ing assistance is memorised when
you stop the vehicle.
Remark: If you wish to tow a
trailer, it is necessary to deactivate
the parking assistance by pressing
button 1. The warning lamp on the
button lights up.
OPERATION
When you engage reverse gear,
a sound signal confi rms to you that
the system is active. The outline of your vehicle appears on the screen.
Any obstacles located to the rear or to the front of the vehicle can be detected.
When movin
g forward at a
speed less than approx. 10 km/h
(6 mph), whether in neutral or in gear, the vehicle outline appears on the screen as soon as an obsta-cle is detected in front of the vehi-cle. Any obstacles located to the
rear or to the front of the vehicle can be detected.
Remarks:The proximity sensors cannot
detect objects that are immedi-
ately under or over the bumpers.
A thin object such as a spike,
a bollard or similar, can only be detected at the start of themanœuvre but not when the
vehicle arrives close up to it.
In poor weather or in winter,you need to ensure that the sensors are not covered with
mud or with ice or snow.
•
•
•
PARKING ASSISTA NCE
The parking assistancesystem can in nocircumstances replacethe driver's vigilance andresponsibility.

138
V
A
SAFETY RECOMMENDATIONS
It is recommended that towbar installation and removal bedone by a CITROËN dealer or a qualifi ed workshop.
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Dimensions(in metres):
A:0.971
TOWBAR
(Boat, caravan, etc.)
It is recommended that towbar installation and removal be done
by a CITROËN dealer or a quali-fi ed workshop.
If you are climbing a steep gradient
and the engine gets excessively
hot, certain functions become una-
vailable (e.g. sequential control of
the automatic gearbox, the air con-
ditioning).
If you are towing, it is necesaary
to deactivate the parking assist-
ance by pressing the control on the
dashboard. See "Parking assist-ance".
It is recommended that
you remove
the towing ball, so that it does not
interfere with the functioning of the
proximity sensors, when you are
not using a trailer.
MAINTENANCE
if cleaning the vehicle with a highpressure system
Your Piloted Defl ector has to be closed.
It is not advisable to clean the
underside of the vehicle, for fear of damaging the electricparking brake.As water may penetrate into
the vehicle interior via the door
apertures, do not target these areas.
Do not direct at the headlamps,
lamps and their edges for too
long or you may damage their coating and seals.
