display CITROEN C6 2012 Handbook (in English)

2
CONTENTS
DRIVING
I
IN BRIEF
4-22II23-81
Exterior.................................................r4
Opening.............................................5-6
Interior..................................................r7
Dashboard.........................................8-9
Getting started.............................10®12
Visibility..............................................13
Ventilation ........................................... 14
Monitoring ....................................15-16
Ensure the safety of passengers........17
Driving .........................................18®20
Eco-driving....................................21-22
Remote control..............................23-24
Keys....................................................25
Anti-intrusion alarm.......................26-27
Steering lock - Ignition - Starter.........r28
Driving – Starting the engine.............29
Instrument panel.........................30®36
Warning lamps ..............................31-32
Head-up display ............................37-38
Multifunction displays..................39®43
Tr i p c o m p u t e r..............................r44®49
Signalling .....................................50®52
Xenon dual-function directional
headlamps .......................................
53
Wipers...........................................54-55
Windows .............................................56
Steering column adjustment -
Seat belt height adjustment .............57
Front seats....................................58-59
Memorisation......................................60
Seat belts warning lamp.....................61
Rear view mirrors........................62®64
Gearbox.......................................65®68
Cruise control................................69-70
Speed limiter.................................r71-72
Electronic stability programme ..........73
Brakes .................................................74
Electric parkin
g brake...................75 -76
Speed sensitive rear spoiler...............77
Parking assistance........................78-79
Lane departure warning system........80
Diesel particle fi lter............................r81

4
IN BRIE
F
EXTERIOR
118
77
78
475380
Glass sun roof
The sun roof provides you with improved ventilation and brightness in thepassenger compartment.
Piloted Defl ector
This defl ector enhances the aerodynamics and the braking of your vehicle.
Parking assistance(display and sound)
This function warns you, whilstmanoeuvring, by detecting obsta-cles located in front of and behindthe vehicle.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
The Xenon dual-function directional headlamps
This additional lighting automatically provides you with enhanced visibility on bends.
Tyre defl ation detection
This function monitors the pressure of each tyre and warns you of tyres thatare punctured or defl ated.

7
IN BRIE
F
65
7.1
71-69
75
8537

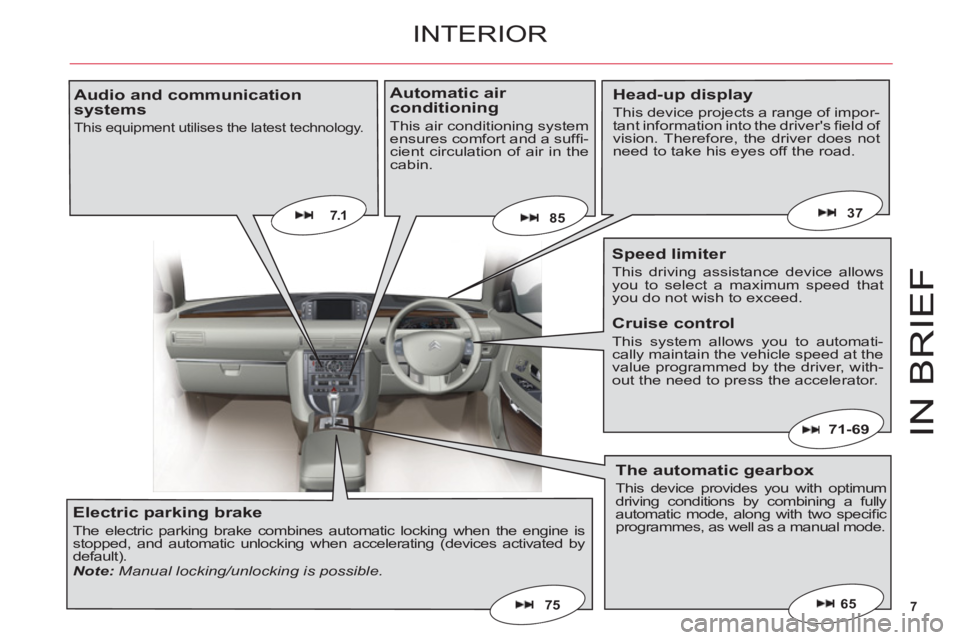

INTERIOR
Head-up display
This device projects a range of impor-tant information into the driver's fi eld of vision. Therefore, the driver does not need to take his eyes off the road.
Speed limiter
This driving assistance device allowsyou to select a maximum speed thatyou do not wish to exceed.
Cruise control
This system allows you to automati-cally maintain the vehicle speed at thevalue programmed by the driver, with-out the need to press the accelerator.
The automatic gearbox
This device provides you with optimum driving conditions by combining a fully automatic mode, along with two specifi c programmes, as well as a manual mode.
Audio and communicationsystems
This equipment utilises the latest technology.
Electric parking brake
The electric parking brake combines automatic locking when the engine is stopped, and automatic unlocking when accelerating (devices activated by default).Note: Manual locking/unlocking is possible.
Automatic air conditioning
This air conditioning system ensures comfort and a suffi -cient circulation of air in the cabin.

8
1
8
2
3
7
9
10
465
11
14
13
12
1617
15
1819
IN BRIE
F
1. Head-up display cavity
2.Steering column adjustment
3. Controls - Lighting/Direction indicators/
Rear foglamps/Voice recognition
4.Instrument panel
5.Horn
6. Controls - Wipers
7.
Front passenger's airbag deactivation
8. Driver's seat adjustment controls and memories
9. Controls - Windows/Rear view mirrors/Child
safety
10. Driver's airbag
11. Controls at the steering wheel - Speed limiter and
Cruise control
12. Electric parking brake
13. Suspension controls - Ground clearance
ad
justment/Sport mode
14. Automatic gearbox SPORT/SNOW mode controls
15.
Head-up display controls
16.
Oddments tray
17. Fuel fl ap control
18. Ignition switch
19. Controls - Radio controls under the steering wheel
DASHBOARD

9
2324
25
33
27
32
20
22
21
26
29
30
31
34
28IN BRIE
F
20. Passenger's airbag
21. Sunlight sensor
22.Multifunction display
23. Central air vents
24.Radio or NaviDrive
25. Controls - Lane Departure Warning System/
Anti-intrusion alarm
26. Gear lever
27. Hazard lamps button
28. Ashtray
29. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
30. Air conditioning controls
31.
Cup-holder
32.
Glovebox/Vehicle document storage/Fusebox
access fl ap/Audio-video sockets
33
.Lateral air vent
34. Bonnet release
DASHBOARD

15
A
KJIHGFE
DB
B
CA
ML
B
IN BRIE
F
Deactivation of passenger's airbag
When you switch on the ignition, the airbag warninglamp M lights up if the passenger's airbag has beendeactivated.
Hazard warning lamps
Driver's seat belt fastening sensor
When you switch on the ignition, seat belt warning lamp L lights up accompanied by a sound signal if the driver has not fastened his seat belt.
Warning lampLgoes out when the seat belt has been fastened.
INSTRUMENT PANEL
The hazard lamps can also be used with the ignition switched off.
MONITORING
A.Signalling warning lamps.B. Operational warning lamps.C. Cruise control/speed limiter information.D. Fuel gauge.E.Trip mileage recorder.F. Total mileage recorder, maintenance indicator.
G.Speed indicator.H.Display of automatic gearbox information.
I. Display of suspension sport mode.
J. Rev counter.K.Reset button for trip mileage recorder and
maintenance indicator.
Note:When the ignition is switched on, the orange and red warning lamps light up.
When the engine is running, these warning lamps should go out.
If any warning lamps remain lit, refer to the relevant page.
•
•
•

16
12
3
IN BRIE
F
SEAT BELTS WARNING LAMPTYRE DEFLATION DETECTION
This function warns you of tyres that are defl ated or punctured.
Tyre defl ation alert:TheSERVICEwarning lamp comes on and a vehicle
outline is displayed.
"Puncture": The"STOP"and tyre(s) punctured warning lamps light up,
and a vehicle outline is displayed.
Colour screen CNaviDrive colour display
Display of tyres in good condition
Tyre very defl ated
Tyre defl ated
"Puncture"
47
The driver's and the front and rear passengers' seats have sensors
that detect non-fastening/unfas-
tening of the seat belts.
The fastened
/non-fastened status
of the seat belts for each type of seat is indicated by the illumination
or fl ashing of the warning lamps 1,2 and 3.
MONITORING
61

20
IN BRIE
F
You can activate/deactivate the
parking assistance by pressing
buttonA. When the parking assist-
ance is inactive, the warning lampon button Ais lit up.
PARKING ASSISTANCELANE DEPARTURE
WARNING SYSTEM
This driving assistance device
warns you when you unwittinglycross a lane marking (either a con-
tinuous or a dotted line on the roadsurface). It is designed for use onmotorways and dual carriageways,
operating only above speeds of
approx. 50 mph (80 km/h).
A press on button Bactivates thefunction, the warning lamp on the
button lights up.
HEAD-UP DISPLAY
The Head-up display projectsessential driving data into thedriver's fi eld of vision. This enablesthe driver never to take his eyesoff the road.
The controls for the Head-up dis-play are located beneath the air
vent on the driver's side.
807837
DRIVING

21

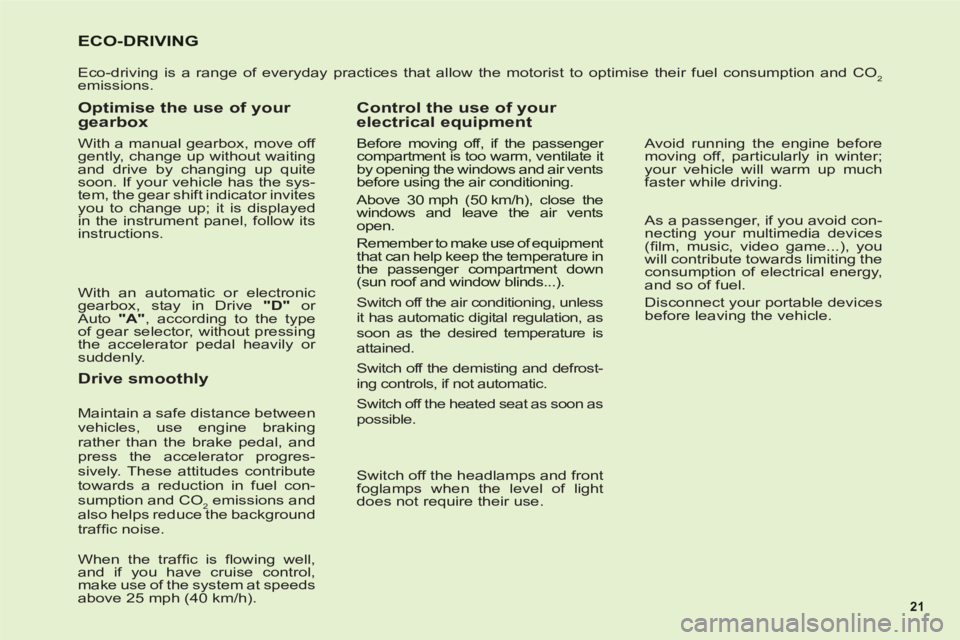

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2
emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite
soon. If your vehicle has the sys-
tem, the gear shift indicator invites
you to change up; it is displayed
in the instrument panel, follow its
instructions.
With an automatic or electronic
gearbox, stay in Drive "D" or
Auto "A", according to the type
of gear selector, without pressing
the accelerator pedal heavily or
suddenly.
Drive smoothly
Maintain a safe distance between
vehicles, use engine braking
rather than the brake pedal, and
press the accelerator progres-
sively. These attitudes contribute
towards a reduction in fuel con-
sumption and CO
2 emissions and
also helps reduce the background
traffi c noise.
When the traffi c is fl owing well,
and if you have cruise control,
make use of the system at speeds
above 25 mph (40 km/h).
Control the use of your
electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the temperature in the passenger compartment down (sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light
does not require their use.Avoid running the engine before
moving off, particularly in winter;
your vehicle will warm up much
faster while driving.
As a passenger, if you avoid con-
necting your multimedia devices
(fi lm, music, video game...), you
will contribute towards limiting the
consumption of electrical energy,
and so of fuel.
Disconnect your portable devices
before leaving the vehicle.

30
II
0
STOP STOP
KJIHGFEB
CAB
SS
DA
B
INSTRUMENT PANEL
Note: Certain types of spectacles may adversely affect the readability of the instrument panel.
ASignalling warning lampsBOperational warning lampsC Cruise control/speed limiter informationDFuel gaugeETrip mileage recorderFTotal mileage recorder, maintenance indicator
GSpeed indicator
H Display of automatic gearbox informationI Display of suspension sport modeJRev counterKReset button for trip mileage recorder and mainte-
nance indicator
INSTRUMENT PANEL
