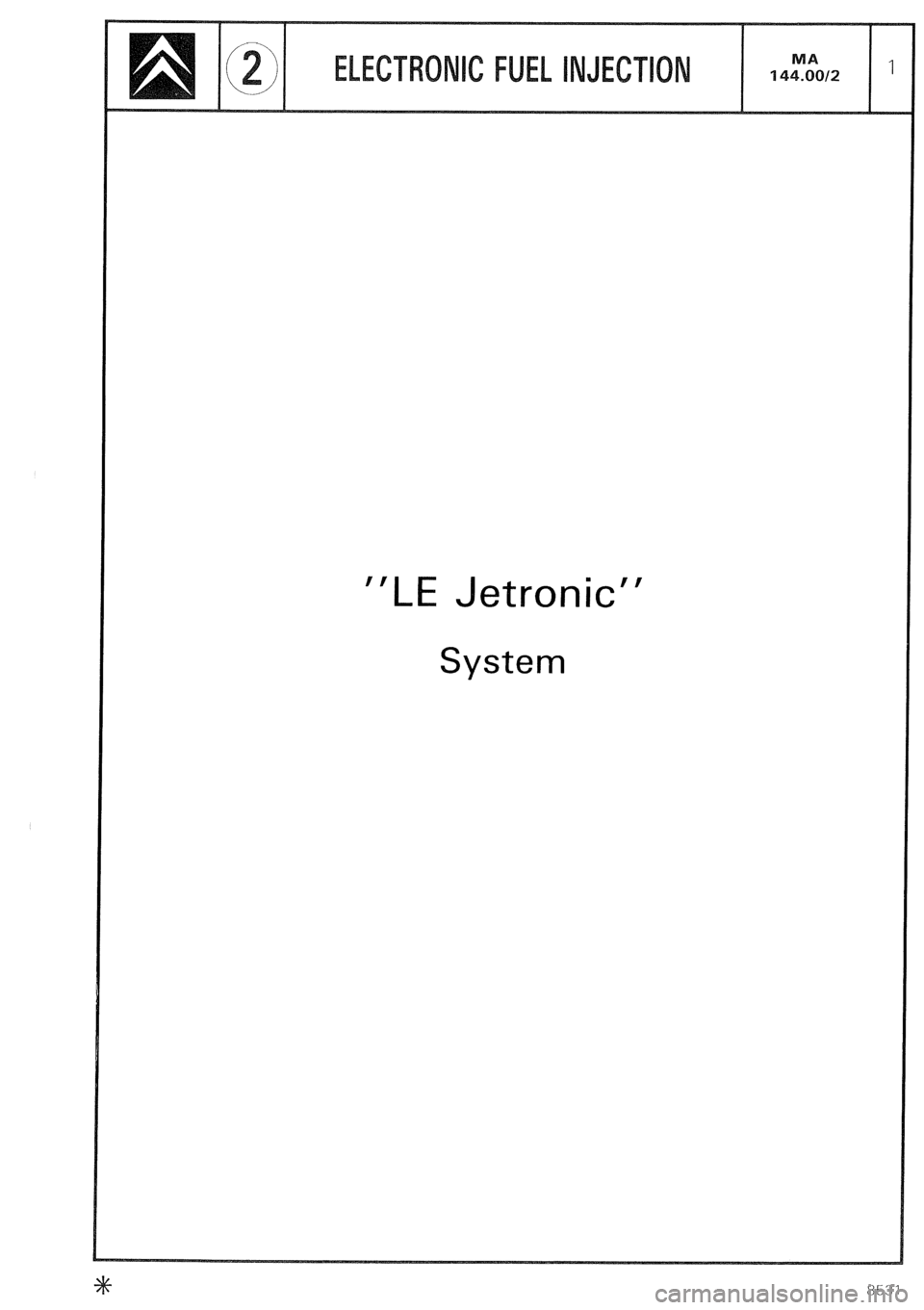

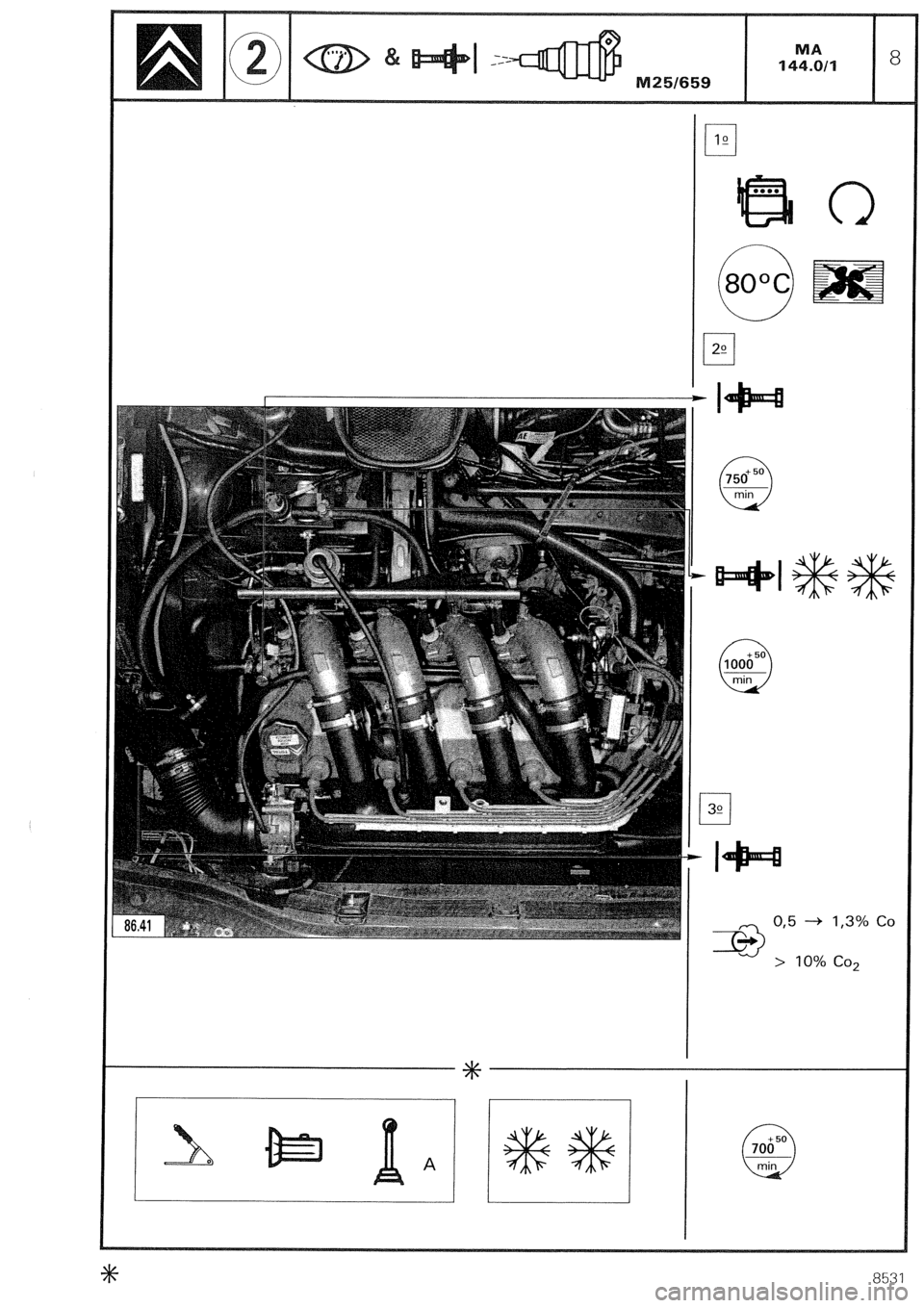

“LE Jetronic” system
The “LE Jetronic” is a fuel injection system whrch injects intermittently petrol, at low pressure, into the Inlet manrfold
The main characteristic of the device is to meter directly the air drawn In by the engine, which is the only reference
for the fuel quantity to be injected. The fuel metering is carried out by electro-magnetically triggered injectors. These
are under a constant fuel pressure.
The quantity of fuel injected depends on how long the injectors remain open. The duration of opening IS optimally
determined for each engine operating phase by an electronic control unit, from data supplied by various electric
sensors.

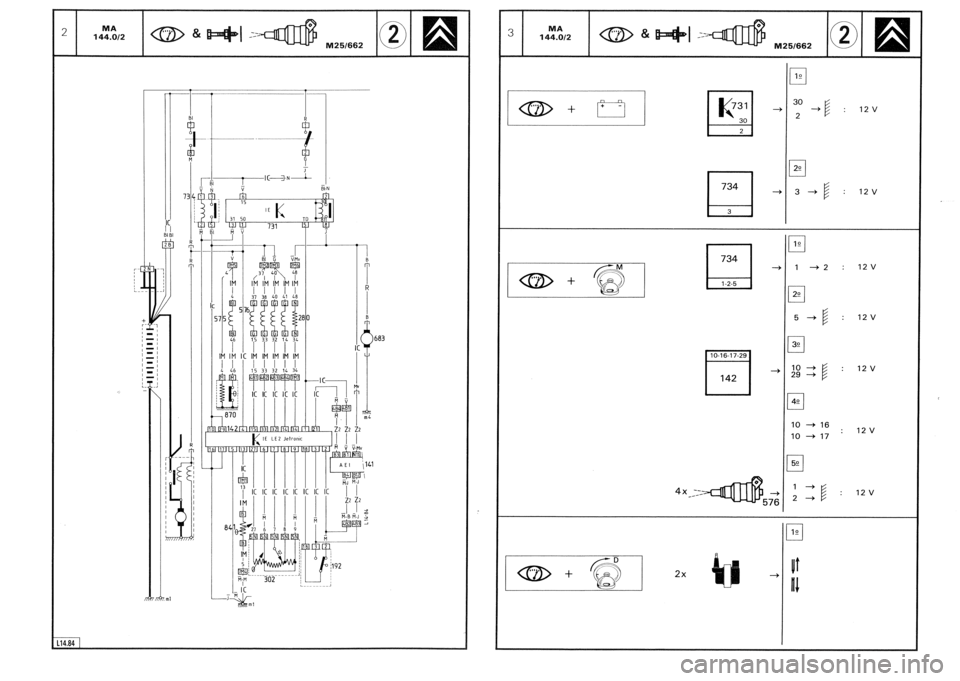

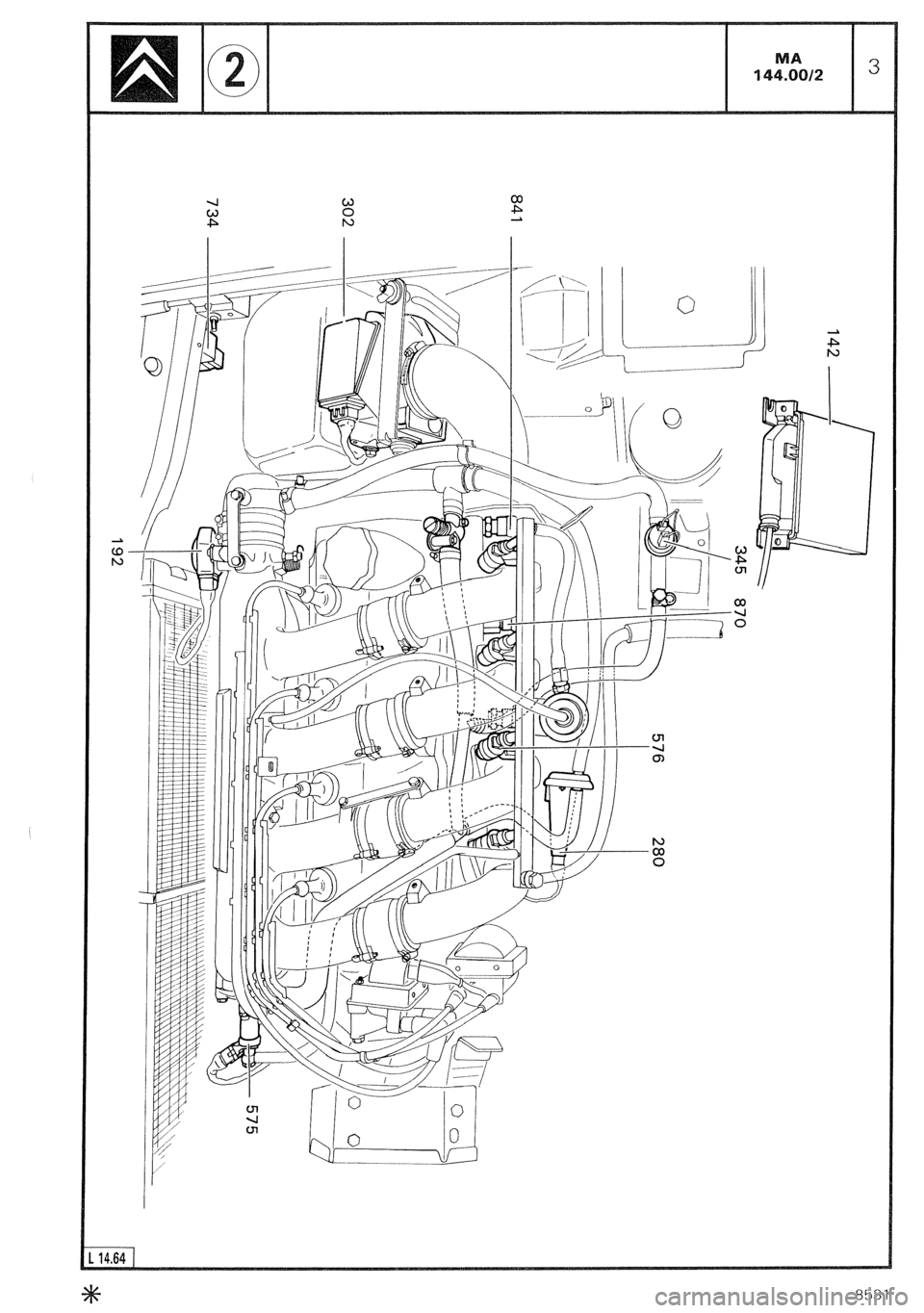

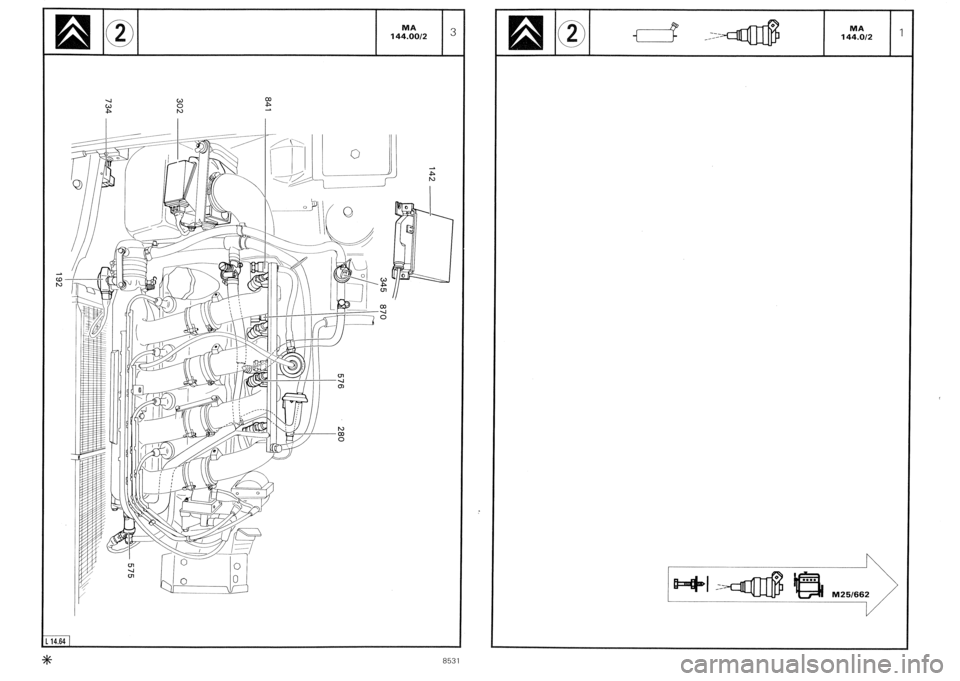

The “LE Jetronic” device is composed of:
No. COMPONENTS MADE BY REFERENCE
142 Electronic Control Unit (E.C.U.) BOSCH 0280 000 224

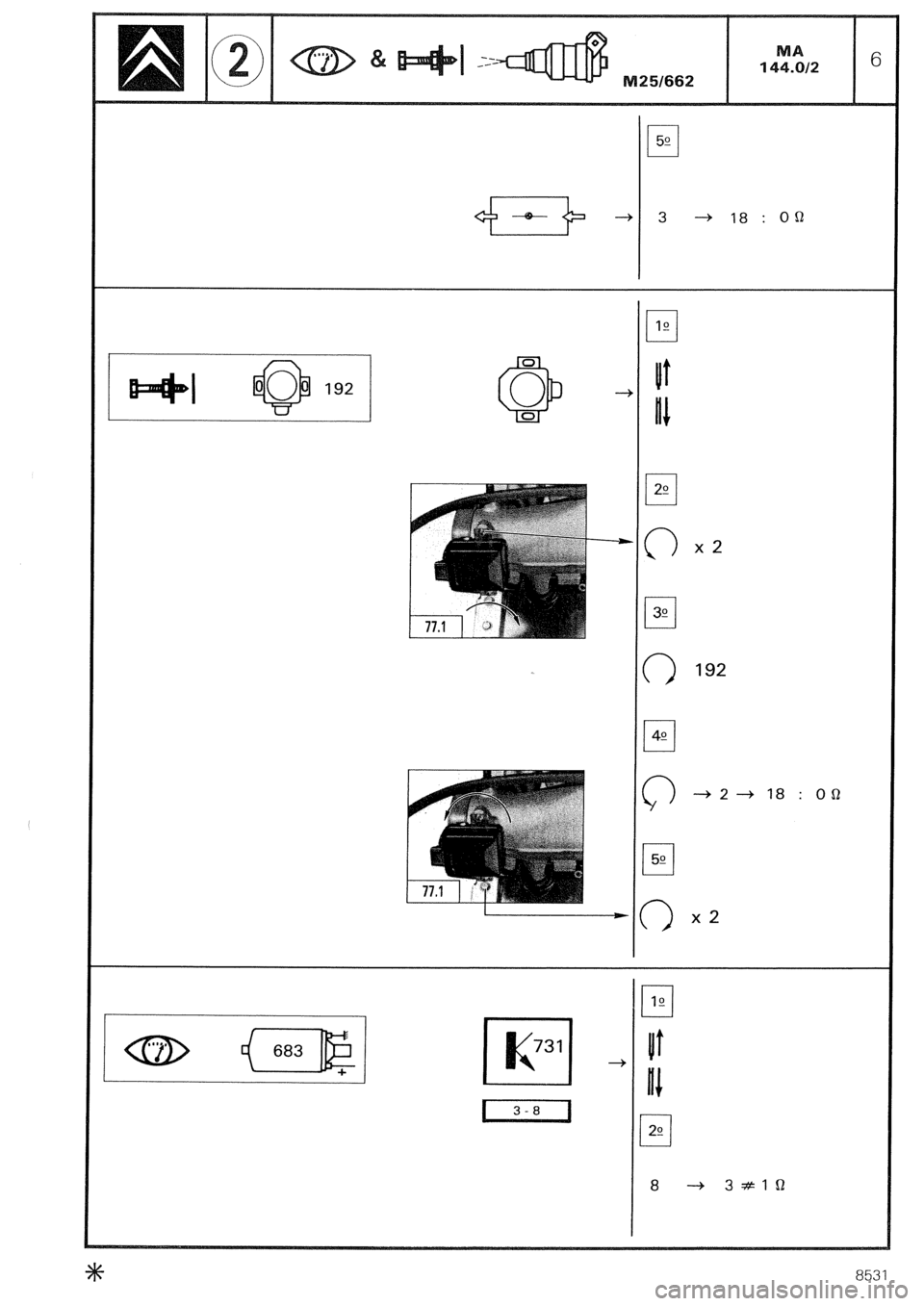

192 Throttle spindle switch 0
0280 120 313
280 Supplementary air control u
0280 140 178

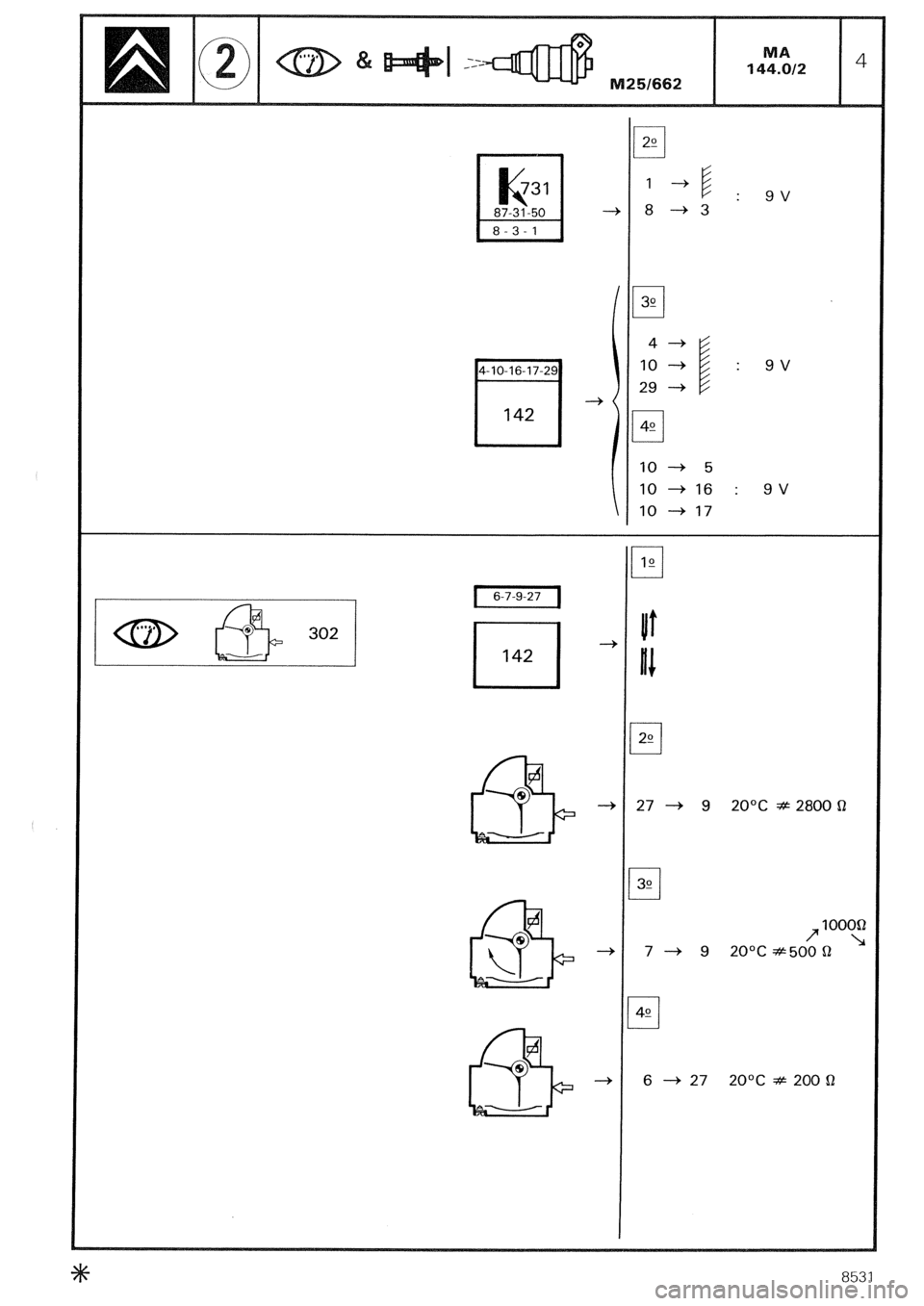

302 Flow meter ,)
0280 202 061
345 Electrovalve ,,
0280 141 011
575 Cold start injector n
0280 170 409

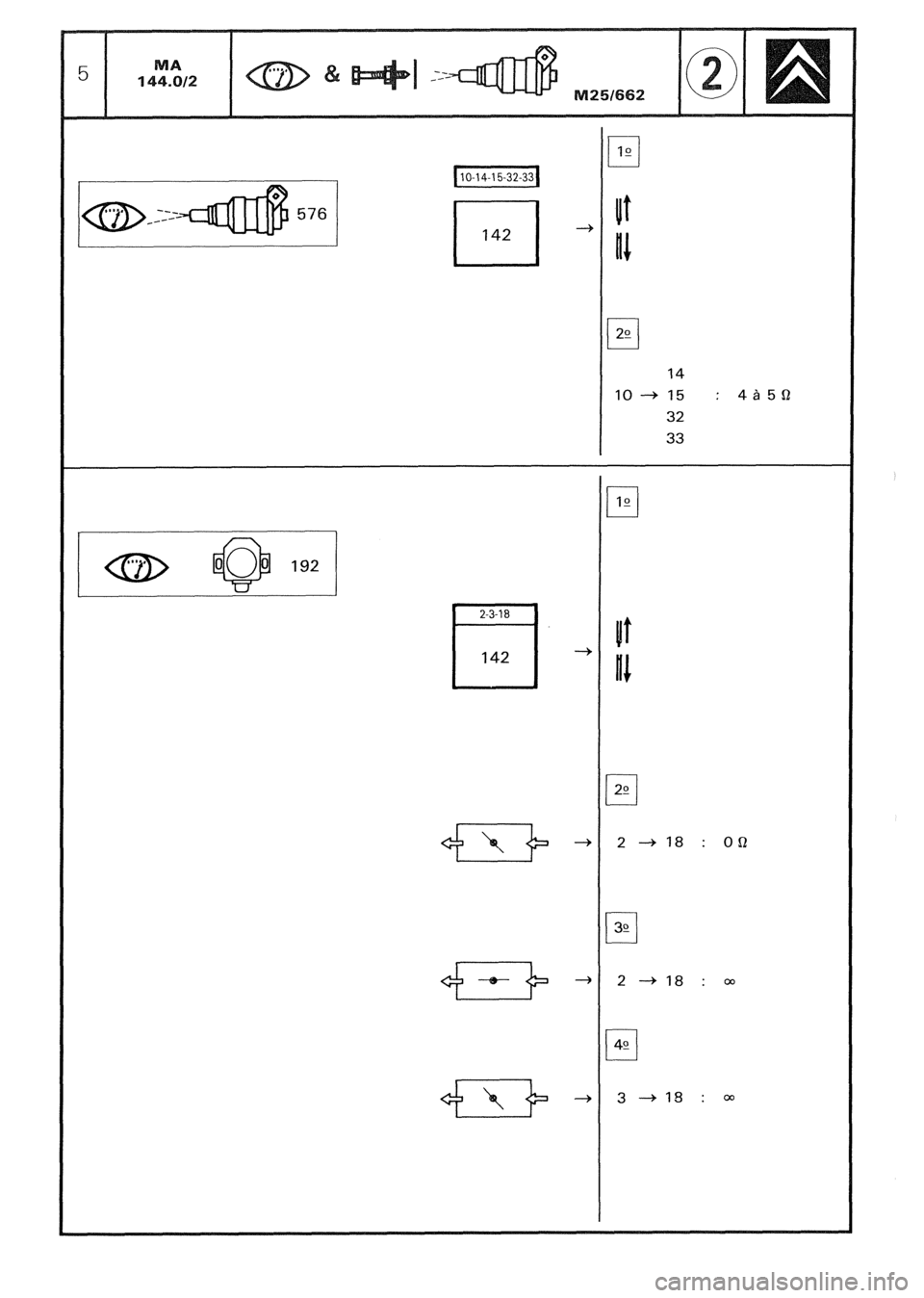

576 Injector >,
0280 150 200
683 Electrical fuel
pump 1,
0580 464 008
731 Relay >,
0280 230 009
841 Coolant temperature sensor 1)
0280 130 026
870 Slow thermal switch ,>
0280 130 214
F Fuel filter ),
0450 905 002

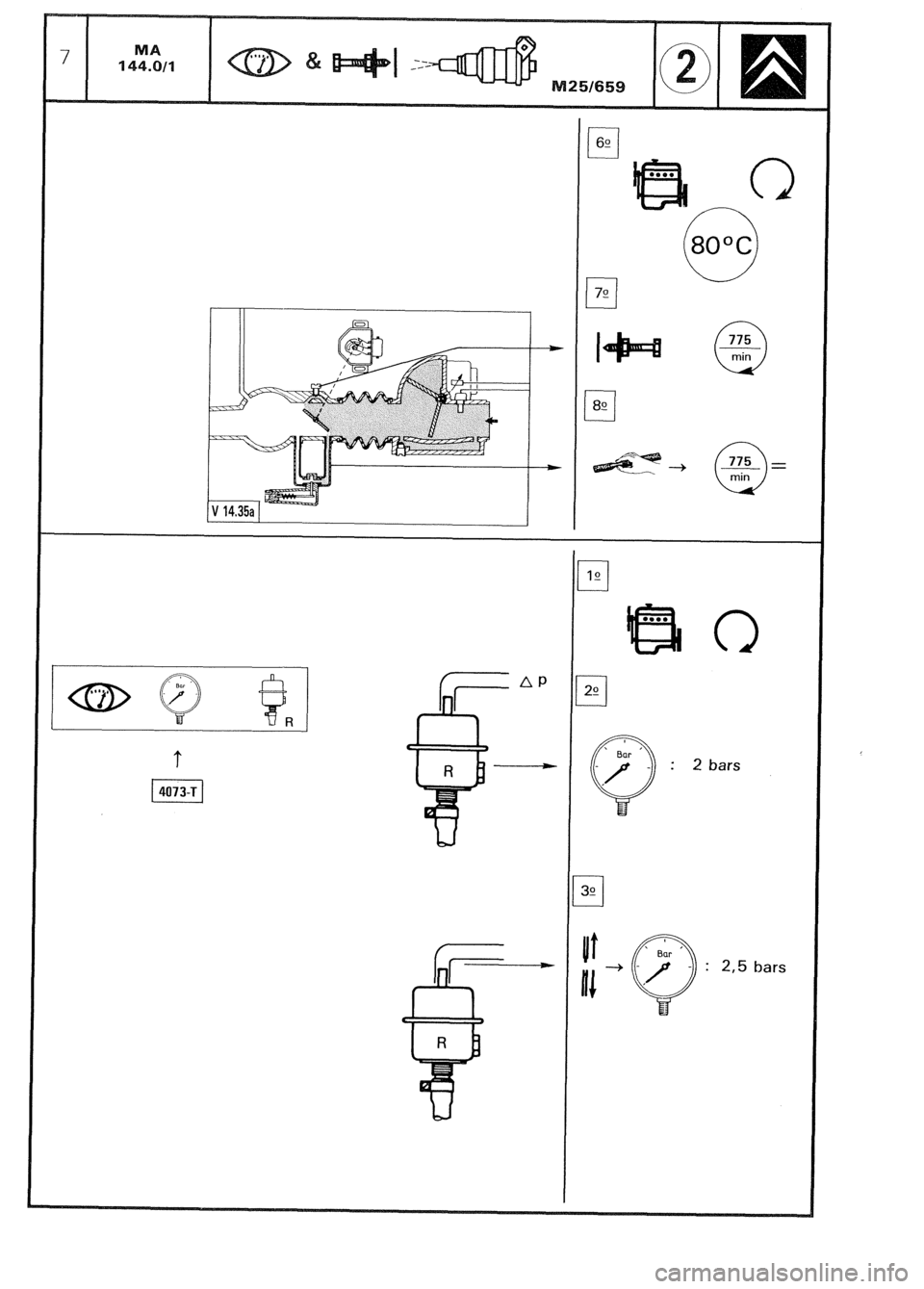

R Pressure regulator ,)
0280 160 216
