110
Mats
When fitting the mats for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
FittingRemoval
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
To remove the mat on the driver's side:
F

m

ove the seat as far back as possible,
F

u

nclip the fixings,
F

r

emove the mat.
Interior fittings
In rows 2 and 3
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
efit the fixings by pressing,
F

c
heck that the mat is secured correctly.
Use the Velcros to fit the transverse mats in row 2
w ith the longitudinal mats in rows 2 and 3.
Ease of use and comfort

115
Seating area fittings
Depending on the vehicle's equipment, the various fittings below are located in the seating area.
Strap type grab handleCup holder
(depending on version)
Any liquid carried in an open receptacle (cup
or other) might be spilt, presenting a risk.
Take
care.
Nets on the backs of the
front seats
Coat hooks
3
Ease of use and comfort

116
Stowing rings
Use the stowing rings on the rear floor to fix the
net, your loads or luggage.
High load retaining net
This allows the use of the entire load space, up
to the roof:
-
b
ehind the front seats in row 1, when the
rear seats (and bench seats) in rows 2 and
3 are folded or removed.
-

b
ehind the rear seats and bench seats
in row 2, when the rear seats (and bench
seats) in row 3 are folded or removed.
Luggage retaining net
Attached to the stowing rings on the rear floor,
it allows objects to be held down.
As a safety measure in the event of
sudden braking, it is recommended that
heavy objects are placed as far for ward
in the vehicle as possible.
It is recommended that the load is
secured firmly using the stowing rings
on the floor. As a safety measure in the event of
sudden braking, it is recommended that
heavy objects are placed on the floor as
close as possible to the backrest of the
seat(s) or bench seat.
Ease of use and comfort

117
Upper fixings
Lower fixings (behind row 1)
If your vehicle has fixed one-piece bench seats
or seats and bench seats: F
On each side in row 2, insert the fixings in the
floor anchorages then turn them a quarter turn
to lock them in place (as shown above).
Place them as close as possible to the end of
the rail.
F

U

nclip the anchorage cover in the roof on
each side.
F

O

n each side in row 2, insert the fixings in
the floor anchorages (as shown above). If your vehicle has seats and bench seats or
individual seats on rails
:
Lower fixings (behind row 2)
F Use the stowing rings.
Fit the net
Unclip the upper fixing covers and secure the
lower fixings (as previously described).
F

F
old (table position) the seats and bench
seats in rows 2 and 3 (according to
equipment).
F

U
nroll the high load retaining net.
F

P
osition the upper net fixings in the
corresponding anchorages in the roof
(first one side, then the other).
F

F
ully extend the straps.
F

O
n each side, attach the bottom fixings of
the net to the lower anchorages (behind
row 1) or in the stowing rings (behind
row
2).
F

P
ull on the straps to stretch the net.
F

C
heck that the net is attached securely and
properly extended.
Never use the ISOFIX ring intended
for fixing the upper strap of a child seat
with Top Tether.
3
Ease of use and comfort

118

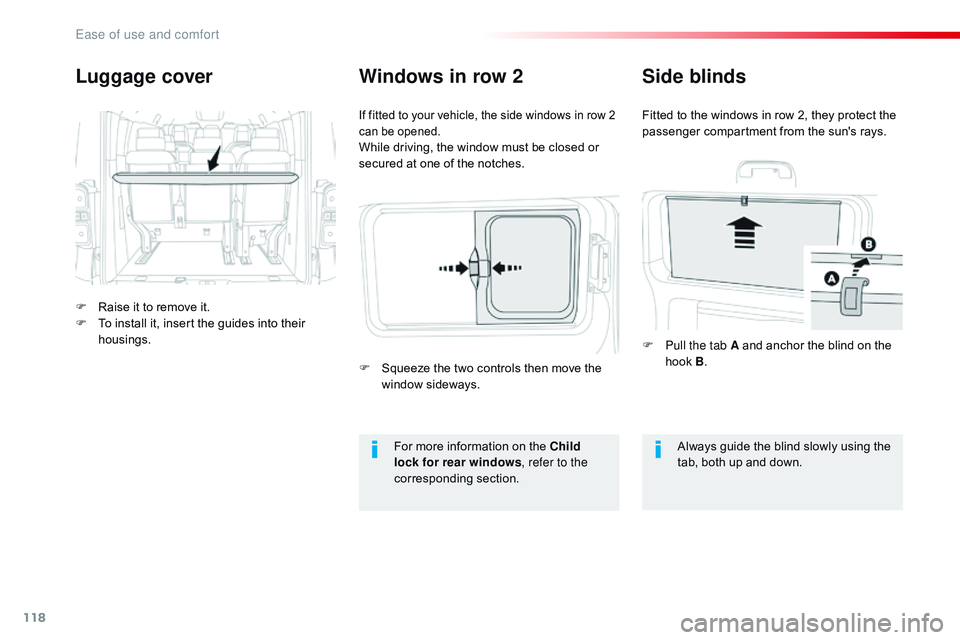

Luggage cover
F Raise it to remove it.
F T o install it, insert the guides into their
housings.
If fitted to your vehicle, the side windows in row 2
c an be opened.
While driving, the window must be closed or
secured at one of the notches.
Windows in row 2
For more information on the Child
lock for rear windows , refer to the
corresponding section. Always guide the blind slowly using the
tab, both up and down.
Side blinds
Fitted to the windows in row 2, they protect the
passenger compartment from the sun's rays.
F

P
ull the tab A and anchor the blind on the
hook B .
F

S

queeze the two controls then move the
window sideways.
Ease of use and comfort

167
Advice
In the event of an impact
Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
In order to be effective, a seat belt must:
-

b

e tightened as close to the body as
possible,
-

b

e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b

e used to restrain only one person,
-

n

ot bear any trace of cuts or fraying,
-

n

ot be converted or modified to avoid
affecting its performance.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on Child seats , refer
to the corresponding section.
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfill their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
5
Safety

172
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of minor burns
to the head, chest or arms when an airbag is
deployed cannot be ruled out.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
For more information on Accessories , refer
to the corresponding section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
The bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas via
openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.
Advice
For the airbags to be fully effective, observe the safety
recommendations below:
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
Safety

179
Child seats recommended by CITROËN
CITROËN offers a range of child seats which are secured using a three point seat belt.
Group 0+: from bir th to 13 kg
L1
"RÖMER Baby-Safe Plus" Installed rear ward facing. L2

"Takata Baby P2C Mini"
Installed rear ward facing.
5
Safety

181
In line with European legislation, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) for the
weight of the child and the seat in the vehicle.Seat Weight of the child and indicative age
Under 13 kg
(groups 0 (b) and
0+)
Up to approx 1 year From 9 to 18 kg
(group 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Row 1 (c) (d) With individual
seat, passenger seat U
UUU
With bench seat, outer seat U
UUU
With bench seat, centre seat X
XXX
Row 2 (e) (f) Outer seats
UUUU
Centre seat UUUU
Row 3 (e) (f) Outer seats
UUUU
Centre seat UUUU
Locations for child seats secured with a seat belt
5
Safety

182
(a) Universal child seat: child seat that can be installed in any vehicle using the seat belt.
(b)

G
roup 0: from birth to 10 kg. Infant car
seats and "car cots" cannot be installed on
the front passenger seat.
(c)

C
onsult the legislation in force in your
country before installing your child on this
seat.
(d)

W
hen a rear ward facing child seat is
installed on the front passenger seat,
the front passenger airbag must be
deactivated. Other wise the child risks
being seriously injured or even killed if the
airbag is deployed.
W

hen a for ward facing child seat is
installed on the front passenger seat, the
front passenger airbag must remain active.
(e)

T
o install a child seat on a rear seat, move
the seat in front for ward, then straighten
the backrest to leave sufficient space for
the child seat and the child's legs.
(f)

T
o install a child seat on a rear seat,
rear ward facing or for ward facing, adjust
the rear seat to the fully back position with
the backrest straightened. Remove and stow the head restraint
before installing a child seat with
backrest on a passenger seat.
Refit the head restraint once the child
seat has been removed.
U
S eat suitable for the installation of a child
seat secured using the seat belt and
universally approved, rear ward facing and/
or for ward facing.
X

S
eat not suitable for the installation of a
chld seat of the weight group indicated.
Safety
