CITROEN DISPATCH SPACETOURER DAG 2017 Handbook (in English)

7
5
Safety
Comp _Spacetourer_01_16_EN
Groups 2 and 3: from 15 to 36 kg
L5 "RÖMER KIDFIX XP" Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.
L6 "BOOSTER GR ACO" The child is restrained by the seat belt.

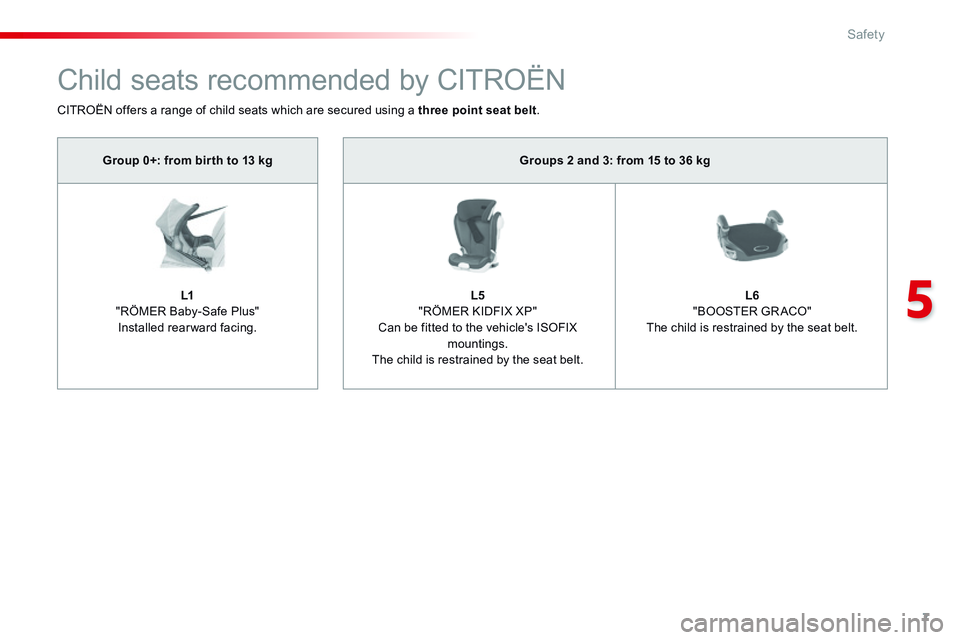

Child seats recommended by CITROËN
CITROËN offers a range of child seats which are secured using a three point seat belt .
Group 0+: from bir th to 13 kg
L1 "RÖMER Baby-Safe Plus" Installed rearward facing.

8
Safety
Comp _Spacetourer_01_16_EN
Locations for ISOFIX child seats
In line with European legislation, the table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings. In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child seat next to the ISOFIX logo.

9
5
Safety
Comp _Spacetourer_01_16_EN
Weight of the child / indicat ive ag e
Under 10 kg (group 0) U p to approx. 6 months
Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCot (1) rearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 1 (a)
Individual seat or 2-seat bench seat
with passenger airbag deactivated " OFF "
Not ISOFIX
with passenger airbag activated " ON " Not ISOFIX
Row 2
Seat behind driver XIL (1- 3) IL (2) ILIL (2) I U F, I L
Centre seat XIL (1- 3) IL (2) ILIL (2) I U F, I L
Seat behind passenger XIL (1- 3) IL (2) ILIL (2) I U F, I L
Row 3
Left-hand outer seat XXXI U F, I L
Centre seat XXXI U F, I L
Right-hand outer seat XXXI U F, I L

10
Safety
Comp _Spacetourer_01_16_EN
Weight of the child / indicat ive ag e
Under 10 kg (group 0) U p to approx. 6 months
Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCot (1) rearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 1 (a)
Individual fixed passenger seat or with electric adjustment
with passenger airbag deactivated " OFF "
Not ISOFIX
with passenger airbag activated " ON " Not ISOFIX
Row 2
Seat behind driver ILILILI U F, I L
Centre seat ILILILI U F, I L
Seat behind passenger ILILILI U F, I L
Row 3
Left-hand outer seat IL (1- 4) XIL (4) XIL (4) I U F, I L
Centre seat IL (1- 4) XIL (4) XIL (4) I U F, I L
Right-hand outer seat IL (1- 4) XIL (4) XIL (4) I U F, I L

11
5
Safety
Comp _Spacetourer_01_16_EN
Weight of the child / indicat ive ag e
Under 10 kg (group 0) U p to approx. 6 months
Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCot (1) rearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 1 (a) Passenger seat
with passenger airbag deactivated " OFF "
Not ISOFIX
with passenger airbag activated " ON " Not ISOFIX
Row 2
Seat behind driver XIL (5) ILIL (5) ILI U F, I L
Centre seat (b) XIL (5) ILIL (5) ILI U F, I L
Seat behind passenger XIL (5) ILIL (5) ILI U F, I L
Seat behind driver IL (1- 5) ILILI U F, I L
Centre seat IL (1- 5) ILILI U F, I L
Seat behind passenger IL (1- 5) ILILI U F, I L

12
Driving
Comp _Spacetourer_01_16_EN
Weight of the child / indicative age
Under 10 kg (group 0) Up to approx. 6 months
Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to approx. 1 year
From 9 to 18 kg (group 1) From approx. 1 to 3 years
Type of ISOFIX child seatCot (1) rearward facingrearward facingforward facing
ISOFIX size categor yFGCDECDABB1
Row 3
Left-hand outer seat XIL (4) ILIL (4) I U F, I L
Centre seat (b) XIL (4) ILIL (4) I U F, I L
Right-hand outer seat XIL (4) ILIL (4) I U F, I L
Left-hand outer seat IL (1- 4) XIL (4) XIL (4) I U F, I L
Centre seat IL (1- 4) XIL (4) XIL (4) I U F, I L
Right-hand outer seat IL (1- 4) XIL (4) XIL (4) I U F, I L

13
5
Safety
Comp _Spacetourer_01_16_EN
Key
(a) Consult the legislation in force in your country before installing a child seat on this seat. (b) The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
IUF Seat suitable for the installation of an I sofix U niversal seat, F or ward facing secured using the upper strap. IL Seat suitable for the installation of an I sofix semi-universa L seat either: - rear ward facing fitted with an upper strap or a support leg, - for ward facing fitted with a support leg, - a cot fitted with an upper strap or a support leg.
X Seat not suitable for the installation of an ISOFIX child seat or cot of the weight group indicated.
(1) The installation of a cot on this seat may prevent the use of one or both of the other seats in this row. (2) Installation possible only behind the driver's seat. (3) Installation possible only behind the
driver's seat with individual passenger seat. (4) The seat in row 2 must be adjusted so that there is no contact between the child in row 3 and the seat immediately in front. (5) The front seat must be adjusted so that there is no contact between the child in row 2 and the seat immediately in front.
Refit the head restraint when the child seat is removed.
For more information on the ISOFIX mountings and in particular the upper strap, refer to the corresponding section.

14
Safety
Comp _Spacetourer_01_16_EN
ISOFIX child seats recommended by CITROËN
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle. Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
"RÖMER Baby- Safe Plus" and its ISOFIX base (size category: E )
Group 0+: from bir th to 13 kg
Installed rearward facing using an ISOFIX base which is attached to the rings A . The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
"RÖMER Duo Plus ISOFIX" (size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing position. Is attached to the rings A and the upper
ring B , referred to as the TOP TETHER, using an upper strap. Three seat body angles: sitting, reclining, lying down. This child seat can also be used on seats not equipped with ISOFIX mountings. In this case, it must be secured to the vehicle's seat by the three-point seat belt. Adjust the position of the vehicle's front seat so that the child's feet are not touching the backrest.

15
6
Driving
Comp _Spacetourer_01_16_EN
Collision Risk Alert and Active Safety
Brake Conditions for
operation
The Active Safety Brake system operates: - between 3 and 87 mph (5 and 140 km/h), in the case of a moving vehicle, - at a speed below 50 mph (80 km/h), in the case of a stationary vehicle, - at a speed below 36 mph (60 km/h), in the case of a pedestrian, - if the passenger seat belts are fastened, - if the vehicle is not accelerating sharply, - if the vehicle is not in a tight corner.
The Collision Risk Alert system allows the driver to be warned that their vehicle is at risk of collision with the vehicle in front or a pedestrian in their traffic lane.The Active Safety Brake system inter venes following the aler t if the driver does not react quickly enough and does not operate the vehicle's brakes.If the driver fails to act, it contributes towards avoiding a collision or limiting its severity by reducing the speed of your vehicle.
These systems use a radar located in the front bumper and a camera at the top of the windscreen.
These system are designed to improve road safety. It is the driver's responsibility to continuously monitor the state of the traffic, observing the driving regulations. These systems do not replace the need for vigilance on the part of the driver.
The Collision Risk Alert system only operates: - with a registered vehicle pointing in the same direction as the traffic, moving or stationary, - with pedestrians. - from 4 mph (7 km/h) (and is deactivated at 3 mph (5 km/h)).

16
Driving
Comp _Spacetourer_01_16_EN
The Active Safety Brake system does not operate: - if the front bumper is damaged, - if the system has been triggered in the last 10 seconds, - if the electronic stability control system has a fault.
Limits of operation
It is recommended that the system be deactivated in the vehicle configuration menu in the following cases: - if the windscreen has impact damage close to the detection camera, - when towing a trailer or caravan, - when a load on the roof rack extends beyond the windscreen (for example: long objects), - when the vehicle is being towed, with the engine running, - when a "space-saver" type spare wheel is fitted (if your vehicle has one), - when on a rolling road for a service in a workshop, - when in an automatic car wash, - if the brake lamps are not working.
Following an impact, the system is automatically disabled; contact a CITROËN dealer or a qualified workshop to have the system checked.
Collision Risk Alert
Depending on the degree of risk of collision detected by the system and the alert threshold chosen, different levels of alert can be triggered and displayed in the instrument panel or the head-up display.
This level of alert is based on the inter-vehicle time between your vehicle and the vehicle ahead.
Level 1 : visual alert only, warning you that the vehicle ahead is very close. A message on your vigilance is displayed as you close on the vehicle ahead.
This information also appears in the head-up display. For more information on the Head-up display , refer to the corresponding display , refer to the corresponding displaysection.
