159Safety

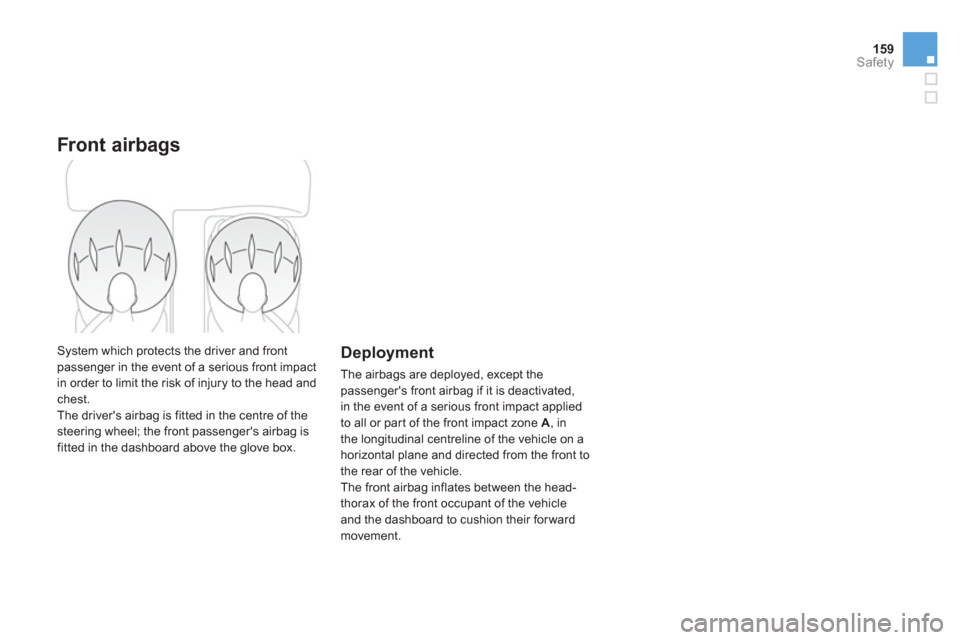

Front airbags
System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of injury to the head and chest.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.
Deployment
The airbags are deployed, except the passenger's front airbag if it is deactivated, in the event of a serious front impact applied
to all or par t of the front impact zone A, in
the longitudinal centreline of the vehicle on ahorizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the head-
thorax of the front occupant of the vehicle
and the dashboard to cushion their forward
movement.

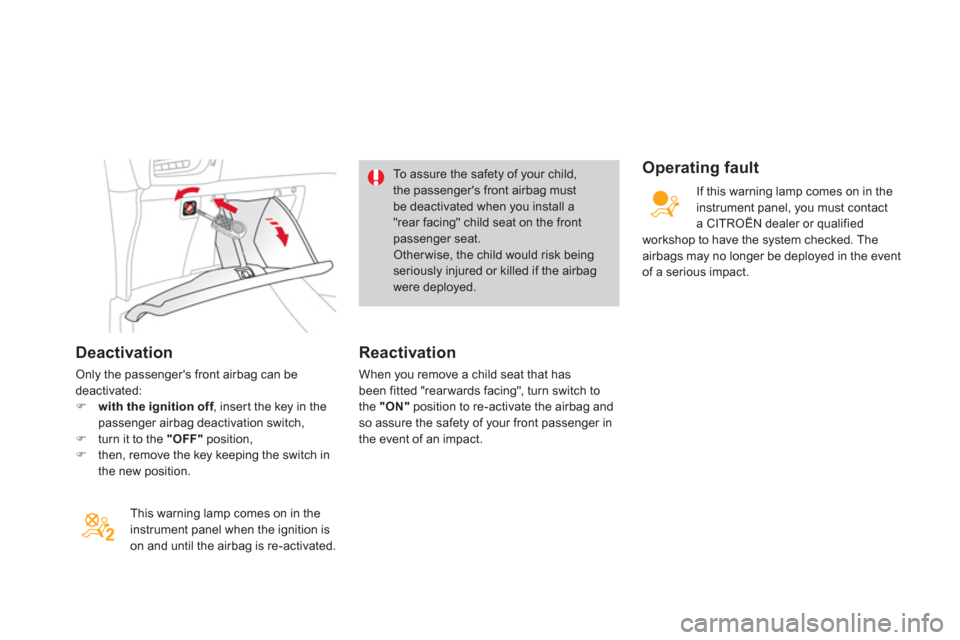

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
This warnin
g lamp comes on in the
instrument panel when the ignition is
on and until the airbag is re-activated.
To assure the safety of your child,the passenger's front airbag mustbe deactivated when you install a "rear facing" child seat on the front passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.

Reactivation

When you remove a child seat that hasbeen fitted "rear wards facing", turn switch to
the "ON"position to re-activate the airbag and
so assure the safety of your front passenger in
the event of an impact.

Operating fault
If this warning lamp comes on in the instrument panel, you must contact
a CITROËN dealer or qualified
workshop to have the system checked. The
airbags may no longer be deployed in the event
o
f a serious impact.

161Safety

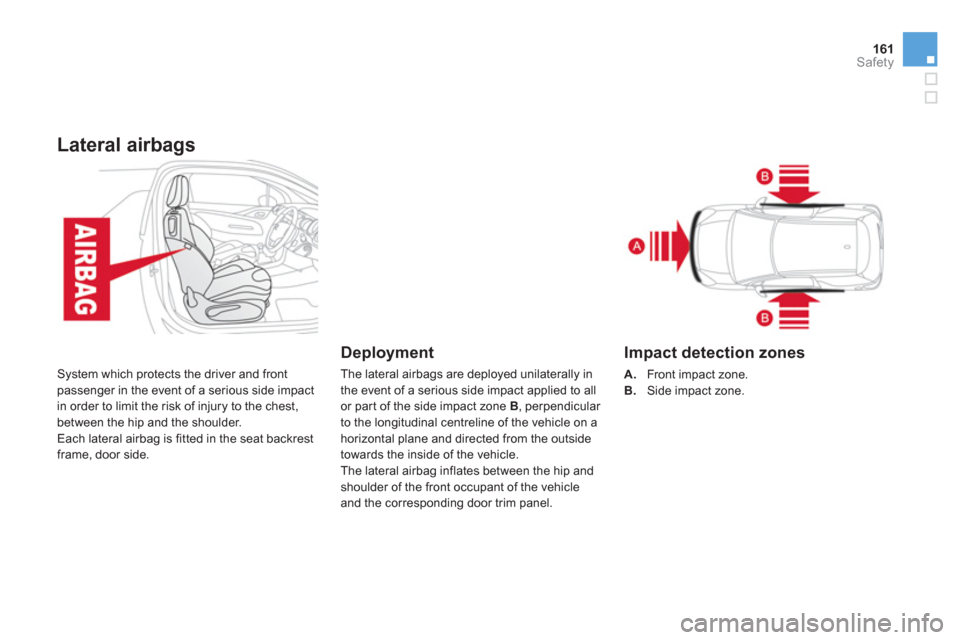

Lateral airbags
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrestframe, door side.
Deployment
Impact detection zones
A.Front impact zone.
B. Side impact zone.

The lateral airba
gs are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone
B, perpendicular
to the longitudinal centreline of the vehicle on ahorizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle and the corresponding door trim panel.

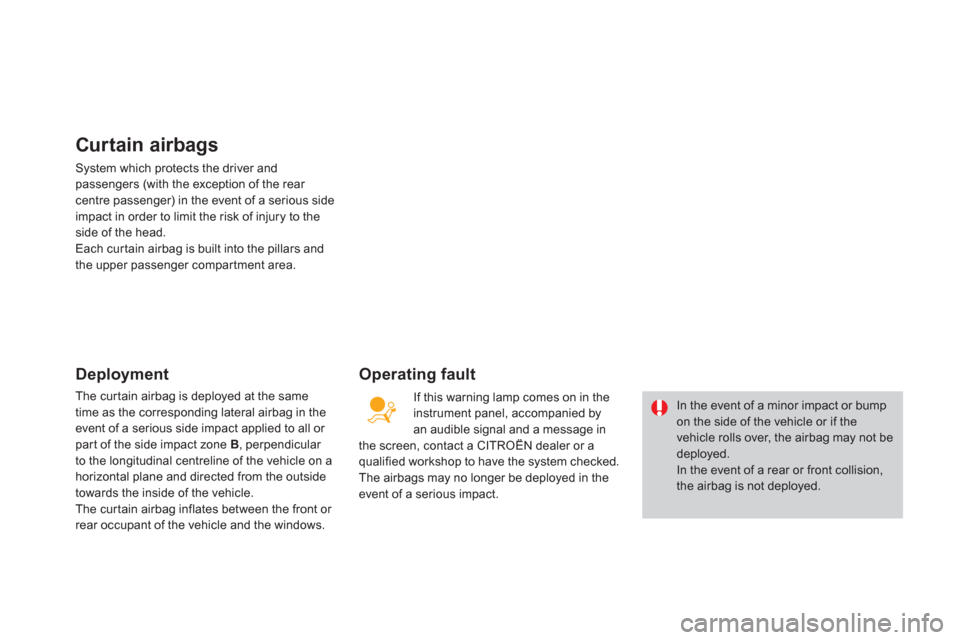

Curtain airbags
System which protects the driver and passengers (with the exception of the rear centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Deployment
The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or rear occupant of the vehicle and the windows.


Operating fault

In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be deployed.
In the event of a rear or front collision, the airbag is not deployed. I
f this warning lamp comes on in theinstrument panel, accompanied by
an audible signal and a message in
the screen, contact a CITROËN dealer or a
qualified workshop to have the system checked.The airbags may no longer be deployed in theevent of a serious impact.

163Safety

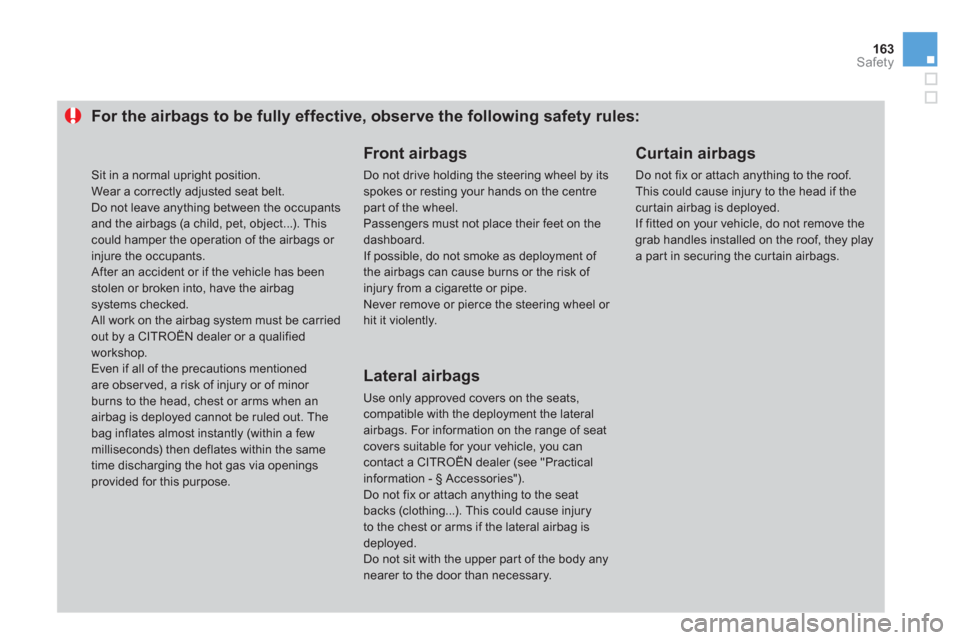

For the airbags to be fully effective, observe the following safety rules:
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre par t of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.




Lateral airbags

Use only approved covers on the seats,compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you cancontact a CITROËN dealer (see "Practical information - § Accessories").
Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.
Do not sit with the upper par t of the body any nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof.This could cause injury to the head if thecurtain airbag is deployed. If fitted on your vehicle, do not remove thegrab handles installed on the roof, they play a part in securing the cur tain airbags.

Sit in a normal upright position.
Wear a correctly adjusted seat belt. Do not leave anything between the occupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualifiedworkshop.
Even if all of the precautions mentionedare obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a fewmilliseconds) then deflates within the sametime discharging the hot gas via openings provided for this purpose.

009
Driving
This section describes the use of the parking brake, the manual,electronic or automatic gearbox, the gear efficiency indicator and Stop & Start to help reduce fuel consumption, hill start assist, the speed limiter
to avoid exceeding a programmed speed, cruise control to maintain aprogrammed speed, the rear parking sensors to detect obstacles.

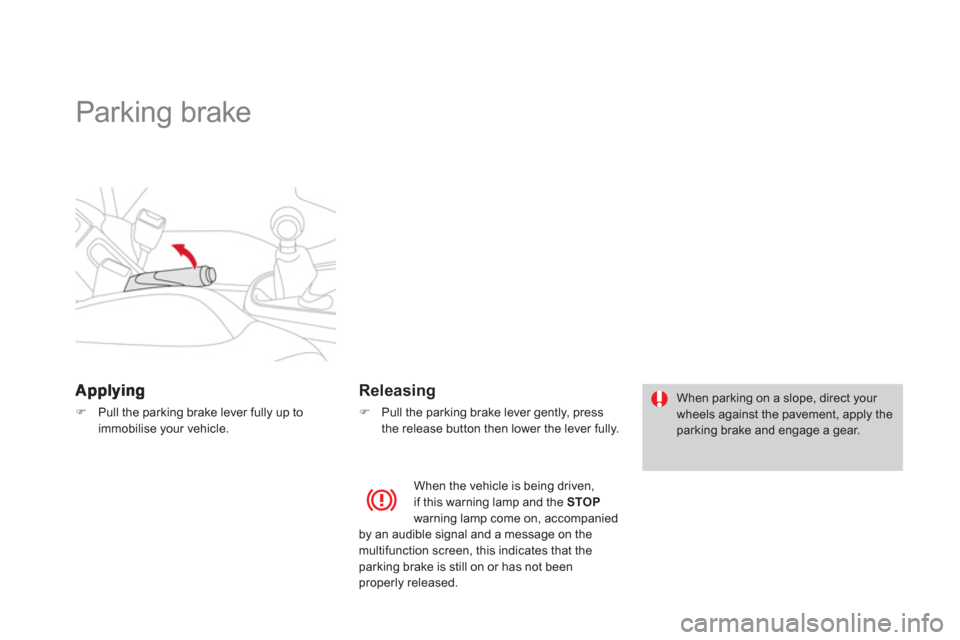

Parking brake
)Pull the parking brake lever fully up toimmobilise your vehicle.



Releasing
)
Pull the parking brake lever gently, press
the release button then lower the lever fully.
When parking on a slope, direct your wheels against the pavement, apply the
parking brake and engage a gear.

When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompanied
by an audible signal and a message on the
multifunction screen, this indicates that the
parkin
g brake is still on or has not been
properly released.

167
Driving

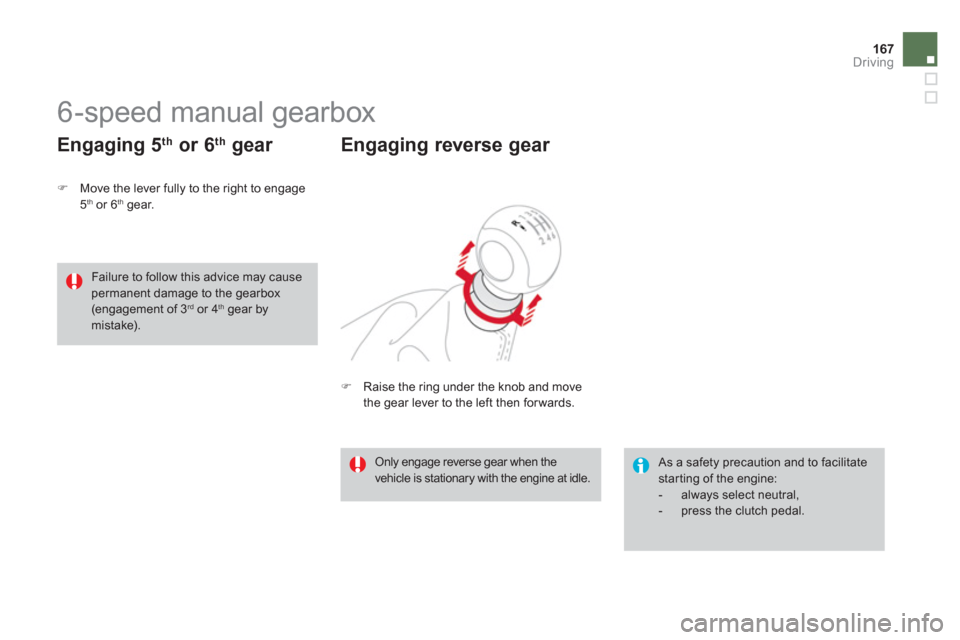

6-speed manual gearbox
)Move the lever fully to the right to engage5 th
or 6th
gear.


Engaging 5 thor 6 th
gear

As a safety precaution and to facilitate starting of the engine:


- always select neutral,

- press the clutch pedal.

Only engage reverse gear when the vehicle is stationary with the engine at idle.
Engaging reverse gear
)
Raise the ring under the knob and move
the gear lever to the left then forwards.

Failure to follow this advice may causepermanent damage to the gearbox(engagement of 3 rd
or 4th
gear by mistake).

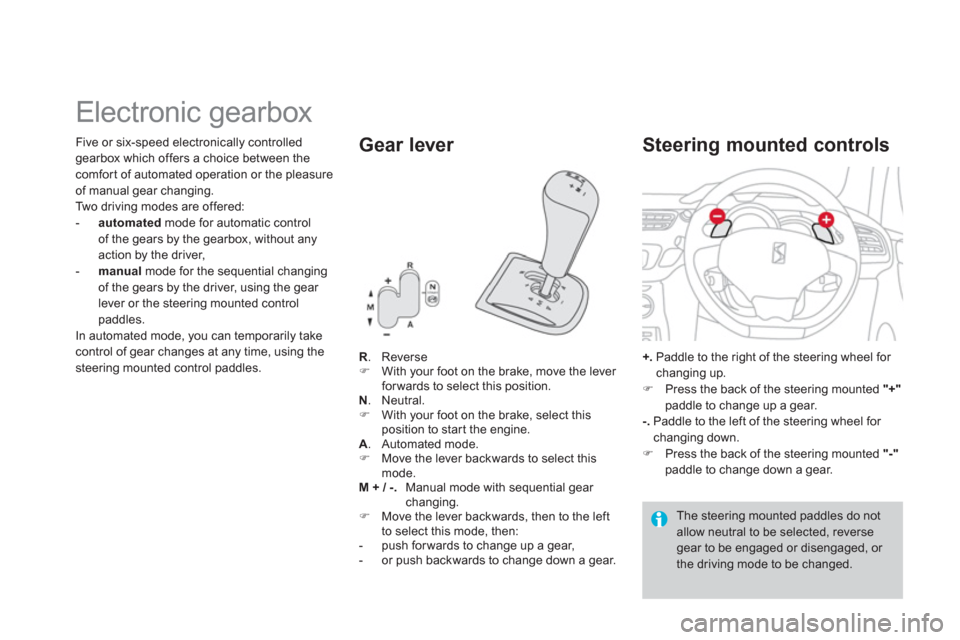

Electronic gearbox
R. Reverse )
With your foot on the brake, move the lever for wards to select this position.N. Neutral.)
With your foot on the brake, select this
position to star t the engine.
A
. Automated mode.)
Move the lever backwards to select this
mode. M + / -.
Manual mode with sequential gear changing.)
Move the lever backwards, then to the left
to select this mode, then:


- push
for wards to change up a gear,

- or push backwards to change down a gear.



Gear lever
+.
Paddle to the right of the steering wheel for changing up. )Press the back of the steering mounted "+"paddle to change up a gear.-. Paddle to the left of the steering wheel for
changing down.)Press the back of the steering mounted "-"paddle to change down a gear.


Steering mounted controls

The steering mounted paddles do not allow neutral to be selected, reversegear to be engaged or disengaged, or the driving mode to be changed.
Five or six-speed electronically controlled
gearbox which offers a choice between the comfor t of automated operation or the pleasure
of manual gear changing.
Tw o d r i v i ng modes are offered: -automatedmode for automatic control
o
f the gears by the gearbox, without anyaction by the driver,-manualmode for the sequential changingof the gears by the driver, using the gear lever or the steering mounted control paddles.
In automated mode, you can temporarily take control of gear changes at any time, using thesteering mounted control paddles.
