CITROEN DS4 2023 Owners Manual

189
Temporary puncture
repair kit
This kit comprises a compressor and a sealant
cartridge.
It allows the temporary repair of a tyre.
You are then able to go to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on the
tyre tread or shoulder.
Its compressor can be used to check and
adjust the pressure of the tyre.
Tyre under-inflation detection
If the vehicle is fitted with tyre under-
inflation detection, the under-inflation
warning lamp will remain on after the
wheel has been repaired until the system
is reinitialised by a dealer or a qualified
workshop.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair. Only
the 12 V socket at the front of
the vehicle allows the compressor to be
connected for long enough to repair or
inflate the vehicle tyre.
The other 12 V sockets of the vehicle
are not designed to be used with the
compressor.
Access to the kit Composition of the kit
1.
12 V compressor, with built-in pressure
gauge.
2. Bottle of sealant, with built-in hose.
3. Speed limit sticker.
Repair procedure
F Park the vehicle without obstructing any
traffic and apply the parking brake.
F

F
ollow the safety instructions (hazard
warning lamps, warning triangle, wearing
high visibility vest, etc.) according to the
legislation in force in the country where you
are driving.
F

S
witch off the ignition.
This kit is installed in the under floor storage,
under the boot floor.
F

U
ncoil the pipe stowed under the
compressor.
08
In the event of a breakdown

190
Avoid removing any foreign bodies which
have penetrated into the tyre.F

R
emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F
C
heck that the compressor switch is at the
" O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor. The speed limit sticker must be secured
to the interior of the vehicle in the driver's
field of vision, to remind you that a wheel
is in temporary use.
F

C
onnect the pipe from the compressor to
the bottle of sealant.
F

T
urn the sealant bottle and secure it in the
cut-out provided on the compressor. F
C onnect the hose from the bottle of sealant
to the valve of the tyre to be repaired and
tighten firmly. F

C
onnect the compressor's electrical
connector to the vehicle's 12 V socket.
The tyre inflation pressures are given on
this label.
F

S
witch on the ignition.F

A
ffix the speed limit sticker.
08
In the event of a breakdown

191

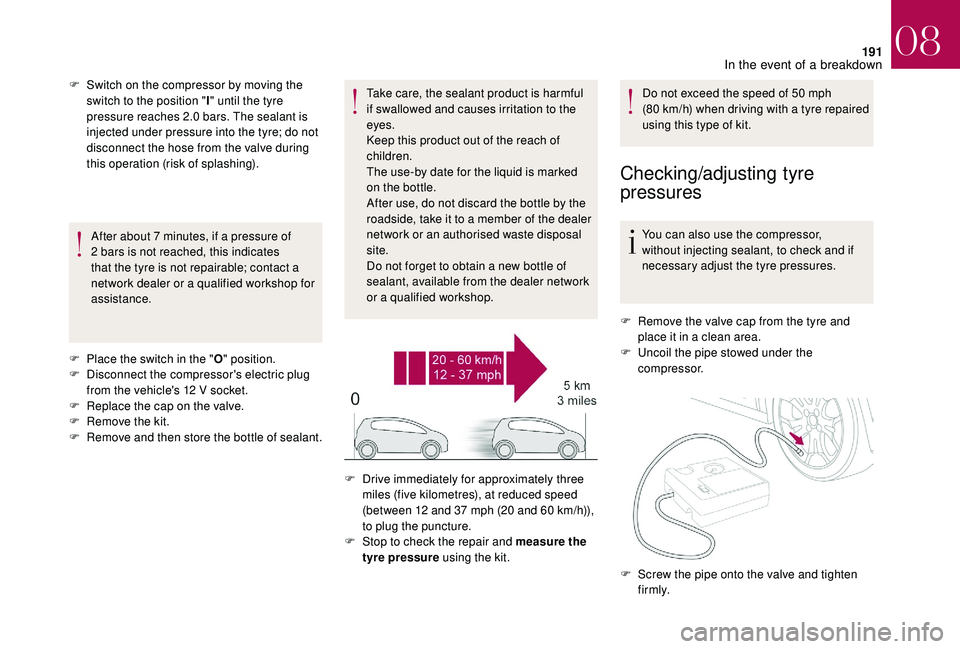

After about 7 minutes, if a pressure of
2 bars is not reached, this indicates
that the tyre is not repairable; contact a
network dealer or a qualified workshop for
assistance.
F

P
lace the switch in the " O" position.
F

D
isconnect the compressor's electric plug
from the vehicle's 12 V socket.
F

R
eplace the cap on the valve.
F

R
emove the kit.
F

R
emove and then store the bottle of sealant. Take care, the sealant product is harmful
if swallowed and causes irritation to the
eyes.
Keep this product out of the reach of
children.
The use-by date for the liquid is marked
on the bottle.
After use, do not discard the bottle by the
roadside, take it to a member of the dealer
network or an authorised waste disposal
site.
Do not forget to obtain a new bottle of
sealant, available from the dealer network
or a qualified workshop.
Do not exceed the speed of 50 mph
(80
km/h) when driving with a tyre repaired
using this type of kit.
Checking/adjusting tyre
pressures
You can also use the compressor,
without injecting sealant, to check and if
necessary adjust the tyre pressures.
F

R
emove the valve cap from the tyre and
place it in a clean area.
F

U
ncoil the pipe stowed under the
compressor.
F

S

witch on the compressor by moving the
switch to the position " I" until the tyre
pressure reaches 2.0 bars. The sealant is
injected under pressure into the tyre; do not
disconnect the hose from the valve during
this operation (risk of splashing).
F

D

rive immediately for approximately three
miles (five kilometres), at reduced speed
(between 12 and 37 mph (20 and 60 km/h)),
to plug the puncture.
F

S

top to check the repair and measure the
tyre pressure using the kit.
F

S
crew the pipe onto the valve and tighten
f i r m l y.
08
In the event of a breakdown

192

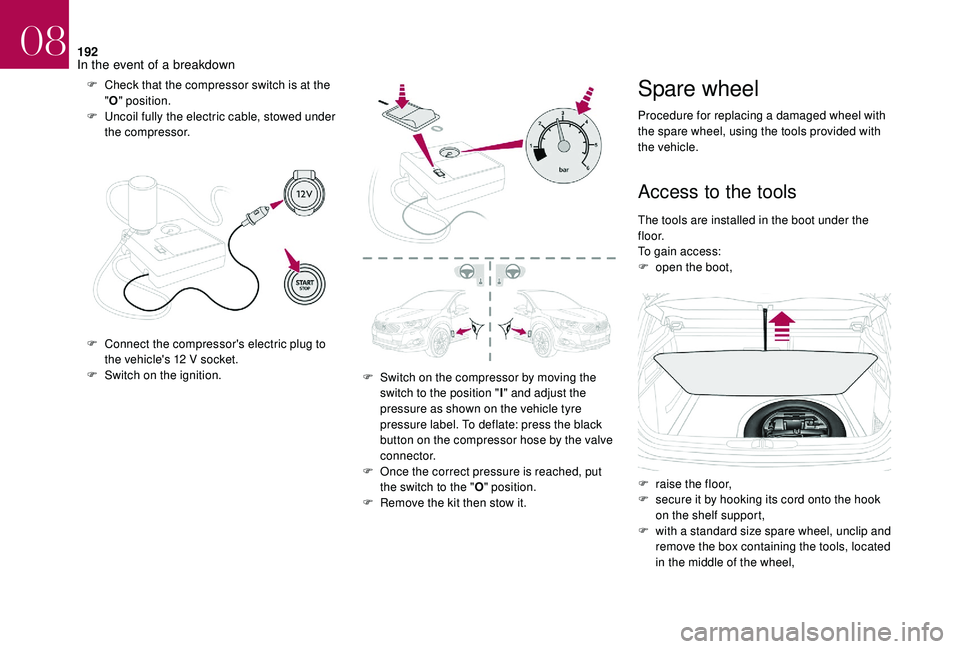

F Check that the compressor switch is at the "O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect the compressor's electric plug to
the vehicle's 12 V socket.
F

S
witch on the ignition. F

S
witch on the compressor by moving the
switch to the position " I" and adjust the
pressure as shown on the vehicle tyre
pressure label. To deflate: press the black
button on the compressor hose by the valve
connector.
F

O
nce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it.Spare wheel
Procedure for replacing a damaged wheel with
the spare wheel, using the tools provided with
the vehicle.
Access to the tools
The tools are installed in the boot under the
f l o o r.
To gain access:
F
o
pen the boot,
F

r
aise the floor,
F

s
ecure it by hooking its cord onto the hook
on the shelf support,
F

w
ith a standard size spare wheel, unclip and
remove the box containing the tools, located
in the middle of the wheel,
08
In the event of a breakdown

193
List of tools
1.Wheelbrace.
For removing the hub cap and removing
the wheel bolts.
2. Jack with integral handle.
Used to raise the vehicle.
3. Wheel bolt cover removal tool.
For removing the wheel bolt head
protectors on alloy wheels.
4. Socket for the security bolts (located in
the glove box).
For adapting the wheelbrace to the
special "security" bolts. All of these tools are specific to your
vehicle and can vary according to the level
of equipment.
Do not use them for any other purposes.
The jack should only be used to change
a wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original
jack, contact the dealer network or a
qualified workshop to obtain the correct
jack for it.
The jack meets European standards,
as defined in the Machinery Directive
2006/42/EC.
The jack does not require any
maintenance.
Wheel with trim
When removing the wheel
, first remove
the hub cap using the wheelbrace 1 by
pulling at the valve aperture.
When refitting the wheel , refit the trim,
starting by placing its aperture in line with
the valve and then pushing it into place all
round its edge with the palm of your hand.
With BlueHDi Diesel
If your vehicle has an electric parking brake ,
the jack is stowed in a bag placed in the boot.
or
F

w

ith a "space-saver" spare wheel, lift the
wheel at the rear towards you for access to
the storage box containing the tools.
If your vehicle has a manual parking brake,
the jack is stowed under the spare wheel and
under the storage box:
F

r
emove the "space-saver" type spare wheel,
08
In the event of a breakdown

194
F remove the polystyrene storage box,
F p ush the jack for ward, then lift it by its rear
part.
Access to the spare wheel
The spare wheel is installed in the boot under
t h e f l o o r.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel; for some
countries of sale, it is the "space saver" type.
For access to the spare wheel, first refer to
"Access to the tools" in this section. If your vehicle has an electric parking
brake, only a "space saver" type of wheel
can be stowed in the boot.
Taking out the standard wheel
F Loosen the central nut.
F
R emove the fastening device (nut and bolt).
F

R
aise the spare wheel towards you from the
r e a r.
F

T
ake the wheel out of the boot.
Putting the standard wheel back in
place
F Put the wheel back in its housing. F
U
nscrew the central nut on the bolt by a few
turns then put it in place in the centre of the
wheel.
F
T
ighten fully until the central bolt clicks to
retain the wheel correctly.
F P ut the box back in place in the centre of
the wheel and clip it.
08
In the event of a breakdown

195
Tyre under-inflation detection
The spare wheel is not fitted with a sensor.
The punctured tyre must be repaired
or replaced by a member of the dealer
network or a qualified workshop.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and non-slippery.
Apply the parking brake unless it has been
programmed to automatic mode, switch
off the ignition and engage first gear
(position P for the automatic gearbox) to
lock the wheels.
Check that the parking brake warning
lamps in the instrument panel come on.
The occupants must get out of the vehicle
and wait where they are safe.
If necessary, place a chock under the
wheel diagonally opposite the wheel to be
changed.
Never go underneath a vehicle raised
using a jack; use an axle stand.List of operations
F Remove the bolt cover from each of the bolts using the tool 3 (according to
equipment).
F

F
it the security socket 4 on the wheelbrace
1 to slacken the security bolt.
F

S
lacken the other bolts using the
wheelbrace 1 o n l y.
08
In the event of a breakdown

196
F Place the foot of the jack 2 on the ground and ensure that it is directly below the front
A or rear B jacking point provided on the
underbody, whichever is closest to the
wheel to be changed. F

Ra
ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F
R
emove the bolts and store them in a clean
place.
F

R
emove the wheel.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or drop – Risk of injury!
Take care to position the jack only at one
of the jacking points A or B under the
vehicle, ensuring that the head of the
jack is centred under the contact area
of the vehicle. Other wise, there is a risk
of damage to the vehicle and/or the jack
dropping – Risk of injury!
F

E
xtend the jack 2 until its head comes into
contact with the jacking point A or B used;
the contact area A or B on the vehicle must
be correctly inserted into the central part of
the head of the jack. The jack must only be used to change
a wheel with a damaged or punctured tyre.
The jack does not require any
maintenance.
The jack meets European standards,
as defined in the Machinery Directive
2006/42/EC.
Fitting a wheel
08
In the event of a breakdown

197
F Screw in the bolts by hand to their stop.
F P re-tighten the security bolt using the
wheelbrace 1 fitted with the security socket 4 .
F

P
re-tighten the other bolts using wheelbrace
1 o n l y.
F Lower the vehicle fully.
F F old the jack 2 and detach it.
F Tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 .
F

T
ighten the other bolts using wheelbrace 1
o n l y.
F

R
efit the bolt covers to the bolts (depending
on equipment).
F

S
tore the tools in the box.
Fitting a steel or "space-saver" spare
wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting it is
normal to notice that the washers do not
come into contact with the steel or "space-
saver" spare wheel. The wheel is secured
by the conical contact of each bolt.
After changing a wheel
Put the punctured wheel in the boot or,
depending on version, remove the central cover
first to store it beneath the floor in place of the
spare wheel.With a "space-saver" type spare wheel
It is recommended that you do not exceed
the maximum authorised speed of 50 mph
(80 km/h).
Visit the dealer network or a qualified
workshop as soon as possible to have the
tightness of the bolts and the pressure of
the spare wheel checked.
Have the punctured wheel checked. After
inspection, the technician will let you know
if the tyre can be repaired or if it must be
replaced.
List of operations
F Put the wheel in place on the hub.
08
In the event of a breakdown

198
Changing a bulb
The headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y or
abrasive cloth, nor with a detergent
or solvent product,
F

u
se a sponge and soapy water or a pH
neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals.
Changing a bulb must only be done with
the ignition off and after the headlamp has
been switched off for several minutes –
Risk of serious burns!
F

D
o not touch the bulb directly with your
fingers, use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new
bulb with the same type and specification. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a few minutes.
Light-emitting diodes (LED)
For the replacement of this type of lamp,
contact the dealer network or a qualified
workshop.
A LED (light-emitting diode) replacement
kit is available from the dealer network.
For bulbs with lugs, type H1, H7... take
care to position them correctly to ensure
the best lighting.
Risk of electrocution
Xenon bulbs (D1S) must be replaced
in the dealer network or by a qualified
workshop.
Front lamps
With xenon and full LED directional
lamps
1.
Daytime running lamps/sidelamps (LED).
2. Directional main beam/dipped beam
headlamps (D1S).
3. Direction indicators (LED).
4. Directional front foglamps (LED).
08
In the event of a breakdown
