CITROEN DS4 2023 Owners Manual

209
12 V battery
Procedure for starting the engine using another
battery or charging a discharged battery.
General points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources of
sparks, so as to avoid the risk of explosion
or fire.
Wash your hands afterwards. If your vehicle has an automatic gearbox,
do not try to start the engine by pushing
the vehicle.
Access to the battery
The battery is located under the bonnet.
For access to the (+) terminal:
F

r
elease the bonnet using the interior lever,
then the exterior lever,
F

r
aise the bonnet and secure it with its stay,
F

l
ift the plastic cover for access to the (+)
terminal.
Starting using another battery
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump leads
or a battery booster.
Never try to start the engine by connecting
a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off all the electrical consumers
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are not
close to moving parts of the engine (fan,
belts, etc.).
Do not disconnect the (+) terminal while
the engine is running.
08
In the event of a breakdown

210
F Lift the plastic cover on the (+) terminal, if your vehicle has one.
F

C
onnect the red cable to the positive
terminal (+) of the flat battery A (at the metal
elbow) then to the positive terminal (+) of the
backup battery B or the booster.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the slave
battery B or the booster (or an earth point
on the other vehicle).
F

C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle. F
S tart the engine of the vehicle with the
good battery and leave it running for a few
minutes.
F

O
perate the starter on the broken down
vehicle and let the engine turn.
If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.
F

W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F

R
efit the plastic cover to the (+) terminal, if
your vehicle has one.
F

A
llow the engine to run for at least
30
minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.Charging the battery using a
battery charger
For optimum ser vice life of the battery, it is
essential to maintain an adequate state of charge.
In some circumstances it may be necessary to
charge the battery:
-

i
f you use your vehicle mostly for short
journeys,
-

i
f the vehicle is to be taken off the road for
several weeks.
Contact the dealer network or a qualified
workshop.
If you plan to charge your vehicle's battery
yourself, use only a charger compatible
with lead-acid batteries of a nominal
voltage of 12 V.
Follow the instructions provided by the
manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.
F

S
witch off the ignition.
F

S
witch off all electrical consumers (audio
system, lighting, wipers,etc.).
08
In the event of a breakdown

2 11
F Switch off the charger B before connecting the cables to the battery, so as to avoid any
dangerous sparks.
F

E
nsure that the charger cables are in good
condition.
F

R
aise the plastic cover, if your vehicle has
one, on the (+) terminal.
F

C
onnect the charger B cables as follows:
-

t
he positive (+) red cable to the (+)
terminal of the battery A ,
-

t
he negative (-) black cable to the earth
point C on the vehicle.
F

A
t the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A . Never try to charge a frozen battery – Risk
of explosion!
If the battery has frozen, have it checked
in the dealer network or by a qualified
workshop who will check that the internal
components have not been damaged and
that the container has not cracked, which
would mean a risk of toxic and corrosive
acid leaking.
Disconnecting the battery
F switch off all electrical consumers (audio
system, wipers, lighting, etc.).
F

S
witch off the ignition and wait for four
minutes.
After having accessed the battery, disconnect
the positive (+) terminal only.
Quick-release terminal clamp
Disconnecting the (+) terminal
If this label is present, it is essential to
use only a 12 V charger to avoid causing
irreversible damage to the electrical
components related to the Stop & Start
system.
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of ser vice for a long
period.
Before disconnecting the battery:
F

c
lose all openings (doors, boot, windows), F

Ra
ise the lever A fully to release the
clamp B .
F

R
emove the clamp B by lifting it off.
08
In the event of a breakdown

212
Reconnecting the (+) terminal
Do not force the lever as locking will be
impossible if the clamp is not positioned
correctly; start the procedure again.
Following reconnection
If minor problems nevertheless persist
following this operation, contact the dealer
network or a qualified workshop.
By referring to the corresponding section, you
must reset certain systems yourself, such as:
-
o
ne-touch electric windows,
-

t
he date and time,
-
a

udio and navigation system settings.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only in the dealer network or a qualified
workshop.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of the
battery (up to about 8 hours).
F

Ra

ise the lever A fully.
F

R

efit the open clamp B on the (+) terminal.
F

P

ush the clamp B fully down.
F

L

ower the lever A to lock the clamp B .
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting
the engine, in order to enable the electronic
systems to initialise.Towing the vehicle
Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.
Access to the tools
The towing eye is installed in the boot under
t h e f l o o r.
To access it:
F
o
pen the boot,
F

r
aise the floor,
F

s
ecure it by hooking its cord on the hook on
the rear shelf support,
F

r
emove the towing eye from the holder.
08
In the event of a breakdown

213
General recommendations
Obser ve the legislation in force in your
c o u nt r y.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps are
prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a professional recovery ser vice:
-
v
ehicle broken down on a motor way or
fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towbar
available. Towing your vehicle
F On the front bumper, unclip the cover by pressing on its left side.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

M
ove the gear lever into neutral (position N
for an automatic gearbox).
Failure to follow this instruction may cause
damage to some components (braking,
transmission...) and the absence of
braking assistance when the engine is
restarted.
F

U
nlock the steering and release the parking
brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
Towing another vehicle
F On the rear bumper, unclip the cover by pressing at the top.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
08
In the event of a breakdown

214

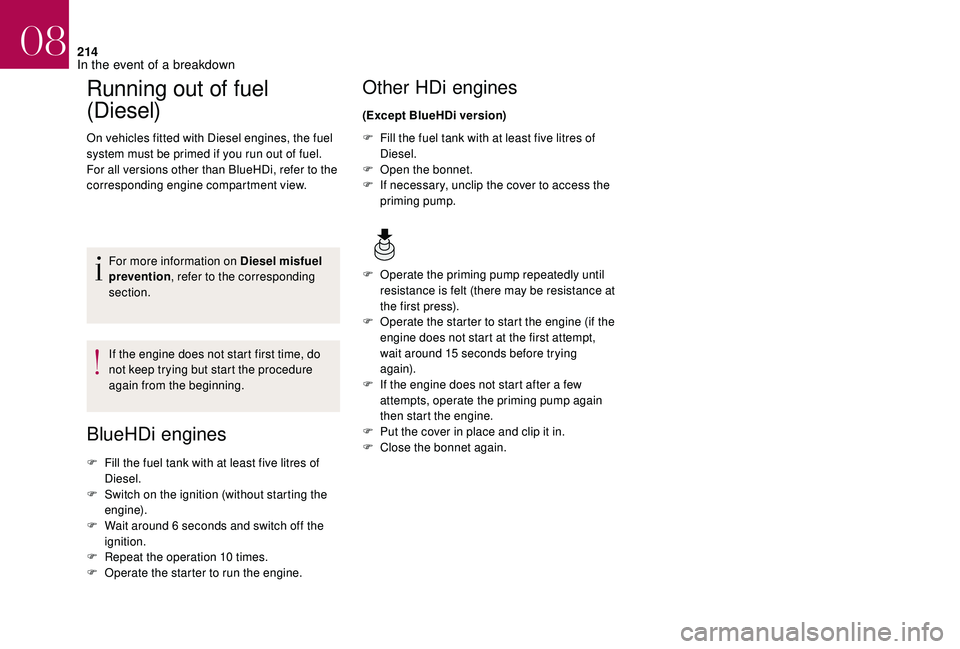

Running out of fuel
(Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.For more information on Diesel misfuel
prevention , refer to the corresponding
section.
If the engine does not start first time, do
not keep trying but start the procedure
again from the beginning.
BlueHDi engines
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
Other HDi engines
(Except BlueHDi version)
F
F
ill the fuel tank with at least five litres of
Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the cover to access the
priming pump.
F

O
perate the priming pump repeatedly until
resistance is felt (there may be resistance at
the first press).
F

O
perate the starter to start the engine (if the
engine does not start at the first attempt,
wait around 15 seconds before trying
again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

P
ut the cover in place and clip it in.
F

C
lose the bonnet again.
08
In the event of a breakdown

TECHNICAL DATA
09

216
Characteristics of the
engines and towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact the dealer
network or a qualified workshop.
Weights and towed loads
The maximum weights and towed loads for
your vehicle are given in the registration
document, as well as in sales brochures.
These values are also given on the
manufacturer's plate or label.
For more information, contact the dealer
network or a qualified workshop.
The GTW and towed load values indicated are
valid up to a maximum altitude of 1,000 metres.
The towed load value must be reduced by 10%
for each additional 1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball (which can be dismantled with or
without a tool).
GT W: Gross train weight. High exterior temperatures may result
in a reduction in the per formance of
the vehicle to protect the engine. If the
exterior temperature is above 37°C, limit
the towed load.
Towing with a towing vehicle which is only
slightly laden may negatively affect its
handling.
Towing a trailer increases the braking
distance.
When towing, never exceed the speed
of 62 mph (100 km/h) (obser ve the local
legislation in force).
09
Technical data

217
Petrol engines and towed loads
EngineV Ti 120PureTech 130 S&S THP 15 0
Gearboxes Manual 5-speed
(BVM5) Manual 6-speed
(BVM6) Automatic 6-speed
(BVA6)
Model codes:
NX... 5FS0
5FS0/1 HNYM/S
HNYM/1S
HNYM/2S 5FEA
Capacity (cm
3) 1,59 81,1 9 91,59 8
Max. power: EU standard (kW) 889611 0
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit)
on a 12% gradient (Kg) 1, 20 0
1, 20 0 800
Unbraked trailer (kg) 640675715
Recommended nose weight (kg) 757575
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
09
Technical data

218
EngineTHP 160THP 165 S&S THP 210 S&S
Gearboxes Automatic 6-speed
(BVA6) Automatic 6-speed
( E AT 6 ) Manual 6-speed
(BVM6)
Model codes:
NX... 5FMA5GZT/S
5GZ T/1S 5GMM/S
Capacity (cm
3) 1,59 81,59 81,59 8
Max. power: EU standard (kW) 12012115 5
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit)
on a 12% gradient (Kg) 800
1,4 0 0 1,000
Unbraked trailer (kg) 715690 655
Recommended nose weight (kg) 757575
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
09
Technical data
