bluetooth Citroen DS4 RHD 2013.5 1.G User Guide

06
327

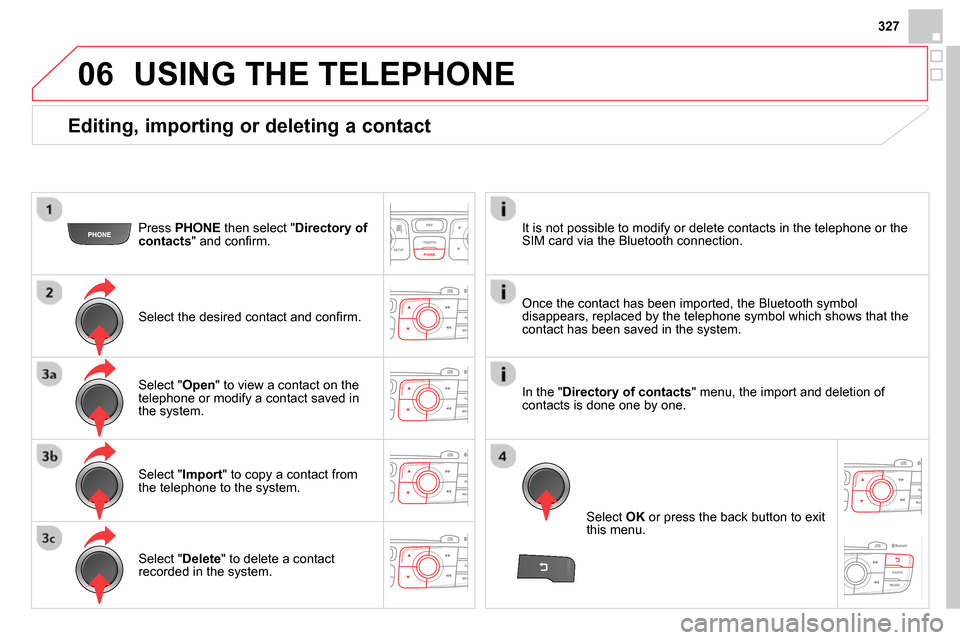

Editing, importing or deleting a contact


Press PHONE
then select " Directory of
contacts
" and confi rm.

Select the desired contact and confi rm.

Select " Import
" to copy a contact from
the telephone to the system.

Select " Delete
" to delete a contact
recorded in the system.
Select OK
or press the back button to exit
this menu.

Once the contact has been imported, the Bluetooth symbol
disappears, replaced by the telephone symbol which shows that the
contact has been saved in the system.

USING THE TELEPHONE


It is not possible to modify or delete contacts in the telephone or the
SIM card via the Bluetooth connection.

Select " Open
" to view a contact on the
telephone or modify a contact saved in
the system.
In the " Directory of contacts
" menu, the import and deletion of
contacts is done one by one.

06

Press PHONE
twice.

Select " List of the paired peripherals
"
and confi rm.

It is possible to:


- " Connect
" or " Disconnect
" the
selected telephone,

- delete the pairing of the selected
telephone.
It is also possible to select all pairings.


USING THE TELEPHONE

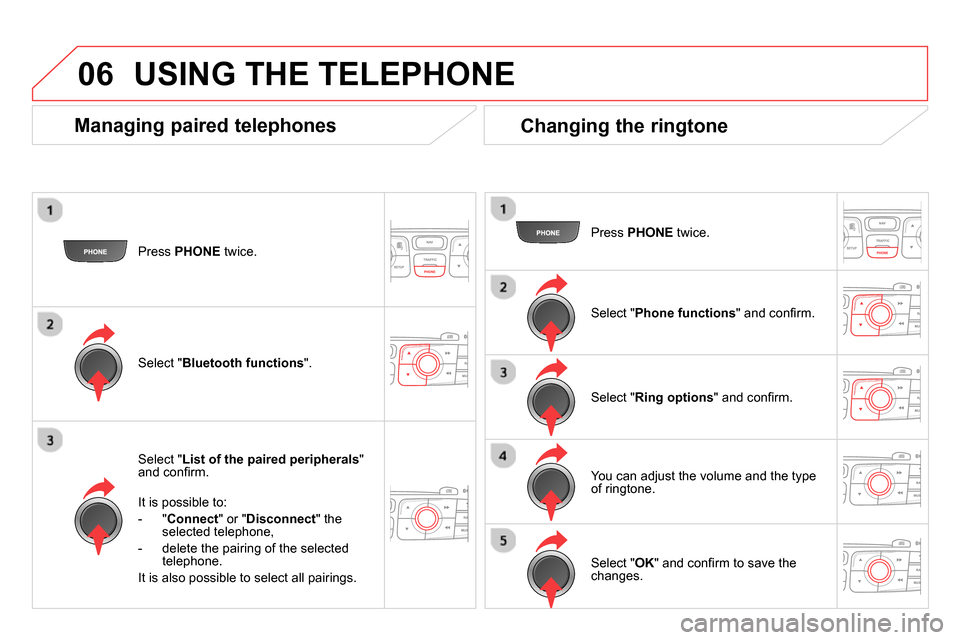

Managing paired telephones

Changing the ringtone


Press PHONE
twice.

Select " Phone functions
" and confi rm.

Select " Ring options
" and confi rm.

You can adjust the volume and the type
of ringtone.
Select " Bluetooth functions
".

Select " OK
" and confi rm to save the
changes.

08
341

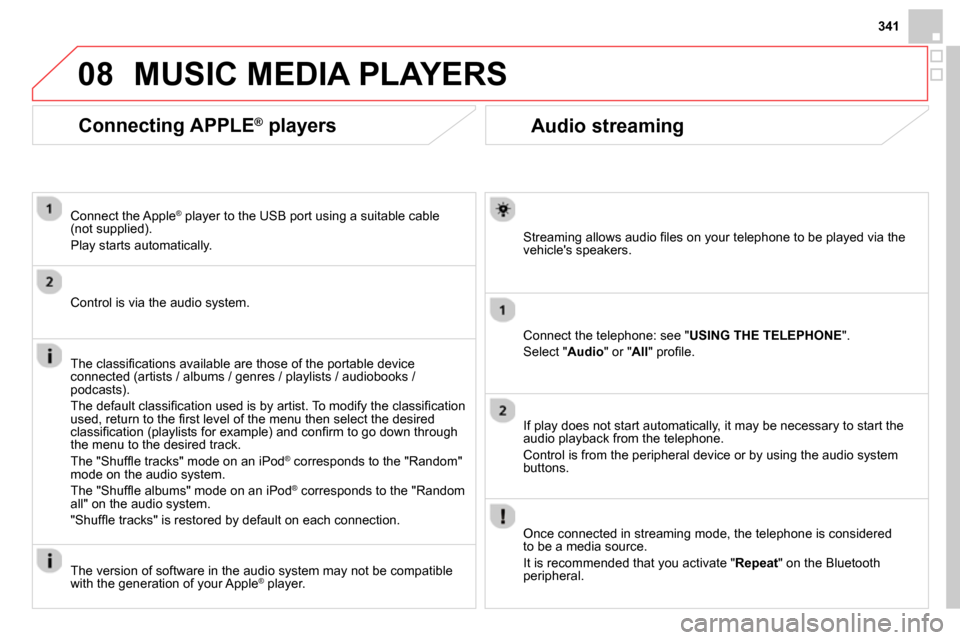

Audio streaming


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see " USING THE TELEPHONE
".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.

Once connected in streaming mode, the telephone is considered
to be a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.


MUSIC MEDIA PLAYERS


Connecting APPLE ®
players


Connect the Apple ®
player to the USB port using a suitable cable
(not supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The "Shuffl e tracks" mode on an iPod
®
corresponds to the "Random"
mode on the audio system.
The "Shuffl e albums" mode on an iPod
®
corresponds to the "Random
all" on the audio system.
"Shuffl e tracks" is restored by default on each connection.

The version of software in the audio system may not be compatible
with the generation of your Apple
® player.

11 SCREEN MENU MAP(S)


Select TMC station



Automatic TMC


Manual TMC


List of TMC stations





Display / Do not display
messages
"TRAFFIC INFORMATION"
MENU
Geographic filter



Retain all the messages:


Retain the messages:


Around the vehicle

On the route


1
2
2
2
1
2
2
3
3
1

Dial
Directory of contacts



Call


Open


Import



"TELEPHONE" MENU
1
2
2
2
1
2
2
2
2
1
2
3
3
3
2
2
2
1
1
1
3
3
3
2
3
2
2
3



List of the paired peripherals


Connect

Disconnect

Delete

Delete all

Contact mem. status





Phone functions



Ring options


Delete calls log





Bluetooth functions


Peripherals search


Rename radiotelephone





Hang up


Display all phone contacts
Delete



Contacts management



New contact


Delete all contacts


Import all the entries


Synchronization options


Display telephone contacts
No synchronization

Display SIM card contacts
2

Cancel



2

Sort by Name/First name

3

Cancel

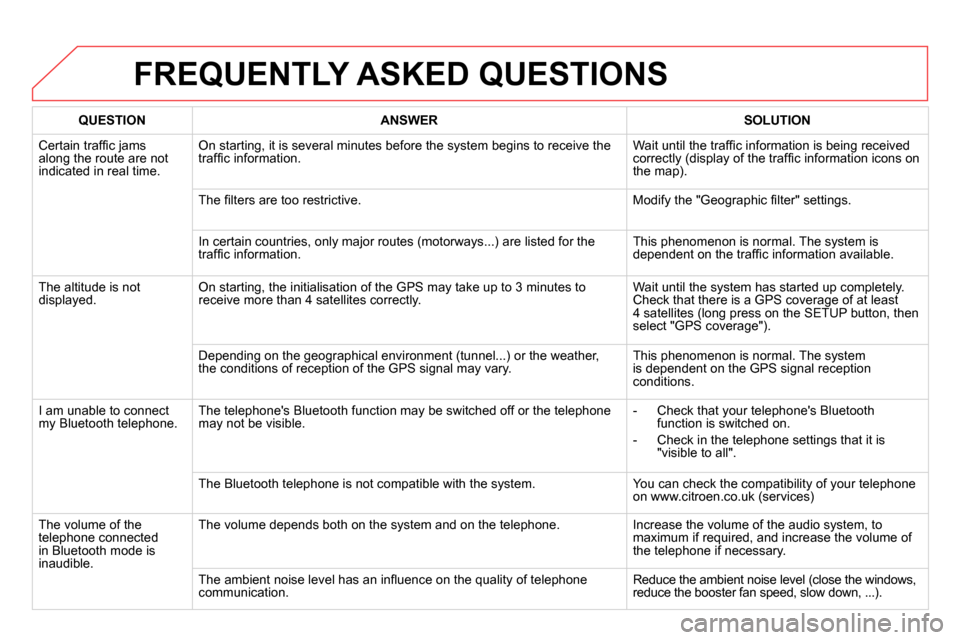

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Certain traffi c jams
along the route are not
indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (display of the traffi c information icons on
the map).
The fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I am unable to connect
my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.citroen.co.uk (services)
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the quality of telephone
communication. Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).

351

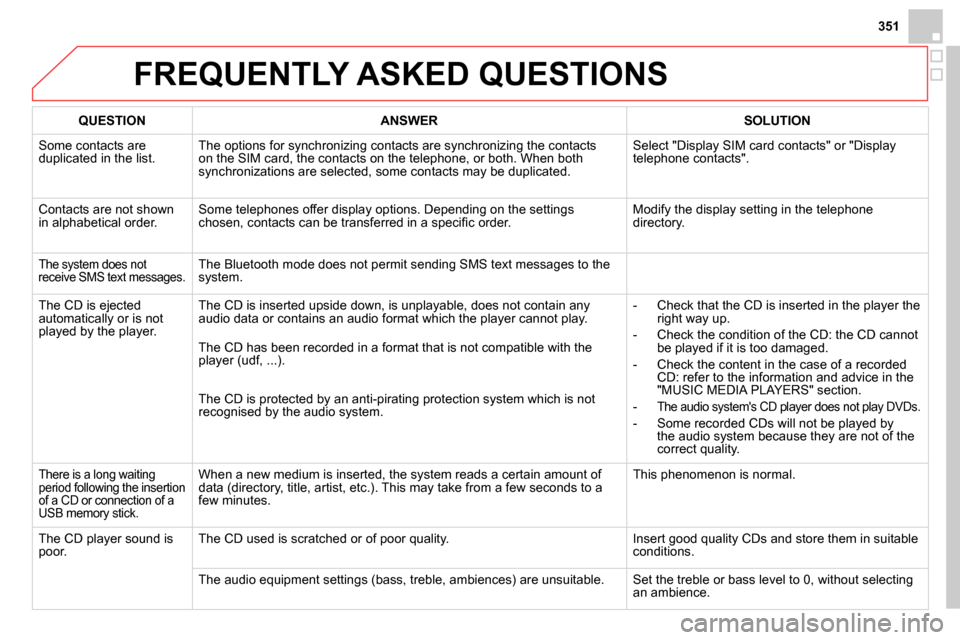

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown
in alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.
The system does not
receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages to the
system.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: refer to the information and advice in the
"MUSIC MEDIA PLAYERS" section.

-
The audio system's CD player does not play DVDs.


- Some recorded CDs will not be played by
the audio system because they are not of the
correct quality. The CD has been recorded in a format that is not compatible with the
player (udf, ...).
The CD is protected by an anti-pirating protection system which is not
recognised by the audio system.
There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes. This phenomenon is normal.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

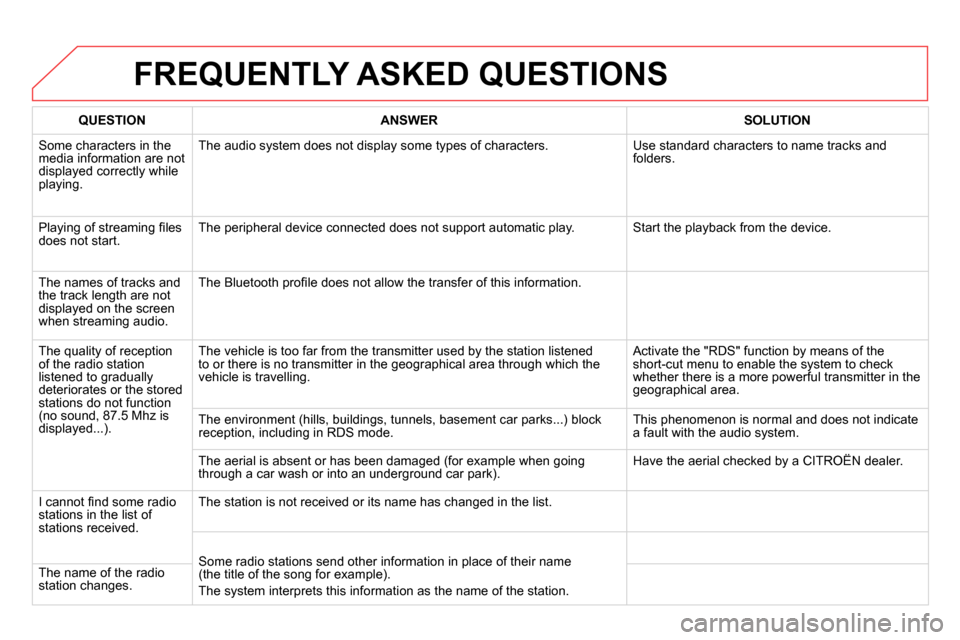

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Some characters in the
media information are not
displayed correctly while
playing. The audio system does not display some types of characters. Use standard characters to name tracks and
folders.
Playing of streaming fi les
does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth profi le does not allow the transfer of this information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in the
geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
I cannot fi nd some radio
stations in the list of
stations received. The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name
(the title of the song for example).
The system interprets this information as the name of the station. The name of the radio
station changes.

355

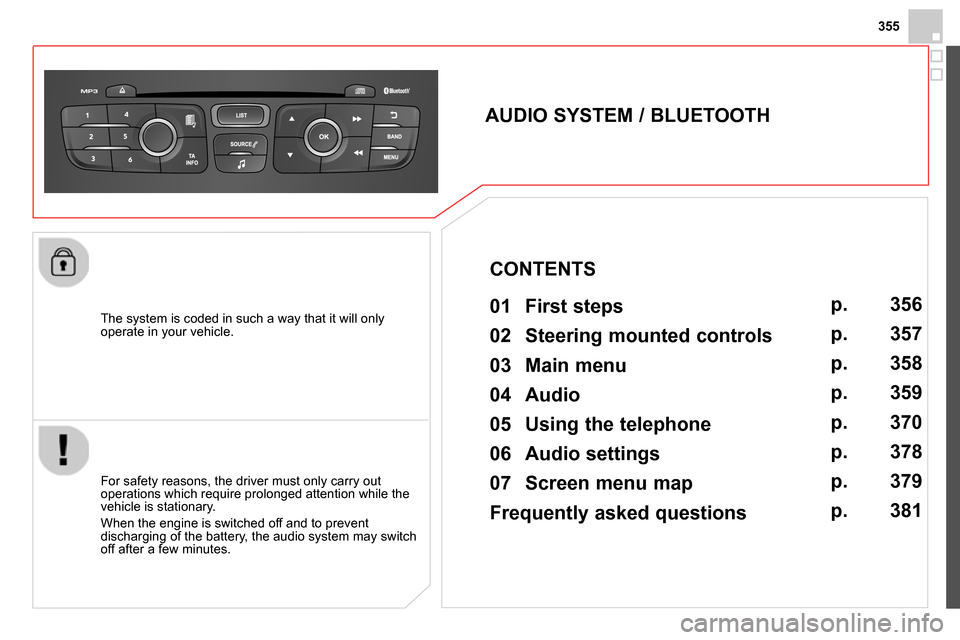

The system is coded in such a way that it will only
operate in your vehicle.







AUDIO SYSTEM / BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



CONTENTS

02 Steering mounted controls

03 Main menu

04 Audio

05 Using the telephone

06 Audio settings

07 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
356
357
358
359
370
378
379
381

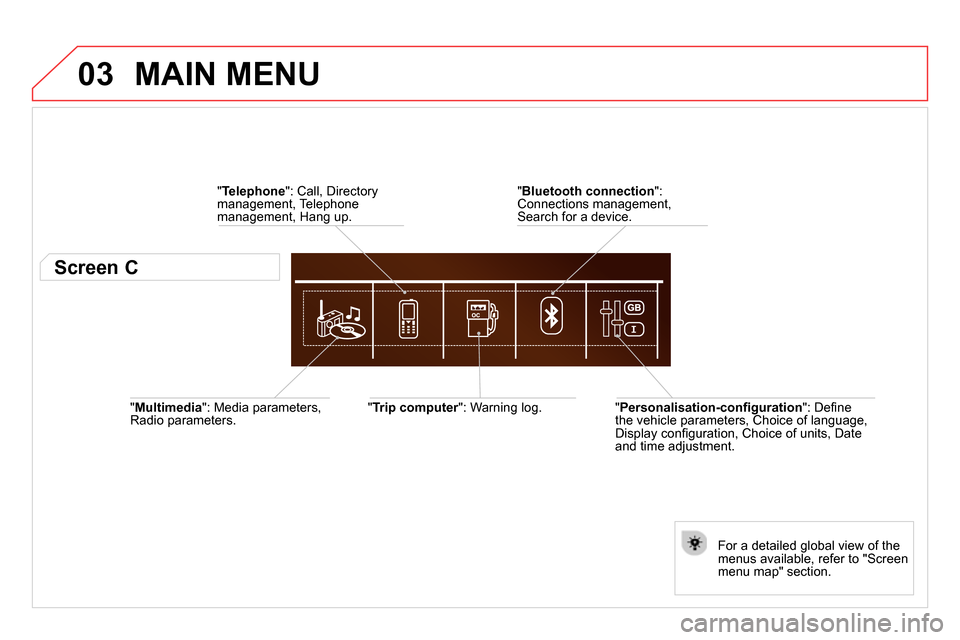

03

" Multimedia
": Media parameters,
Radio parameters.
" Trip computer
": Warning log.

For a detailed global view of the
menus available, refer to "Screen
menu map" section.

" Bluetooth connection
":
Connections management,
Search for a device.
" Telephone
": Call, Directory
management, Telephone
management, Hang up.

MAIN MENU


" Personalisation-confi guration
": Defi ne
the vehicle parameters, Choice of language,
Display confi guration, Choice of units, Date
and time adjustment.










Screen C

369

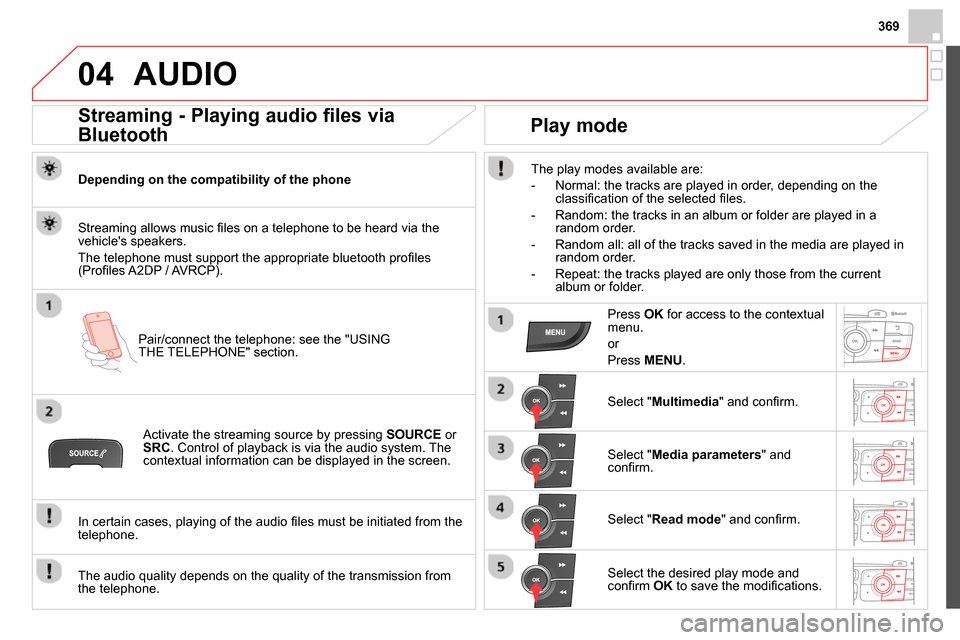

04 AUDIO







Streaming - Playing audio files via
Bluetooth

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING
THE TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP / AVRCP).

Activate the streaming source by pressing SOURCE
or
SRC
. Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from the
telephone.

The audio quality depends on the quality of the transmission from
the telephone.



Play mode


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.


Press OK
for access to the contextual
menu.
or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.
