Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a
few
moments, without exceeding 30 mph
(50
km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on
roads that have been cleared of snow,
to avoid damaging your vehicle's tyres
and the road sur face. If your vehicle
is fitted with alloy wheels, check that
no part of the chain or its fixings is in
contact with the wheel rim.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running
speed authorised.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original
tyre size Maximum link
size.
215/60 R16 9 mm
215/55 R17
225/45 R18
225/40 R19
cannot be fitted with chains
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information

Changing a bulb
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure
washer on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.Light-emitting diodes (LEd)
For the replacement of this type of
lamp, go to a CITROËN dealer or a
qualified workshop.
LED (light-emitting diode) replacement
kits are available from CITROËN
dealers.
Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.

241
Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
Model with directional xenon and
full-LEd h eadlamps
1. daytime running lamps / sidelamps
(LEds ).
2.
di

rectional main beam / dipped beam
headlamps (
d1S

).
3.
di

rection indicators (LE
ds
).
4.
di

rectional foglamps (LE
ds

).
Model with halogen headlamps
(t y p e 1)
1. direction indicators (H21 clear).
2. di
pped beam headlamps (H7).
3.
M

ain beam headlamps (H1).
4.
da

ytime running lamps / sidelamps
(P21/5W XL).
5.
di

rectional front foglamps (H11).
Front lamps
Model with halogen headlamp
and LEd light signature (type 2)*
1. direction indicators (LEds ).
2. da
ytime running lamps / sidelamps
(LE
ds

).
3.
di

pped beam headlamps (H7).
4.
M

ain beam headlamps (H7).
5.
di

rectional front foglamps (H11).
Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
*
LED: light emitting diodes.
Practical information

Changing direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Model with halogen (type 2) and xenon
headlamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Model with halogen headlamps (t yp e 1)
F
T
urn the bulb holder a quarter of a turn and
extract it.
F

P

ull out the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.
F

R
emove the air deflector by unclipping
each of its three attachment points.
F

U
nclip the bonnet release cable at its
two
fixings.
F

M
ove the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).

243
Changing dipped beam headlamp
bulbs (on models with halogen
headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

S
pread the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Changing main beam headlamp
bulbs (on models with type 1
halogen headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

S
queeze the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (on models with type 2
halogen headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

Changing daytime running lamp /
s idelamp bulbs (on models with
type 1 halogen headlamps)
F Remove the protective cover by pulling
the tab.
F

D
isconnect the wiring connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeaters
F Insert a flat screwdriver towards the centre of the repeater between the repeater and
the base of the mirror.
F

T
ilt the flat screwdriver to extract the
repeater and remove it.
F

D
isconnect the repeater connector.
To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.
Changing daytime running lamp /
s idelamp bulbs (on models
with type 2 halogen or xenon
headlamps)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

245
Changing the side spotlamps
(LEd s)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
Changing foglamp bulbs
(on models with halogen
headlamps)
F Introduce a flat screwdriver in the hole in
the finisher.
F

P
ull and lever to unclip the bumper finisher.
F

R
emove the two module fixing screws and
remove it from its housing.
F

D
isconnect the bulb holder connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it. To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
Practical information

1. Brake lamps (P21/5W).
2. Sidelamps (LE d s)*.
3.
di

rection indicators (PY21W amber).
4.
R

eversing lamp (P21W).
5.
R

ear foglamps (P21W).
Rear lamps
Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
o n l y.
Changing stop lamp, reversing lamp and direction indicator bulbs
These three bulbs are changed from inside the boot:
F
o
pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside, F

r
emove the foam seal,
F

u
nclip the two small secondary connectors,
F

s
pread the two tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the
lamp.
* LED: light-emitting diodes.

247
Changing the light guides /
sidelampsnumber plate lamps (W5W)Third brake lamp (LEds )
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
For the replacement of this type of light-
emitting diode lamp, contact a CITROËN dealer
or a qualified workshop. To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F

I

nsert a thin screwdriver into the lens
cutout.
F

P

ush it outwards.
F

R

emove the lens.
F

C

hange the faulty bulb.
To refit, press on the lens to clip it in place.
Practical information

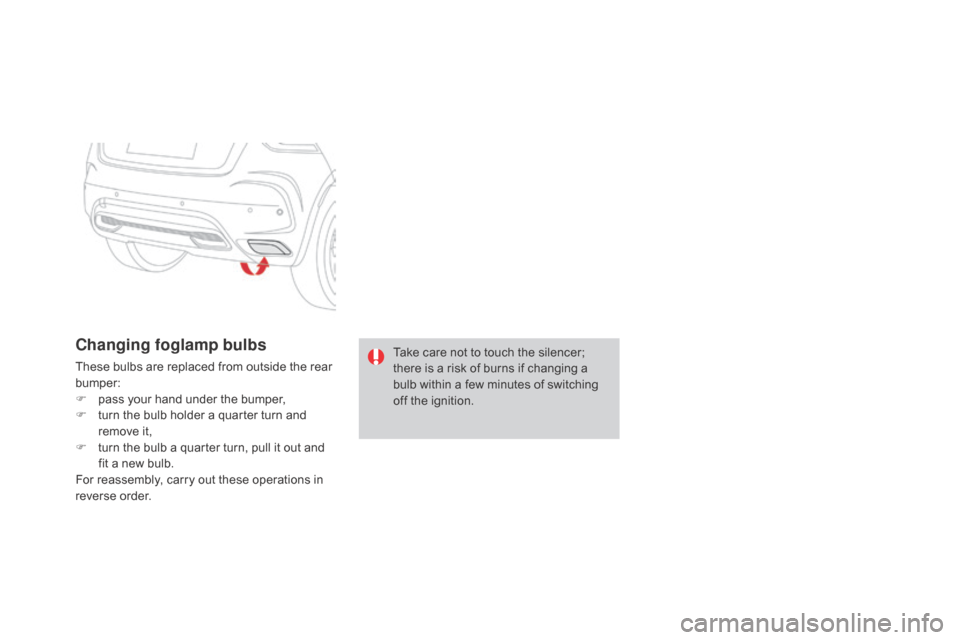

Changing foglamp bulbs
These bulbs are replaced from outside the rear
bumper:
F
p
ass your hand under the bumper,
F

t
urn the bulb holder a quarter turn and
remove it,
F

t
urn the bulb a quarter turn, pull it out and
fit a new bulb.
For reassembly, carry out these operations in
reverse order. Take care not to touch the silencer;
there is a risk of burns if changing a
bulb within a few minutes of switching
off the ignition.
