Never store bottles of AdBlue® in your
vehicle. Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
Procedure
F Press the START/STOP button to switch
o ff the engine. F
Ra

ise the boot floor for access to the
AdBlue
® tank. Use an object, such as a
bag, to keep the left part up.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
checks

DS5_en_Chap09_verifications_ed02-2015

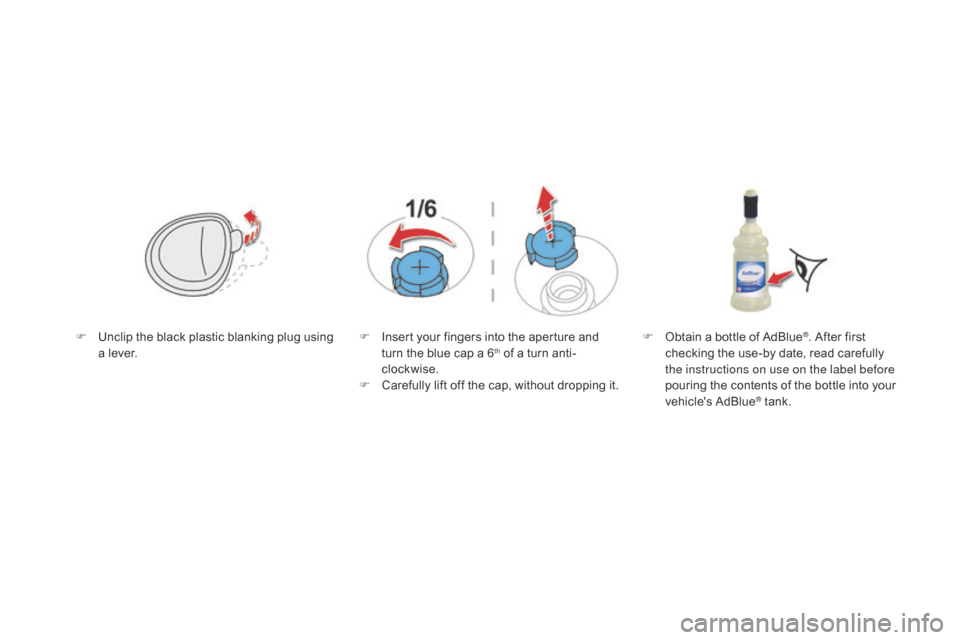

F Unclip the black plastic blanking plug using
a lever. F In
sert your fingers into the aperture and
turn the blue cap a 6th of a turn anti-
clockwise.
F
Ca

refully lift off the cap, without dropping it. F Ob
tain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.

261
DS5_en_Chap09_verifications_ed02-2015
F After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F
Re

fit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F Re fit the black plastic blanking plug,
clipping it in place.
F
Lo

wer the boot floor and close the tailgate.
Important: if your vehicle's
AdBlue
® tank is completely empty -
wh
ich is confirmed by the alert
messages and the impossibility of
starting the engine - you must add at
least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.Important:
when topping up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you must
wait for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10
s

econds, then start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
checks

DS5_en_Chap10_caracteristiques_ed02-2015
Technical data
01

DS5_en_Chap10_caracteristiques_ed02-2015

DS5_en_Chap10_caracteristiques_ed02-2015
Petrol engineTHP 15 0THP 160 THP 165 S&S THP 210 S&S
Gearbox Automatic

(6- speed) Automatic

(6- speed) EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5FEA5FMA -Y -A /
d5G

ZT/S -T/1S -T/2S5GMM/S
Cubic capacity (cc) 1 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 11 0120 121155
Max power engine speed (rpm) 6 0506 000 6 0006 000
Max torque: EU standard (Nm) 240240240285
Max torque engine speed (rpm) 1 4001 4001 400 1 750
Fuel UnleadedUnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 4.25
4.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

265
DS5_en_Chap10_caracteristiques_ed02-2015
Petrol weights and towed loads (in kg)
Petrol engineTHP 15 0THP 160 THP 165 S&S THP 210 S&S
Gearbox Automatic

(6- speed) Automatic

(6- speed) EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5FEA5FMA -Y -A /
d5G

ZT/S -T/1S -T/2S5GMM/S
-
Un

laden weight 1 4951 495 1 4291 430
-
Ke

rb weight* 1 5701 5701 504 1 505
-
Gr

oss vehicle weight (GV W) 2 0302 030 2 0172 010
-
Gr

oss train weight (GTW)
on a 1

2 % gradient 2 830
2 830 3 1172 760
-
Br

aked trailer (within GTW limit)
on a 1

0 % or 12 % gradient 800
8001 100 750
-
Br

aked trailer** (with load transfer within the
GTW limit) 800
8001 400 1 050
-
Un

braked trailer 74 574 5750 750
-
Re

commended nose weight 75757575
* The kerb weight is equal to the unladen weight + driver (75 kg).
**
Th

e weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Technical data

DS5_en_Chap10_caracteristiques_ed02-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).Petrol engine
THP 165 S&STHP 210 S&S
Gearbox EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5GZT/S -T/1S -T/2S5GMM/S
-
Un
laden weight
1 5391 539
-
Ke
rb weight*
1 6141 614
-
Gr
oss vehicle weight (GV W)
2 2252 160
-
Gr
oss train weight (GTW)
on a 1

2% gradient
3 225
2 910
-
Br
aked trailer (within the GTW limit)
on a 1

0% or 12% gradient
1 000
750
-
Un
braked trailer
750750
-
Re
commended nose weight
7575
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

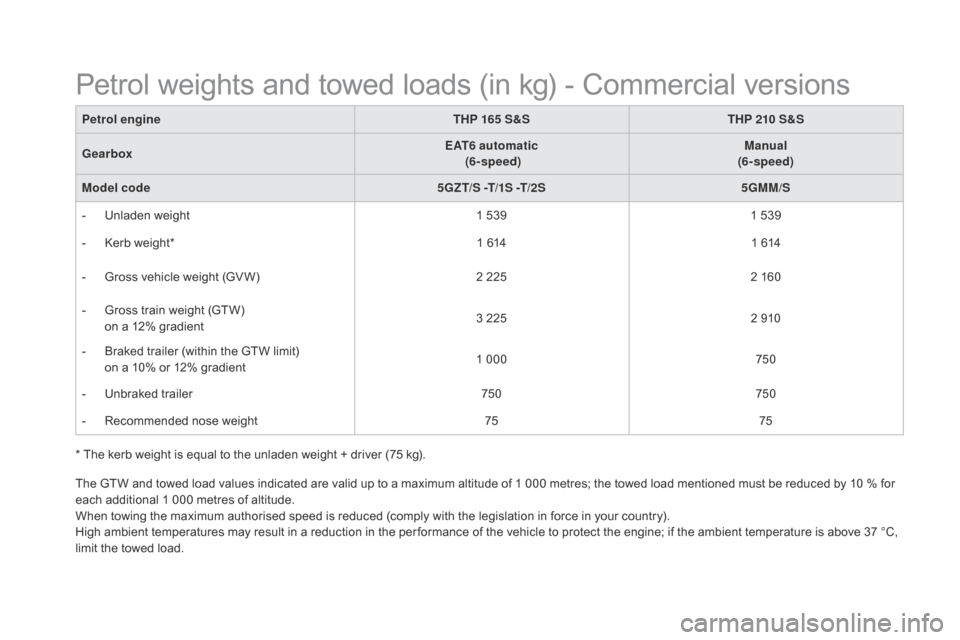

Petrol weights and towed loads (in kg) - Commercial versions

267
DS5_en_Chap10_caracteristiques_ed02-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
die
sel engine
BlueH
di
115
S&S BlueH
di
120 S&S
Gearbox Manual

(6- speed) EAT6 automatic
(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code BHXM/S -M/1S -M/2SBHX T/S -T/1S -T/2SBHZM/S -M/1S -M/2S BHZT/S -T/1S -T/2S
Cubic capacity (cc) 1 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.3
Max power*: EU standard (kW) 8588
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 300300
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity
(with filter replacement) (in litres) 3.75
3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5_en_Chap10_caracteristiques_ed02-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
die
sel engine
BlueH
di
135 S&S
BlueH
di
150 S&S
BlueH
di
180 S&S
Gearbox Manual

(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code AH
v A
HSM/S - M/1S - M/2S
AHX AHRM/S -M/1S -M/2S AHW T/S -T/1S -T/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 011 0132
Max power engine speed (rpm) 4 0004 000 3 750
Max torque: EU standard (Nm) 320370400
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 6 .1
6 .15 .1
Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
