189Safety
Lateral airbags

Deployment

The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone
B , perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip andshoulder of the front occupant of the vehicle
and the corresponding door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest
frame, door side.

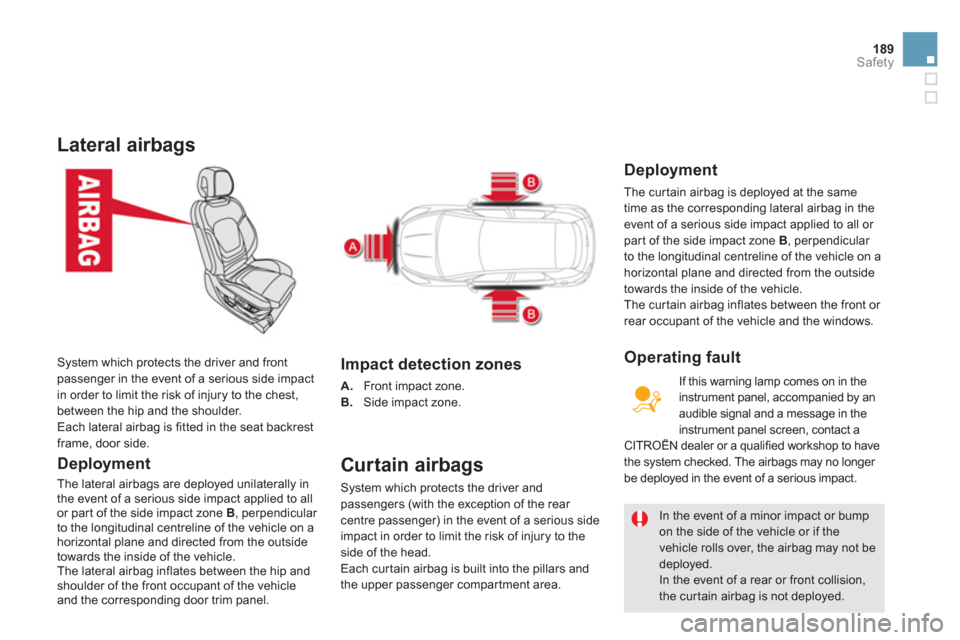

Impact detection zones
A. Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and passengers (with the exception of the rear centre passenger) in the event of a serious sideimpact in order to limit the risk of injury to the side of the head. Each curtain airbag is built into the pillars and
the upper passenger compar tment area.
In the event of a minor impact or bump on the side of the vehicle or if the
vehicle rolls over, the airbag may not be deployed.
In the event of a rear or front collision, the cur tain airbag is not deployed.


Deployment

The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or
par t of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warnin
g lamp comes on in the
instrument panel, accompanied by an audible signal and a message in the instrument panel screen, contact aCITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.

Operating fault

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between theoccupants and the airbags (a child, pet,
object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualified workshop.
Even if all of the precautions mentioned areobser ved, a risk of injury or of minor burnsto the head, chest or arms when an airbag is deployed cannot be ruled out. The baginflates almost instantly (within a few milliseconds) then deflates within the sametime discharging the hot gas via openings provided for this purpose.
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you can contact a CITROËN dealer (see "Practical information - § Accessories"). Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.Do not sit with the upper par t of the body anynearer to the door than necessary.

Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Curtain airbags
Do not fix or attach anything to the roof. This could cause injury to the head if the cur tain airbag is deployed. If fitted on your vehicle, do not remove thegrab handles installed on the roof, they play a par t in securing the cur tain airbags.

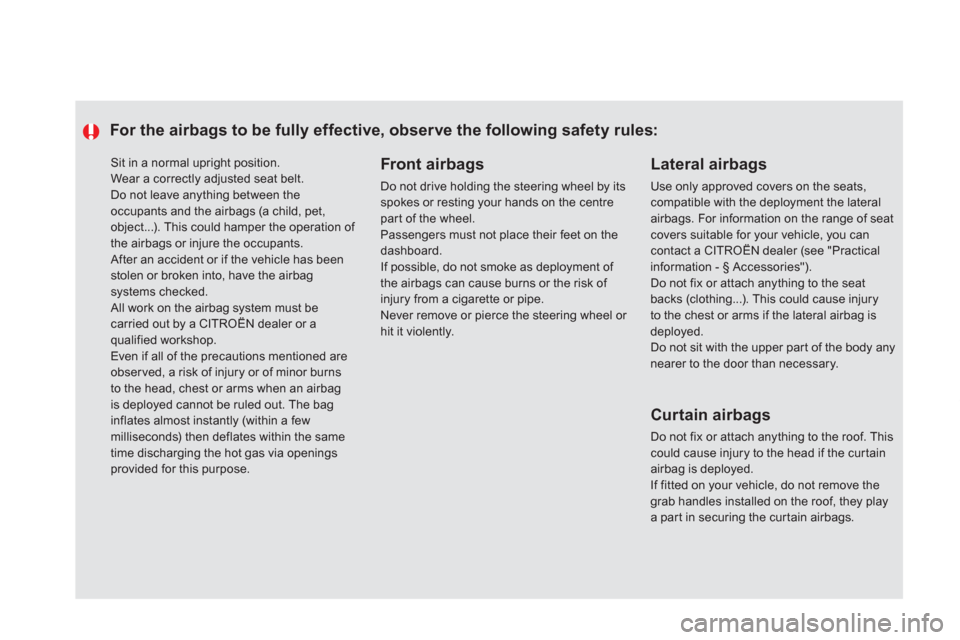

For the airbags to be fully effective, observe the following safety rules:

191Safety

008
Practical information

This kit is installed in the storage box, under the boot floor.
Complete system consisting of a compressor
and a sealant car tridge which permits
temporary repair of a tyre so that you can rdrive to the nearest garage.
It is designed to repair most punctures which could affect the tyre, located on the tyre tread
or shoulder.

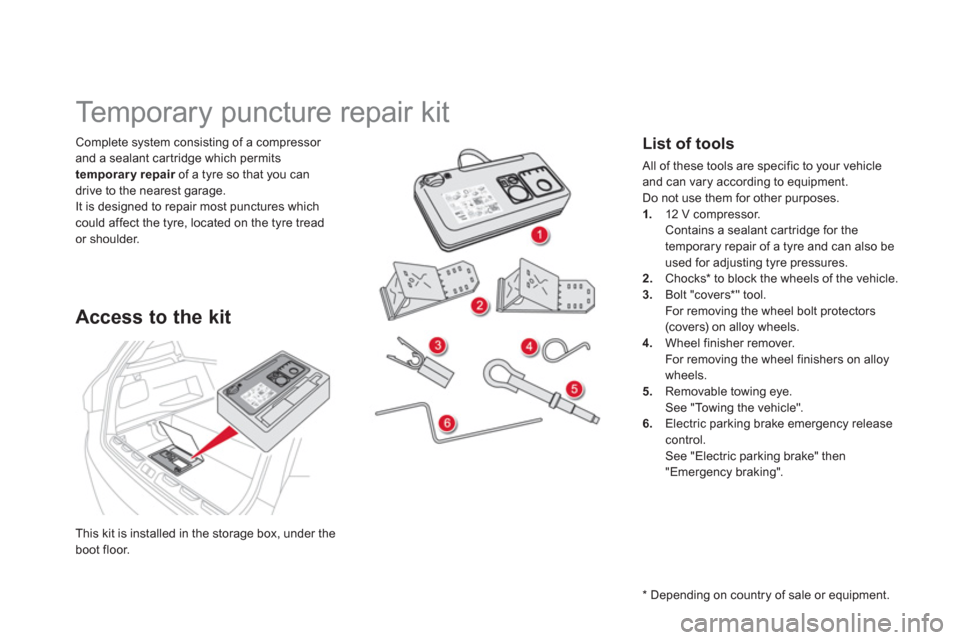

Temporary puncture repair kit
Access to the kit







List of tools
All of these tools are specific to your vehicle
and can vary according to equipment.
Do not use them for other purposes.
1. 12 V compressor.

Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures. 2.Chocks * to block the wheels of the vehicle.3.Bolt "covers *
" tool.
For removing the wheel bolt protectors (covers) on alloy wheels. 4. Wheel finisher remover.
For removing the wheel finishers on alloywheels.
5. Removable towing eye.
See "Towing the vehicle".
6.Electric parking brake emergency releasecontrol.
See "Electric parking brake" then
"Emergency braking".



*
Dependin
g on country of sale or equipment.

195
Practical information
A. "Sealant" or "Air" position selector.
B. On "I"/off "O"
switch. C.
Deflation button. D.
Pressure gauge (in bar or p.s.i.).E.
Compartment housing:


- a cable with adaptor for 12 V socket,

- various inflation adaptors for
accessories, such as balls,
bicycle tyres...

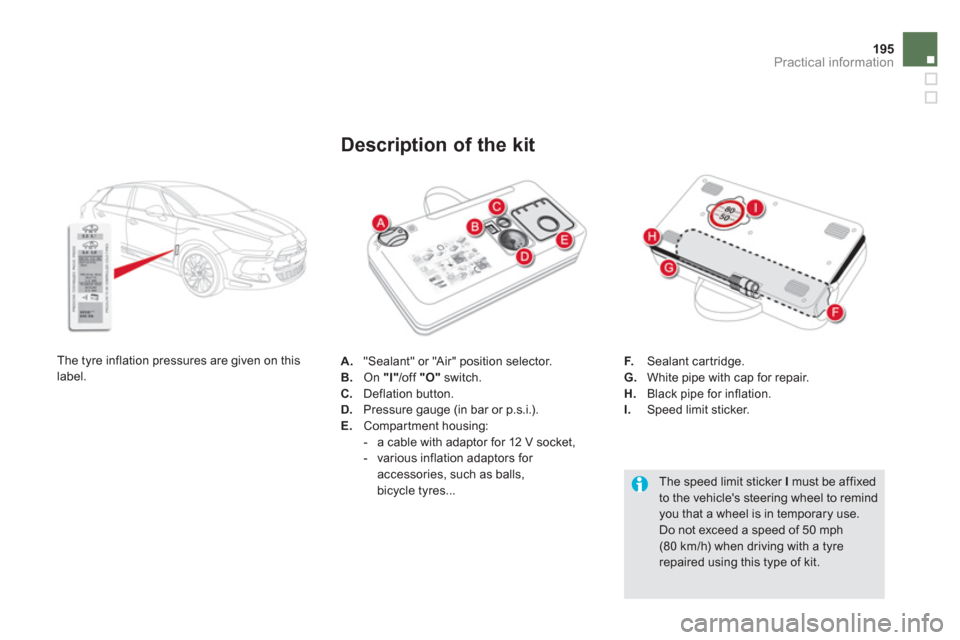

Description of the kit
F.Sealant cartridge. G.White pipe with cap for repair.
H. Black pipe for inflation.
I. Speed limit sticker.


The speed limit sticker I
must be affixedto the vehicle's steering wheel to remind you that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre repaired using this type of kit.
The t
yre inflation pressures are given on this
label.

1. Sealing
)Switch off the ignition.)Turn the selector Ato the "sealant"position.)Check that the switch B
is in
position "O" .
)
Uncoil the white pipe G
fully.)
Unscrew the cap from the white pipe.)
Connect the white pipe to the valve of the
tyre to be repaired.
)Connect the compressor's electric plug to
the vehicle's 12 V socket. )Star t the vehicle and leave the engine running.
Take care, this product is harmful(e.g. ethylene-glycol, colophony...) if swallowed and causes irritation to the eyes. Keep it out of reach of children.


Do not star t the compressor before connecting the white pipe to the tyre valve: the sealant product would be expelled through the pipe.

Avoid removing any foreign bodieswhich have penetrated into the tyre.

197
Practical information

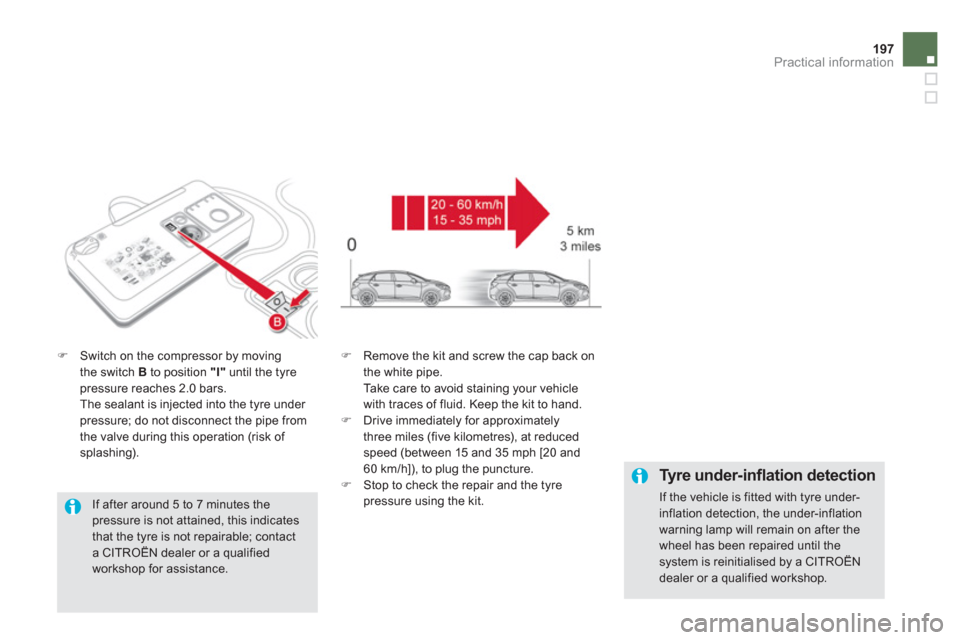

)Switch on the compressor by moving
the switch B to position "I"until the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre under pressure; do not disconnect the pipe from
the valve during this operation (risk of splashing).
) Remove the kit and screw the cap back on
the white pipe.
Take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand. ) Drive immediately for approximately
three miles (five kilometres), at reducedspeed (between 15 and 35 mph [20 and 60 km/h]), to plug the puncture. ) Stop to check the repair and the tyre
pressure using the kit.




Tyre under-infl ation detection

If the vehicle is fitted with tyre under-inflation detection, the under-inflation warning lamp will remain on after thewheel has been repaired until thesystem is reinitialised by a CITROËN dealer or a qualified workshop.



If after around 5 to 7 minutes the pressure is not attained, this indicates that the tyre is not repairable; contacta CITROËN dealer or a qualifiedworkshop for assistance.

2. Infl ation
)Turn the selector Ato the "air" position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel.
) Connect the compressor's electric plug to
the vehicle's 12 V socket.) Star t the vehicle again and leave the engine running.
)Adjust the pressure using the compressor (to inflate: switch B
in position "I"
;
to deflate: switch B in position "O"and press button C ), in accordance with the
vehicle's tyre pressure label (located on the
left hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged; contact a CITROËN dealer or qualified
workshop for assistance.)Remove and stow the kit.
)Drive at reduced speed (50 mph [80 km/h] max) limiting the distance travelled toapproximately 120 miles (200 km).
)Visit a CITROËN dealer or aqualified workshop as soon aspossible. You must inform the technician that you have used this kit. After inspection, the technician willinform you whether the tyre can berepaired or must be replaced.
