Practical information
Dipped beam headlamps
(halogen model)
)
Remove the protective plastic cover by
pulling on the tab.






Main beam headlamps
(halogen model)
)Remove the protective plastic cover bypulling on the tab.)Remove the connector with the bulb by pressing on the lug at the bottom. )Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

)
Press on the top of the connector thenpivot the assembly downwards. )
Remove the connector with the bulb.)
Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of thebulb first.

Daytime running lamps/sidelamps
For the replacement of this type of LED lamp and lighting guides, contact a CITROËN dealer
or a qualified workshop.

A replacement kit for the LEDs is available fromCITROËN dealers.
Direction indicators
Faster flashing of a direction indicator warning lamp (left or right) indicates a failed bulb on that side.

The direction indicator bulb is located below the front lamp.) Turn the bulb holder a quar ter turn and pull
it out.) Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of thesebulbs.

Practical information

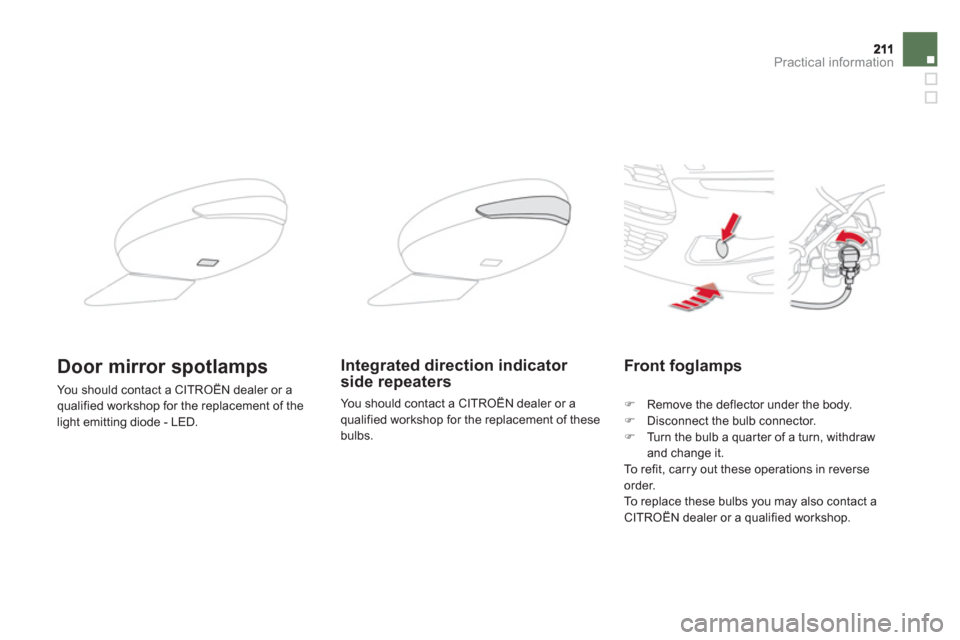

Front foglamps
) Remove the deflector under the body.)
Disconnect the bulb connector.)
Turn the bulb a quarter of a turn, withdraw
and change it.
To r e
fit, carry out these operations in reverseorder.
To replace these bulbs you may also contact a CITROËN dealer or a qualified workshop.
Integrated direction indicator
side repeaters
You should contact a CITROËN dealer or aqualified workshop for the replacement of these
bulbs.

Door mirror spotlamps

You should contact a CITROËN dealer or a qualified workshop for the replacement of the light emitting diode - LED.

1.Sidelamps(light emitting diodes - LEDs).2.Direction indicators (PY21W amber).3.Reversing lamps (P21W).4. Brake lamps (P21W).5.Foglamps (P21W).

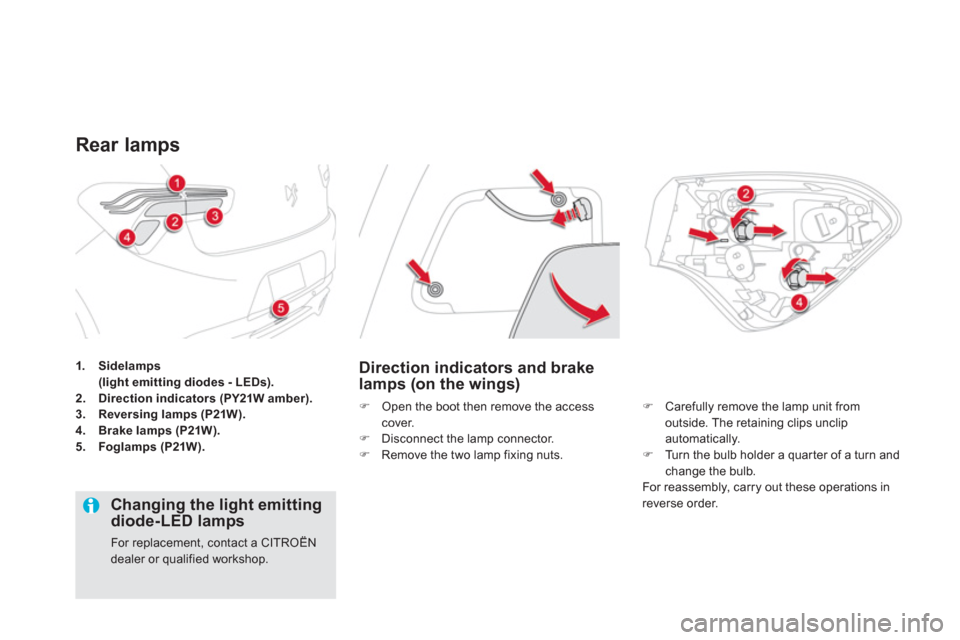

Rear lamps
Direction indicators and brake
lamps (on the wings)
) Open the boot then remove the access cover.)
Disconnect the lamp connector. )
Remove the two lamp fixing nuts.
)Carefully remove the lamp unit from
outside. The retaining clips unclipautomatically. )Turn the bulb holder a quarter of a turn andchange the bulb.
For reassembly, carry out these operations in
reverse order.


Changing the light emittingdiode-LED lamps

For replacement, contact a CITROËN dealer or qualified workshop.

Practical information

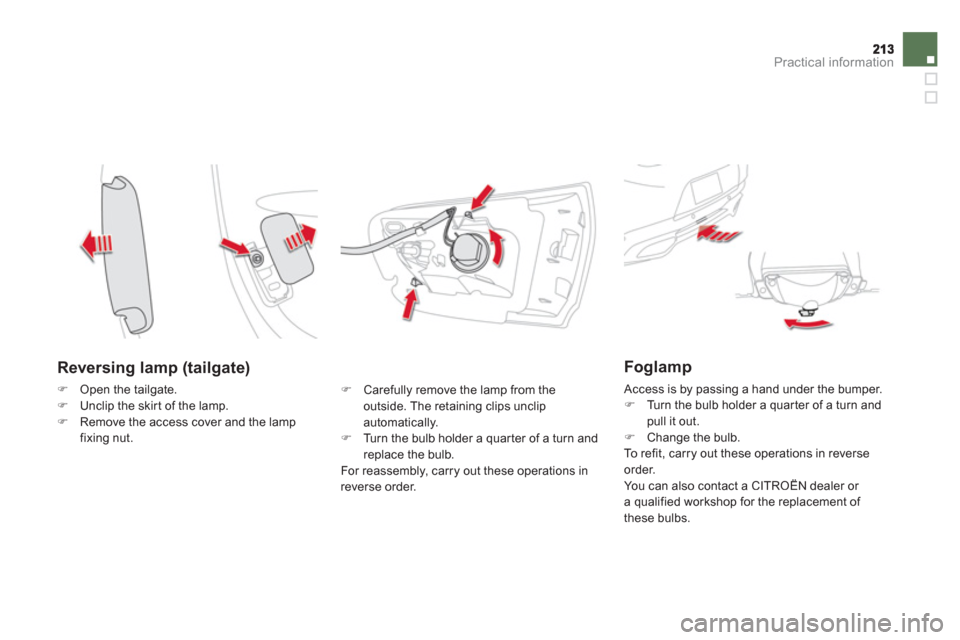

Reversing lamp (tailgate)
)Open the tailgate.)Unclip the skir t of the lamp.)Remove the access cover and the lampfixing nut.
)
Carefully remove the lamp from the
outside. The retaining clips unclip
automatically.) Turn the bulb holder a quarter of a turn and replace the bulb.
For reassembly, carry out these operations in reverse order.
Foglamp
Access is by passing a hand under the bumper. ) Turn the bulb holder a quar ter of a turn andpull it out.)
Change the bulb.
To r e f i t , c a r ry out these operations in reverseorder.
You can also contact a CITROËN dealer or
a qualified workshop for the replacement of
these bulbs.

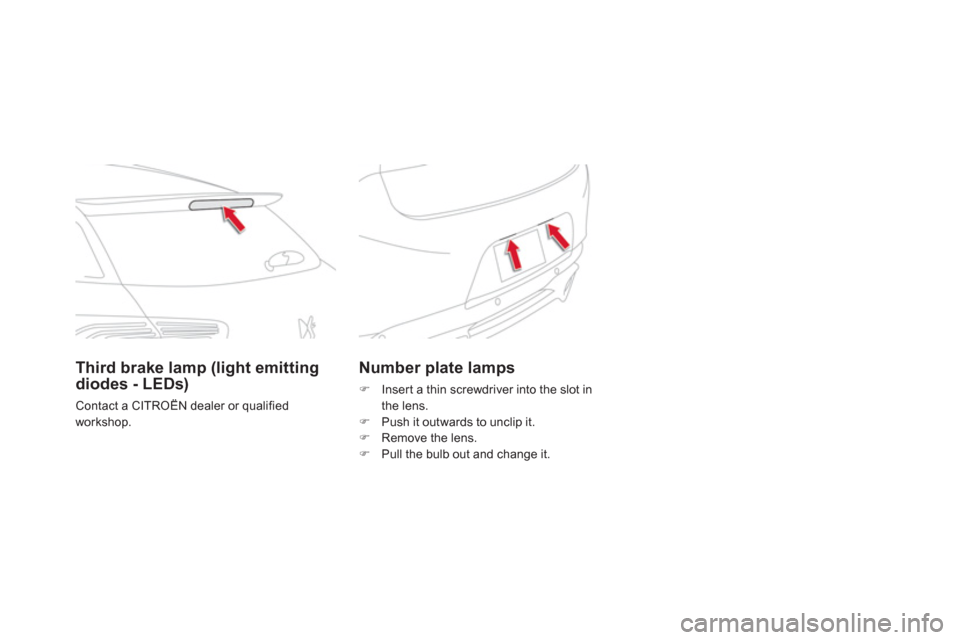

Number plate lamps
) Insert a thin screwdriver into the slot in
the lens. ) Push it outwards to unclip it.)
Remove the lens. )
Pull the bulb out and change it.


Third brake lamp (light emittingdiodes - LEDs)
Contact a CITROËN dealer or qualified
workshop.

215
Practical information




















Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
Th
e fuse extraction tweezer is fitted to the back of the dashboard fusebox cover.
For access to it:)remove the cover completely,)remove the tweezer.


Access to tooling
Before changing a fuse, the cause of
the failure must be identified andrectified.) Identify the failed fuse by checking thecondition of its filament.
Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse
from its housin
g.) Always replace the failed fuse with a fuse
of the same rating. ) Check that the number marked on thefusebox, the rating marked on the fuse and
the following tables all agree.

CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes.


Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or a qualified workshop.

Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
)Remove the cover.

Fuse N°

Rating (A)Functions
F6 A or B
15 Audio system.
F8
3 Alarm.
F13
10 Front cigarette lighter, front 12 V socket.
F14
10 Rear 12 V socket.
F1
63 Rear map reading lamps.
F173 Courtesy mirror.
F28 A or B
15 Audio system.
F3
020
Rear wiper.
F32
10 Audio amplifier.

217Practical information

Engine compartment fuses

The fusebox is placed in the engine compartment near the battery.


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of
th
e fusebox.
Fuse N°
Rating(A)Functions
F20 15
Front
/rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

12 V battery Procedure for charging your battery when it is flat or for starting the engine using another battery.
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a CITROËN dealer or qualified workshop is requiredwhen replacing or disconnecting thebattery.
Failure to observe this recommendation may cause premature wear of thebattery. The battery is located under the bonnet.
To
gain access to it:)
open the bonnet using the interior releaselever, then the exterior safety catch, )
remove the plastic cover to gain access to
the two terminals,) unclip the fusebox to remove the battery,
if necessary.

Access to the battery
)Raise the locking tab fully.




Disconnecting the cables

Reconnectin
g the cables
)Position the open clip 1of the cable on the
positive terminal (+) of the battery. )Press ver tically on the clip 1
to position it correctly against the battery.)Lock the clip by spreading the positioning lug and then lowering the tab 2.

Do not force the tab as locking will not be possible if the clip is not positionedcorrectly; star t the procedure again.

Before doing any work on your vehicle,switch off the ignition ( Ready
lamp off)to avoid any risk of injury resulting fromautomatic operation of the engine. Y
our vehicle is fitted with a conventional 12 Vbattery, located under the bonnet, in addition
to the high voltage battery used by the hybrid
system.
In cer tain conditions, if the 12 V batter
y is
too discharged to activate the hybrid system, recharging from another conventional 12 V
battery is possible.
Do not carry out this recharge if the Readylamp is on.
