Citroen DS5 HYBRID4 RHD 2011.5 1.G Owner's Manual

03
259

For a detailed global view of the menus available, refer to the"Screen menu map" section.


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. " RADIO / MEDIA "
" TELEPHONE "
(If conversation in progress)


SETUP :
PARAMETERS
date and time, displa
y parameters, sound.
Changing the audio source:
RADIO:
radio broadcasts.
MUSIC: playing MEDIA.

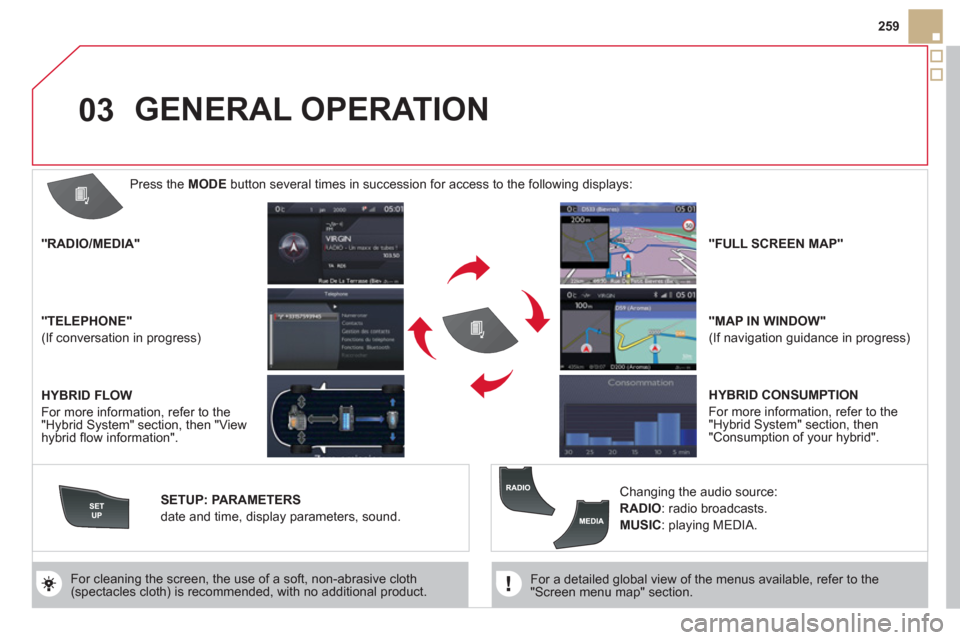

Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION
" FULL SCREEN MAP "
" MAP IN WINDOW "
(If navigation guidance in progress)
HYBRID FLOW
For more information, refer to the "Hybrid System" section, then "View
hybrid fl ow information".
HYBRID CONSUMPTION
For more information, refer to the
"Hybrid System" section, then"Consumption of your hybrid".

03

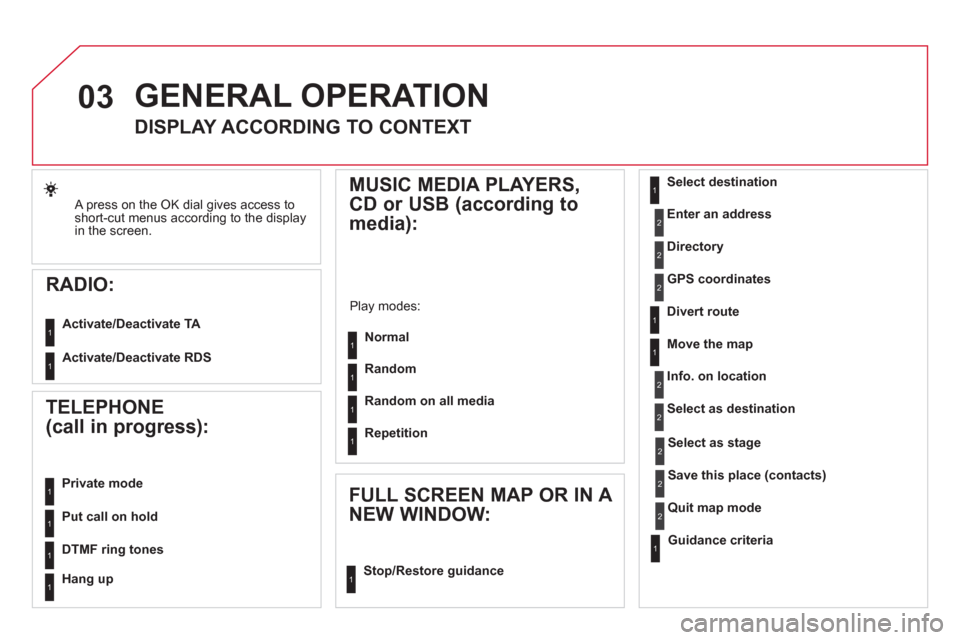

A press on the OK dial gives access to
short-cut menus according to the display in the screen.

RADIO:


Activate/Deactivate TA


Activate/Deactivate RDS
GENERAL OPERATION







DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:

Normal

Random

Random on all media

Re
petition


TELEPHONE
(call in progress):

Private mode

FULL SCREEN MAP OR IN A
NEW WINDOW:

Stop/Restore guidance Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode

Guidance criteria
Put call on hold


DTMF ring tones

Hang up
1
11
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1

04
261

To delete the list of recent destinations, select "Guidance options" in the navigation menu then select "Delete last destinations" and confi rm. Select "Ye s" then confi rm.

Deleting just one destination is not possible.


Go from the list to the menu (left/right).

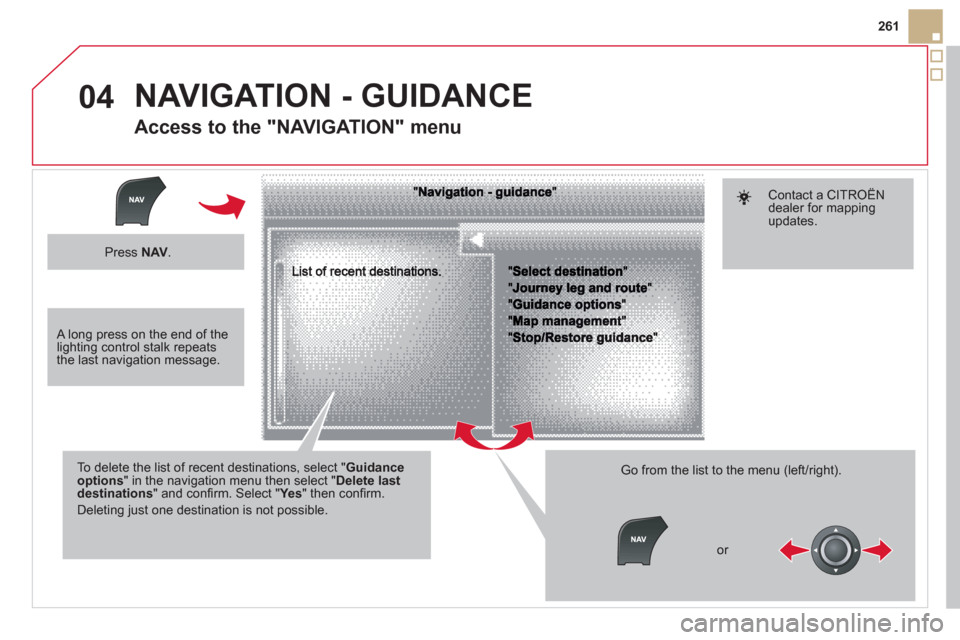

NAVIGATION - GUIDANCE







Access to the "NAVIGATION" menu
Press NAV.
or




Contact a CITROËNdealer for mappingupdates.


A long press on the end of the lighting control stalk repeats the last navigation message.

04
1
2
3
4
5
7
9
10
8
6
Press NAVto display the"Navigation - guidance " menu.

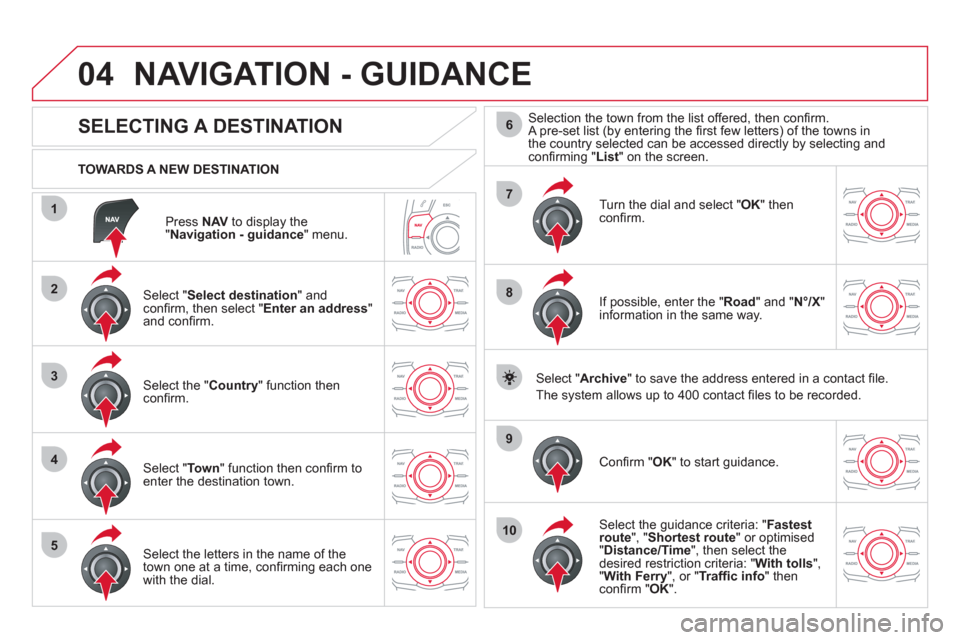

TOWARDS A NEW DESTINATION
NAVIGATION - GUIDANCE













SELECTING A DESTINATION

Select "Select destination
" and confi rm, then select " Enter an address"and confi rm.

Select the " Country
" function then confi rm.

Select "Town" function then confi rm to enter the destination town.

Select the letters in the name of the
town one at a time, confi rming each one
with the dial.Selection the town from the list offered, then confi rm.
A pre-set list
(by entering the fi rst few letters) of the towns in
the country selected can be accessed directly by selecting and confi rming " List" on the screen.
Turn the dial and select "OK" thenconfi rm.
If possible, enter the "
Road
" and "N°/X"
information in the same way.

Select "Archive
" to save the address entered in a contact fi le.
The s
ystem allows up to 400 contact fi les to be recorded.
Confi rm " OK
" to start guidance.
Select the guidance criteria: "Fastest
route", " Shortest route" or optimised "Distance/Time ", then select thedesired restriction criteria: "With tolls","With Ferry", or "Traffi c info" thenconfi rm "OK".

1
2
04
1
2
3
263

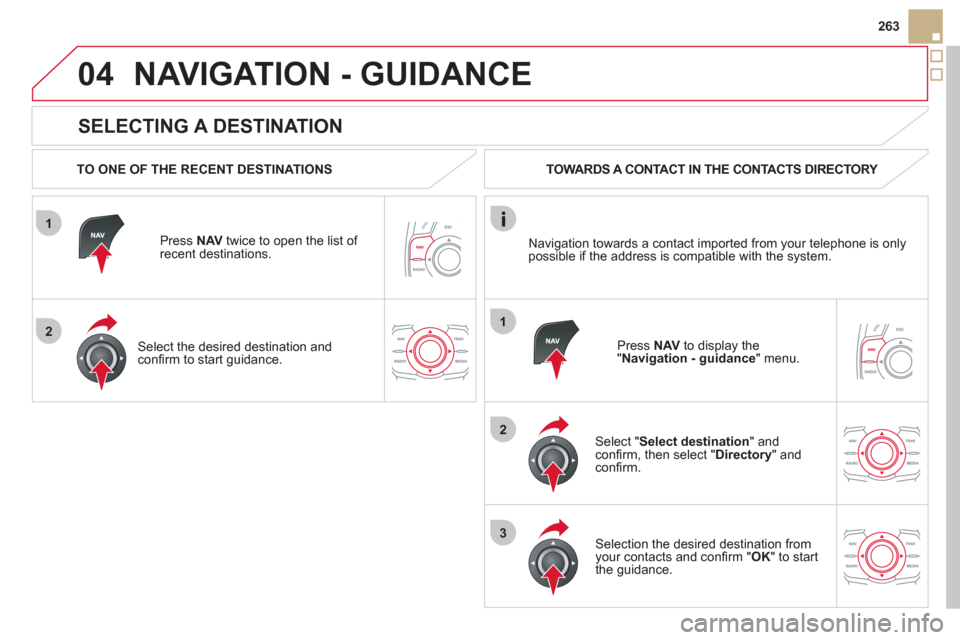

SELECTING A DESTINATION
NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS
Press NAV
twice to open the list of
recent destinations.

Select the desired destination and confi rm to start guidance. TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" andconfi rm, then select " Directory
" and confi rm.

Selection the desired destination from your contacts and confi rm "OK
" to start
the guidance.

Press NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

1
04
2
1
2
33
4
Select "Select destination" andconfi rm, then select " GPS coordinates"and confi rm.

Enter the
GPS coordinates and confi rm "OK " to start the guidance.
Press NAV
to display the"Navigation - guidance" menu.
NAVIGATION - GUIDANCE

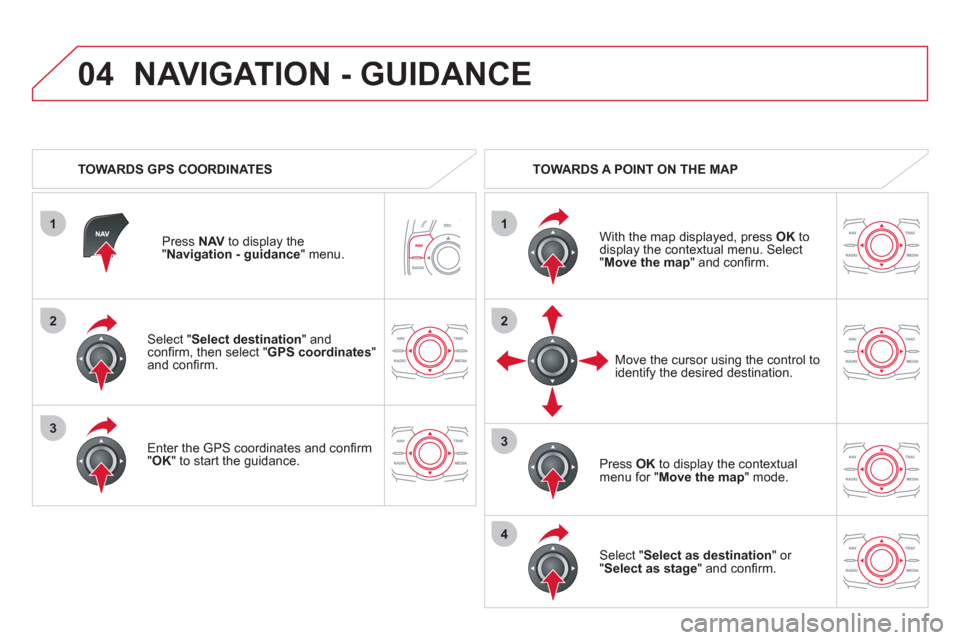

TOWARDS GPS COORDINATES TOWARDS A POINT ON THE MAP
With the map displa
yed, press OKto
display the contextual menu. Select"Move the map
" and confi rm.
Pr
ess OK
to display the contextual
menu for " Move the map " mode.
Select " Select as destination " or "Select as stage" and confi rm.
Move the cursor usin
g the control to
identify the desired destination.

04
1
3
4
5
2
265

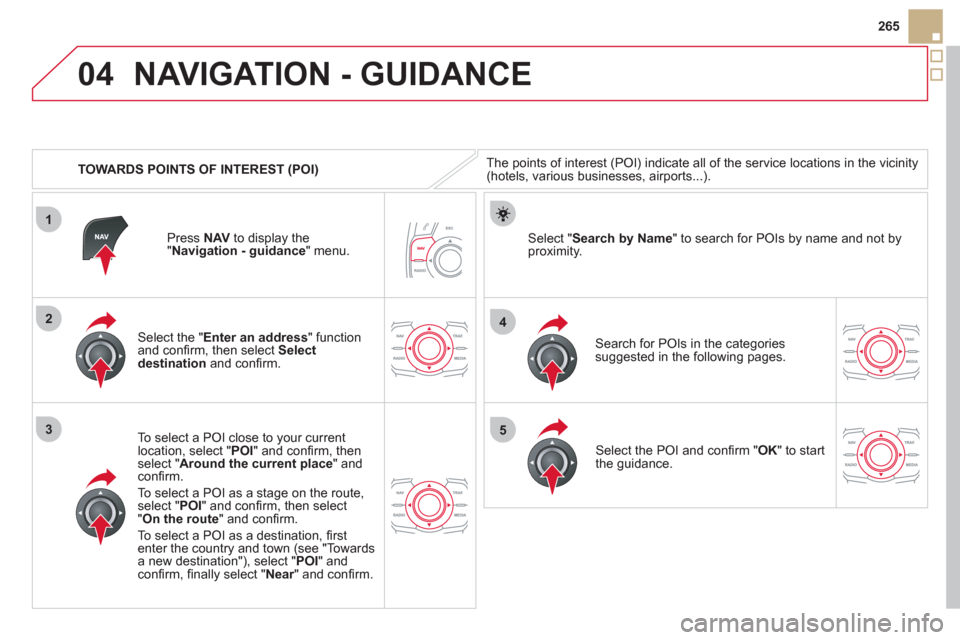

TOWARDS POINTS OF INTEREST
(POI)
NAVIGATION - GUIDANCE
The points of interest (POI) indicate all of the service locations in the vicinity(hotels, various businesses, airports...).

Select the " Enter an address
" function
and confi rm, then select Select
destinationand confi rm.

To select a P
OI close to your currentlocation, select "POI" and confi rm, thenselect " Around the current place
" and confi rm.
To select a P
OI as a stage on the route,select " POI" and confi rm, then select"On the route
" and confi rm.
To select a P
OI as a destination, fi rst enter the country and town (see "Towards
a new destination"), select "POI" andconfi rm, fi nally select "Near" and confi rm.r
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not byproximity. Press NAVto display the"Navigation - guidance " menu.
Select the POI and confi rm " OK" to start
the guidance.

04

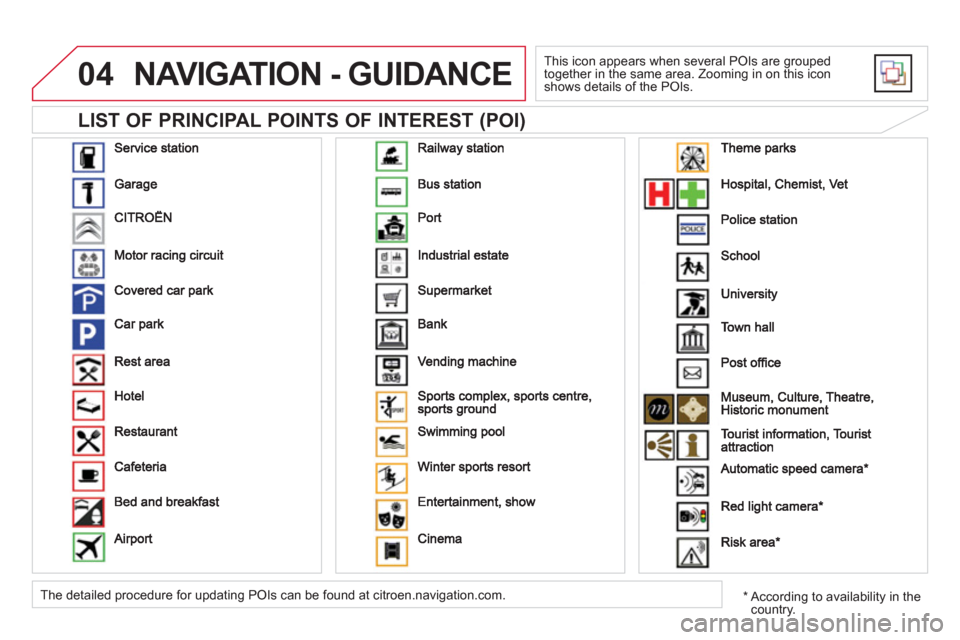

LIST OF PRINCIPAL POINTS OF INTEREST (POI)
NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon shows details of the POIs.

*
Accordin
g to availability in the country. The detailed procedure for updating POIs can be found at citroen.navigation.com.

1
2
3
04
267
NAVIGATION - GUIDANCE

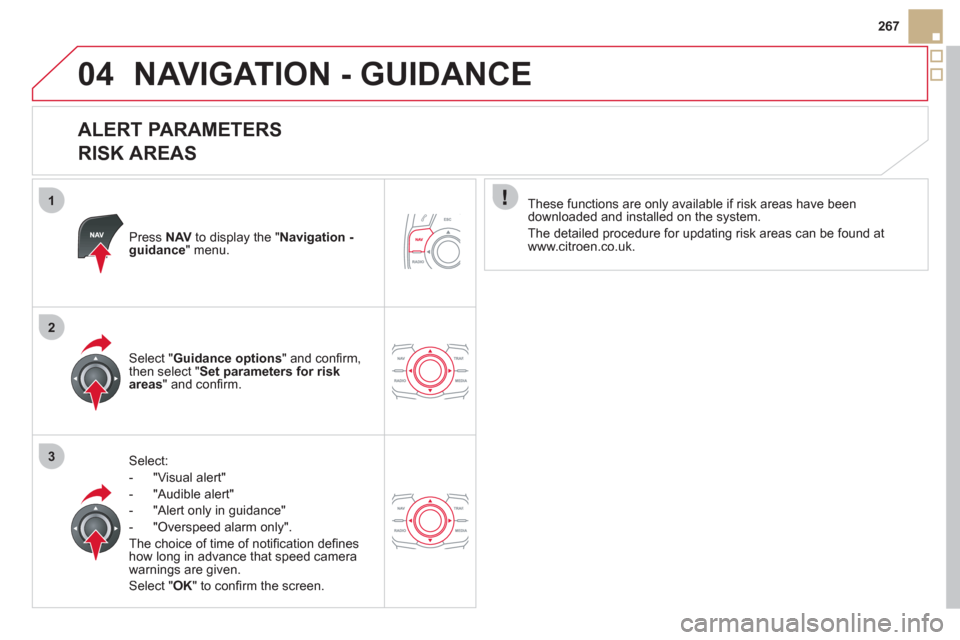

ALERT PARAMETERS
RISK AREAS
Press NAVto display the "Navigation - guidance" menu.
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updatin
g risk areas can be found atwww.citroen.co.uk.

04
1
4
3
1
3
22
NAVIGATION - GUIDANCE

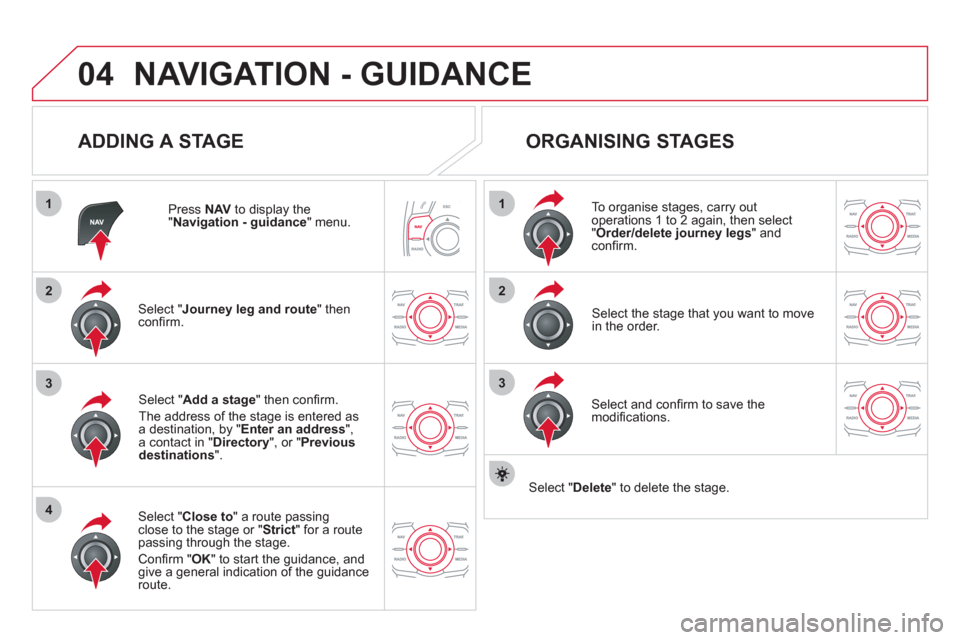

ADDING A STAGE


Press NAV
to display the "Navigation - guidance
" menu.
Select " Journey leg and route
" then confi rm.
Select " Close to
" a route passing close to the stage or " Strict
" for a routepassing through the stage.
Confi rm " OK " to start the guidance, andgive a general indication of the guidance
route.

Select "Add a stage
" then confi rm.
The address o
f the stage is entered as
a destination, by "Enter an address",a contact in " Directory
", or " Previous destinations".


ORGANISING STAGES

To organise stages, carry out operations 1 to 2 again, then select"
Order/delete journey legs" andconfi rm.

Select and confi rm to save the
modifi cations.
Select the stage that you want to move
in the order.

Select "Delete
" to delete the stage.
