engine Citroen DS5 HYBRID4 RHD 2011.5 1.G Service Manual

Access

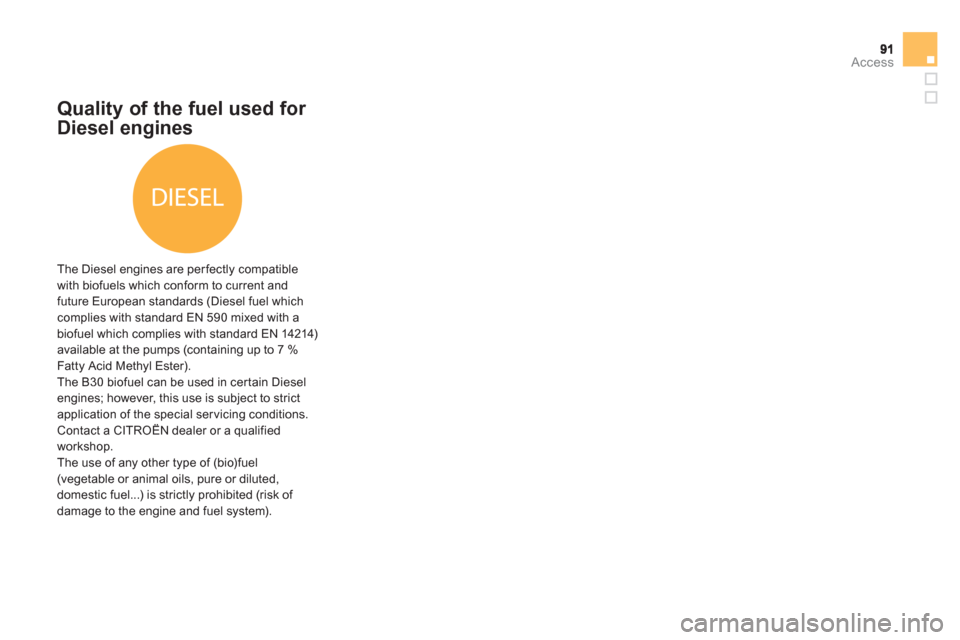

Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly compatible
with biofuels which conform to current andfuture European standards (Diesel fuel which complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)
available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel engines; however, this use is subject to strict
application of the special ser vicing conditions. Contact a CITROËN dealer or a qualified
workshop.
The use of any other type of (bio)fuel(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

Comfort
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
The electric functions of the driver's seat are active for about 45 seconds after opening the front door. They are deactivated about 45 seconds after switching off the ignition and in economy mode.

To reactivate them, switch on the ignition.

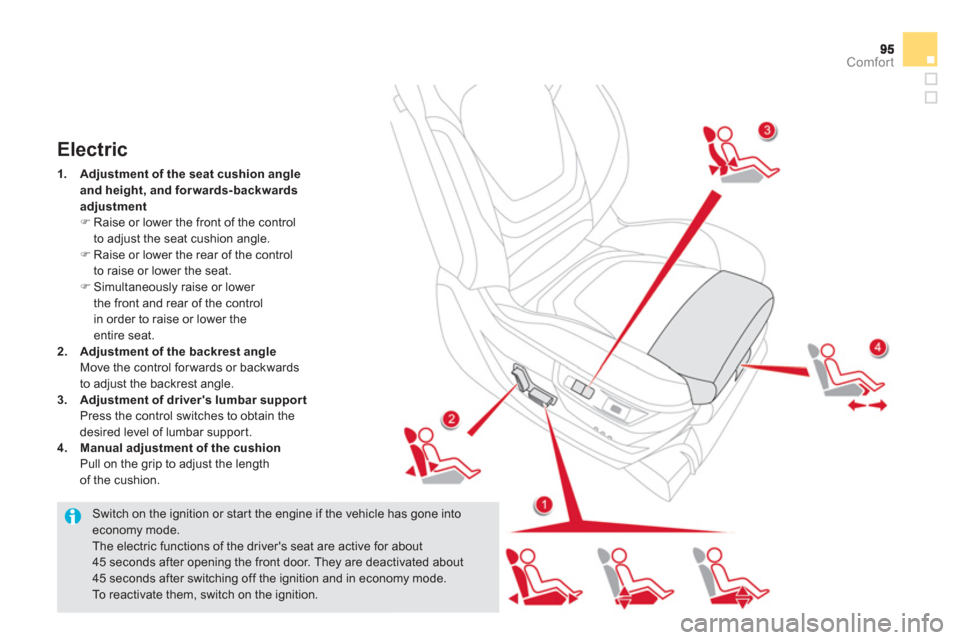

Electric
1.Adjustment of the seat cushion angleand height, and for wards-backwards adjustment)Raise or lower the front of the control
to adjust the seat cushion angle. )Raise or lower the rear of the control
to raise or lower the seat.)Simultaneously raise or lower
the front and rear of the controlin order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards
to adjust the backrest angle. 3.Adjustment of driver's lumbar support Press the control switches to obtain the
desired level of lumbar suppor t.
4. Manual adjustment of the cushion
Pull on the grip to adjust the length of the cushion.

111Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.












Recommendations for ventilation and air conditioning


If after an extended stop in sunshine,
the interior temperature is very high, firstventilate the passenger compar tment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is
perfectly normal.

Dual-zone digital air conditioning
1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passenger compartment according to the comfort value
that you have chosen.
These three modes automatically control the system, according to the desired setting, while also maintaining the desired comfort value.
) Press the "AUTO"
button repeatedly:


- a first indicator lamp comes on; the "low"
setting mode is selected,

- a second indicator lamp comes on; the"medium" setting mode is selected,

- a third indicator lamp comes on; the
"high" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level
at the rear.


When the engine is cold, the air flow will reach its optimum levelprogressively, taking account of the weather and the desired comfort levelso as to avoid too great a distributionof cold air. On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is noneed to change the value displayed in order to obtain the comfor t required.In all seasons, with the windows closedthe system corrects the differencein temperature automatically and asquickly as possible.
This s
ystem is designed to operate effectively
in all seasons, with the windows closed.
Automatic operation
The air conditioning can only operate when the hybrid system is active, except in STOP mode of Stop & Start.

113Comfort
4. Automatic visibilityprogramme


For maximum cooling or heating of thepassenger compar tment, it is possibleto exceed the minimum value 14 or themaximum value 28.)
Turn control 2or 3
to the left until "LO"is displayed or to the right until "HI"
is displayed. See "Front demistin
g - defrosting".


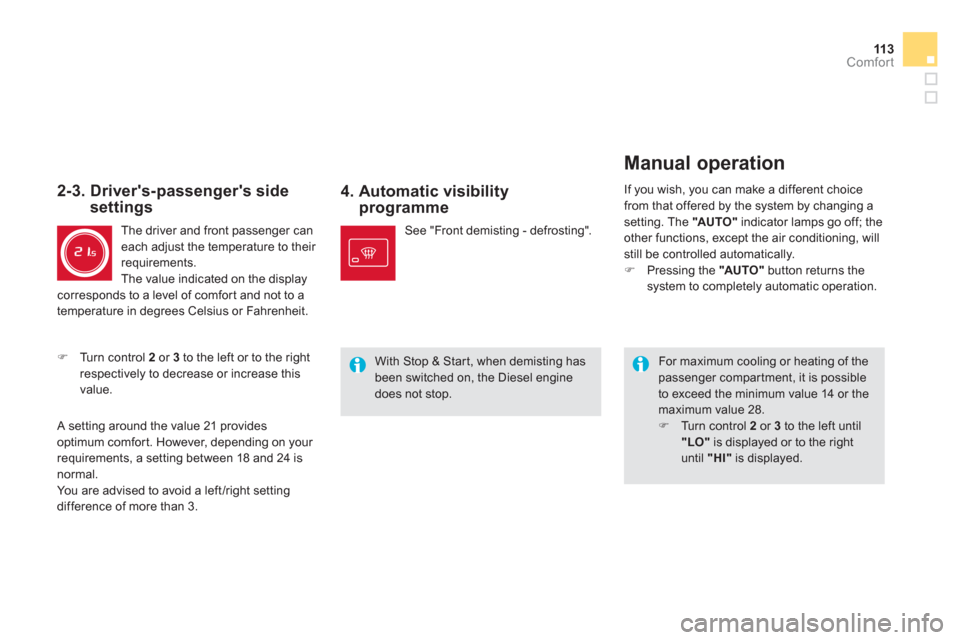

2-3. Driver's-passenger's side
settings
The driver and front passenger can each adjust the temperature to their requirements.
The value indicated on the display corresponds to a level of comfor t and not to a
temperature in degrees Celsius or Fahrenheit.
)Turn control 2or 3to the left or to the right respectively to decrease or increase this
value.

A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 isnormal.
You are advised to avoid a left /right settingdifference of more than 3.

Manual operation

If you wish, you can make a different choice from that offered by the system by changing asetting. The "AUTO"
indicator lamps go off; theother functions, except the air conditioning, willstill be controlled automatically.)
Pressing the "AUTO"
button returns the system to completely automatic operation.
With Stop & Start, when demisting hasbeen switched on, the Diesel engine does not stop.

It is recommended that you do notapply the parking brake in very coldconditions (ice) and during towing (recovery...). To do this, release the parking brake manually, select position A
or R
, then press the STA R T/STOP switch to stopthe engine.
The electric parking brake combines
2 operating modes:- Automatic Application/ReleaseApplication is automatic when the engine
stops, release is automatic on use of the
accelerator (this mode is activated by
default), -Manual Application/ReleaseManual application of the parking brake is done by pulling control lever A.Manual release is done by pullingthenreleasing the control lever, while pressing
the brake pedal.
When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.

Programming the automatic
mode

Depending on the country of sale of the vehicle,
the automatic application when the engine isswitched off and the automatic release when
you press the accelerator can be deactivated.
You can contact a CITROËN dealer or a qualified workshop to have it activated.

In this case, programming is done via
the configuration menu.








Electric parking brake


If deactivated, the parking brake mustbe applied and released manually.
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.

Never leave the vehicle without checking that the parking brake is on.
This warning lamp comes onfixed (not flashing).


Label on door panel

Before leaving the vehicle, check thatparking brake warning lamps in the instrument panel and in the control lever Aare on fixed (not flashing). Never leave a child alone inside thevehicle with the ignition on, as theycould release the parking brake.

Automatic application,
engine off
- illumination of the braking warninglamp and of the P
warning lamp in
the control lever A ,
- the display of a message. With the vehicle stationar
y, the parking brake is automatically applied when the engine is
switched off.The application of the parking brake is confirmed by:

Automatic release

The electric parking brake releases
automatically and progressively as thevehicle moves off, select position fA
, M
or Rand then press the accelerator.
Full release of the parking brake isconfirmed by:
- t
he braking warning lamp andthe P
warning lamp in the controllever A
going off,
- the display of a message.
When stationary, with the hybrid system activated, do not press the accelerator pedal unnecessarily, as you may release the parking brake.




Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.


Immobilising the vehicle,
h
ybrid system active
With the hybrid system active and the vehiclestationary, in order to immobilise the vehicleit is essential to manuallyapply the parking brake by pulling
control lever A.
The application of the parking brake is confirmed by:


- illumination of the brakin
g warning lamp and of the P
warning lamp in
the control lever A,

- the display of a message.
When the driver
’s door is opened, a loud beep
is heard and a message is displayed if the parking brake has not been applied.

123Driving

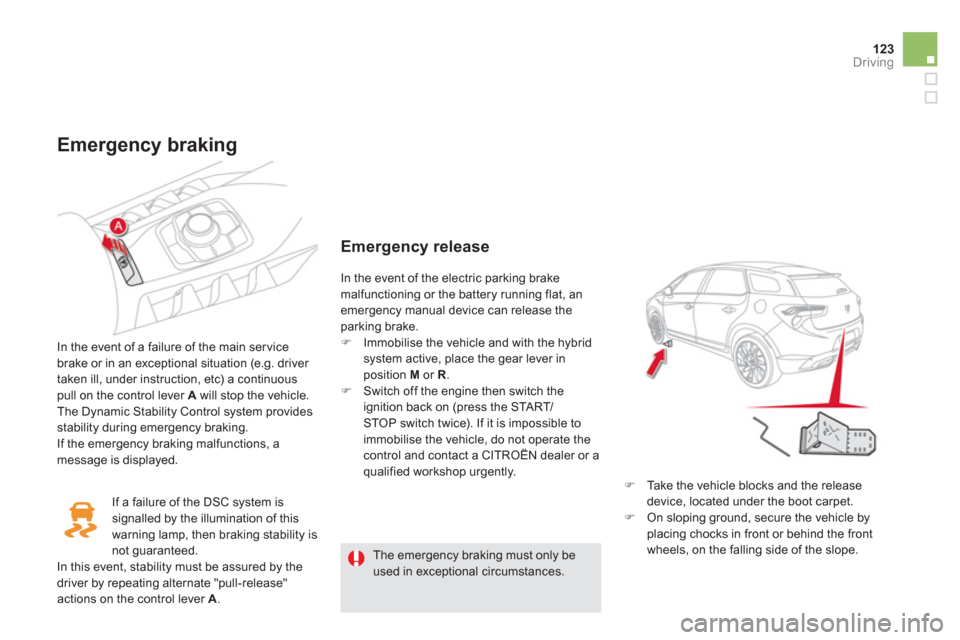

Emergency braking


In the event of a failure of the main servicebrake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuouspull on the control lever A will stop the vehicle.
The Dynamic Stability Control system provides stability during emergency braking.
If the emer
gency braking malfunctions, amessage is displayed.
Emergency release
)
Ta k e the vehicle blocks and the release device, located under the boot carpet. )
On sloping ground, secure the vehicle by
placing chocks in front or behind the front
wheels, on the falling side of the slope. In the event of the electric parkin
g brake
malfunctioning or the battery running flat, an
emergency manual device can release theparking brake. ) Immobilise the vehicle and with the hybridsystem active, place the gear lever in
position M or R
. )
Switch off the engine then switch the
ignition back on (press the START/STOP switch twice). If it is impossible to immobilise the vehicle, do not operate the control and contact a CITROËN dealer or a qualified workshop urgently.
The emergency braking must only be used in exceptional circumstances. I
f a failure of the DSC system is
signalled by the illumination of this warning lamp, then braking stability isnot guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release" actions on the control lever A.

For safety reasons, you must contact a
CITROËN dealer as soon as possible to replace the protective cover. Ta k e care not to allow moisture or dust in the proximity of the protective cover.
Following an emergency unlocking, immobilisation of the vehicle is no longer guaranteed once the manualemergency release has been deployed and the manual control does not allow the re-application of your parking brake. Take no action, either on the controllever A, or stopping or star ting the engine while the release device is engaged.
To r e - e ngage the electric parking brake(after correction of the fault or battery problem), make a long pull on the control lever A
until the parking brake warning lamp in the instrument panel flashes then make a second long pulluntil this warning lamp comes on fixed. Front left seat moved back full
y.
)Slide the front left-hand seat back as far aspossible. )Raise the pre-cut zone B in the carpetunder the seat.)Pierce the protective cover Con the
tube D with the release device (located in
the boot).)Place the release device in the tube D.)Turn the release device clockwisemaking several dozen turns.
For safety reasons, it is essential
to continue turning the device as far as it will go. The parking brake is released.
)
Remove the release device and stow it. )
The operation of the parking brake
reinitialises after the ignition is switched off
then on again. If the reinitialisation of the
parking brake proves impossible, contact a
CITROËN dealer or a qualified workshop.) The (subsequent) time required for
application may be longer than during
normal operation.

SituationsConsequences
To a p p l
y the electric parking brake:
)
immobilise the vehicle and switch off the ignition. )
pull the control for at least 5 seconds or until application is complete.)
switch on the ignition and check that the electric parking brake
warning lamps come on.
The application is slower than during normal operation.
To release the electric parking brake:
)
switch on the ignition.)pull the control lever and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a CITROËN dealer or a qualified workshop.

and possibl
y
flashing



Display of the message "Parking brake fault" and of the following
warning lamps:


- Only the automatic application on switching off the engine and automatic release on acceleration functions are available.

- The manual application/release of the electric parking brake and theemergency braking are not available.
an
d possibly



flashing
Display of the message "Battery charge fault".


- You must stop as soon as it is safe to do so. Switch off and
immobilise your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.
