Citroen DS5 HYBRID4 RHD 2013.5 1.G Owners Manual

89Access
Do not throw the remote control batteries away, they contain metals
which are harmful to the environment. Take them to an approved collection point.

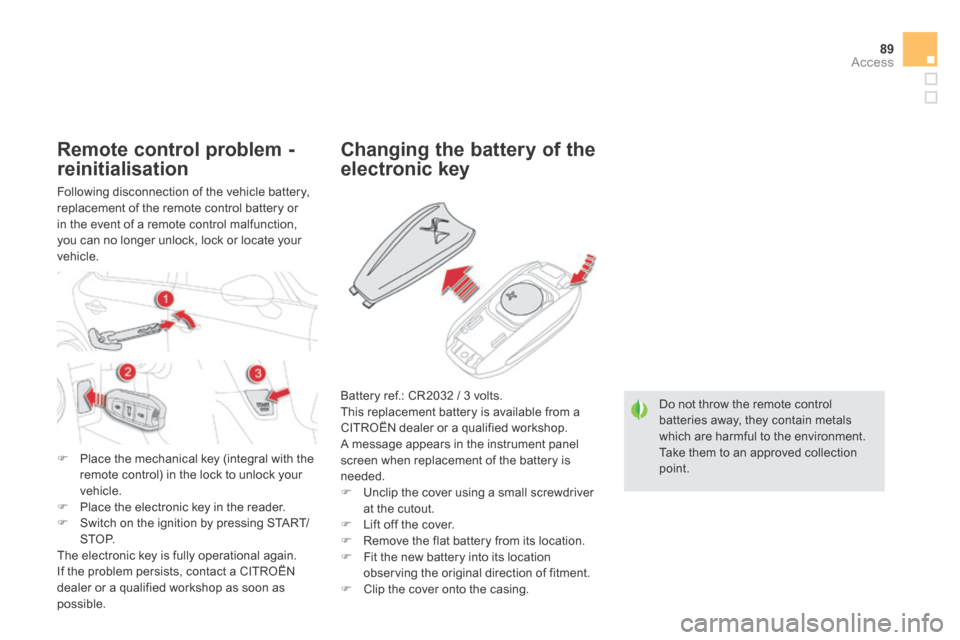

Changing the battery of the
electronic key
Battery ref.: CR2032 / 3 volts. This replacement battery is available from a CITROËN dealer or a qualified workshop. A message appears in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a small screwdriver at the cutout.  Lift off the cover.
 Remove the flat battery from its location.  Fit the new battery into its location observing the original direction of fitment.  Clip the cover onto the casing.
Remote control problem -
reinitialisation
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 Place the mechanical key (integral with the remote control) in the lock to unlock your vehicle.  Place the electronic key in the reader.  Switch on the ignition by pressing START/S T O P. The electronic key is fully operational again. If the problem persists, contact a CITROËN dealer or a qualified workshop as soon as possible.

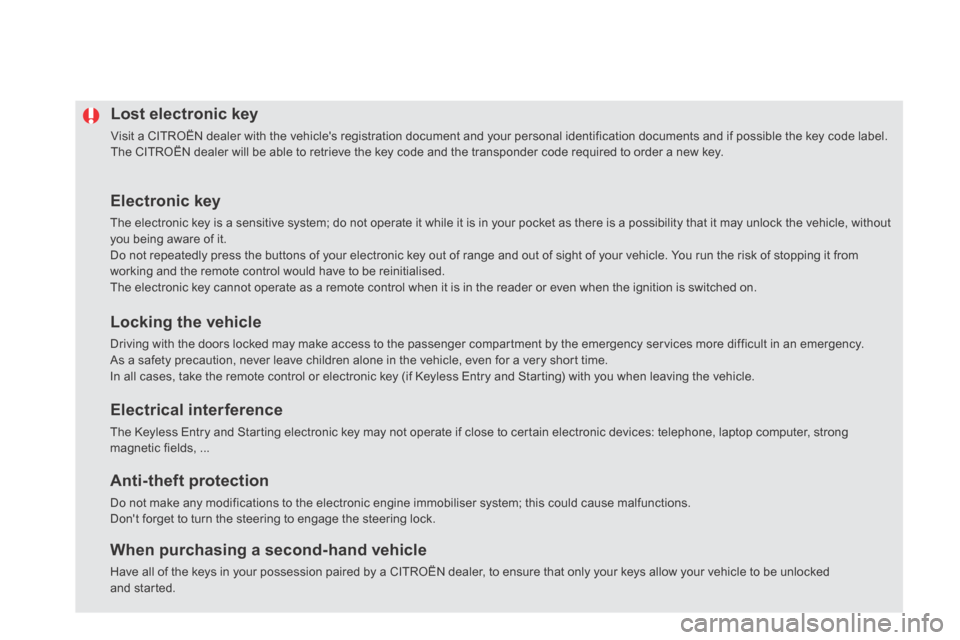

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label. The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, even for a very short time. In all cases, take the remote control or electronic key (if Keyless Entry and Starting) with you when leaving the vehicle.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and started.

91Access

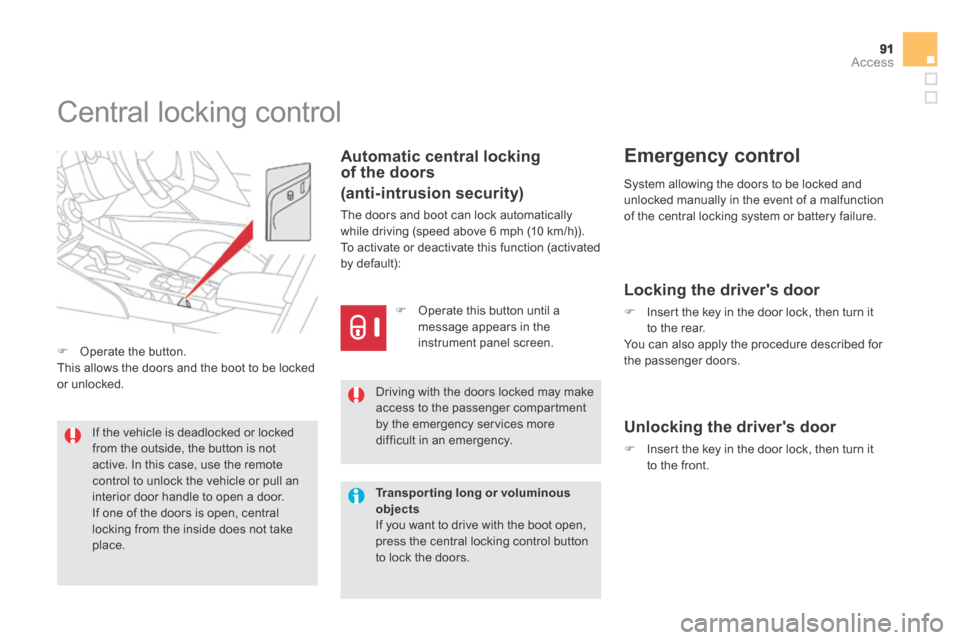

Central locking control
Automatic central locking of the doors
(anti-intrusion security)
The doors and boot can lock automatically while driving (speed above 6 mph (10 km/h)). To activate or deactivate this function (activated by default):
If the vehicle is deadlocked or locked from the outside, the button is not active. In this case, use the remote control to unlock the vehicle or pull an interior door handle to open a door. If one of the doors is open, central locking from the inside does not take
place.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
System allowing the doors to be locked and unlocked manually in the event of a malfunction of the central locking system or battery failure.
Emergency control
 Operate the button. This allows the doors and the boot to be locked or unlocked.
 Operate this button until a message appears in the instrument panel screen.
Transporting long or voluminous objects If you want to drive with the boot open, press the central locking control button to lock the doors.
Locking the driver's door
 Insert the key in the door lock, then turn it to the rear. You can also apply the procedure described for the passenger doors.
Unlocking the driver's door
 Insert the key in the door lock, then turn it to the front.

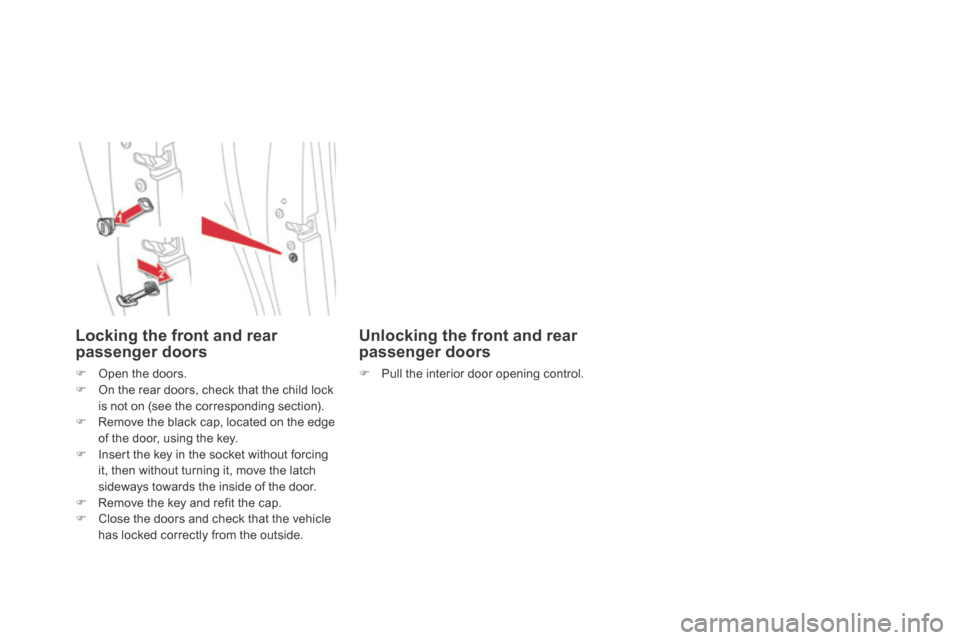

Locking the front and rear passenger doors
 Open the doors.  On the rear doors, check that the child lock is not on (see the corresponding section).  Remove the black cap, located on the edge of the door, using the key.  Insert the key in the socket without forcing it, then without turning it, move the latch sideways towards the inside of the door.  Remove the key and refit the cap.  Close the doors and check that the vehicle has locked correctly from the outside.
Unlocking the front and rear passenger doors
 Pull the interior door opening control.

93Access

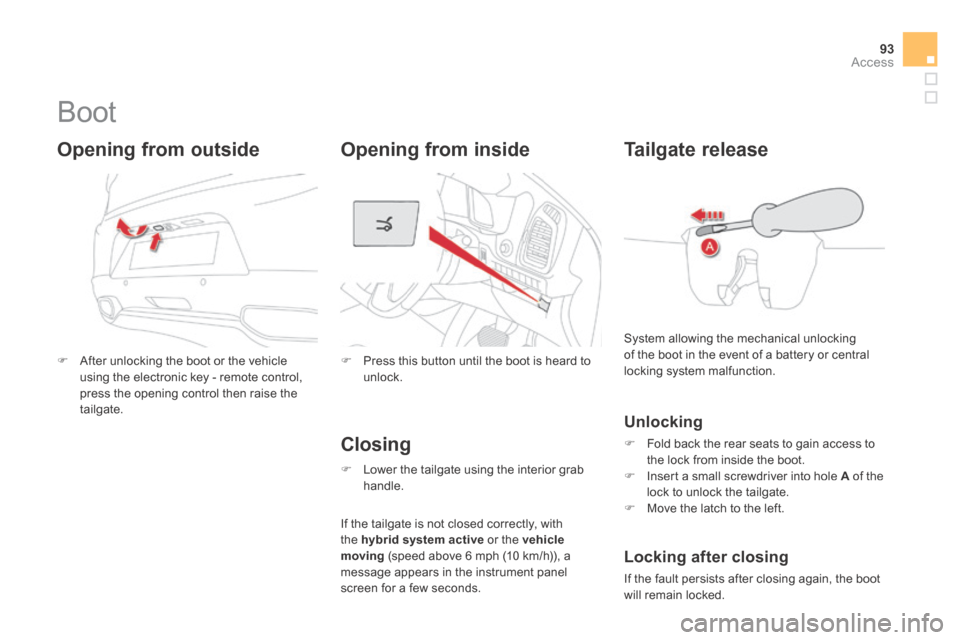

Boot
 After unlocking the boot or the vehicle using the electronic key - remote control, press the opening control then raise the tailgate.
Opening from outside
 Press this button until the boot is heard to unlock.
Tailgate release
System allowing the mechanical unlocking of the boot in the event of a battery or central locking system malfunction.
If the tailgate is not closed correctly, with the hybrid system active or the vehicle moving (speed above 6 mph (10 km/h)), a message appears in the instrument panel screen for a few seconds.
Locking after closing
If the fault persists after closing again, the boot will remain locked.
Unlocking
 Fold back the rear seats to gain access to the lock from inside the boot.  Insert a small screwdriver into hole A of the lock to unlock the tailgate.  Move the latch to the left.
Closing
 Lower the tailgate using the interior grab handle.
Opening from inside

OFF
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:

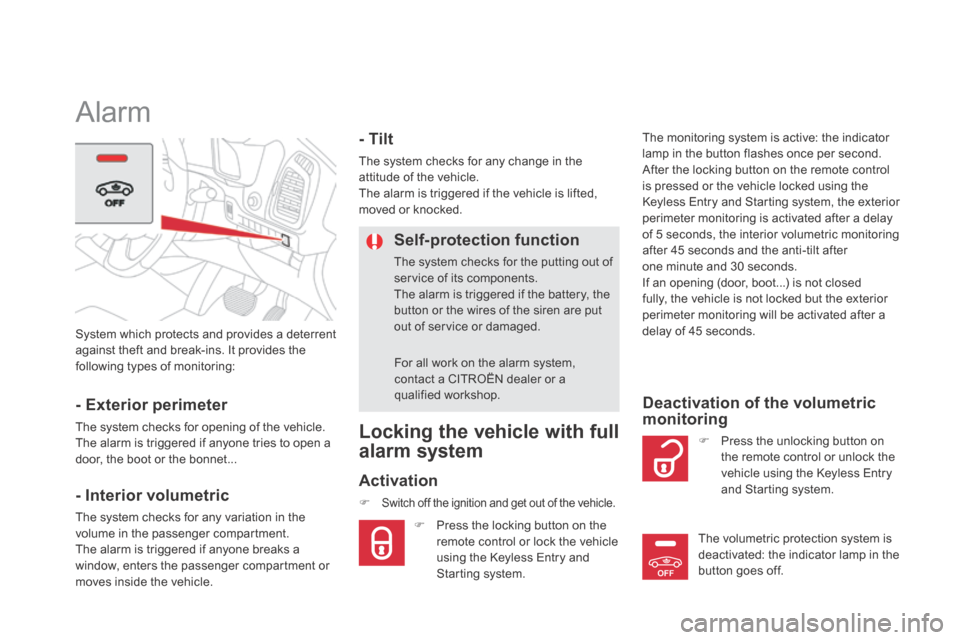

Alarm
- Exterior perimeter
The system checks for opening of the vehicle. The alarm is triggered if anyone tries to open a door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window, enters the passenger compartment or moves inside the vehicle.
- Tilt
The system checks for any change in the attitude of the vehicle. The alarm is triggered if the vehicle is lifted, moved or knocked.
Self-protection function
The system checks for the putting out of service of its components. The alarm is triggered if the battery, the button or the wires of the siren are put out of service or damaged.
For all work on the alarm system, contact a CITROËN dealer or a qualified workshop.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out of the vehicle.
 Press the locking button on the remote control or lock the vehicle using the Keyless Entry and Starting system.
The monitoring system is active: the indicator lamp in the button flashes once per second. After the locking button on the remote control is pressed or the vehicle locked using the Keyless Entry and Starting system, the exterior perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring after 45 seconds and the anti-tilt after one minute and 30 seconds. If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a delay of 45 seconds.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system.
Deactivation of the volumetric monitoring
The volumetric protection system is deactivated: the indicator lamp in the button goes off.

OFF
95Access

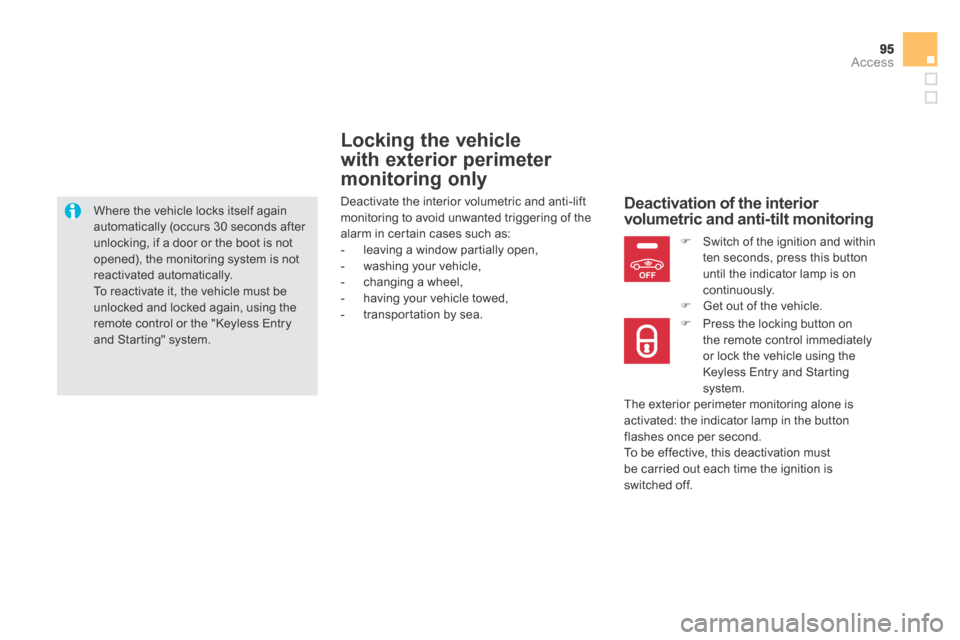

Where the vehicle locks itself again automatically (occurs 30 seconds after unlocking, if a door or the boot is not opened), the monitoring system is not reactivated automatically. To reactivate it, the vehicle must be unlocked and locked again, using the remote control or the "Keyless Entry and Starting" system.
Locking the vehicle
with exterior perimeter
monitoring only
Deactivation of the interior volumetric and anti-tilt monitoring
 Switch of the ignition and within ten seconds, press this button until the indicator lamp is on continuously.  Get out of the vehicle.
 Press the locking button on the remote control immediately or lock the vehicle using the Keyless Entry and Starting system.
The exterior perimeter monitoring alone is activated: the indicator lamp in the button flashes once per second. To be effective, this deactivation must be carried out each time the ignition is switched off.
Deactivate the interior volumetric and anti-lift monitoring to avoid unwanted triggering of the alarm in certain cases such as: - leaving a window partially open, - washing your vehicle, - changing a wheel, - having your vehicle towed, - transportation by sea.

OFF
OFF

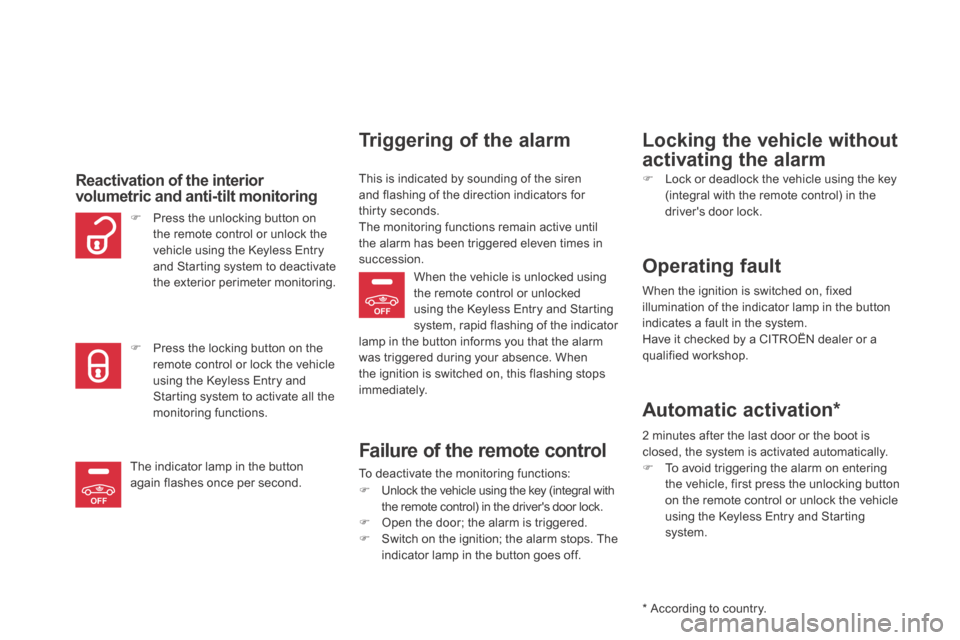

Reactivation of the interior volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until the alarm has been triggered eleven times in succession.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system to deactivate the exterior perimeter monitoring.
 Press the locking button on the remote control or lock the vehicle using the Keyless Entry and Starting system to activate all the monitoring functions.
The indicator lamp in the button again flashes once per second.
When the vehicle is unlocked using the remote control or unlocked using the Keyless Entry and Starting system, rapid flashing of the indicator lamp in the button informs you that the alarm was triggered during your absence. When the ignition is switched on, this flashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
 Unlock the vehicle using the key (integral with the remote control) in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops. The indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
 Lock or deadlock the vehicle using the key (integral with the remote control) in the driver's door lock.
Operating fault
When the ignition is switched on, fixed illumination of the indicator lamp in the button indicates a fault in the system. Have it checked by a CITROËN dealer or a qualified workshop.
* According to country.
Automatic activation *
2 minutes after the last door or the boot is closed, the system is activated automatically.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system.

97Access

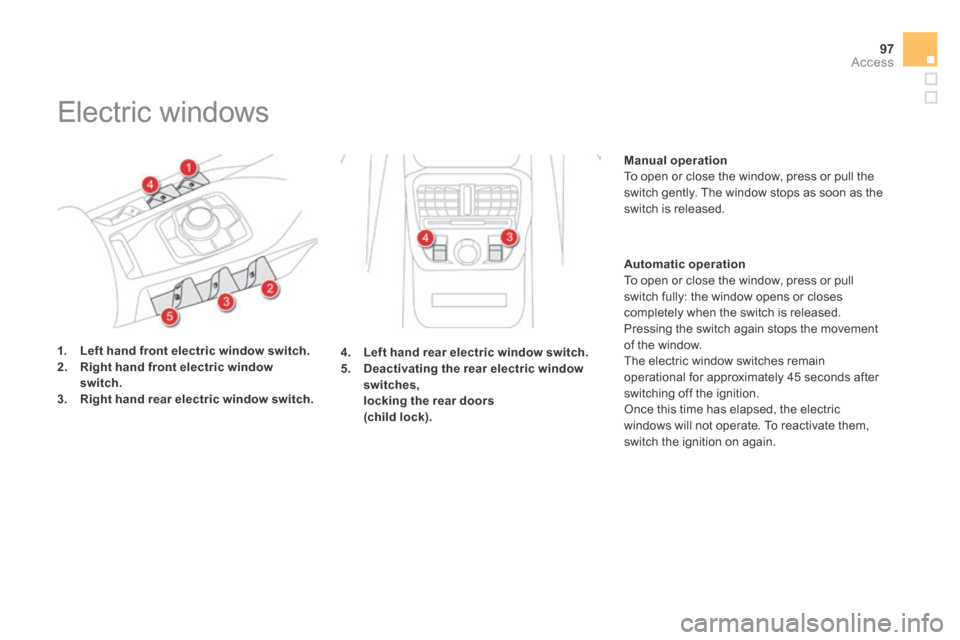

Electric windows
1. Left hand front electric window switch.2. Right hand front electric window switch.3. Right hand rear electric window switch.
Manual operation To open or close the window, press or pull the switch gently. The window stops as soon as the switch is released.
Automatic operation To open or close the window, press or pull switch fully: the window opens or closes completely when the switch is released. Pressing the switch again stops the movement of the window. The electric window switches remain operational for approximately 45 seconds after switching off the ignition. Once this time has elapsed, the electric windows will not operate. To reactivate them, switch the ignition on again.
4. Left hand rear electric window switch.5. Deactivating the rear electric window switches, locking the rear doors (child lock).

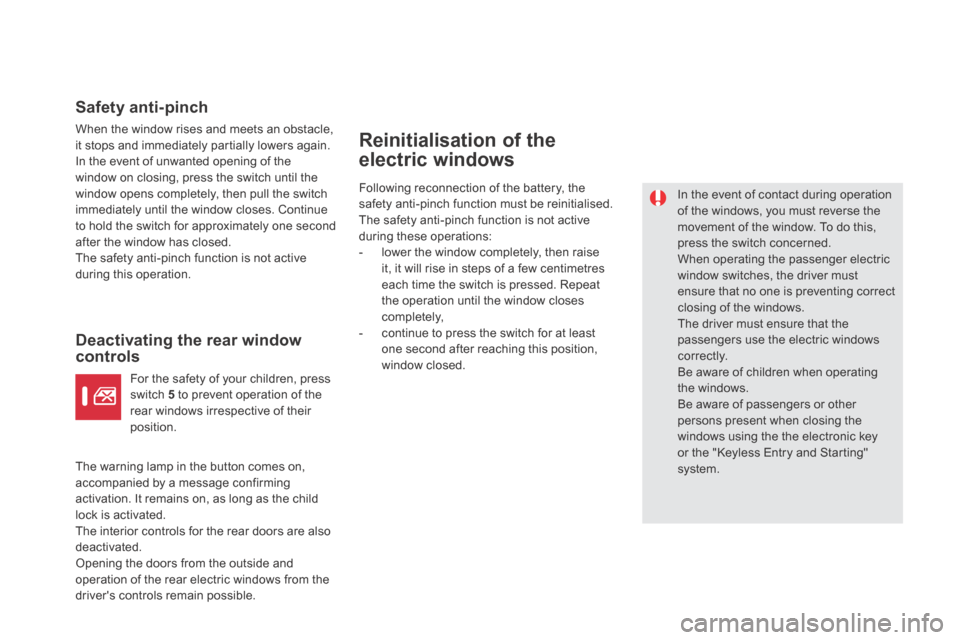

Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately partially lowers again. In the event of unwanted opening of the window on closing, press the switch until the window opens completely, then pull the switch immediately until the window closes. Continue to hold the switch for approximately one second after the window has closed. The safety anti-pinch function is not active during this operation.
Deactivating the rear window controls
Reinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the
movement of the window. To do this, press the switch concerned. When operating the passenger electric window switches, the driver must ensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows. Be aware of passengers or other persons present when closing the windows using the the electronic key or the "Keyless Entry and Starting" system.
Following reconnection of the battery, the safety anti-pinch function must be reinitialised. The safety anti-pinch function is not active during these operations: - lower the window completely, then raise it, it will rise in steps of a few centimetres each time the switch is pressed. Repeat the operation until the window closes completely, - continue to press the switch for at least one second after reaching this position, window closed. For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
The warning lamp in the button comes on, accompanied by a message confirming activation. It remains on, as long as the child lock is activated. The interior controls for the rear doors are also deactivated. Opening the doors from the outside and operation of the rear electric windows from the driver's controls remain possible.
