Citroen DS5 HYBRID4 RHD 2014 1.G Owner's Manual

329

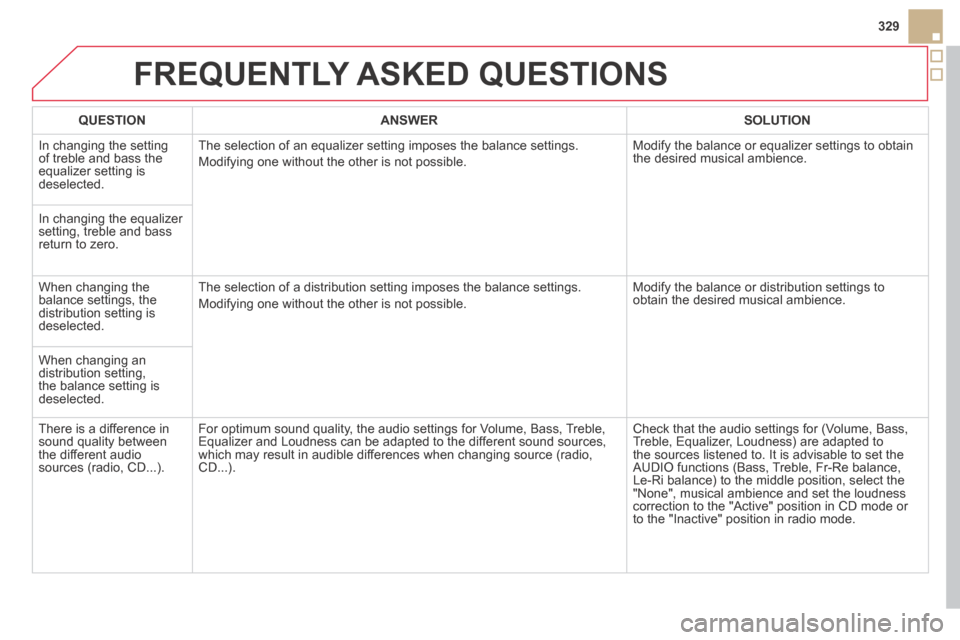

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
In changing the setting of treble and bass the equalizer setting is deselected.
The selection of an equalizer setting imposes the balance settings.
Modifying one without the other is not possible.
Modify the balance or equalizer settings to obtain the desired musical ambience.
In changing the equalizer setting, treble and bass return to zero.
When changing the balance settings, the distribution setting is deselected.
The selection of a distribution setting imposes the balance settings.
Modifying one without the other is not possible.
Modify the balance or distribution settings to obtain the desired musical ambience.
When changing an distribution setting, the balance setting is deselected.
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings for Volume, Bass, Treble, Equalizer and Loudness can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings for (Volume, Bass, Treble, Equalizer, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Fr-Re balance, Le-Ri balance) to the middle position, select the "None", musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

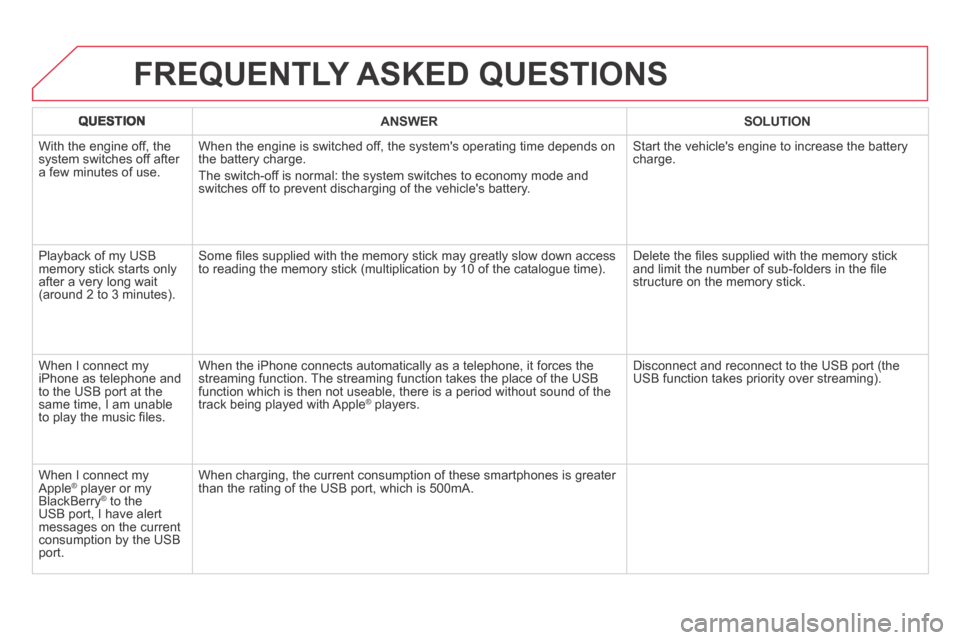

QUESTIONANSWERSOLUTION
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
Playback of my USB memory stick starts only after a very long wait (around 2 to 3 minutes).
Some fi les supplied with the memory stick may greatly slow down access to reading the memory stick (multiplication by 10 of the catalogue time\
). Delete the fi les supplied with the memory stick and limit the number of sub-folders in the fi le structure on the memory stick.
When I connect my iPhone as telephone and to the USB port at the same time, I am unable to play the music fi les.
When the iPhone connects automatically as a telephone, it forces the streaming function. The streaming function takes the place of the USB function which is then not useable, there is a period without sound of t\
he track being played with Apple ® players. ® players. ®
Disconnect and reconnect to the USB port (the USB function takes priority over streaming).
When I connect my Apple ® player or my ® player or my ®
BlackBerry ® to the ® to the ®
USB port, I have alert messages on the current consumption by the USB port.
When charging, the current consumption of these smartphones is greater than the rating of the USB port, which is 500mA.
FREQUENTLY ASKED QUESTIONS

331
The system is coded in such a way that it will only operate in your vehicle.

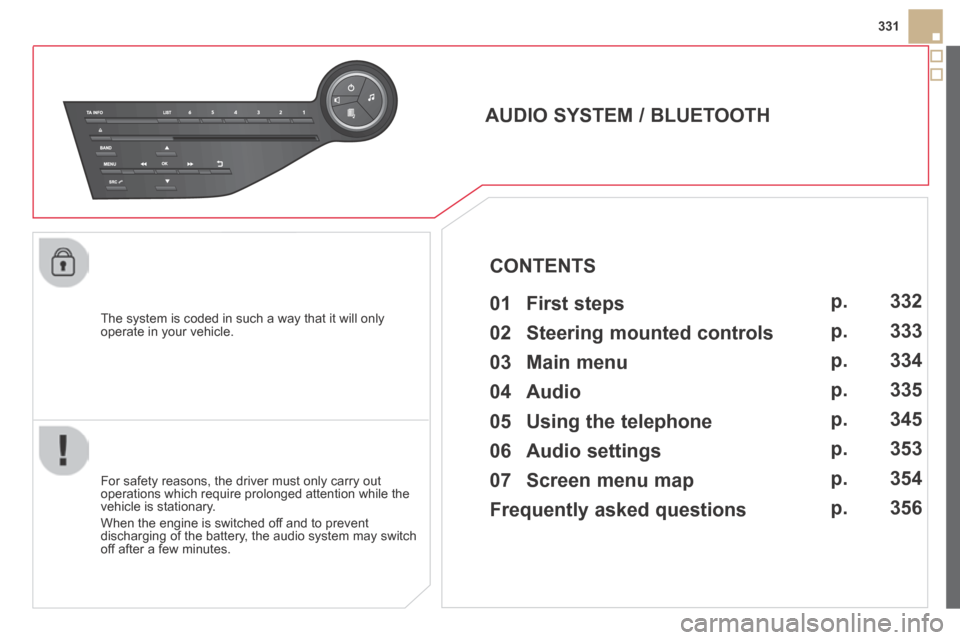

AUDIO SYSTEM / BLUETOOTH
01 First steps
For safety reasons, the driver must only carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the audio system may switch off after a few minutes.
CONTENTS
02 Steering mounted controls
03 Main menu
04 Audio
05 Using the telephone
06 Audio settings
07 Screen menu map
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
332
333
334
335
345
353
354
356

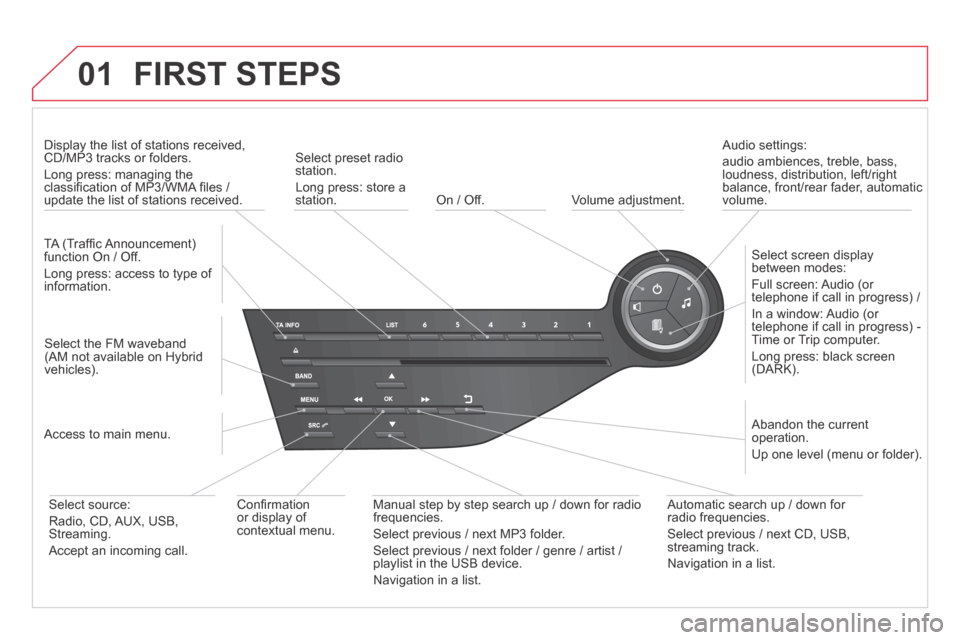

01
On / Off.
FIRST STEPS
Volume adjustment.
Select screen display between modes:
Full screen: Audio (or telephone if call in progress) /
In a window: Audio (or telephone if call in progress) - Time or Trip computer.
Long press: black screen (DARK).
Select the FM waveband (AM not available on Hybrid vehicles).
Select preset radio station.
Long press: store a station.
Display the list of stations received, CD/MP3 tracks or folders.
Long press: managing the classifi cation of MP3/WMA fi les / update the list of stations received.
TA (Traffi c Announcement) function On / Off.
Long press: access to type of information.
Confi rmation or display of contextual menu.
Automatic search up / down for radio frequencies.
Select previous / next CD, USB, streaming track.
Navigation in a list.
Abandon the current operation.
Up one level (menu or folder).
Manual step by step search up / down for radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre / artist / playlist in the USB device.
Navigation in a list.
Select source:
Radio, CD, AUX, USB, Streaming.
Accept an incoming call.
Access to main menu.
Audio settings:
audio ambiences, treble, bass, loudness, distribution, left/right balance, front/rear fader, automatic volume.

02
SRC



-
+
-
+
333

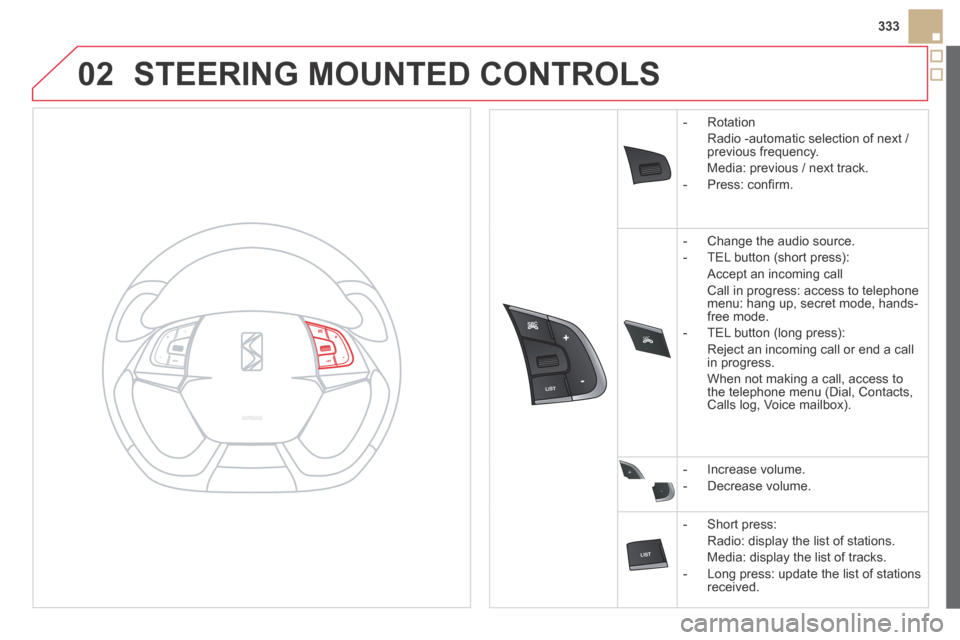

STEERING MOUNTED CONTROLS
- Rotation
Radio -automatic selection of next / previous frequency.
Media: previous / next track.
- Press: confi rm.
- Change the audio source.
- TEL button (short press):
Accept an incoming call
Call in progress: access to telephone menu: hang up, secret mode, hands-free mode.
- TEL button (long press):
Reject an incoming call or end a call in progress.
When not making a call, access to the telephone menu (Dial, Contacts, Calls log, Voice mailbox).
- Increase volume.
- Decrease volume.
- Short press:
Radio: display the list of stations.
Media: display the list of tracks.
- Long press: update the list of stations received.

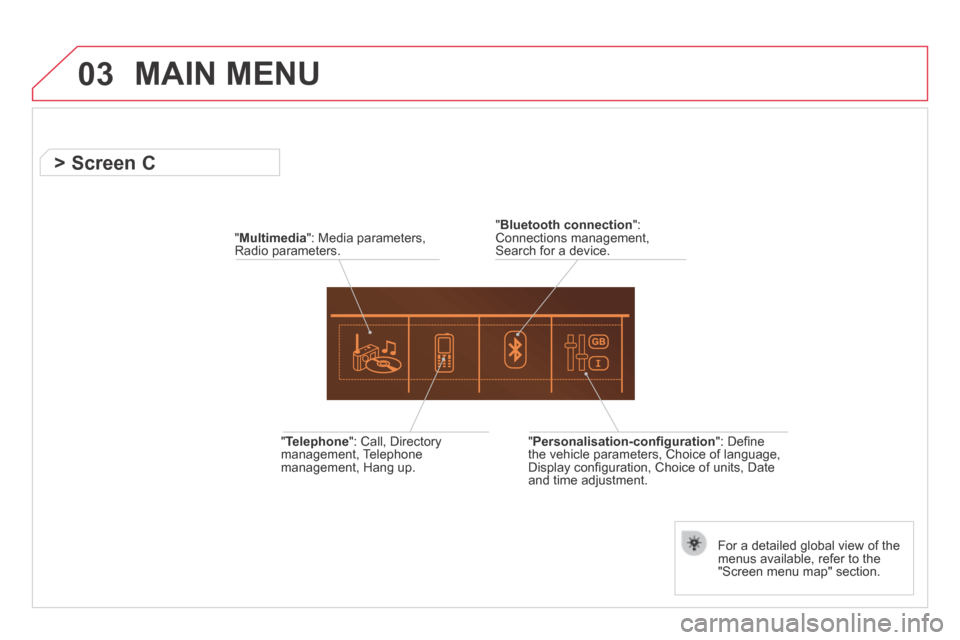

03 MAIN MENU
" Telephone ": Call, Directory management, Telephone management, Hang up.
For a detailed global view of the menus available, refer to the "Screen menu map" section.
" Bluetooth connection ": Connections management, Search for a device. " Multimedia ": Media parameters, Radio parameters.
" Personalisation-confi guration ": Defi ne the vehicle parameters, Choice of language, Display confi guration, Choice of units, Date and time adjustment.
> Screen C

04

335
AUDIO
Press SOURCE or SRC several times in succession and select radio.
Press BAND to select a waveband.
Press LIST to display the list of stations received in alphabetical order.
A press changes to the next or previous letter (e.g. A, B, D, F, G, J, K, ...).

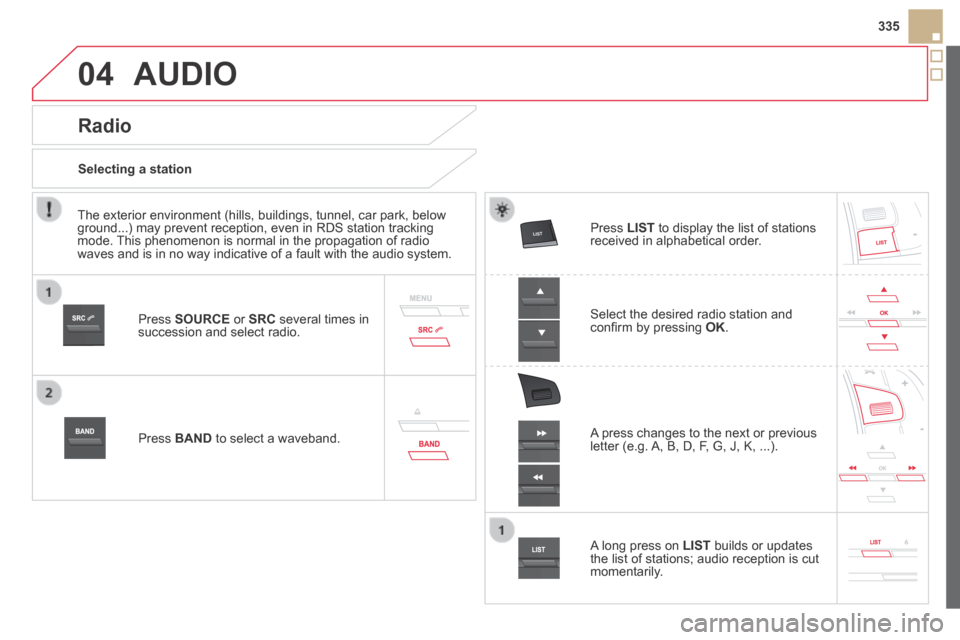

Radio
Select the desired radio station and confi rm by pressing OK .
Selecting a station
A long press on LIST builds or updates the list of stations; audio reception is cut momentarily.
The exterior environment (hills, buildings, tunnel, car park, below ground...) may prevent reception, even in RDS station tracking mode. This phenomenon is normal in the propagation of radio waves and is in no way indicative of a fault with the audio system.

04
RDS, if displayed, enables you to continue listening to the same station\
by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
AUDIO
RDS
Receiving TA messages
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, USB, ...) is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
Press TA INFO to activate or deactivate the reception of traffi c messages.
When the radio is displayed on the screen, press OK to display the contextual menu.
Select " RDS " and confi rm to save.
" RDS " is displayed in the screen.
The INFO function gives priority to TA alert messages. To be active, this function needs good reception of a radio station that transmits this type of message. When a message is transmitted, the current audio source (Radio, CD, USB, ...) is interrupted automatically to receive the INFO message. Normal play resumes at the end of the message transmission.
Make a long press on TA INFO to display the list of categories.
Receiving INFO messages
Select or deselect categories to activate or deactivate the reception of the corresponding messages.

04
337
AUDIO
With the radio displayed on the screen, press OK to display the contextual menu.
Select " RadioText (TXT) display " and confi rm OK to save.

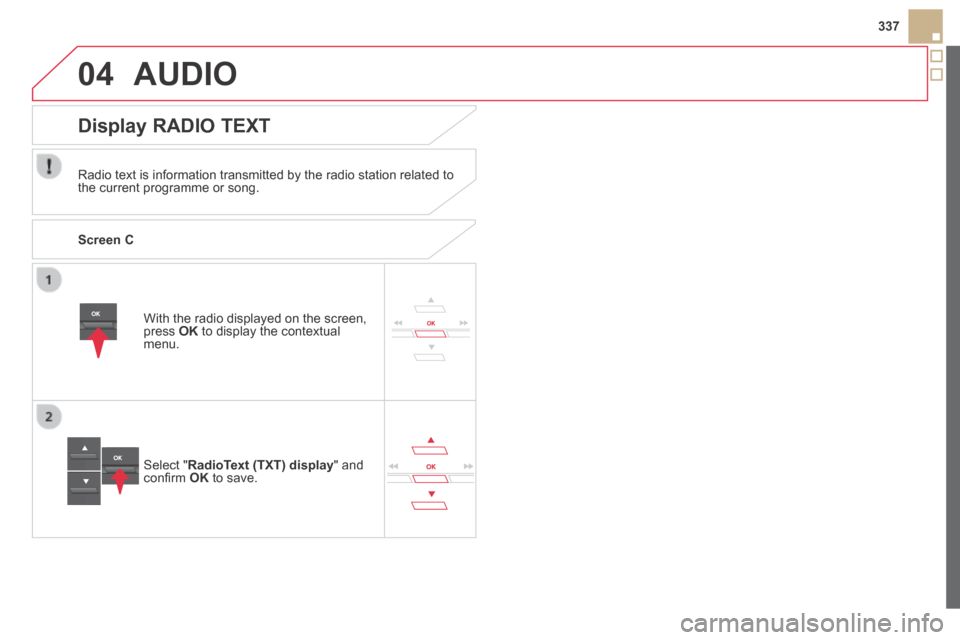

Display RADIO TEXT
Radio text is information transmitted by the radio station related to the current programme or song.
Screen C

04 AUDIO

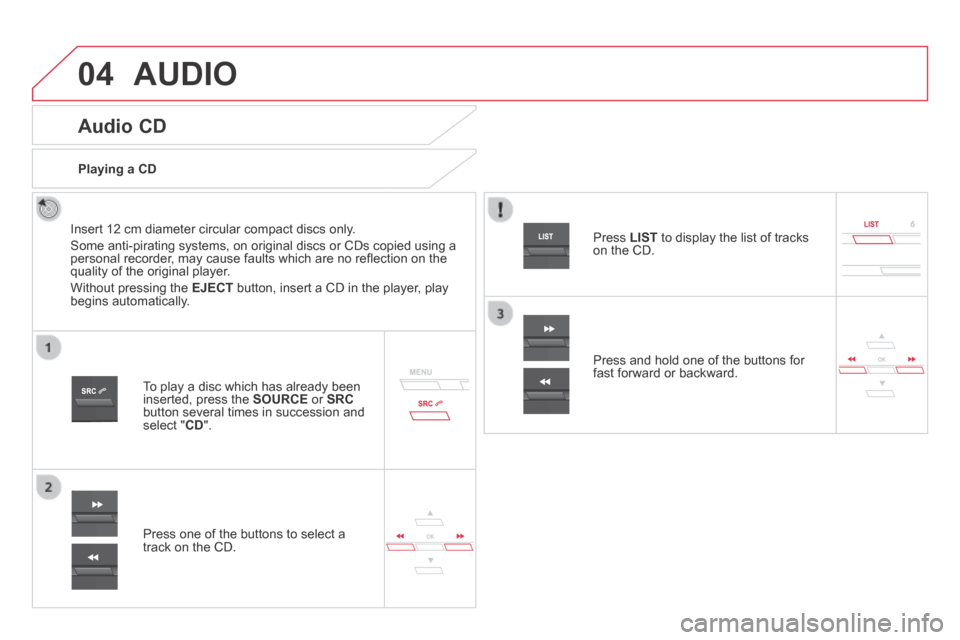

Audio CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE or SRCbutton several times in succession and select " CD ".
Press one of the buttons to select a track on the CD.
Playing a CD
Press LIST to display the list of tracks on the CD.
Press and hold one of the buttons for fast forward or backward.
