79
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
System which registers the electrical settings
of the driver's seat.
Two positions can be stored and recalled, using
the buttons on the side of the driver's seat.
Storing driving positions
Storing a position using
buttons M / 1 / 2
F Switch on the ignition.
F
A djust your seat.
F
P
ress button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
F With the ignition on or the engine running, press button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
seconds after switching off the ignition.
3
Ease of use and comfort
Page 82 of 527
80
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Additional adjustments
Head restraint height and angle
(depending on version)
The head restraint is fitted with a frame with
notches which prevents it from lowering; this is
a safety device in case of impact.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
F
T
o raise a head restraint, pull it upwards.
F
To lower the head restraint, press the lug A and the
push the head restraint down at the same time.
F To adjust the angle of the head restraint, tilt
its lower part for wards or backwards.
Removing a head restraint
F To remove the head restraint, press the lug A
a nd pull the head restraint upwards.
F To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
backrest and press the lug A at the same time.
Depending on version, you can fold the sides to
obtain a more comfortable position. F
P
ress the control to obtain the desired
lumbar support.
Electric lumbar adjustment
Relax head restraints
Ease of use and comfort
Page 83 of 527
81
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Electric leg rest
F Press the front or rear part of the control to unfold or fold away the leg rest.
The movement stops when you release the
control.
Activation / Deactivation
Massage function
This function provides the front occupants
with a lumbar massage. It only operates when
the engine is running or in STOP mode of the
Stop
& Start system.
F
P
ress this button.
Adjustment of intensity
Press this button to select one of
the two levels of massage intensity
offered.
Its indicator lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
6
cycles of 10 minutes (6 minutes of massage
followed by 4 minutes break).
After one hour, the function is deactivated, the
indicator lamp goes off.
Deactivate the massage function by pressing
this button; its indicator lamp goes off.
Manual passenger seat
3
Ease of use and comfort
Page 84 of 527
82
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Heated seats
F Use the adjustment thumbwheel to switch on and select the desired level of heating:
0: Off.
1 : Low.
2 : Medium.
3 : High.
With the engine running, the front seats can be
heated separately.
Before operating the leg rest, ensure
that nothing could inter fere with its
movement.
F
P
ush the control for wards or backwards to
unfold or fold away the leg rest.
The movement stops when you release the
control.
Electric passenger seat
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger
compartment are at a comfortable
temperature, you can switch off the
function; reducing electric current
consumption also reduces fuel
consumption. Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-
i
f wearing damp clothing,
-
i
f child seats are fitted.
To avoid breaking the heating element
in the seat:
-
d
o not place heavy objects on the
seat,
-
d
o not kneel or stand on the seat,
- d o not place sharp objects on the
seat,
-
d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-
d
o not use liquid products for
cleaning the seat,
-
n
ever use the heating function
when the seat is damp.
Ease of use and comfort
Page 85 of 527
83
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

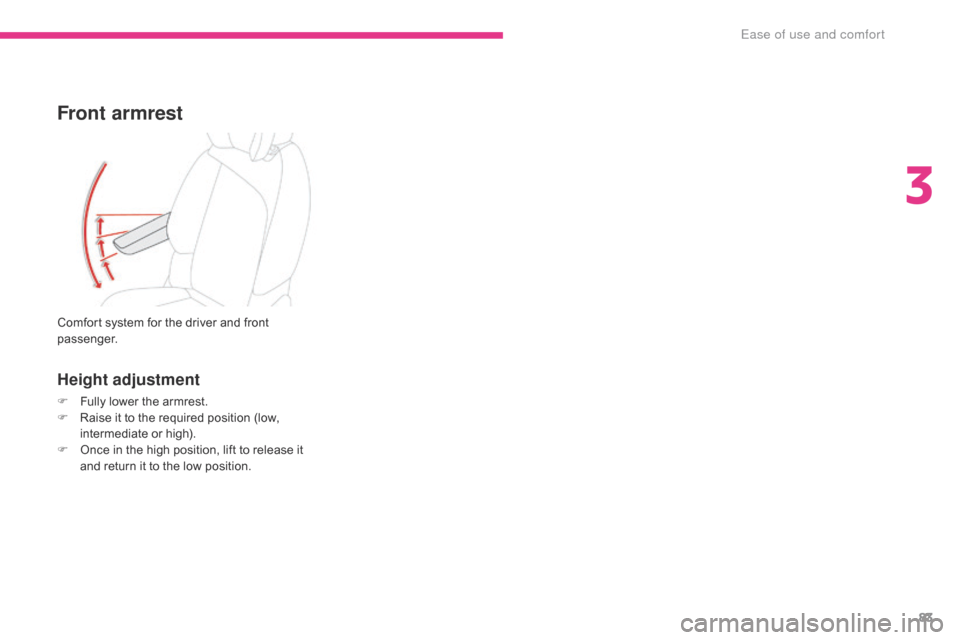

Front armrest
Height adjustment
F Fully lower the armrest.
F R aise it to the required position (low,
intermediate or high).
F
O
nce in the high position, lift to release it
and return it to the low position.
Comfort system for the driver and front
passenger.
3
Ease of use and comfort
Page 86 of 527
84
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Second-row seats
Forwards-backwards adjustment
F Raise the lever A, located at the front of
the seat cushion, and adjust the seat to the
desired position.
The 3 seats in the 2
nd row are independent of each other and are all the same width. Their backrests can be folded to vary the load space in the boot.
A.
F
or wards and backwards adjustment: raise
the lever.
B.
B
ackrest angle adjustment: pull the strap
and guide the seat to the rear.
C.
F
olding the seat: pull the strap up to
release the seat.
D.
F
olding the seat from the rear: pull the
strap then push the seat for ward.
Ease of use and comfort
Page 87 of 527
85
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
F Pull the strap B and guide the seat to the r e a r.
The backrest reclines and the seat base pivots
s li g ht l y.
"Comfort" position
Returning the seat to the initial
position
F Pull the strap B and guide the seat for ward.
Super vise any movements of seats
when made by children. To remove it:
- m
ove the head restraint to the high position,
-
p
ress lug A pulling the head restraint
upwards at the same time.
The rear head restraints can be removed and
have two positions:
-
h
igh, position for use,
-
l
ow, stowed position.
To raise a head restraint, pull it upwards.
To lower it, press lug A then the head restraint.
Rear head restraints
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
To refit it:
-
e
ngage the head restraint rods in the
apertures, keeping them in line with the
seat backrest. Depending on version, the sides can be folded
to obtain a more comfortable position.
Relax head restraints
3
Ease of use and comfort
Page 88 of 527
86
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Flat floor
Folding a seat
F Pull firmly upwards on strap C, as indicated
by the arrow, to release the seat; keep
pulling until the seat is fully folded.
P
ush the seat backrest gently for wards
so that the backrest folds onto the seat
cushion. The assembly lowers onto the
f l o o r. You can fold the second-row seats from the
boot, after first folding the third-row seats.
F
P
ull on the strap D to release the seat in
question then push for wards lightly on the
backrest.
T
o avoid any damage to the mechanism,
the strap D
unclips if too much force is
applied. Simply clip it in place again for the
system to be operational again.
F
P
lace the seats in the fully back position.
Each seat can be folded onto the floor to vary
the space available in the boot.
From the outside
From the boot, when loading
for example
Ease of use and comfort
Page 89 of 527
87
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Repositioning a seat
Before operating the rear seats, check
that the outer rear seat belts are not
loose, to avoid damaging them. The
centre belt must be stowed. Fix the
tongues of the three belts to their
anchorage points.
Continuity panels
These continuity panels are not
designed to support a weight greater
than 30 kg.Releasing / locking the continuity panels
F
B
efore unfolding the continuity panels,
check that the seats in the 2
nd row are fully
back.
F
S
lide the continuity panel latch upwards to
release.
F
S
traighten the continuity panel, then slide
the latch downwards to lock it.
F
I
f necessary, straighten the continuity
panels for the seats in the 2
nd row and lock
them in place.
F
R
aise the backrest and push it rear wards
until it locks in position Each seat has a continuity panel at the bottom
of the backrest, that once unfolded:
-
p rovides a continuous load sur face in the
boot, whatever the position of the seats,
-
a
voids objects sliding under the seats in
the 2
nd row.
3
Ease of use and comfort
Page 90 of 527
88
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Access to the third-row
seats
Access to the third-row seats is via the outer
second-row seats.
F
P
ull the lever E . The seat is released and
the seat cushion comes up against the
backrest.
F
H
old the lever E in the raised position,
pushing for wards. The whole seat slides
towards the front seat.
Space becomes free behind the seat, the
third-row passengers can get to their seats.
Leaving the vehicle from
the third-row seats Repositioning a seat, from
the outside, with the door
open
In the event of a failure of this system
(lever E
), the passengers in the third
row can also leave the vehicle after first
folding the backrests of the second-row
seats using the strap D .
Do not allow children to operate the
seats without supervision.
F
L
ift the lever E
. The seat is released and
the seat cushion comes up against the
backrest.
F
P
ush the seat backrest, still holding the
lever E in the raised position. If there are passengers seated in the third row:
F
m
anually return the assembly as far
as possible rear wards; the seat does
not return to the fully back position, so
as to retain legroom for the third-row
passengers,
F
f
old the seat cushion until it locks.
Ensure that there is no object on or under the
seat that you want to move.
Before operating the seats, ensure that
the tables on the backs of the first-row
seats are folded away.
Ease of use and comfort
