Removable console
The removable console is a portable storage space secured to the lower centre console.
It has a sliding lid, an open storage space and two cup holders.
F
R
aise the locking control located at the
front of the console.
F

W
ith one hand, lift the front part of the
console.
F

W
ith the other hand, grasp the rear part to
release the removable console. F

C
arry out these operations in reverse
order. Ensure that the console has locked
into place.
When not fixed to its carrier, the
removable console should be stowed
in the boot. It could become a projectile
in the event of a sudden stop or violent
impact.
Releasing the removable
console Refitting the removable
console
3
Ease of use and comfort

110
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Central storage compartment
F To open the central storage compartment, pull the grip and lower the cover.
It is illuminated on opening.
A button on the upper part allows the lighting to
be deactivated.
230 V / 50 Hz power socket
A 230 V / 50 Hz socket (maximum power: 120 W)
i s fitted in the central storage box.
To use the socket:
F

o
pen the central storage box,
F

c
heck that the warning lamp is on green,
F

c
onnect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
Depending on equipment, it may contain:
-

o

ne 230 V socket,
-

o

ne 12 V socket,
-

o

ne USB port,
-

o

ne auxiliary socket In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a CITROËN dealer or a
qualified workshop. Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to the
socket will be cut off; the green warning
lamp goes off.
Ease of use and comfort

111
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
When the USB port is used, the
portable device charges automatically.
A message is displayed if the power
consumption of the portable device
exceeds the current supplied by the
vehicle.
12 V socket
The auxiliary socket is located in the central
storage box.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® type,
to listen to your music files using the vehicle's
speakers.
The management of the files is done using your
portable device. The USB port is located in the central storage
compartment.
It allows the connection of a portable device or
a USB memory stick.
It plays the audio files transmitted to your audio
system and heard via the vehicle's speakers.
You can manage these files using the steering
mounted or touch screen controls.
Auxiliary socket
USB port
For more information on the use of this
equipment, refer to the "Audio and telematics"
supplement.
F

T

o connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
Do not exceed the maximum power
rating of the socket (other wise there is a
risk of damaging your portable device).
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
Ease of use and comfort

112
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

u
nclip the fixings,
F

r
emove the mat.
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet. To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
To refit the mat on the driver's side:
F

p
osition the mat correctly,
F
r
efit the fixings by pressing,
F
c
heck that the mat is secured correctly.
Fitting
Removal
Refitting
Storage boxes
F Raise the grip and lower the storage box
c ove r.
Opening
Do not place heavy objects in the
boxes.
Depending on equipment, storage boxes are
located under the front seats.
Ease of use and comfort

113
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Storage below
the steering wheel
This storage compartment below the steering
wheel is intended for stowing your vehicle's
handbook pack.
Rear fittings
Aircraft-style rear tables
These tables, fitted to the backs of the front
seats, incorporate a cup-holder recess A and a
retaining strap B .
F

P
ull the table downwards to open.
F

T
o stow the table, raise it until the latch
locks.
For safety reasons, these tables collapse
downwards if excessive pressure is exerted on
them. Reading lamps C may be fitted in the front seat
backrests, behind the tables. They illuminate
the sur face of the tables without disturbing the
other passengers.
They can be used only while the table is down.
F

P
ress the "
On/Of
f " button to turn the lamp
on or off.
Individual reading lamps
Rear table stowed
Rear table opened
3
Ease of use and comfort

114
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

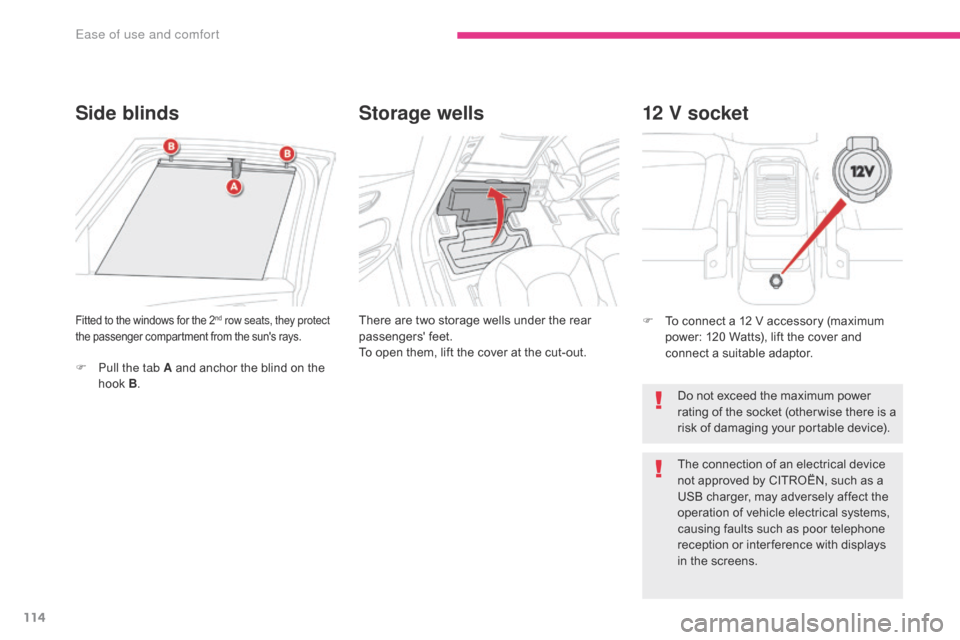

Side blindsStorage wells
There are two storage wells under the rear
passengers' feet.
To open them, lift the cover at the cut-out.Fitted to the windows for the 2nd row seats, they protect
the passenger compartment from the sun's rays.
F Pull the tab A and anchor the blind on the hook B .
12 V socket
F To connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
Do not exceed the maximum power
rating of the socket (other wise there is a
risk of damaging your portable device).
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Ease of use and comfort

115
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Rear multimedia
This multimedia system allows rear passengers
to connect one or two external portable
systems (audio or video player, games
consoles, DVD player...). The sound is played
through two Bluetooth
® wireless headphone
sets, while the video content is displayed in
two

7-inch screens built into the backs of the
front seat head restraints.
Description
This system operates only with the
engine running. The pack includes:
-

t
he connection and control panel fitted on
the rear face of the centre console,
-
t
wo 7-inch screens built into the front head
restraints (with protective covers),
-
t
wo wireless Bluetooth technology
headphone sets with rechargeable
batteries,
-
a 1
2 V charger with two outlets allowing the
simultaneous charging of two headphones.
1.
P
ower switch
2.
A
V1 video input (yellow RCA socket)
3.
S
tereo audio input A (red and white
RCA sockets)
4.
A
V2 video input (yellow RCA socket)
5.
S
tereo audio input B (red and white
RCA sockets)
6.
S
election of display in the left-hand screen
(AV1 or AV2)
7.
S
election of display in the right-hand
screen (AV1 or AV2)
8. C onnection indicator lamps for the
Bluetooth audio headphones (blue)
3
Ease of use and comfort

116
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
1. Screen power switch
2. Display adjustment buttons
Each headphone set has a switch,
a connection indicator lamp (blue)
and a channel selector (A or B). F
W ith the engine running, connect your
portable system to the RCA connectors
(e.g. with AV1 on the left).
F

P
ress the switch on the control panel, the
indicator lamp comes on and
the AV1 indicator lamps come on.
F

M
ake a long press on the switch, its
indicator lamp flashes in blue.
F

M
ake a long press on the control panel
switch, the pairing with the headphone set
is complete when the blue indicator lamps
on the headphones and on the system are
on continuously.
F

R
epeat the operation for the other
headphone set.
F

P
ress the screen switch if you have a video
source.
F

S
tart playing your portable system.
Operation
The Multimedia system allows the
connection of a third Bluetooth
headphone set, not supplied.
If your seat is in the table position,
position a cover to avoid damaging the
screen.
These covers also conceal each
screen.
F

I

t is possible at any time to modify the
source for the video display (using button 6
or 7 on the control panel: the indicator lamp
for the source selected comes on) as well
as the audio channel (using the selector on
the headphones).
Ease of use and comfort

117
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Boot fittings
1. Rear parcel shelf (see details on a following page)
2.
H

ooks
(

see details on a following page)
3.


To r c h
(

see details on a following page)
4.
St

orage net
5.
L

ashing eyes
6.
1

2 V socket (maximum power: 120 Watts)
3
Ease of use and comfort

118
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then remove it.
Rear parcel shelf
There are several options for storing the shelf:
- e ither upright behind the front seats,
-

o
r flat at the base of the boot. The hooks can be used to secure shopping
bags.
Hooks
