Citroen JUMPER DAG 2008.5 2.G Owner's Manual

161
9
TECHNICAL DATA
Weights

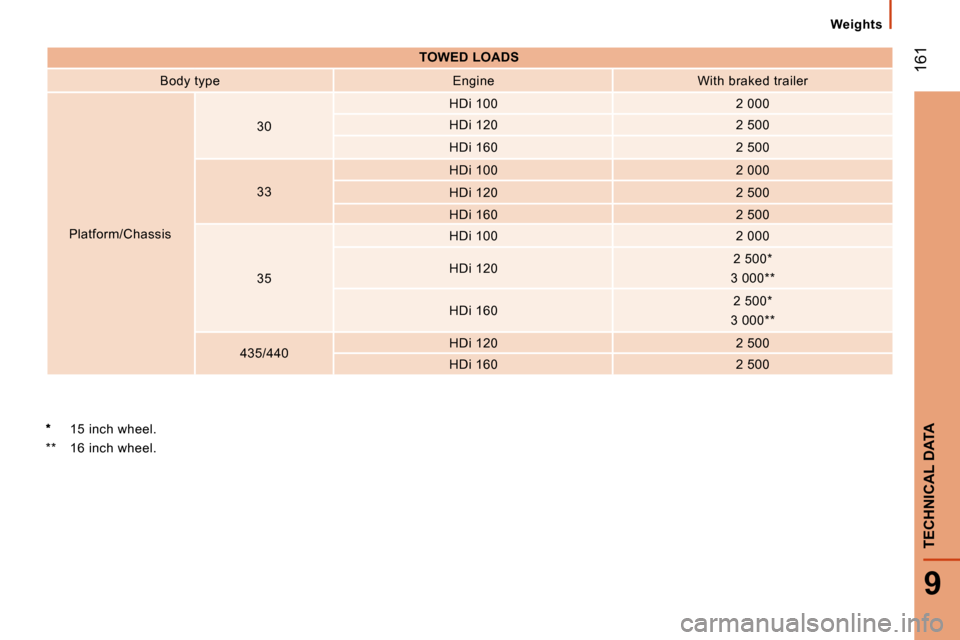

TOWED LOADS
Body type Engine With braked trailer
Platform/Chassis 30
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
33 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
35 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500
15 inch wheel.

** 16 inch wheel.

162
Weights

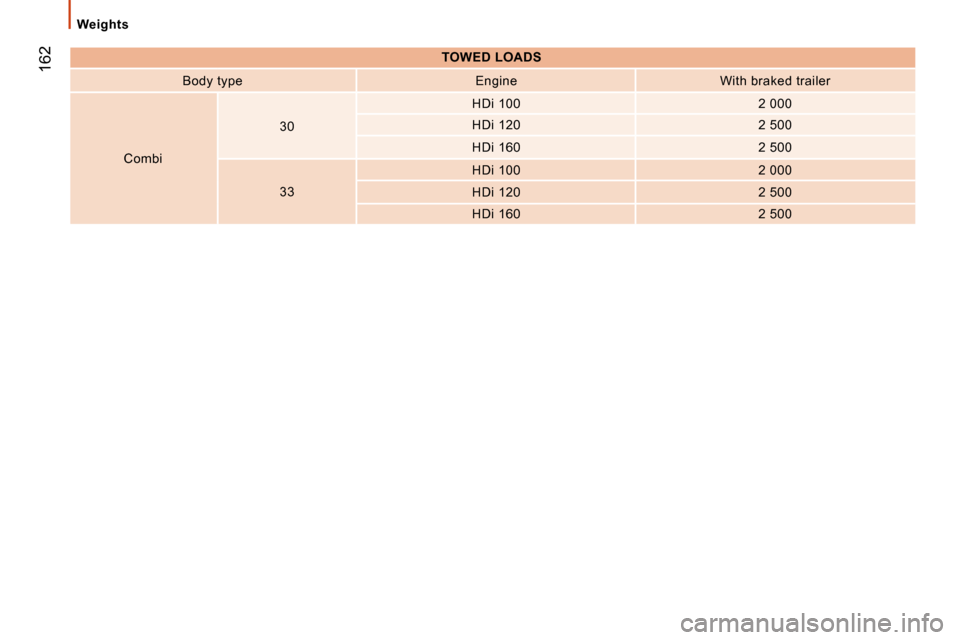

TOWED LOADS
Body type Engine With braked trailer
Combi 30
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
33 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500

163
9
TECHNICAL DATA

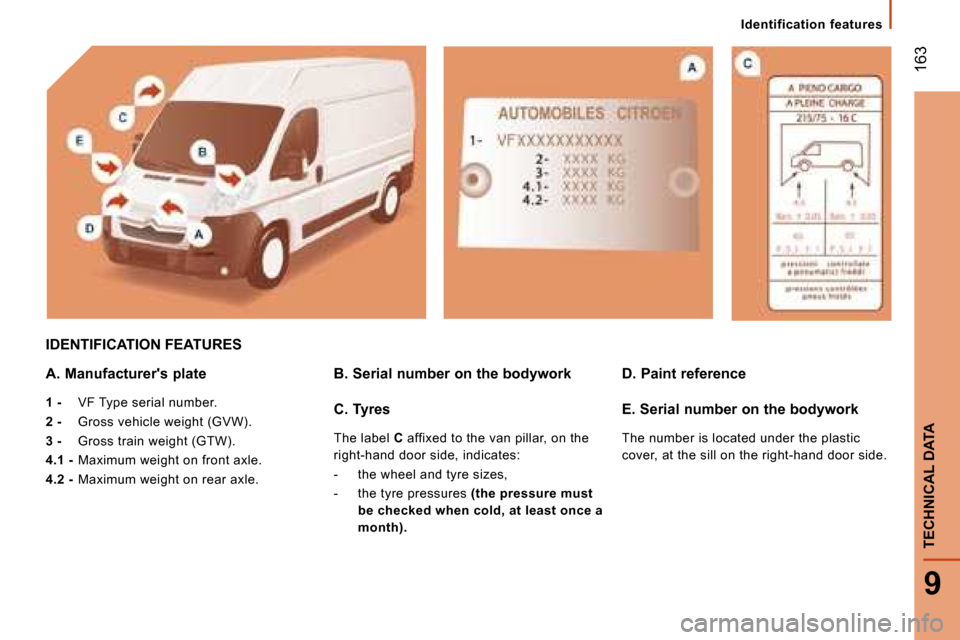

Identification features
IDENTIFICATION FEATURES
A. Manufacturer's plate

1 - VF Type serial number.

2 - Gross vehicle weight (GVW).

3 - Gross train weight (GTW).

4.1 - Maximum weight on front axle.

4.2 - Maximum weight on rear axle. B. Serial number on the bodywork D. Paint referenc
e
C. Tyres
The label C affixed to the van pillar, on the
right-hand door side, indicates:
- the wheel and tyre sizes,
- the tyre pressures (the pressure must
be checked when cold, at least once a
month). E. Serial number on the bodywork
The number is located under the plastic
cover, at the sill on the right-hand door side.
