Citroen JUMPER DAG 2008.5 2.G Owner's Manual

139
TROUBLESHOOTING
8
Changing a fuse
DRIVER'S SIDE FASCIA PANEL FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation

12 7.5 Right-hand dipped headlamp

13 7.5 Left-hand dipped headlamp - Headlamp height adj uster

31 7.5 Relay supply

32 10 Minibus interior lighting - Hazard warning ligh ts

33 15 Rear 12 V socket

34 - Not used

35 7.5 Reversing lights - Water in diesel sensor

36 20 Door locking/unlocking unit

37 10 Brake lights switch - Third brake light - Instr ument panel

38 10 Interior relays

39 10 Audio equipment - Diagnostics socket - Alarm siren
- Programmable additional heating controls -
Air conditioning controls - Chronotachograph

40 15 De-icing: rear screen (left-hand side), mirror (driver's side)

41 15 De-icing: rear screen (right-hand side), mirror (passenger side)

42 7.5 ABS control unit and sensor - ESP sensor - Brak e lights switch

43 30 Windscreen wiper motor

44 20 Lighter, front 12 V socket.

45 7.5 Electric window and mirror switches (driver's s ide) - Passenger electric window

46 - Not used

47 20 Driver's electric window motor

48 20 Passenger electric window motor

49 7.5 Rain/brightness sensor - Audio equipment - Driver'
s electric window motor - Alarm -
Instrument panel controls

50 7.5 Air bags and pre-tensioners unit

51 7.5 Chronotachograph - Cruise control - Air conditi oning controls

52 7.5 Passenger compartment relays

53 7.5 Instrument panel - Rear fog lamps

140

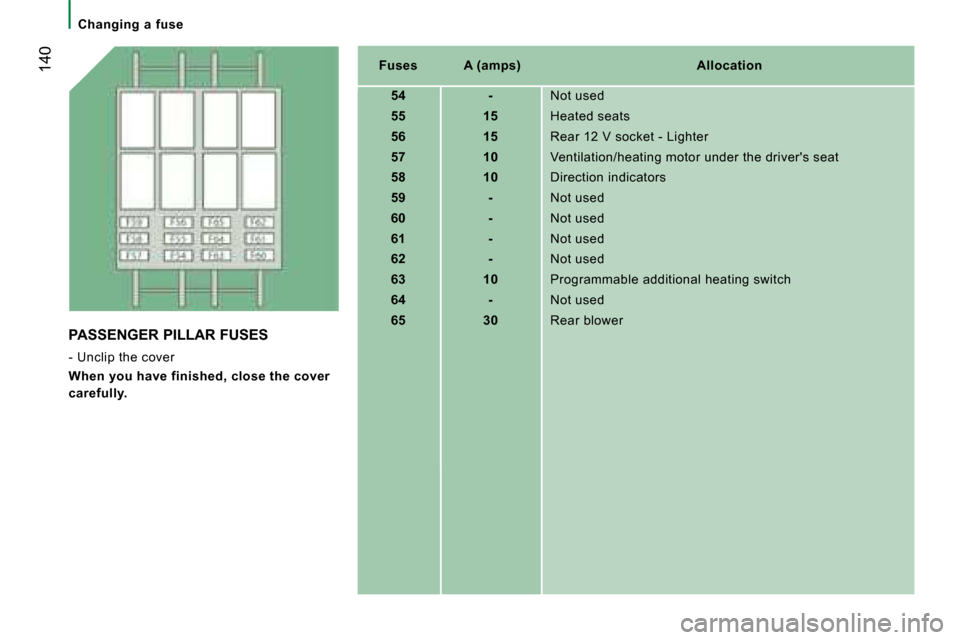

Changing a fuse
Fuses A (amps) Allocation

54 - Not used

55 15 Heated seats

56 15 Rear 12 V socket - Lighter

57 10 Ventilation/heating motor under the driver's se at

58 10 Direction indicators

59 - Not used

60 - Not used

61 - Not used

62 - Not used

63 10 Programmable additional heating switch

64 - Not used

65 30 Rear blower
PASSENGER PILLAR FUSES
- Unclip the cover

When you have finished, close the cover
carefully.

TROUBLESHOOTING
8
Changing a fuse

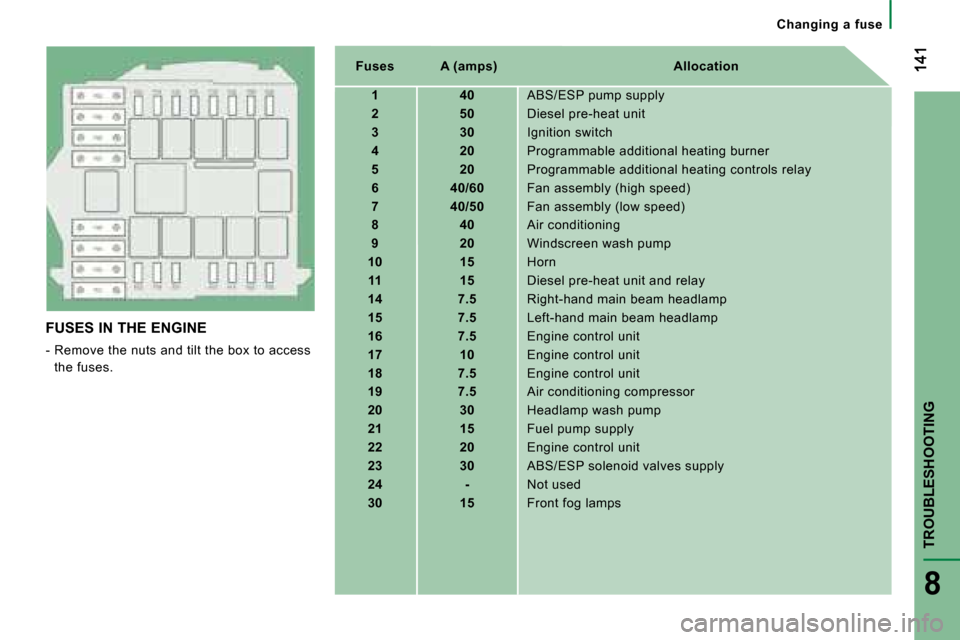

FUSES IN THE ENGINE
- Remove the nuts and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 40 ABS/ESP pump supply

2 50 Diesel pre-heat unit

3 30 Ignition switch

4 20 Programmable additional heating burner

5 20 Programmable additional heating controls rela y

6 40/60 Fan assembly (high speed)

7 40/50 Fan assembly (low speed)

8 40 Air conditioning

9 20 Windscreen wash pump

10 15 Horn

11 15 Diesel pre-heat unit and relay

14 7.5 Right-hand main beam headlamp

15 7.5 Left-hand main beam headlamp

16 7.5 Engine control unit

17 10 Engine control unit

18 7.5 Engine control unit

19 7.5 Air conditioning compressor

20 30 Headlamp wash pump

21 15 Fuel pump supply

22 20 Engine control unit

23 30 ABS/ESP solenoid valves supply

24 - Not used

30 15 Front fog lamps

142
Changing a wiper blade
CHANGING A WIPER BLADE
The sills, located in the lower front panel,
enable you to access the blades and the
wash-wipe nozzles.
Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button
and remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk.
Check that the wash-wipe or headlamp wash
nozzles are not blocked.

TROUBLESHOOTING
8
Having your vehicle towed
BEING TOWED
Without lifting
(four wheels on the ground)

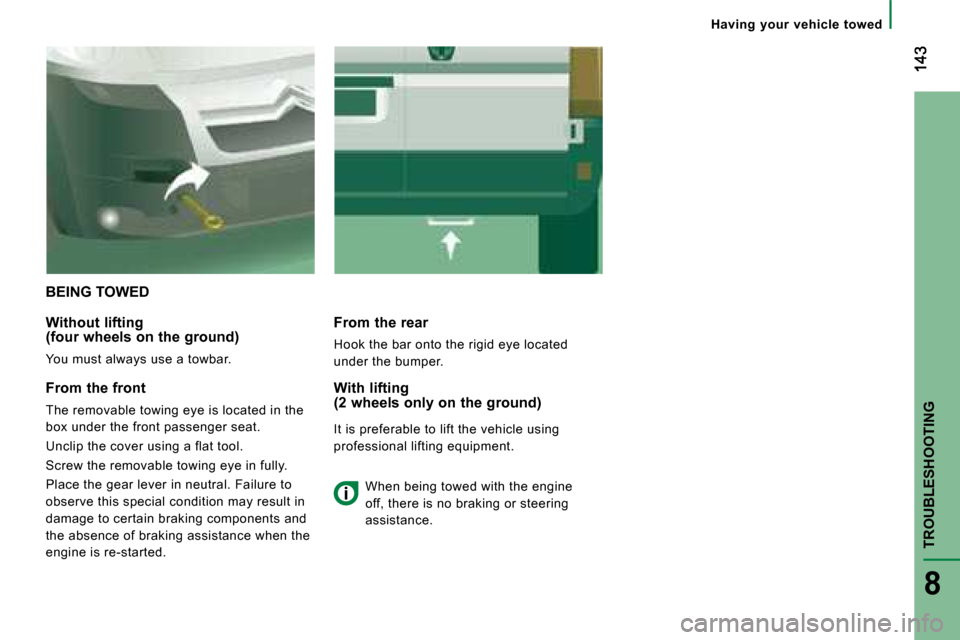

You must always use a towbar. From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started. With lifting
(2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment.
When being towed with the engine
off, there is no braking or steering
assistance.

146
Dimensions

147
9
TECHNICAL DATA

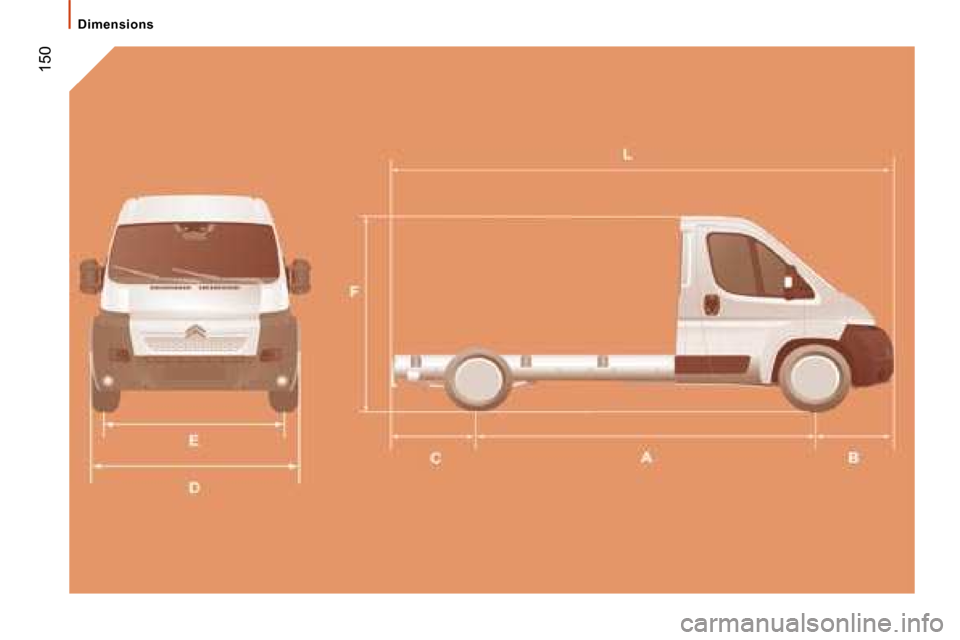

Dimensions

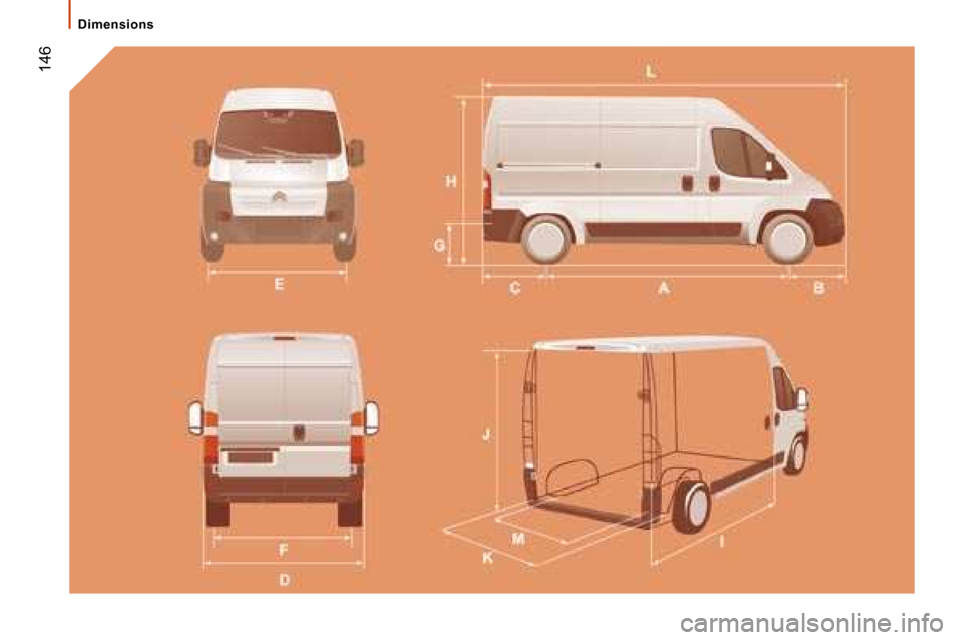

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:
Van
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 524 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front tracks 1 810
F Width of rear tracks 1 790
G Height of load sill 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422
Volume (m3) 8 10 11.5 13 15 15 17

Dimensions

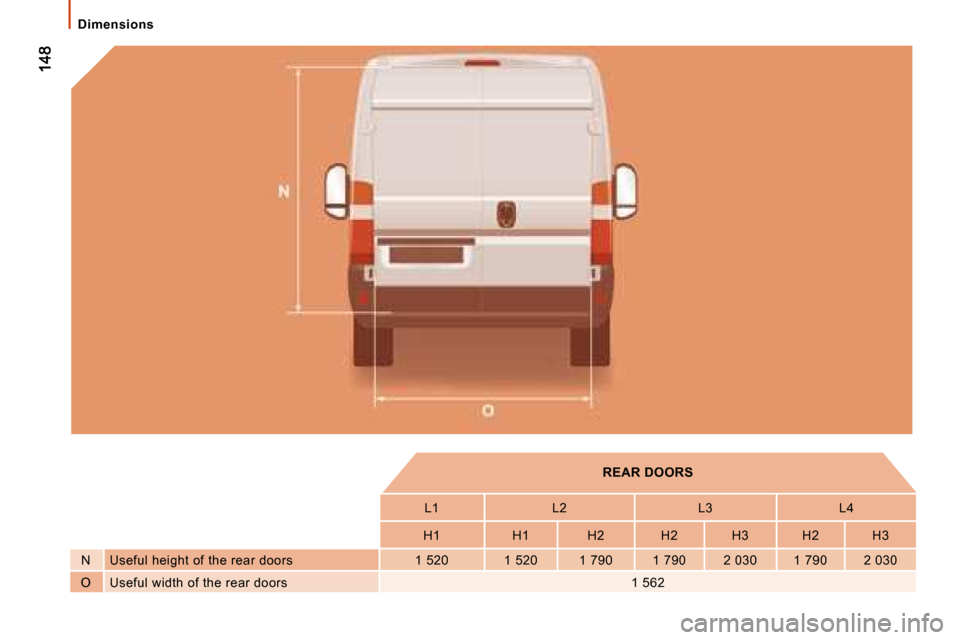

REAR DOORS
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
N Useful height of the rear doors 1 520 1 520 1 790 1 790 2 030 1 790 2 030
O Useful width of the rear doors 1 562

9
TECHNICAL DATA
Dimensions

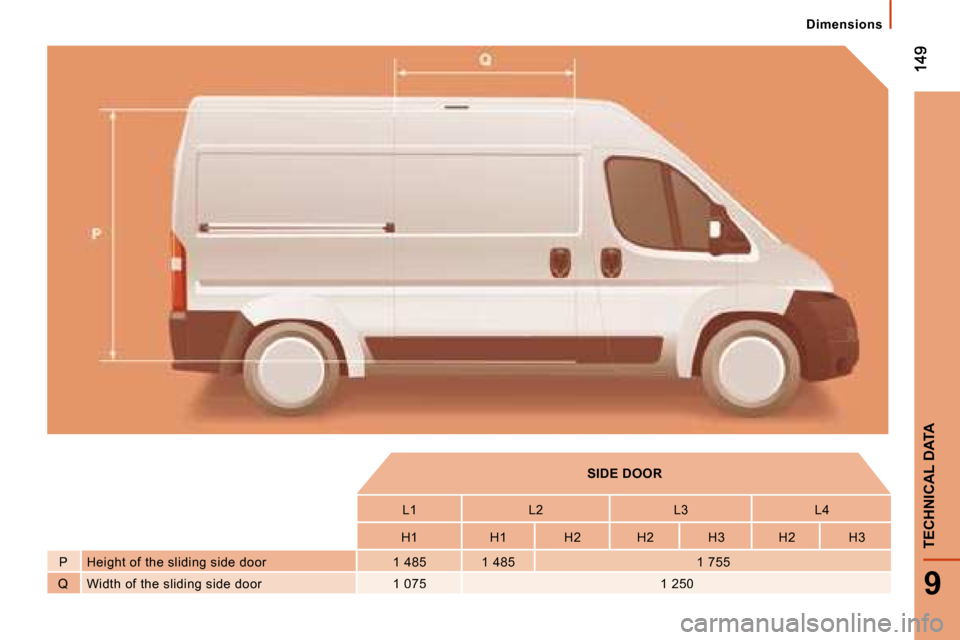

SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 485 1 755
Q Width of the sliding side door 1 075 1 250

150
