Changing a wiper blade

QUICK HEL
P
7


Placing the windscreen wiper blades
in the special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the blade
and remove it.

- Fit the new blade and push back the
wiper arm.



CHANGING A WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.

140
Having your vehicle towed

Without lifting (4 wheels on the
ground)
You should always use a towing bar.


From the front



- Unclip the cover by pressing at the
bottom,

- Fully screw in the removable towing eye.


TOWING THE VEHICLE


Lifting (2 wheels on the ground only)

It is preferable to lift the vehicle using
professional lifting equipment.


From the rear



- Unclip the cover using a coin or the flat
part of the towing eye,

- Fully screw in the removable towing eye.



Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

14
1


Having your vehicle towed

QUICK HEL
P
7


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The person at the wheel of the towed vehicle
must have a valid driving licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- 4 wheel drive vehicle,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

142
Dimensions

Dimensions

TECHNI
CAL DAT
A
8

*
Value for rear suspension.
L1
L2

H1
H1
H2

L Overall length
4 805 to 4 813
5 135 to 5 143

H Overall height
1 894 * / 1 942
2 204 * / 2 276

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830 to 838
1 038 to 1 046

D Overall width:



over panels

1 870
with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded
2 194

E Width of front track
1 562 to 1 570

F Width of rear track
1 596 to 1 604

I Length of interior floor
2 254
2 584


J Maximum interior height under roof
1 449
1 750

K Maximum interior width
1 600

M Interior width between wheel arches
1 245
Turning circle between kerbs (m)
12.18
12.59
Maximum loads (kg)



Payload

1 000 to 1 200
On roof

170
m
3

5
6
7

DIMENSIONS (MM)

The vehicle is available in 2 lengths (L1, L2) and 2 heights (H1, H2),
refer to the tables:

144
Dimensions


REAR DOORS (mm)


L1
L2

H1
H1
H2

N Usable height
1 272
1 630

O Usable width

1 237

Dimensions

TECHNI
CAL DAT
A
8




SLIDING SIDE DOOR (mm)




L1
L2



H1
H1
H2

P
Height

1 293
1 301

Q
Width

924

146
Dimensions

14
7


Dimensions

TECHNI
CAL DAT
A
8




PLATFORM CAB (mm)




L2

L Overall length

5 016

A Wheelbase

3 122

B Front overhang

975

C Rear overhang

920


Max rear body overhang
1 420

D Overall width (excluding mirrors)
1 895

E Width of front track

1 574

F Width of rear track

1 574

- Gross vehicle weight

-

- Max weight at the front
1 400

- Max weight at the rear
1 700

148

Weights

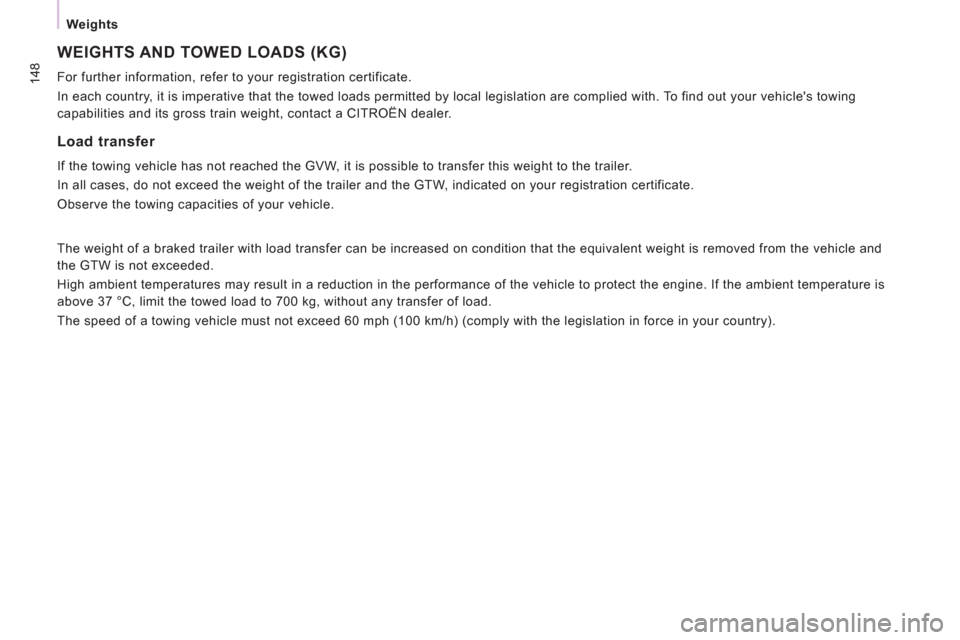

WEIGHTS AND TOWED LOADS (KG)

For further information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a CITROËN dealer.

Load transfer

If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Observe the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
