Page 55 of 140
48
Gearbox and steering wheel
Function selected,
"Speed limiter" warning lamp displayed.
Function deactivated,
last programmed speed - OFF
(e.g. 107 km/h).Function activated
(e.g. 107 km/h).
Speed exceeded
(e.g. 118 km/h),
the programmed speed flashes.
Operational fault detected,
OFF - the dashes flash.
SPEED LIMITER "LIMIT"
This function can be selected either
while driving, or while stationary with
the engine running.
The minumum speed that you can
programme is 20 mph (approx. 30 km/h).
You can accelerate up to the programmed
speed, at which point the accelerator will
reach its point of resistance, indicating that
you have reached the programmed speed.
However, if you press the pedal down to the
floor past the point of resistance, you can
exceed the programmed speed. To return
to the programmed speed, you merely need
to gradually release the pressure on the
accelerator pedal and return to a speed
below the programmed speed. Adjustments can be made while driving,
or while stationary with the engine
running.
The status of the function and the
programmed speed is displayed on the
instrument panel:
Page 56 of 140
49
1
READY TO SET OFF
Gearbox and steering wheel
Selecting the function
- Turn the ring to LIMIT position.
The speed limiter is selected but is not
yet activated. The last programmed
speed is displayed.
Programming a speed
You can programme the speed without
activating the speed limiter (with the engine
running).
To memorise a higher speed than that
already memorised:
- move the control up (+).
A short press increases the speed by 1 mph.
Holding it down increases the speed in steps
of 5 mph.
To memorise a lower speed than that
already memorised:
- move the control down (-).
A short press decreases the speed by
1 mph.
Holding it down decreases the speed in
steps of 5 mph.
Activation/deactivation (off)
A first press on this button activates the
speed limiter, a second press deactivates it
(OFF).
Page 67 of 140
61
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER
The TRIP button, located at the end of
the wipers stalk, provides access to the
following information: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for over
2 seconds to return to the main screen.
Zero reset
Press the TRIP for over 2 seconds to reset
the displayed values to zero.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line in the configuration-personalisation table on the following pages.
Page 68 of 140
62
Menu
MENU Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can
only be accessed when the ignition is off
(engine off).
Refer to the corresponding line in the
configuration-personalisation table on the
following pages.
This button enables you to:
- scroll up through a menu,
- increase a value.
This button enables you to:
- scroll down through a menu,
- decrease a value.
Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...
1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF
2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF
Deactivate
C o n fi g u r a t i o n - P e r s o n a l i s a t i o n
Level 2 and 3 displays:
The control panel located to the left of
the steering wheel provides access to
the display menus, which allow you to
personalise some of your equipment.
This button enables
you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
welcome screen.
Page 69 of 140
63
3
IN-CAR TECHNOLOGY
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour
4 Set the date Year/Month/Day Increase
Set the date.
Decrease
5 See radio ON
Display the name of the station.
Display the CD track number.
OFF
6 Autoclose While moving ON
Activate/Deactivate the
automatic locking of the doors
above 12 mph (20 km/h)
OFF
7 Measurement
unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the consumption display
unit.
l/100 km
8 Language List of languages
available
Select the display language.
9 Volume of
announcements Increase
Increase/decrease the volume
of signals and warnings (the
volume changes immediately
when the button is pressed).
Decrease
Page 70 of 140
64
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease
11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.
12 Bag
(passenger
air bag) ON
Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No
13 Exit from
menu
Exit from the menu. Press the
arrow at the bottom to go to
the first menu.
Page 71 of 140
65
3
IN-CAR TECHNOLOGY
P a r k i n g a s s i s t a n c e
AUDIBLE REAR PARKING ASSISTANCE
The audible system consists of four
proximity sensors, installed in the rear
bumper.
It detects any obstacle (e.g. person, vehicle,
tree, fence) which enters the field behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it. Stop the assistance
Change to neutral.
O p e r a t i n g f a u l t
If this warning lamp or the service
warning lamp lights up on the
instrument panel, accompanied
by a message on the display,
contact your CITROËN dealer.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
E n g a g e r e v e r s e g e a r
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by CITROËN and have it
installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning light comes on,
possibly accompanied by a message on the
display.
Page 73 of 140
67
3
IN-CAR TECHNOLOGY
Audio equipment
"AUDIO FUNCTIONS MENU"
R D S S y s t e m " A F S w i t c h i n g "
The RDS system (Radio Data System)
allows you to keep listening to the same
station, whatever the frequency it uses in
different areas where you may be driving.
The radio permanently searches for the
transmitter offering the best reception.
Press on the " " or " " button to activate
(ON) or deactivate (OFF) the RDS function.
When on the FM band, "AF" appears on the
display, if the RDS function is activated and
if the station broadcasts on RDS.
T r a f fi c I n f o r m a t i o n " T r a f fi c I n f o "
Any traffic news will be broadcast whatever
audio source you are currently listening to.
The EON system (Enhanced Other
Networks) links stations belonging to the
same network.
R e g i o n a l t r a c k i n g m o d e " R e g i o n a l M o d e "
Some stations, organised by network,
broadcast regional programmes in the
various regions that they serve. The regional
tracking mode allows you to prioritise
listening to the same programme.
Press on the " " or " " button to activate (ON)
or deactivate (OFF) the REG function.
When on the FM band, "LOC" is displayed,
if the REG function is activated and if the
station finds a local frequency.
MP3 Display "MP3 Display"
Press on the " " or " " button to display
the track number or the MP3 CD information
(Play/Album/Folder/File/Title/Time elapsed).
Automatic volume adjustment "Speed Volume"
Press on the " " or " " button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic volume adjustment
according to the speed of the vehicle.
It allows traffic information to be broadcast
from a station belonging to the same
network as the station being listened to.
The volume of traffic information is
independant of the volume of other audio
sources. You can adjust it using the volume
button whilst it is being broadcast; this will
be memorised for the next broadcast.
Press on the " " or " " button to activate
(ON) or deactivate (OFF) the TA function.
When on the FM band, "TA" appears on
the display if the TA function is activated
and "TPM" if the station broadcasts traffic
information. External sound volume "External Audio Vol"
Press on the " " or " " button to
reduce (down to 0), increase (up to 40) or
deactivate (OFF) the volume of the external
source (e.g. hands-free kit).
P r o g r a m m e d s w i t c h o f f " R a d i o O f f "
Press on the " " or " " button to set
the time for switching off to "00 MIN" or
"20 MIN".
This countdown is recorded with the doors
closed, and the key in position STOP.
Default values "Restore Default"
Press on the " " or " " button to retain the
modified values (NO) or reset to the default
values (YES).
"Restoring" is displayed during the resetting
of the configuration values.
"MP3" is displayed if the function is activated
and if the CD contains tracks in MP3 format. Press the MENU button of the
radio system to access the
"Audio Functions" menu.
Press the " " or " " button
to select one of the audio
functions to be configured as
below.

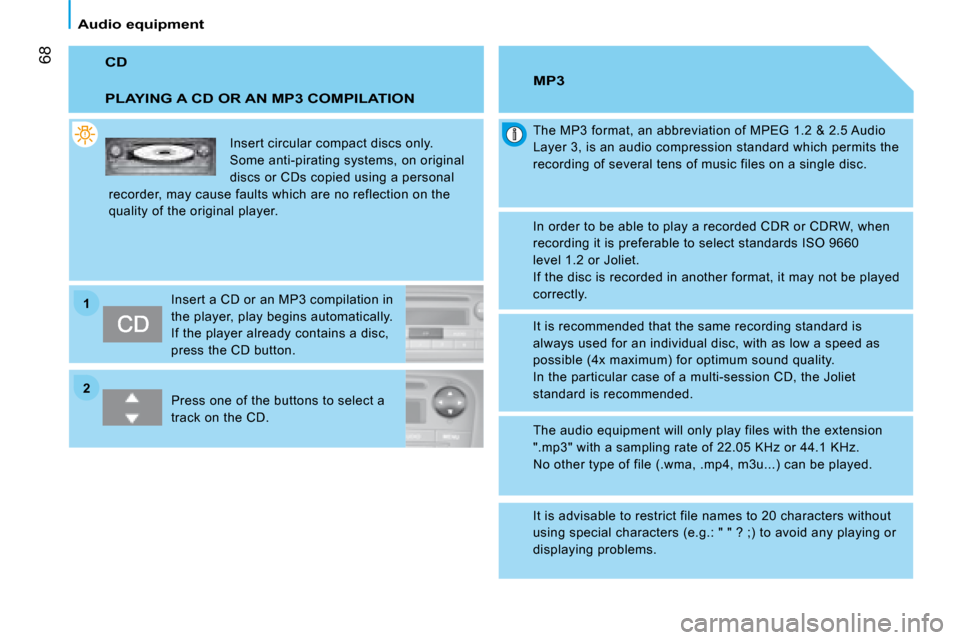

Page 74 of 140
22
11
68
Audio equipment
CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.
Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD. The MP3 format, an abbreviation of MPEG 1.2 & 2.5
Audio
Layer 3, is an audio compression standard which per mits the
recording of several tens of music files on a singl e disc.
MP3
In order to be able to play a recorded CDR or CDRW , when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.
No other type of file (.wma, .mp4, m3u...) can be p layed.
It is advisable to restrict file names to 20 chara cters without
using special characters (e.g.: "
" ? ;) to avoid any playing or
displaying problems.
Page 75 of 140
69
3
IN-CAR TECHNOLOGY
Mobile telephone with hands-free function
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
This new equipment uses Bluetooth®
wireless communication technology which
allows you to make hands-free telephone
calls safely from inside your vehicle, via your
Bluetooth ®
compatible mobile telephone. An incoming call is picked up by pressing
the button represented by a green
telephone. The sound of the telephone call
is transmitted via the vehicle’s audio system.
The microphone is incorporated in the
courtesy light console.
Hang up by pressing the button represented
by a red telephone.
First connection to the system
Turn the ignition key to positionRUNNING.
Switch on your mobile telephone.
Activate the Bluetooth® function on your
mobile telephone and search for Bluetooth®
devices present around the telephone.
Follow the instructions on your mobile
telephone during the matching process and
the searching between the telephone and
the system.
Enter the connection code "1234" and
confirm.
Your mobile telephone is now connected
in Bluetooth® mode with the vehicle’s
hands-free system (matching).
Activation of the system
Once your mobile telephone has been matched with the vehicle’s hands-free system, simply ensure that:
- you turn the ignition key to the RUNNING
position,
- your mobile telephone is switched on,
- the Bluetooth® function is activated on your mobile telephone.
When the connection is established, an audible signal is emitted and the message "Phone" appears on the audio system’s
display, if it is on. For further information, consult a CITROËN
dealer, as well as your mobile telephone
manual.
