CITROEN NEMO 2013 Handbook (in English)

69
3
TECHNOLOGY on BOARD
Menu


Level 2
screen

:


Menu…


Press…




Sub-
menu…



Press…


Select…


Confirm
and exit


Enables you to…


1
Speed Beep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value. Decrease
OFF

2
Activate Trip B ON Activate
Display a second trip, "Trip B".
OFF Deactivate The control panel located beside the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems. Eight languages are available: Italian,
English, German, French, Spanish,
Portuguese, Dutch and Turkish.
As a safety precaution, the menus can only be
accessed when the ignition is off (engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

This button enables
you to:


- access the menus and
sub-menus,
This button enables you to:


- scroll up through a menu,

- increase a value.


This button enables you to:


- scroll down through a menu,

- decrease a value.


- confirm your selections within a menu,

- exit from the menus.


A long press enables you to return to the
home screen.

70
Menu

Menu…


Press…


Sub-menu…


Press…


Select…


Confirm
and exit

Enables you to…


3
Set the time Hours Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour

4
Set the date Year/Month/Day Increase
Set the date.
Decrease

5
See radio ON
Display the name of the station.
Display the CD track number.
OFF

6
Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h) OFF
7 Measurement
unit Distances Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption

km/l
Select the fuel consumption
display unit.
l/100 km

8
Language List of
languages
available Select the display language.

9

Volume of
announcements Increase
Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).
Decrease

71
3
TECHNOLOGY on BOARD
Menu

Menu…


Press…


Sub-menu…


Press…


Select…


Confirm
and exit


Enables you to…


10
Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11
Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12
Bag
(passenger's
airbag) ON Ye s
Activate the passenger's airbag.
No
OFF Ye s
Deactivate the passenger's
airbag.
No

13
Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

72



Parking sensors


REAR PARKING SENSORS

The audible system consists of four
proximity sensors, fitted in the rear bumper.
It detects any obstacle which comes within
range: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
This system does not take the place of the
vigilance and responsibility of the driver.
Stop the assistance

Change to neutral.


Operating fault

If this warning lamp or the service
warning lamp comes on in the
instrument panel, accompanied
by a message in the screen,
contact a CITROËN dealer or a
qualified workshop.


Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.


Engage reverse gear

The proximity information is indicated by an
audible signal which becomes more frequent
as the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by CITROËN and have it
installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning lamp comes on,
possibly accompanied by a message in the
screen.
72

73
3
TECHNOLOGY on BOARD

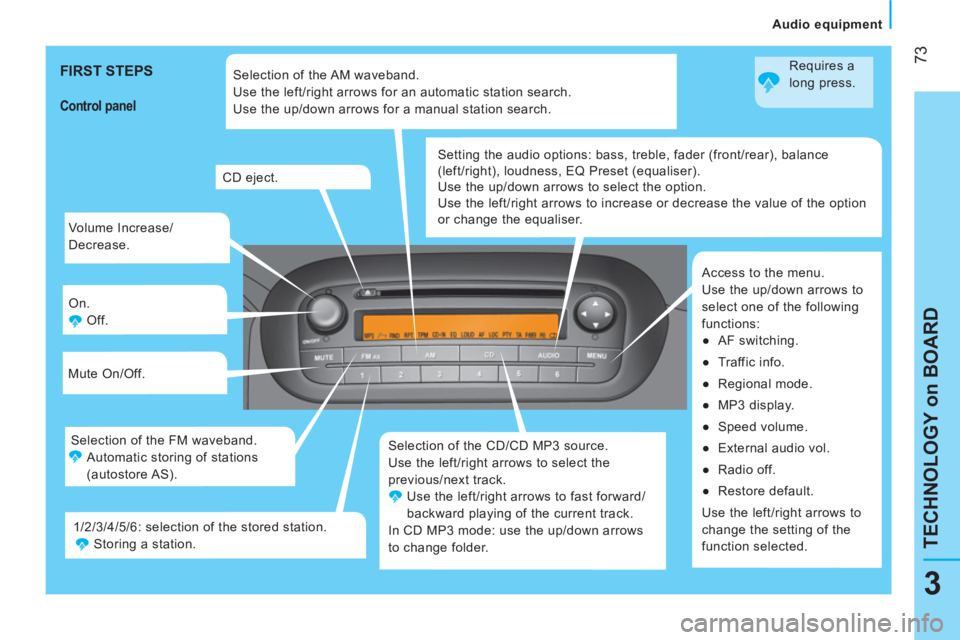

Audio equipment


Volume Increase/
Decrease.
On.
Off.
Mute On/Off.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track.

Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (front/rear), balance
(left/right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:


●
AF switching.

●
Traffic info.

●
Regional mode.

●
MP3 display.

●
Speed volume.

●
External audio vol.

●
Radio off.

●
Restore default.
Use the left/right arrows to
change the setting of the
function selected. CD eject.
Selection of the FM waveband.

Automatic storing of stations
(autostore AS). Selection of the AM waveband.
Use the left/right arrows for an automatic station search.
Use the up/down arrows for a manual station search.
1/2/3/4/5/6: selection of the stored station.
Storing a station.


Control panel

FIRST STEPS
Requires a
long press.

74



Audio equipment


FIRST STEPS


Steering
mounted
controls

Increase volume.

Mute On/Off.

Bluetooth hands-free system * .

Reduce volume.
RADIO: select the next preset station
down.
CD: select the previous track.
CD MP3: select the previous folder.


Change audio source: RADIO/
CD/CD MP3.
Select waveband: FM1/FM2/
FMT/MW/LW.

Bluetooth hands-free system * .

RADIO: select the next preset station up.
CD: select the next track
CD MP3: select the next folder.
*
For more information on the using the Bluetooth hands-free system,
refer to the corresponding section.

75
3
TECHNOLOGY on BOARD



Audio equipment


"AUDIO FUNCTIONS" MENU


RDS "AF Switching"

The RDS (Radio Data System) enables you
to continue listening to the same station,
regardless of the frequency that it uses in
your current location. The audio equipment
continuously searches for the transmitter
which offers the best reception for the
station.
Press the "" or "" button to activate (ON)
or deactivate (OFF) the RDS.
On the FM waveband, "AF" appears on
the display if the RDS is activated and the
station is broadcasting with the RDS.


"Traffic Info"

All traffic information announcements will be
given priority regardless of which source is
currently playing.
The EON (Enhanced Other Networks)
system links stations which belong to the
same network. It allows you to receive traffic
information transmitted by a station which
belongs to the same network as the station
to which you are listening.

"Regional Mode"

Some stations, organised in a network,
broadcast regional programmes in the
various areas which they serve. The regional
mode allows you to choose to continue
listening to the same programme.
Press the "" or "" button to activate (ON)
or deactivate (OFF) the REG function.
On the FM waveband, "LOC" appears on the
display if the REG function is activated and
the station finds a local frequency.


"MP3 Display"

Press the "" or "" button to display the
track number or the MP3 CD information
(Artist/Album/Folder/File/Title/Time elapsed).

Automatic volume control
"Speed Volume"
Press the "" or "" button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic control of the volume in
relation to the vehicle speed. The volume of the traffic information is
independent of the volume of the other
sources. You can adjust it using the volume
button during traffic announcements;
this setting will be stored for the next
announcement.
Press the "" or "" button to activate (ON)
or deactivate (OFF) the TA function.
On the FM waveband, "TA" appears on the
display if the TA function is activated and
"TPM" appears if the station broadcasts
traffic information.


"External Audio Vol"

Press the "" or "" button to decrease
(down to 0 minimum), increase (up to
40 maximum) or deactivate (OFF) the
volume of the external source (e.g.: hands-
free kit).


Programmed switching off "Radio Off"

Press the "" or "" button to programme
the switch-off time of "00 MIN" or "20 MIN".
This countdown is taken into account with
the doors closed and the key in the STOP
position.


"Restore Default"

Press the "" or "" button to retain the
modified values (NO) or restore the default
values (YES).
"Restoring" appears on the display during
the resetting of the configuration values. "MP3" appears on the display if the function
is activated and the CD contains tracks in
the MP3 format. Press the MENU button
on the audio equipment to
gain access to the "Audio
functions" menu.
Press the "" or "" button to
select one of the confi gurable
audio functions below.

2 1
76



Audio equipment


CD

PLAYING A CD OR AN MP3 COMPILATION

Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.


Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD. The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.
MP3

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.
No other type of file (.wma, .mp4, m3u…) can be played.
It is advisable to restrict file names to 20 characters without
using special characters (e.g.: " " ? ;) to avoid any playing or
displaying problems.

77
TECHNOLOGY on BOARD

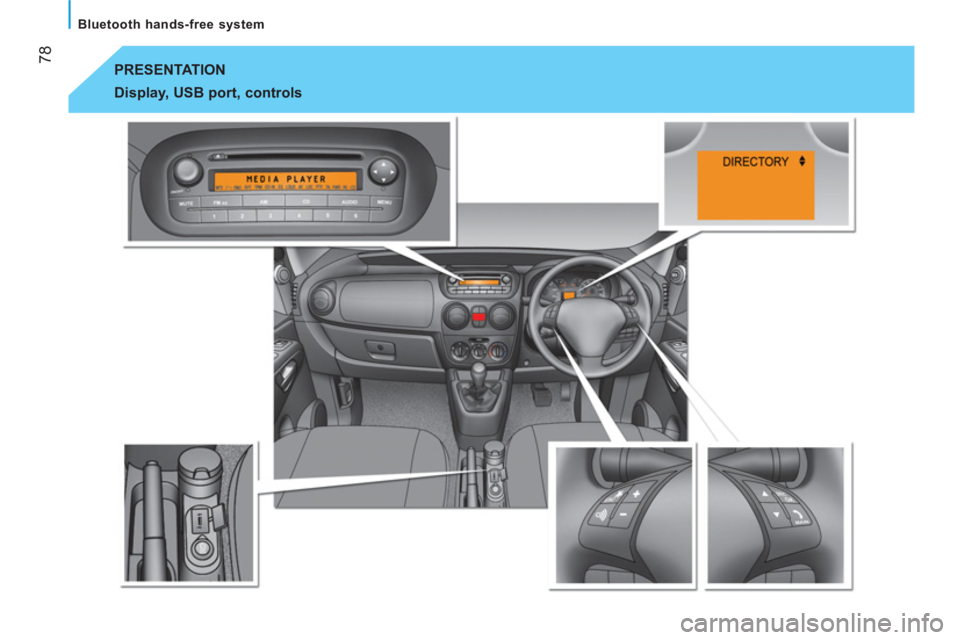

Bluetooth hands-free system
3

INTRODUCTION

This system allows you to:


- send and receive calls via the Bluetooth® connection with your mobile telephone,

- display the names of your contacts and numbers from the directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files from a USB storage device,

- display information on the track being played in the radio screen (title, artist, etc…),

- control vocally a portable music player (iPod
® type),

- recharge your portable music player (iPod
® type) via the USB port.

BLUETOOTH HANDS-FREE SYSTEM

KEY

Indicates that a long press is required to start the action described.


Voice mode

Speak the designated voice command clearly and distinctly. Requires a press on the steering mounted "voice" control before speaking the desired voice command.

78

Bluetooth hands-free system

PRESENTATION


Display, USB port, controls
